◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶

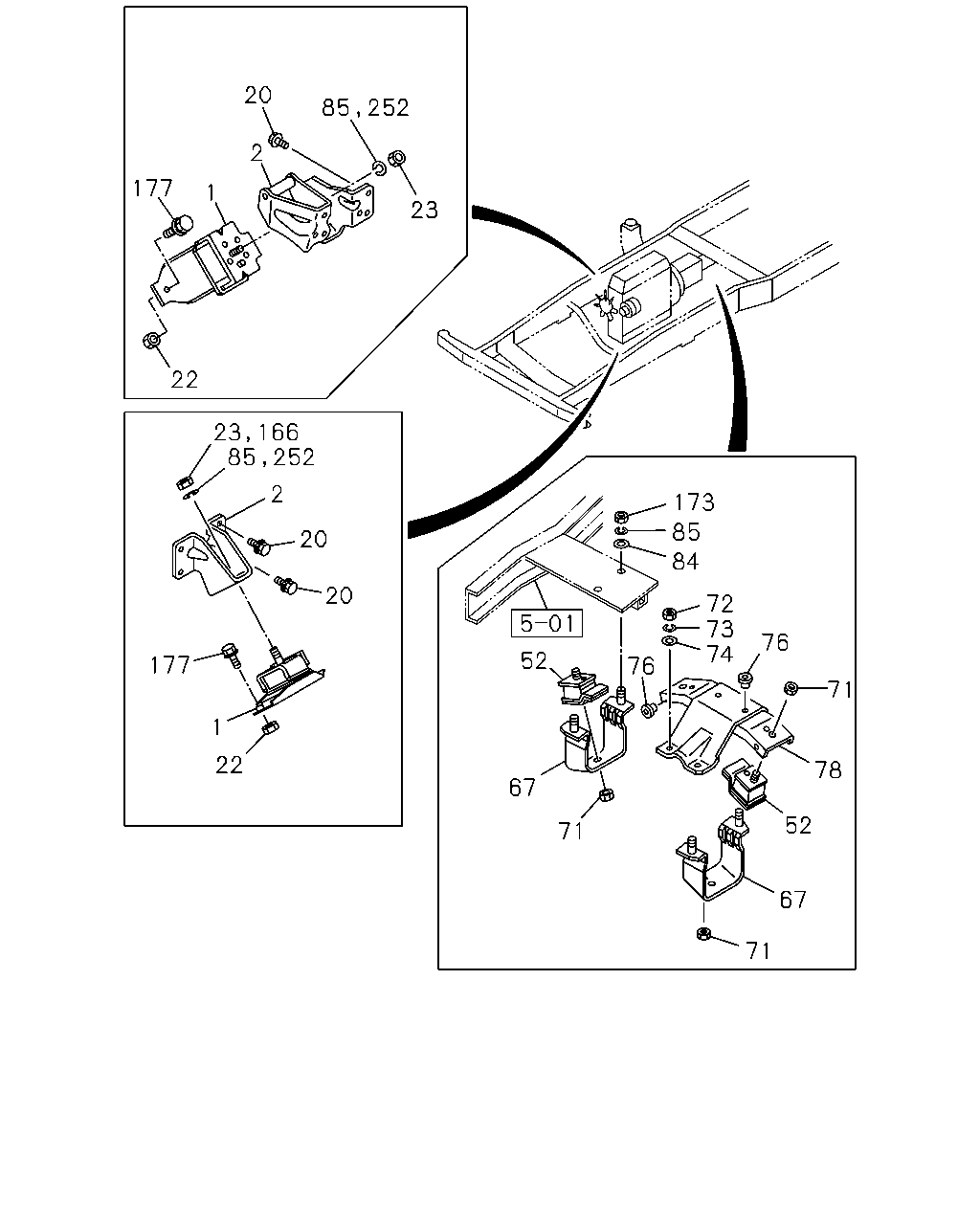

0-22 — ENGINE MOUNTING (#33100) — 37 parça
çizim 11415
20 2 177 1 23 22 2 173 85 20 84 20 72 73 74 76 52 177 76 71 1 22 78 67 52 71 67 71 85 252 23 166 85 252
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-621-0 01 1 9811- ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-620-0 01 1 9811- ● ●
2 00.029 FOOT; ENG 8-94122-052-1 01 1 9811-0107 ● ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 0108- ● ●
2 00.029 FOOT; ENG 8-97073-922-1 01 1 9811-0107 ● ●
2 00.029 FOOT; ENG 8-97287-639-1 01 1 0108- ● ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> 02.277 M10X22 W/LK WASHER 		0-50041-022-0 02 1 9811- ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> 00.034 M10X28 		8-94329-952-1 02 1 9811- ●
20 00.029 BOLT; ENG FOOT
00.034 M10X28 		8-94329-952-1 02 1 9811- ●
20 00.029 BOLT; ENG FOOT
EXC. OIL COOLER<KC4> 02.277 M10X22 W/LK WASHER 		0-50041-022-0 03 1 9811- ●
20 00.029 BOLT; ENG FOOT
02.277 M10X22 W/LK WASHER 		0-50041-022-0 03 1 9811- ●
20 00.029 BOLT; ENG FOOT
EXC. OIL COOLER<KC4> 00.034 M10X28 		8-94329-952-1 01 1 9811-0004 ●
20 00.029 BOLT; ENG FOOT
TURBOCHARGER<K51> 02.277 M10X22 W/LK WASHER 		0-50041-022-0 06 1 0005- ●
20 00.029 BOLT; ENG FOOT
EXC. OIL COOLER<KC4> 00.034 M10X28 		8-94329-952-1 01 1 0005- ●
20 00.029 BOLT; ENG FOOT
00.002 M14X25 W/LK WASHER 		0-50041-425-0 01 1 9811- ● ●
20 00.029 BOLT; ENG FOOT
02.277 M10X22 W/LK WASHER 		0-50041-022-0 05 1 9811- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 M10 FLANGE 		0-91150-210-0 04 1 9811- ● ●
23 00.002 NUT; SUPPORT RUBBER,ENG FOOT
05.816 M12 		9-99110-412-0 02 1 9811-0206 ●
23 00.002 NUT; SUPPORT RUBBER,ENG FOOT
04.634 M12 		9-99110-512-0 02 1 0207- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 9811- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 9811- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 9811- ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 9811- ● ●
72 00.002 NUT; SUPPORT RUBBER TO TRANS
09.011 M10 		9-09110-410-0 04 1 9811- ● ●
73 00.002 WASHER; LK,CUSHION RUBBER TO FRA
ID=10.2 		9-09150-610-0 04 1 9811- ● ●
74 00.002 WASHER; PL,SUPPORT RUBBER TO TRA
04.085 ID=10.5 OD=22 		9-09164-610-0 02 1 9811- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 04 1 9811-0203 ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 02 1 0204- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-94133-393-2 01 1 9811- ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 9811- ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 9811- ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
06.515 ID=12.2 		9-09150-612-0 02 1 9811- ●
166 00.002 NUT; SUPPORT RUBBER
05.816 M12 		9-99110-412-0 02 1 9811-0206 ●
166 00.002 NUT; SUPPORT RUBBER
04.634 M12 		9-99110-512-0 02 1 0207- ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 9811- ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 9811- ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 9811- ●
