Isuzu WW
▶
TRUCKS
▶
FTR
▶
10626 - FTR-RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#331) — 43 parça
Tümü
A - 6HE1 STD NEG
B - 6HE1 N ENG
◀

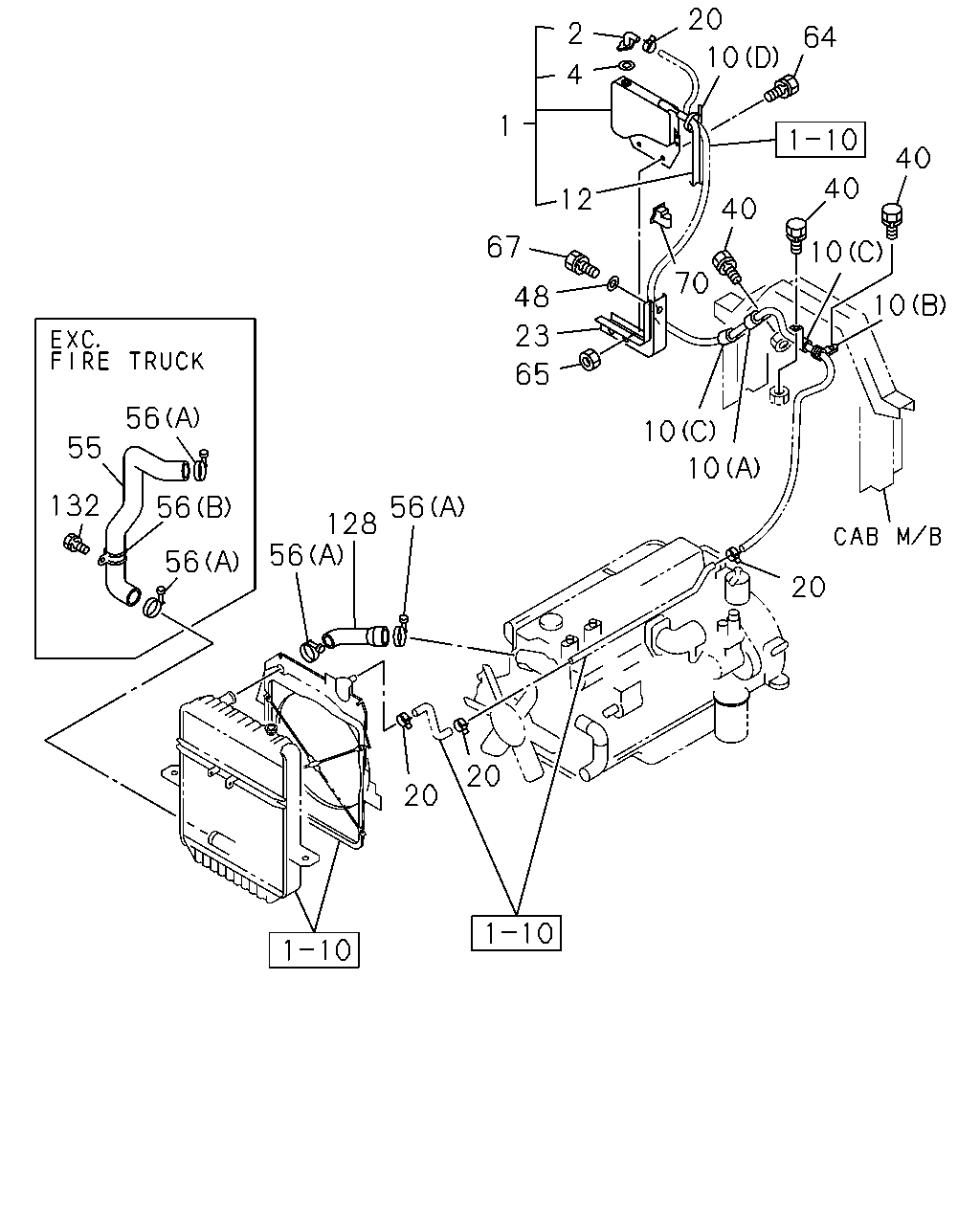

[111A] NO.1 (33 parça)
[111A] NO.2 (10 parça)
▶
20
2
64
10
4
1
40
40
12
40
67
10
70
10
48
23
65
10
56
55
10
132
56
56
128
56
56
20
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
1-21480-077-2
01
1
9202-
●
●
2
CAP; SURGE TANK
5-21483-001-1
01
1
9202-
●
●
4
GASKET; SURGE TANK
5-21489-006-0
01
1
9202-
●
●
10
CLIP; RUBBER HOSE
(C) ID=15 H=24 L=20
1-09700-606-0
02
1
9202-
●
●
10
CLIP; RUBBER HOSE
(D) L=140
5-09707-031-0
01
1
9202-
●
●
10
CLIP; RUBBER HOSE
(A) ID=13 L=40
9-09525-276-0
01
1
9202-
●
●
10
CLIP; RUBBER HOSE
(B) ID=14 L=44
9-09917-427-0
01
1
9202-
●
●
12
HOSE; SURGE TANK
L=300
1-09366-199-0
01
1
9202-
●
●
20
CLIP; HOSE,RAD
ID=12
8-94238-610-0
04
1
9202-
●
●
23
BRACKET; RESERVE TANK
1-21489-128-0
01
1
9202-
●
●
40
BOLT; CLIP
M8X18
0-28010-818-0
03
1
9202-9204
●
●
40
BOLT; CLIP
M8X18 FLANGE
0-28080-818-0
03
1
9205-9205
●
●
40
BOLT; CLIP
'92/5/18- M8X20 FLANGE
0-28080-820-0
03
1
9205-
●
●
48
WASHER; PL,BRKT FIX
FIRE TRUCK<RA9> ID=10.5 OD=18
9-09160-510-0
01
1
9202-
●
55
HOSE; WATER,RAD OUTLET
1-21437-361-0
01
1
9202-
●
55
HOSE; WATER,RAD OUTLET
EXC. FIRE TRUCK<RA9>
1-21437-361-0
01
1
9202-
●
56
CLIP; WATER HOSE,RAD
(B) ID=60
1-09700-842-1
01
1
9202-
●
56
CLIP; WATER HOSE,RAD
EXC. FIRE TRUCK<RA9> (B) ID=60
1-09700-842-1
01
1
9202-
●
56
CLIP; WATER HOSE,RAD
(A) ID=63
1-09704-067-0
04
1
9202-
●
56
CLIP; WATER HOSE,RAD
EXC. FIRE TRUCK<RA9> (A) ID=63
1-09704-067-0
04
1
9202-
●
56
CLIP; WATER HOSE,RAD
FIRE TRUCK<RA9> (A) ID=63
1-09704-067-0
02
1
9202-
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-074-0
04
1
9202-
●
●
65
NUT; BRKT,SUB TANK
M8
9-09110-408-0
04
1
9202-
●
●
67
BOLT; BRKT
M10X20 W/LK WASHER
0-50041-020-0
02
1
9202-9312
●
●
67
BOLT; BRKT
M10X20 FLANGE
0-28081-020-0
02
1
9401-
●
●
70
CLIP; PIPE,OVERFLOW
ID=9.5
5-09709-020-0
01
1
9202-9405
●
●
128
HOSE; WATER,RAD INL
1-21437-356-0
01
1
9202-
●
●
132
BOLT; CLIP,WATER HOSE,OUTLET
M8X18
0-28010-818-0
01
1
9202-9204
●
132
BOLT; CLIP,WATER HOSE,OUTLET
EXC. FIRE TRUCK<RA9> M8X18
0-28010-818-0
01
1
9202-9204
●
132
BOLT; CLIP,WATER HOSE,OUTLET
M8X18 FLANGE
0-28080-818-0
01
1
9205-9207
●
132
BOLT; CLIP,WATER HOSE,OUTLET
EXC. FIRE TRUCK<RA9> M8X18 FLANGE
0-28080-818-0
01
1
9205-9207
●
132
BOLT; CLIP,WATER HOSE,OUTLET
M8X20 FLANGE
0-28080-820-0
01
1
9208-
●
132
BOLT; CLIP,WATER HOSE,OUTLET
EXC. FIRE TRUCK<RA9> M8X20 FLANGE
0-28080-820-0
01
1
9208-
●

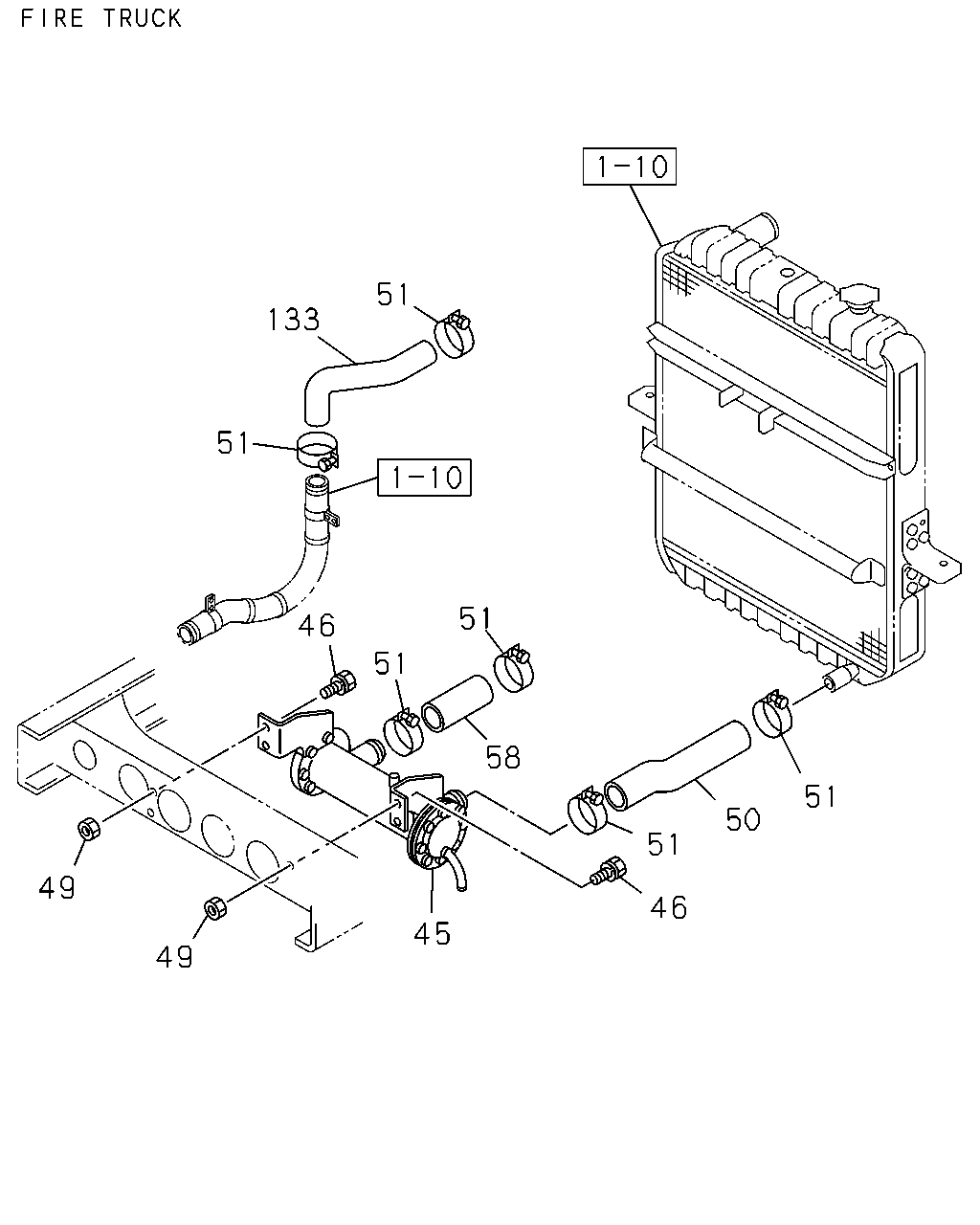

51
133
51
46
51
51
58
51
50
51
49
46
45
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
45
RADIATOR; SUB
FIRE TRUCK<RA9>
1-21410-535-1
01
1
9202-
●
46
BOLT; BRKT TO SUB RAD
FIRE TRUCK<RA9> M8X18 FLANGE
0-28080-818-0
04
1
9202-9207
●
46
BOLT; BRKT TO SUB RAD
FIRE TRUCK<RA9> M8X20 FLANGE
0-28080-820-0
04
1
9208-
●
49
NUT; BRKT TO SUB RAD
FIRE TRUCK<RA9> M8
9-09110-408-0
04
1
9202-
●
50
HOSE; WATER,RAD TO SUB RAD
FIRE TRUCK<RA9>
1-21437-410-0
01
1
9202-
●
51
CLIP; WATER HOSE,RAD
FIRE TRUCK<RA9> ID=63
1-09704-067-0
05
1
9202-9207
●
51
CLIP; WATER HOSE,RAD
FIRE TRUCK<RA9> ID=63
1-09704-067-0
06
1
9208-
●
51
CLIP; WATER HOSE,RAD
FIRE TRUCK<RA9> ID=68
1-09704-074-0
01
1
9202-9207
●
58
HOSE; WATER,RAD TO PIPE
FIRE TRUCK<RA9> L=120
1-09360-543-0
01
1
9202-
●
133
HOSE; WATER,RAD,PIPE TO ENG
FIRE TRUCK<RA9>
1-21437-411-0
01
1
9202-
●
