0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#33099) — 66 parça

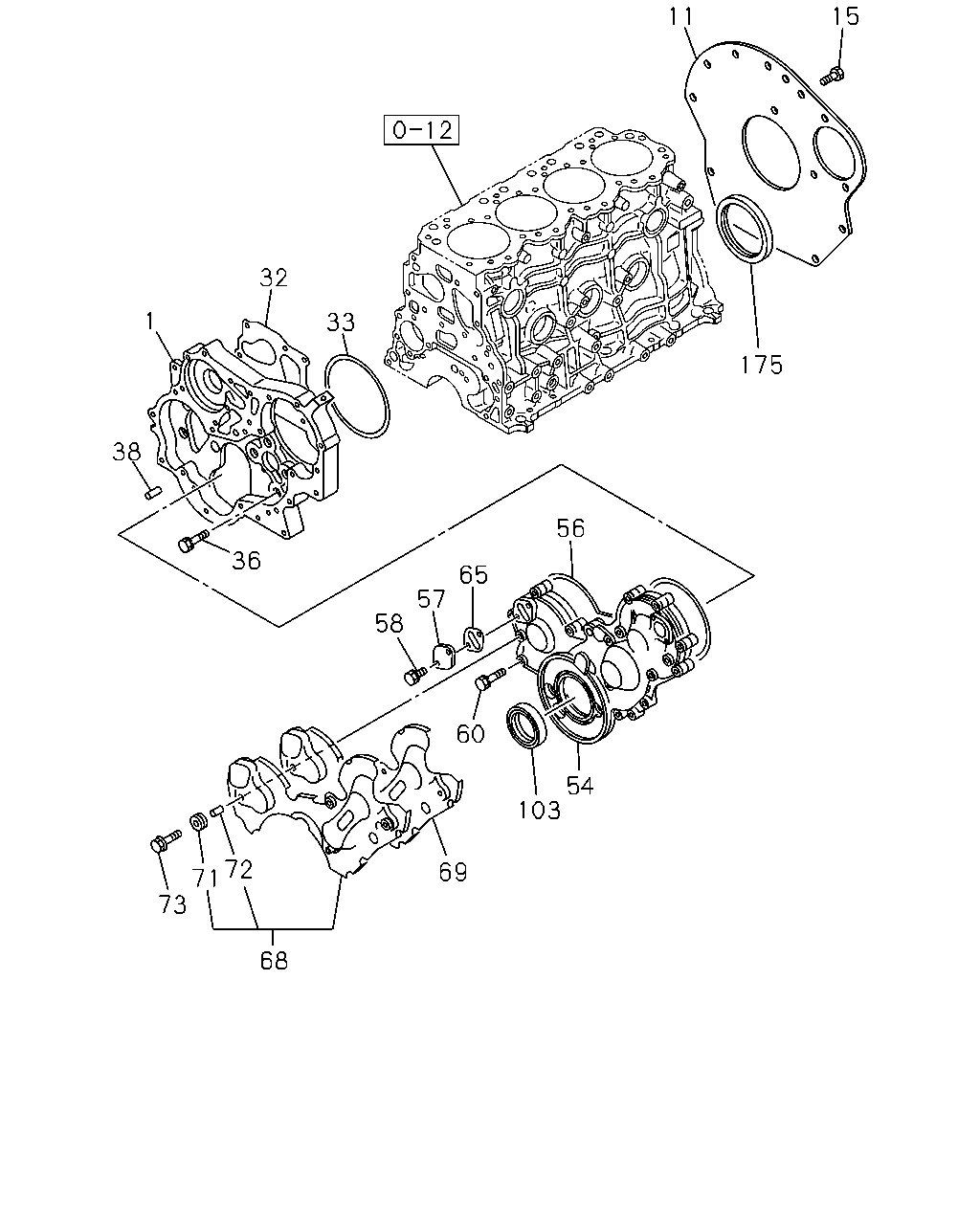

15 11 32 1 33 175 38 56 36 65 57 58 60 54 103 72 71 73 69 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.206 CASE; TIMING GEAR	8-97129-982-3	01	1	9811-0004	●
1	00.206 CASE; TIMING GEAR EXC. TURBOCHARGER<K51>	8-97129-982-3	01	1	0005-	●
1	00.206 CASE; TIMING GEAR TURBOCHARGER<K51>	8-97219-001-4	01	1	0005-	●
1	00.206 CASE; TIMING GEAR	8-97141-532-2	01	1	9811-		●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9811-	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9811-	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9811-	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	9811-	●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9811-	●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9811-	●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9811-	●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	9811-0201	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-	●
54	00.206 COVER; GEAR CASE	8-94155-360-2	01	1	9811-9903	●
54	00.206 COVER; GEAR CASE	8-97219-278-0	01	1	9904-9912	●
54	00.206 COVER; GEAR CASE	8-97231-214-1	01	1	0001-	●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9811-9910	●
56	00.207 GASKET; GEAR CASE TO COVER	8-97238-631-0	01	1	9911-0106	●
56	00.207 GASKET; GEAR CASE TO COVER	8-97287-694-0	01	1	0107-	●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	9811-	●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9811-	●
60	00.206 BOLT; COVER TO CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9811-9906	●
60	00.206 BOLT; COVER TO CASE 03.275 M8X30 FLANGE	0-28080-830-0	08	1	9907-	●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9811-9906	●
60	00.206 BOLT; COVER TO CASE 01.252 M8X58 FLANGE	8-94130-055-1	01	1	9907-	●
60	00.206 BOLT; COVER TO CASE M8X65 W/LK WASHER	8-94205-986-1	06	1	9811-9903	●
60	00.206 BOLT; COVER TO CASE 01.251 M8X60 FLANGE	0-28080-860-0	06	1	9904-0201	●
60	00.206 BOLT; COVER TO CASE 01.840 M8X70 W/LK WASHER	0-50040-870-0	06	1	0202-	●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9811-0107	●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0108-	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-0	02	1	9811-	●
68	00.206 COVER ASM; GEAR CASE COVER	8-94155-721-1	01	1	9811-	●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-94155-722-3	01	1	9811-	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	9811-	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	9811-	●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9811-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9811-0206	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0207-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9811-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9811-	●	●

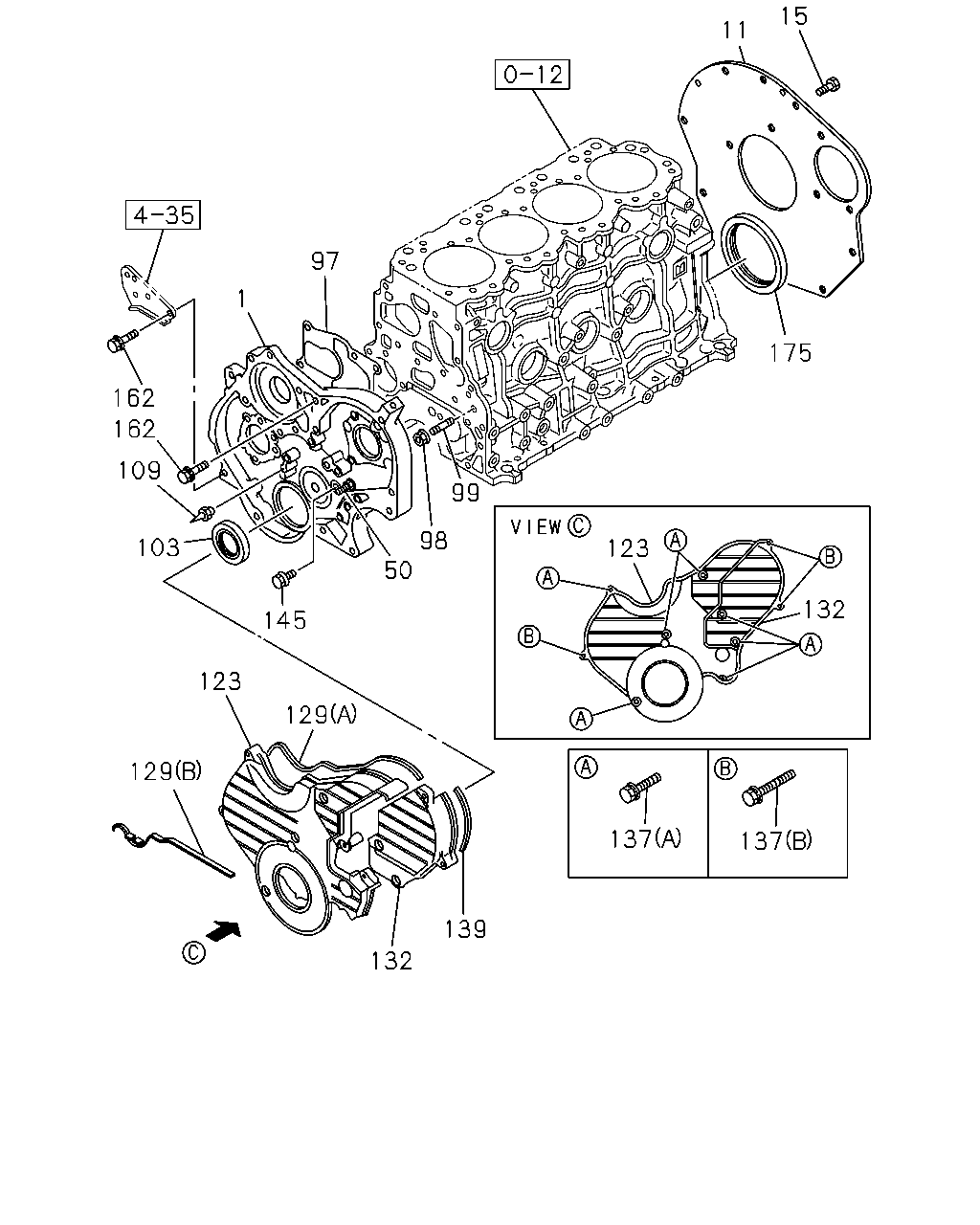

15 11 97 1 175 99 162 162 109 98 50 103 123 132 145 123 129 129 137 137 139 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.206 CASE; TIMING GEAR	8-97129-982-3	01	1	9811-0004	●
1	00.206 CASE; TIMING GEAR EXC. TURBOCHARGER<K51>	8-97129-982-3	01	1	0005-	●
1	00.206 CASE; TIMING GEAR TURBOCHARGER<K51>	8-97219-001-4	01	1	0005-	●
1	00.206 CASE; TIMING GEAR	8-97141-532-2	01	1	9811-		●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9811-	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9811-	●	●
50	00.206 STUD M8X42.5 L=69	8-97148-539-0	01	1	9811-		●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-429-0	01	1	9811-		●
98	00.206 NUT; STUD,INJ PUMP 03.340 M8	8-94224-829-0	02	1	9811-		●
99	00.206 STUD; INJ PUMP 00.004 M8X28 L=44	9-04020-828-0	02	1	9811-		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9811-0206	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0207-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9811-		●
109	00.219 POINTER; TIMING M5X7.5	8-94133-500-0	01	1	9811-		●
123	00.206 COVER; TIMING,LWR	8-97038-105-1	01	1	9811-		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=560	8-94464-695-1	01	1	9811-0203		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=560	8-97318-925-0	01	1	0204-		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (B) L=366	8-94464-696-0	01	1	9811-		●
132	00.206 COVER; TIMING,UPR	8-97038-103-1	01	1	9811-		●
137	00.206 BOLT; FRT PLATE (A) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9811-		●
137	00.206 BOLT; FRT PLATE (B) M6X50 W/LK WASHER	8-94152-616-1	03	1	9811-		●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). L=215	8-94139-961-0	01	1	9811-0203		●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). L=215	8-97318-924-0	01	1	0204-		●
145	00.206 BOLT; TENSIONER GUIDE M8X20	8-94152-617-1	01	1	9811-		●
162	00.206 BOLT; FRT PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	03	1	9811-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9811-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
