Sayfa 0-15 - Isuzu EPC

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#33098) — 195 parça

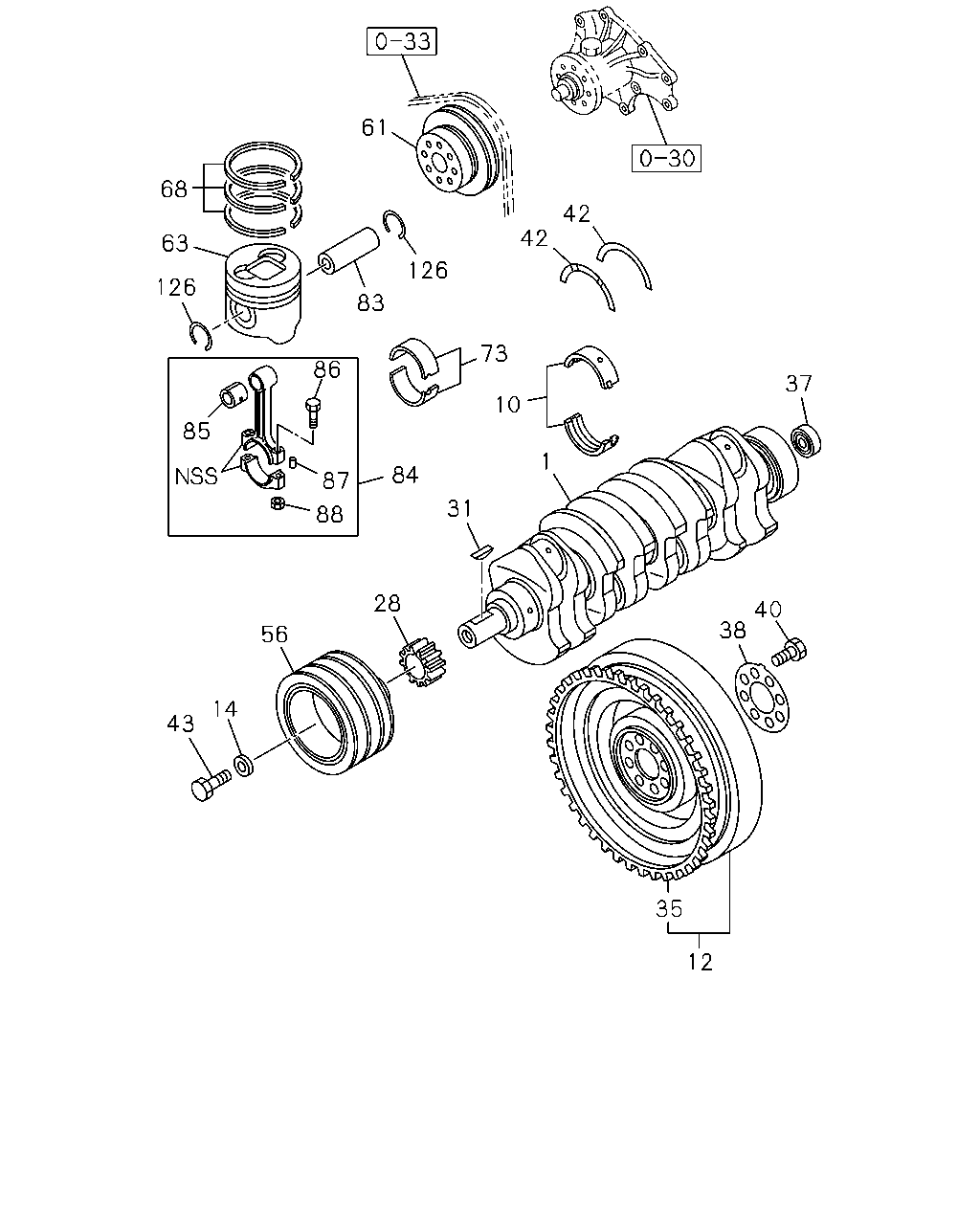

61 68 42 42 63 126 126 83 73 86 37 10 85 1 84 87 31 88 28 40 38 56 14 43 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.646 CRANKSHAFT	8-94443-662-0	01	1	9811-0004	●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-94443-662-0	01	1	0005-0008	●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-97190-928-2	01	1	0009-	●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-94453-525-2	01	1	0005-0008	●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97190-929-1	01	1	0009-0206	●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97331-853-0	01	1	0207-	●
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9811-0008		●
1	00.646 CRANKSHAFT	8-97190-930-1	01	1	0009-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9811-0202	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	0203-0209	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9811-0202	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	0203-0209	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9811-0202	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	0203-0209	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0203-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0210-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0203-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0210-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0203-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0210-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0203-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0210-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0203-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0210-	●	●
12	00.666 FLYWHEEL	8-94125-761-4	01	1	9811-0004	●
12	00.666 FLYWHEEL EXC. TURBOCHARGER<K51>	8-94125-761-4	01	1	0005-	●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9811-0004		●
12	00.666 FLYWHEEL TURBOCHARGER<K51>	8-97034-430-2	01	1	0005-	●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	0005-		●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9811-	●	●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9811-0004	●
28	00.728 GEAR; CR/SHF EXC. TURBOCHARGER<K51> Z=21	8-94139-754-0	01	1	0005-	●
28	00.728 GEAR; CR/SHF TURBOCHARGER<K51> Z=21	8-97229-593-1	01	1	0005-	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9811-0008	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9811-	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	9811-	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9811-	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9811-	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9811-	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9811-	●	●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> 3-GROOVE FUKOKU	8-94442-166-3	01	1	9811-9906	●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0105	●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> EXC. TURBOCHARGER<K51> 3-GROOVE FUKOKU	8-97229-900-0	01	1	0106-0108	●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> EXC. TURBOCHARGER<K51> 3-GROOVE FUKOKU	8-94442-166-5	01	1	0109-	●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> 2-GROOVE	8-94453-552-2	01	1	9811-9906	●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> 2-GROOVE	8-97229-901-0	01	1	9907-0105	●
56	00.659 PULLEY; CR/SHF DAMPER EXC. TURBOCHARGER<K51>,POWER STEERING<N40> 2-GROOVE	8-97229-901-0	01	1	0106-0108	●
56	00.659 PULLEY; CR/SHF DAMPER EXC. TURBOCHARGER<K51>,POWER STEERING<N40> 2-GROOVE	8-94453-552-3	01	1	0109-	●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> 4-GROOVE	8-97204-204-0	01	1	0005-	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9811-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-1	01	1	9811-0004	●
61	00.659 PULLEY; FAN DRIVE EXC. TURBOCHARGER<K51> 1-GROOVE	8-94146-638-1	01	1	0005-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9811-0004		●
61	00.659 PULLEY; FAN DRIVE TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-3	01	1	0005-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0005-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-606-0	04	1	9811-0004	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-606-0	04	1	0005-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-607-0	04	1	9811-0004	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-607-0	04	1	0005-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-610-0	04	1	0005-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-611-0	04	1	0005-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9811-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9811-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9811-		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9811-0210	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0211-	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9811-0004	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94454-479-0	04	1	0005-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9811-0004		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	0005-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	0005-		●
84	00.603 ROD ASM; CONN	8-94329-692-1	04	1	9811-0004	●
84	00.603 ROD ASM; CONN EXC. TURBOCHARGER<K51>	8-94329-692-4	04	1	0005-	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9811-0004		●
84	00.603 ROD ASM; CONN TURBOCHARGER<K51>	8-97062-300-1	04	1	0005-	●
84	00.603 ROD ASM; CONN	8-97062-300-1	04	1	0005-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9811-0004	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	0005-0112	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0201-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9811-0004		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	0005-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	0005-		●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	9811-0004	●
86	00.623 BOLT; CONNROD EXC. TURBOCHARGER<K51> M11X59	5-12235-009-0	08	1	0005-	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9811-0004		●
86	00.623 BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	0005-	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0005-		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9811-0004		●
87	00.613 PIN; CONNROD BIG END TURBOCHARGER<K51> OD=5 L=8	9-08160-508-0	08	1	0005-	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0005-		●
88	00.623 NUT; CONNROD 00.626 M11	5-09409-016-0	08	1	9811-0004	●
88	00.623 NUT; CONNROD EXC. TURBOCHARGER<K51> 00.626 M11	5-09409-016-0	08	1	0005-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	9811-0004	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94133-969-0	08	1	0005-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9811-0004		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	0005-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	0005-		●

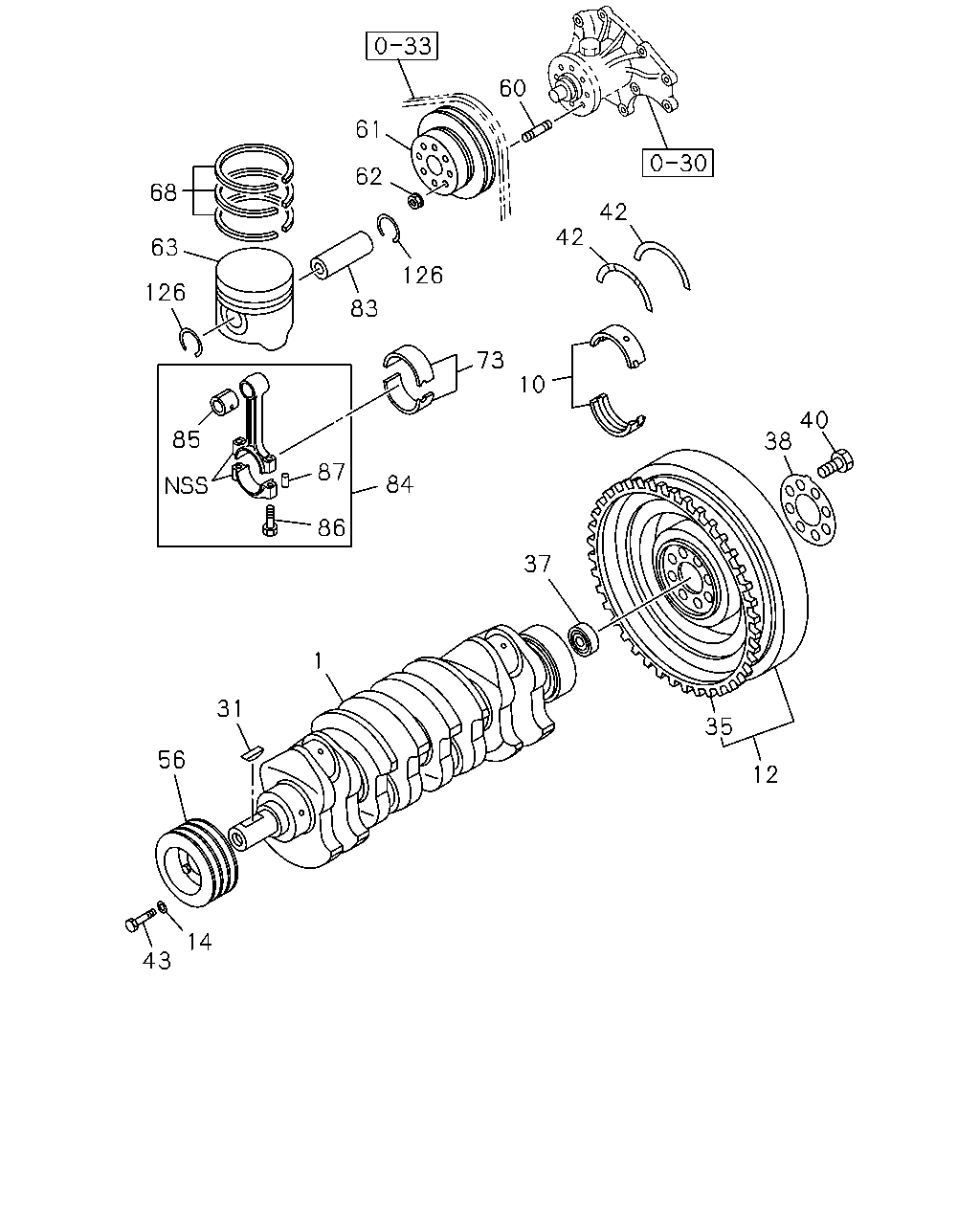

60 61 62 68 42 42 63 126 126 83 73 10 40 38 85 87 84 86 37 1 31 35 56 12 14 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.646 CRANKSHAFT	8-94443-662-0	01	1	9811-0004	●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-94443-662-0	01	1	0005-0008	●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-97190-928-2	01	1	0009-	●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-94453-525-2	01	1	0005-0008	●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97190-929-1	01	1	0009-0206	●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97331-853-0	01	1	0207-	●
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9811-0008		●
1	00.646 CRANKSHAFT	8-97190-930-1	01	1	0009-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9811-0202	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	0203-0209	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9811-0202	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	0203-0209	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9811-0202	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	0203-0209	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0203-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0210-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0203-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0210-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0203-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0210-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0203-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0210-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0203-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0210-	●	●
12	00.666 FLYWHEEL	8-94125-761-4	01	1	9811-0004	●
12	00.666 FLYWHEEL EXC. TURBOCHARGER<K51>	8-94125-761-4	01	1	0005-	●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	9811-0004		●
12	00.666 FLYWHEEL TURBOCHARGER<K51>	8-97034-430-2	01	1	0005-	●
12	00.666 FLYWHEEL	8-97034-430-2	01	1	0005-		●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9811-	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9811-0008	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9811-	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	9811-	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9811-	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9811-	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9811-	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9811-	●	●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> 3-GROOVE FUKOKU	8-94442-166-3	01	1	9811-9906	●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0105	●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> EXC. TURBOCHARGER<K51> 3-GROOVE FUKOKU	8-97229-900-0	01	1	0106-0108	●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> EXC. TURBOCHARGER<K51> 3-GROOVE FUKOKU	8-94442-166-5	01	1	0109-	●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> 2-GROOVE	8-94453-552-2	01	1	9811-9906	●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> 2-GROOVE	8-97229-901-0	01	1	9907-0105	●
56	00.659 PULLEY; CR/SHF DAMPER EXC. TURBOCHARGER<K51>,POWER STEERING<N40> 2-GROOVE	8-97229-901-0	01	1	0106-0108	●
56	00.659 PULLEY; CR/SHF DAMPER EXC. TURBOCHARGER<K51>,POWER STEERING<N40> 2-GROOVE	8-94453-552-3	01	1	0109-	●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> 4-GROOVE	8-97204-204-0	01	1	0005-	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9811-		●
60	01.060 STUD; FAN FIX 01.073 M6X18 L=27	9-04110-618-0	04	1	9811-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-1	01	1	9811-0004	●
61	00.659 PULLEY; FAN DRIVE EXC. TURBOCHARGER<K51> 1-GROOVE	8-94146-638-1	01	1	0005-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9811-0004		●
61	00.659 PULLEY; FAN DRIVE TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-3	01	1	0005-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0005-		●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-606-0	04	1	9811-0004	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-606-0	04	1	0005-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-607-0	04	1	9811-0004	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-607-0	04	1	0005-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-610-0	04	1	0005-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-611-0	04	1	0005-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-618-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-619-0	04	1	9811-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9811-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9811-		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9811-0210	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0211-	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9811-0004	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94454-479-0	04	1	0005-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9811-0004		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	0005-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	0005-		●
84	00.603 ROD ASM; CONN	8-94329-692-1	04	1	9811-0004	●
84	00.603 ROD ASM; CONN EXC. TURBOCHARGER<K51>	8-94329-692-4	04	1	0005-	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9811-0004		●
84	00.603 ROD ASM; CONN TURBOCHARGER<K51>	8-97062-300-1	04	1	0005-	●
84	00.603 ROD ASM; CONN	8-97062-300-1	04	1	0005-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9811-0004	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	0005-0112	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0201-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9811-0004		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	0005-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	0005-		●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	9811-0004	●
86	00.623 BOLT; CONNROD EXC. TURBOCHARGER<K51> M11X59	5-12235-009-0	08	1	0005-	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9811-0004		●
86	00.623 BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	0005-	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0005-		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9811-0004		●
87	00.613 PIN; CONNROD BIG END TURBOCHARGER<K51> OD=5 L=8	9-08160-508-0	08	1	0005-	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0005-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	9811-0004	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94133-969-0	08	1	0005-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9811-0004		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	0005-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	0005-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
