Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#33095) — 176 parça

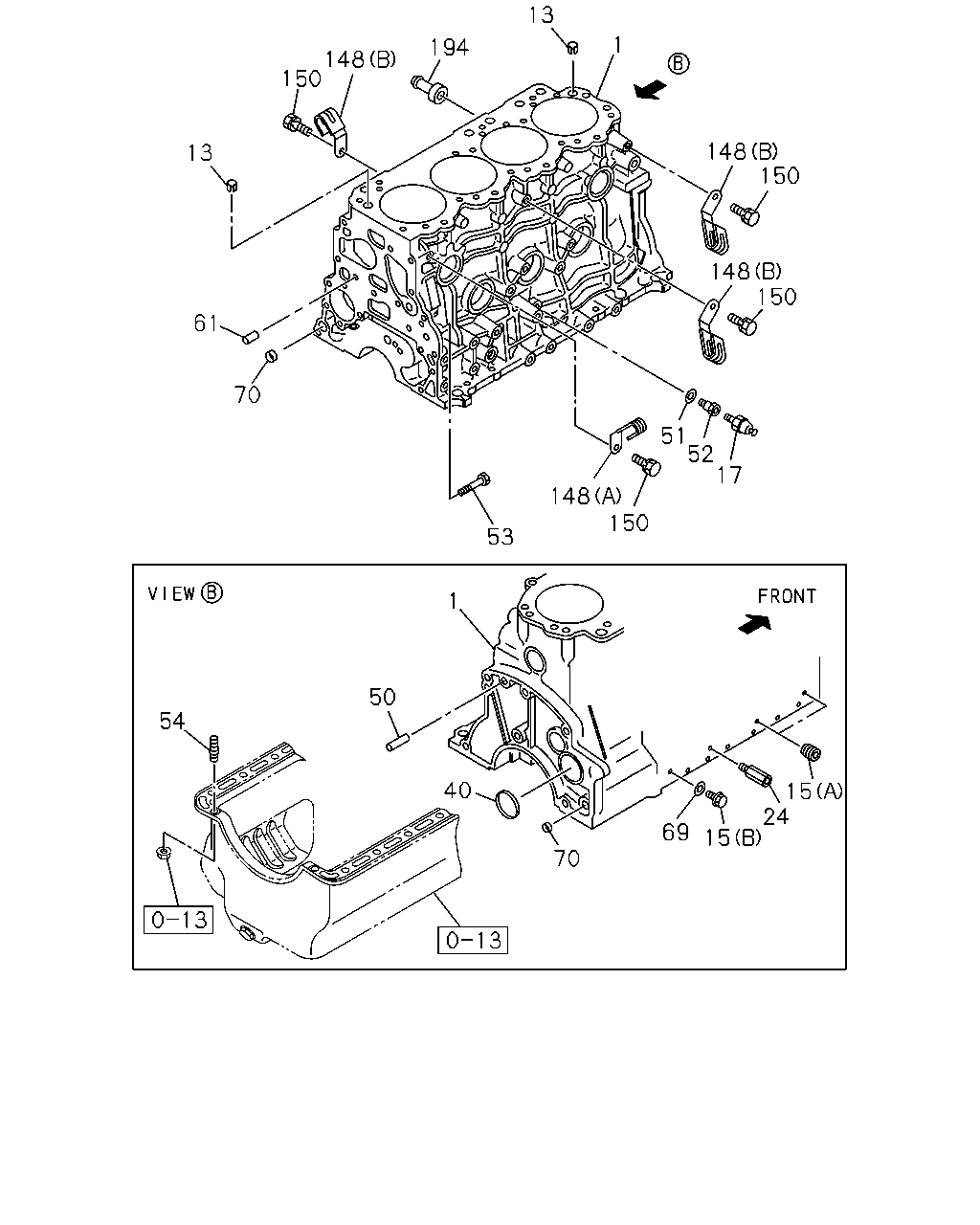

13 1 194 148 150 148 150 13 148 150 61 70 51 52 17 148 150 53 1 50 54 40 15 24 15 69 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-94437-397-7	01	1	9811-0209	●
1	00.033 BLOCK ASM; CYL	8-97352-707-1	01	1	0210-	●
1	00.033 BLOCK ASM; CYL	8-97043-280-1	01	1	9811-0202		●
1	00.033 BLOCK ASM; CYL	8-97314-579-1	01	1	0203-		●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9811-	●	●
15	01.531 PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	9811-	●	●
15	01.531 PLUG; OIL GALLERY 03.001 (B) M14X14	8-94152-613-0	01	1	9811-0004	●	●
15	01.531 PLUG; OIL GALLERY EXC. TURBOCHARGER<K51> 03.001 (B) M14X14	8-94152-613-0	01	1	0005-	●
15	01.531 PLUG; OIL GALLERY 03.001 (B) M14X14	8-94152-613-0	01	1	0005-		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9811-	●	●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	9811-	●	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9811-	●	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9811-	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9811-	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-749-2	01	1	9811-9910	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B SINGAPORE EQUIPMENT(S9Y)	8-94167-749-2	01	1	9811-9910		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. TURBOCHARGER<K51>	8-94167-749-2	01	1	9911-0007	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B SINGAPORE EQUIPMENT(S9Y)	8-94167-749-2	01	1	9911-0007		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. TURBOCHARGER<K51>	8-94167-749-2	01	1	0008-0105	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EURO2 SPECIFICATION<7AF> EXC. HEATER & DEFROSTER(C41)	8-94167-749-2	01	1	0008-0105		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-749-2	01	1	0106-	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. EURO2 SPECIFICATION<7AF>	8-94167-749-2	01	1	0106-		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B HONG KONG EQUIPMENT(PQ1)	8-94167-750-2	01	1	9811-0004		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B TURBOCHARGER<K51>	8-94167-750-2	01	1	0005-0007	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B HONG KONG EQUIPMENT(PQ1)	8-94167-750-2	01	1	0005-0007		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B TURBOCHARGER<K51>	8-94167-750-2	01	1	0008-0105	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B HEATER & DEFROSTER(C41)	8-94167-750-2	01	1	0008-0105		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. HEATER & DEFROSTER(C41),EURO2 SPECIFICATION<7AF>	8-94167-750-2	01	1	0008-0105		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EURO2 SPECIFICATION<7AF>	8-94167-750-2	01	1	0106-		●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9811-	●	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9811-	●	●
61	00.206 PIN; STRAIGHT TURBOCHARGER<K51> 00.669 OD=10 L=20	9-08151-020-0	01	1	0005-0201	●
61	00.206 PIN; STRAIGHT TURBOCHARGER<K51> 04.510 OD=10 L=20	8-97135-423-0	01	1	0202-	●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9811-0004	●	●
61	00.206 PIN; STRAIGHT EXC. TURBOCHARGER<K51> 00.669 OD=10 L=20	9-08151-020-0	02	1	0005-0201	●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	0005-0201		●
61	00.206 PIN; STRAIGHT EXC. TURBOCHARGER<K51> 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-	●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-		●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9811-0004	●	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51>. 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0005-	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0005-		●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9811-	●	●
148	02.313 CLIP; HARNESS 00.446 (B) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-9812	●	●
148	02.313 CLIP; HARNESS 00.446 (B) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9901-9906	●	●
148	02.313 CLIP; HARNESS 00.446 (B) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9907-	●	●
148	02.313 CLIP; HARNESS 04.930 (A) L=91 ID=8.5	8-94329-956-0	01	1	9907-	●	●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9901-0105	●
150	02.313 BOLT; CLIP SINGAPORE EQUIPMENT(S9Y) 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9901-0105		●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0106-	●
150	02.313 BOLT; CLIP EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0106-		●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9811-9812	●	●
150	02.313 BOLT; CLIP HONG KONG EQUIPMENT(PQ1) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9901-0004		●
150	02.313 BOLT; CLIP TURBOCHARGER<K51> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0005-0105	●
150	02.313 BOLT; CLIP HONG KONG EQUIPMENT(PQ1) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0005-0105		●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0106-	●
150	02.313 BOLT; CLIP EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0106-		●
194	00.439 PIPE; OIL DRAIN,C/BL TURBOCHARGER<K51>	8-97137-781-0	01	1	0005-	●

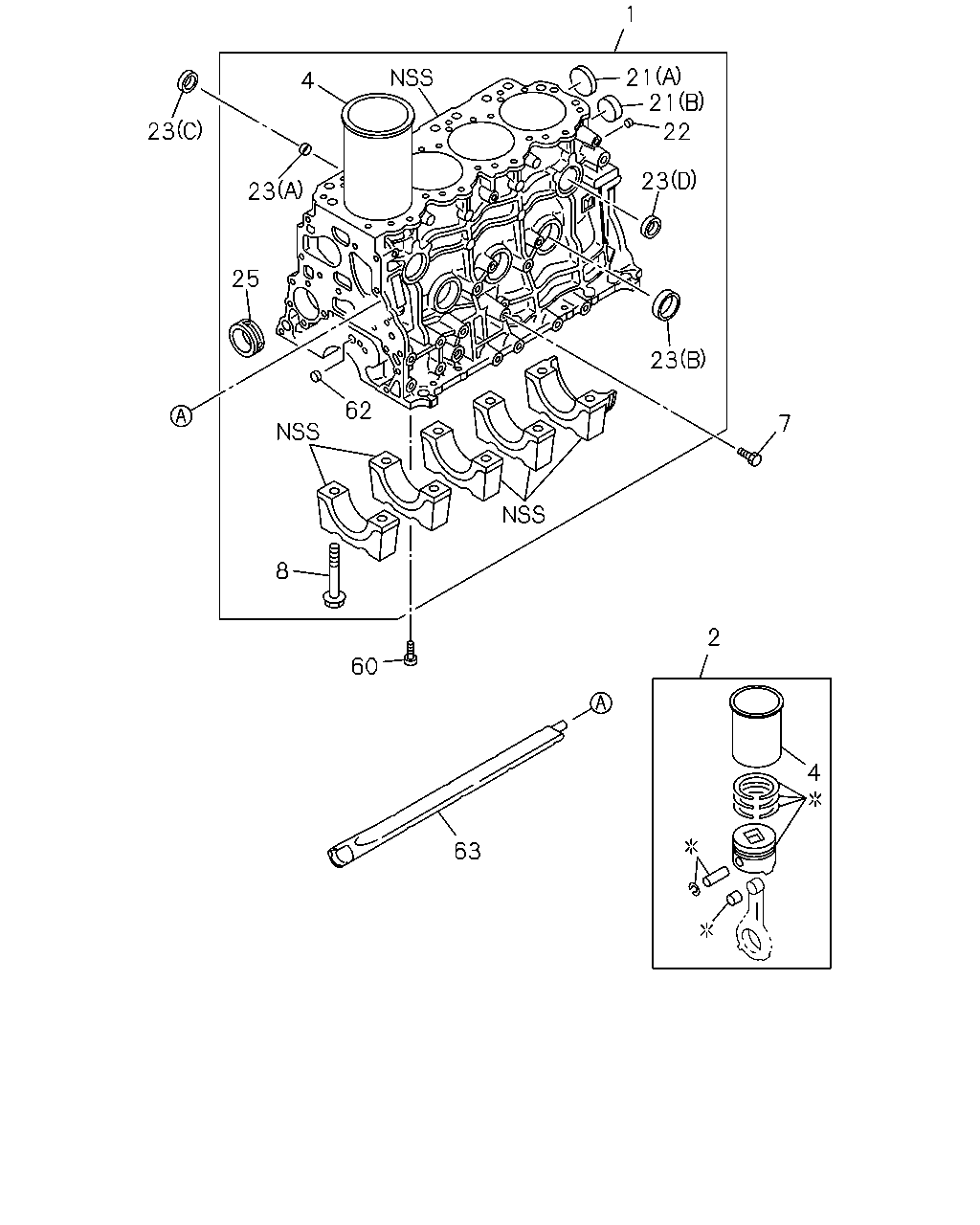

1 21 21 4 23 22 23 23 25 23 62 7 8 2 60 4 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-94437-397-7	01	1	9811-0209	●
1	00.033 BLOCK ASM; CYL	8-97352-707-1	01	1	0210-	●
1	00.033 BLOCK ASM; CYL	8-97043-280-1	01	1	9811-0202		●
1	00.033 BLOCK ASM; CYL	8-97314-579-1	01	1	0203-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-181-0	04	1	9811-0004	●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=1	5-87813-181-0	04	1	0005-	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-182-0	04	1	9811-0004	●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=2	5-87813-182-0	04	1	0005-	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-183-0	04	1	9811-0004	●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=3	5-87813-183-0	04	1	0005-	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-184-0	04	1	9811-0004	●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=4	5-87813-184-0	04	1	0005-	●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=1	5-87813-193-0	04	1	0005-	●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=2	5-87813-194-0	04	1	0005-	●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=3	5-87813-195-0	04	1	0005-	●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=4	5-87813-196-0	04	1	0005-	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-209-0	04	1	9811-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-210-0	04	1	9811-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-211-0	04	1	9811-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-212-0	04	1	9811-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	9811-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	9811-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	9811-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	9811-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	9811-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	9811-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	9811-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	9811-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9811-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9811-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9811-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9811-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9811-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9811-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9811-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9811-		●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9811-	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9811-	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9811-	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9811-	●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9811-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0210-0210	●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0211-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR TURBOCHARGER<K51> (C) OD=36	5-11219-018-0	02	1	0005-	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9811-0209	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	0210-0210		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9811-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9811-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9811-0004	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. TURBOCHARGER<K51> (C) OD=36	5-11219-018-0	03	1	0005-	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	0005-		●
25	00.539 METAL; CM/SHF CENTER AND REAR	8-94427-201-2	02	1	9811-	●	●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	9811-	●	●
60	01.531 BOLT; OIL JET 04.105 M16X12	9-99202-316-0	01	1	9811-0004	●
60	01.531 BOLT; OIL JET EXC. TURBOCHARGER<K51> 04.105 M16X12	9-99202-316-0	01	1	0005-	●
62	00.034 CUP; SEALING,C/BL FRT OD=14	5-11219-011-0	01	1	9811-		●
63	01.153 DUCT; WATER,C/BL	8-94419-436-1	01	1	9811-	●
63	01.153 DUCT; WATER,C/BL	8-94456-794-2	01	1	9811-		●

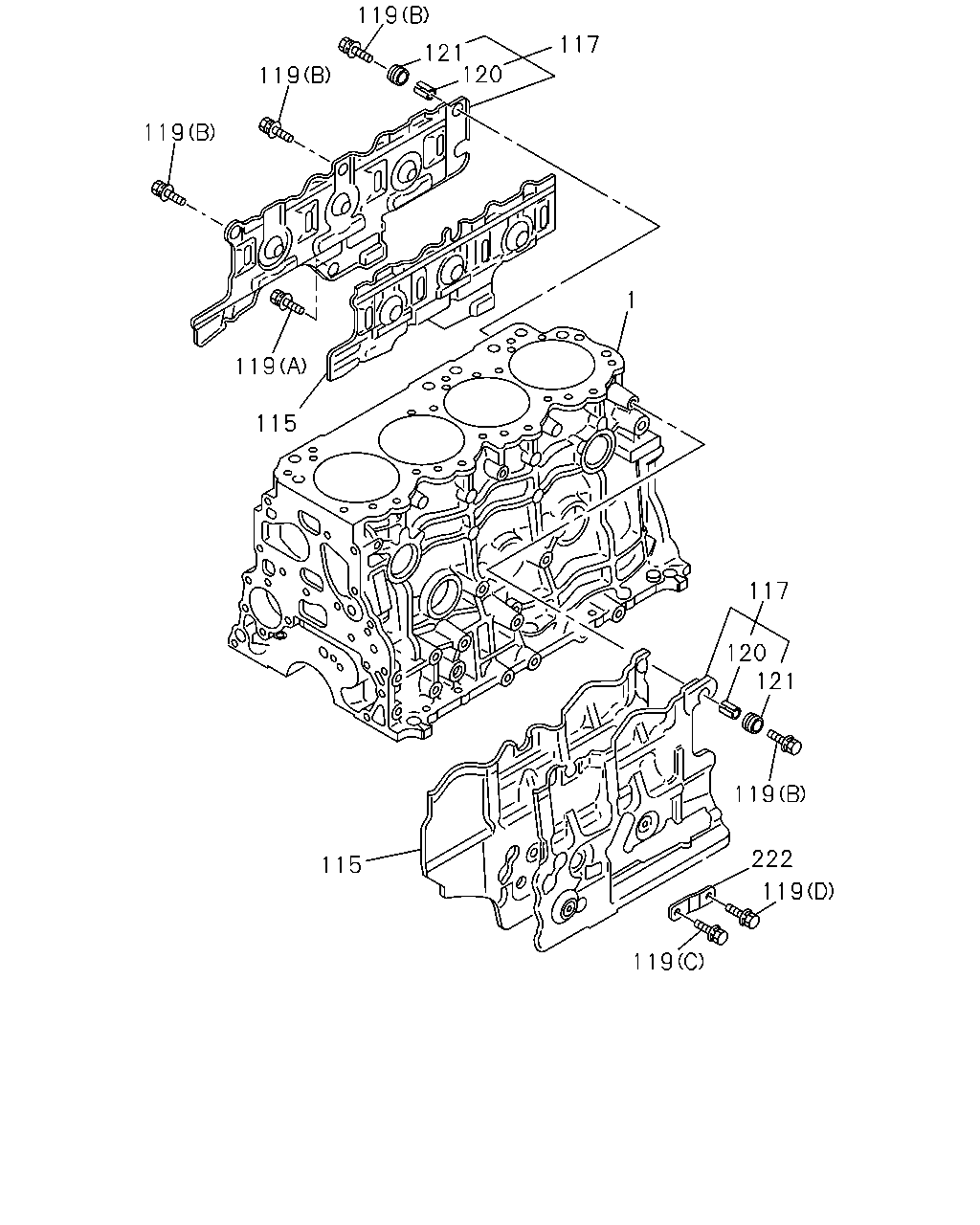

119 117 121 120 119 119 1 119 115 117 120 121 119 222 115 119 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-94437-397-7	01	1	9811-0209	●
1	00.033 BLOCK ASM; CYL	8-97352-707-1	01	1	0210-	●
1	00.033 BLOCK ASM; CYL	8-97043-280-1	01	1	9811-0202		●
1	00.033 BLOCK ASM; CYL	8-97314-579-1	01	1	0203-		●
115	00.034 RUBBER; SPACE TURBOCHARGER<K51>	8-97204-194-0	01	1	0005-	●
115	00.034 RUBBER; SPACE TURBOCHARGER<K51>	8-97204-193-0	01	1	0005-	●
115	00.034 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1)	8-97141-688-2	01	1	9811-0007		●
115	00.034 RUBBER; SPACE	8-97141-688-2	01	1	0008-0105		●
115	00.034 RUBBER; SPACE EURO2 SPECIFICATION<7AF>	8-97141-688-2	01	1	0106-		●
115	00.034 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1)	8-97141-687-0	01	1	9811-0007		●
115	00.034 RUBBER; SPACE	8-97141-687-0	01	1	0008-0105		●
115	00.034 RUBBER; SPACE EURO2 SPECIFICATION<7AF>	8-97141-687-0	01	1	0106-0203		●
115	00.034 RUBBER; SPACE EURO2 SPECIFICATION<7AF>	8-97264-913-1	01	1	0204-		●
117	00.030 COVER ASM; C/BL TURBOCHARGER<K51>	8-97020-126-0	01	1	0005-	●
117	00.030 COVER ASM; C/BL TURBOCHARGER<K51>	8-97204-191-1	01	1	0005-	●
117	00.030 COVER ASM; C/BL HONG KONG EQUIPMENT(PQ1)	8-97141-686-0	01	1	9811-0007		●
117	00.030 COVER ASM; C/BL	8-97141-686-0	01	1	0008-0105		●
117	00.030 COVER ASM; C/BL EURO2 SPECIFICATION<7AF>	8-97141-686-1	01	1	0106-		●
117	00.030 COVER ASM; C/BL HONG KONG EQUIPMENT(PQ1)	8-97141-685-1	01	1	9811-0007		●
117	00.030 COVER ASM; C/BL	8-97141-685-1	01	1	0008-0105		●
117	00.030 COVER ASM; C/BL EURO2 SPECIFICATION<7AF>	8-97141-685-2	01	1	0106-		●
119	00.034 BOLT; COVER FIX TURBOCHARGER<K51> 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	0005-0202	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1) 00.206 (C) M8X10 FLANGE	0-28080-810-0	01	1	9811-0007		●
119	00.034 BOLT; COVER FIX 00.206 (C) M8X10 FLANGE	0-28080-810-0	01	1	0008-0105		●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> 00.206 (C) M8X10 FLANGE	0-28080-810-0	01	1	0106-		●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1) 11.377 (D) M10X20 W/LK WASHER	0-50041-020-0	01	1	9811-0004		●
119	00.034 BOLT; COVER FIX TURBOCHARGER<K51> 11.377 (D) M10X20 W/LK WASHER	0-50041-020-0	01	1	0005-0007	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1) 11.377 (D) M10X20 W/LK WASHER	0-50041-020-0	01	1	0005-0007		●
119	00.034 BOLT; COVER FIX TURBOCHARGER<K51> 11.377 (D) M10X20 W/LK WASHER	0-50041-020-0	01	1	0008-0105	●
119	00.034 BOLT; COVER FIX HEATER & DEFROSTER(C41) 11.377 (D) M10X20 W/LK WASHER	0-50041-020-0	01	1	0008-0105		●
119	00.034 BOLT; COVER FIX EXC. HEATER & DEFROSTER(C41),EURO2 SPECIFICATION<7AF> 11.377 (D) M10X20 W/LK WASHER	0-50041-020-0	01	1	0008-0105		●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> 11.377 (D) M10X20 W/LK WASHER	0-50041-020-0	01	1	0106-		●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1) (A) M10X28	8-94329-952-1	01	1	9811-0004		●
119	00.034 BOLT; COVER FIX TURBOCHARGER<K51> (A) M10X28	8-94329-952-1	01	1	0005-0007	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1) (A) M10X28	8-94329-952-1	01	1	0005-0007		●
119	00.034 BOLT; COVER FIX TURBOCHARGER<K51> (A) M10X28	8-94329-952-1	01	1	0008-0105	●
119	00.034 BOLT; COVER FIX HEATER & DEFROSTER(C41) (A) M10X28	8-94329-952-1	01	1	0008-0105		●
119	00.034 BOLT; COVER FIX EXC. HEATER & DEFROSTER(C41),EURO2 SPECIFICATION<7AF> (A) M10X28	8-94329-952-1	01	1	0008-0105		●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> (A) M10X28	8-94329-952-1	01	1	0106-		●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1) (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9811-0004		●
119	00.034 BOLT; COVER FIX TURBOCHARGER<K51> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	0005-0007	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1) (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	0005-0007		●
119	00.034 BOLT; COVER FIX TURBOCHARGER<K51> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	0008-0105	●
119	00.034 BOLT; COVER FIX HEATER & DEFROSTER(C41) (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	0008-0105		●
119	00.034 BOLT; COVER FIX EXC. HEATER & DEFROSTER(C41),EURO2 SPECIFICATION<7AF> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	0008-0105		●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	0106-		●
120	00.034 BUSHING; MTG RUBBER TURBOCHARGER<K51> OD=13 T=9.5	8-94140-427-1	06	1	0005-	●
120	00.034 BUSHING; MTG RUBBER HONG KONG EQUIPMENT(PQ1) OD=13 T=9.5	8-94140-427-1	06	1	9811-0007		●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	06	1	0008-0105		●
120	00.034 BUSHING; MTG RUBBER EURO2 SPECIFICATION<7AF> OD=13 T=9.5	8-94140-427-1	06	1	0106-		●
121	00.034 RUBBER; MTG,COVER TURBOCHARGER<K51> OD=22	8-94140-428-1	03	1	0005-	●
121	00.034 RUBBER; MTG,COVER HONG KONG EQUIPMENT(PQ1) OD=22	8-94140-428-1	06	1	9811-0007		●
121	00.034 RUBBER; MTG,COVER OD=22	8-94140-428-1	06	1	0008-0105		●
121	00.034 RUBBER; MTG,COVER EURO2 SPECIFICATION<7AF> OD=22	8-94140-428-1	06	1	0106-		●
222	00.340 BRACKET; COVER,C/BL HONG KONG EQUIPMENT(PQ1)	8-94460-512-0	01	1	9811-0004		●
222	00.340 BRACKET; COVER,C/BL TURBOCHARGER<K51>	8-94460-512-0	01	1	0005-0007	●
222	00.340 BRACKET; COVER,C/BL HONG KONG EQUIPMENT(PQ1)	8-94460-512-0	01	1	0005-0007		●
222	00.340 BRACKET; COVER,C/BL TURBOCHARGER<K51>	8-94460-512-0	01	1	0008-0105	●
222	00.340 BRACKET; COVER,C/BL HEATER & DEFROSTER(C41)	8-94460-512-0	01	1	0008-0105		●
222	00.340 BRACKET; COVER,C/BL EXC. HEATER & DEFROSTER(C41),EURO2 SPECIFICATION<7AF>	8-94460-512-0	01	1	0008-0105		●
222	00.340 BRACKET; COVER,C/BL EURO2 SPECIFICATION<7AF>	8-94460-512-0	01	1	0106-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
