◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#33094) — 62 parça

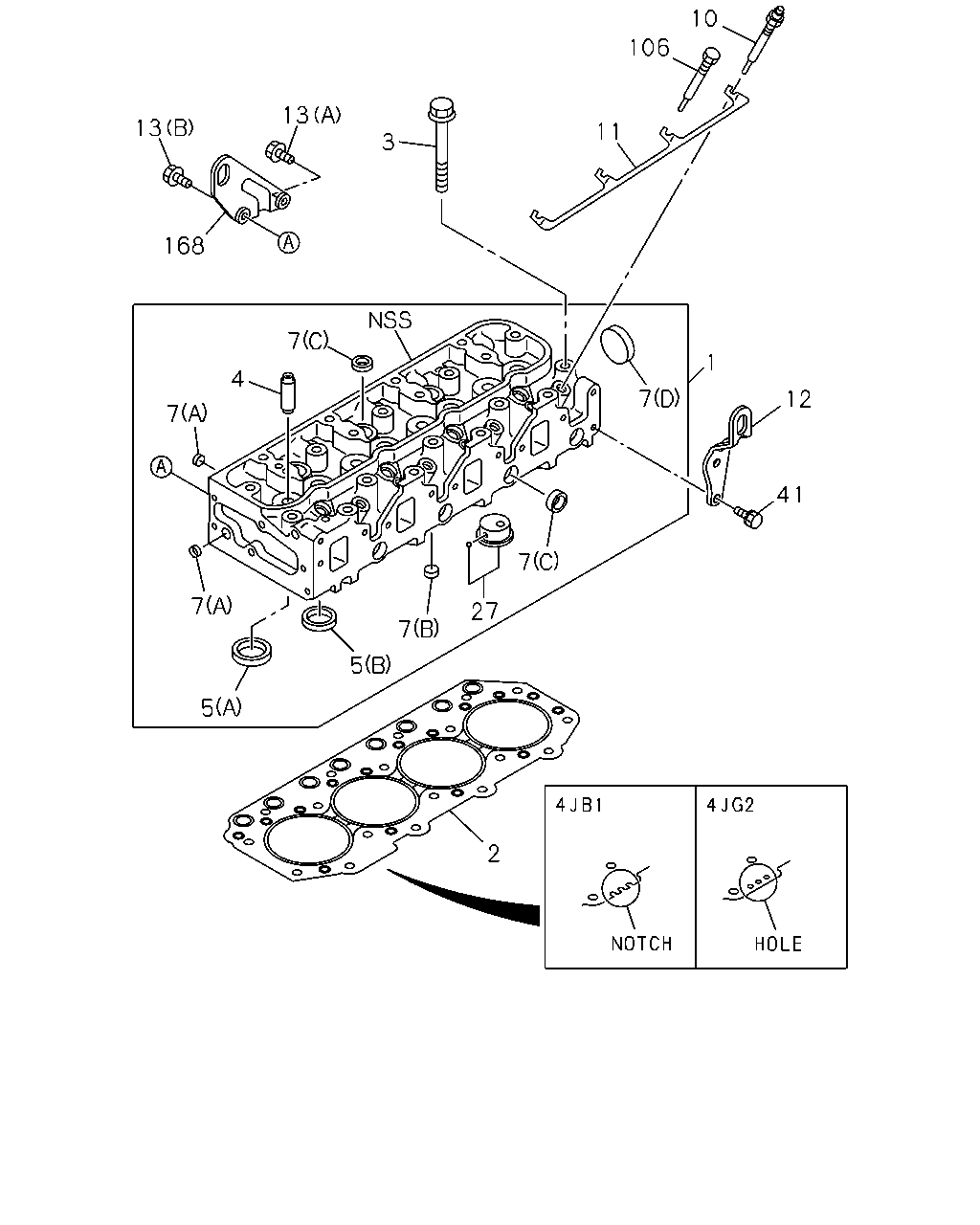

çizim 47046
10 106 13 13 11 3 168 7 1 4 12 7 7 41 7 7 27 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> 		8-97120-178-1 01 1 9811-0004 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97120-178-3 01 1 0005-0211 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-97120-178-3 01 1 0212- ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4> 		8-97109-642-0 01 1 9811-0004 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 		8-97109-642-3 01 1 0005-0211 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-97204-376-5 01 1 0005- ●
1 00.269 HEAD ASM; CYL 8-97120-278-6 01 1 9811- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9811-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9811-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9811-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-HOLE 		8-97066-196-0 01 1 9811- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-HOLE 		8-97066-197-0 01 1 9811- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-HOLE 		8-97066-198-0 01 1 9811- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 9811- ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9811- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-94130-558-0 04 1 9811-0004 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (A) INLET INLET 		8-94130-558-0 04 1 0005-0207 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (A) INLET 		8-97254-814-0 04 1 0005-0207 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97231-228-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (B) EXHAUST 		8-97254-815-0 04 1 0005-0207 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0208- ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 9811-0004 ● ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (B) EXHAUST 		8-94130-559-0 04 1 0005-0207 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 0005-0207 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97083-162-0 04 1 9811-0003 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97254-813-0 04 1 0004- ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (B) OD=22 		1-09600-011-2 06 1 9811-9901 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		1-09600-011-2 06 1 9811-9901 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (B) OD=22 		1-09600-011-2 06 1 9902-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4> (B) OD=22 		1-09600-011-2 07 1 9811-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4> (B) OD=22 		8-97209-609-0 07 1 9906-9910 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (B) OD=22 		8-97209-609-0 07 1 9911-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (B) OD=22 		8-97209-609-0 01 1 0212- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9811-0207 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0208- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 9811- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9811- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		8-97209-609-0 06 1 9902-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (B) OD=22 		8-97209-609-0 06 1 9906-0004 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		8-97209-609-0 06 1 9906-0004 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (B) OD=22 		8-97209-609-0 06 1 0005-0105 ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> (B) OD=22 		8-97209-609-0 06 1 0005-0105 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		8-97209-609-0 06 1 0005-0105 ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> (B) OD=22 		8-97209-609-0 06 1 0106-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (B) OD=22 		8-97209-609-0 06 1 0106-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		8-97209-609-0 06 1 0106-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		8-97209-609-0 06 1 0212- ● ●
10 02.270 PLUG; GLOW
EXC. INDONESIA EQUIPMENT(S4S) 		8-94133-759-8 04 1 9811- ●
10 02.270 PLUG; GLOW
EXC. INDONESIA EQUIPMENT(S4S) NGK 		8-94175-158-1 04 1 9811- ●
10 02.270 PLUG; GLOW
NGK 		8-97043-744-3 04 1 9811- ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. INDONESIA EQUIPMENT(S4S) 		8-97146-517-0 01 1 9811- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9811- ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 9811- ● ●
13 00.004 BOLT; HANGER
03.417 (B) M10X25 FLANGE 		0-28081-025-0 01 1 9811- ● ●
13 00.004 BOLT; HANGER
01.073 (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9811- ● ●
27 00.253 PLUG; HOT 8-97120-280-0 04 1 9811- ●
41 09.181 BOLT; ENG HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9811- ● ●
106 00.293 PLUG; GLOW PLUG HOLE
INDONESIA EQUIPMENT(S4S) 		5-11119-007-1 04 1 9811- ●
168 00.004 HANGER; ENG,FRT 8-94379-714-1 01 1 9811- ● ●
