0-10 — CYLINDER HEAD COVER (#33093) — 33 parça

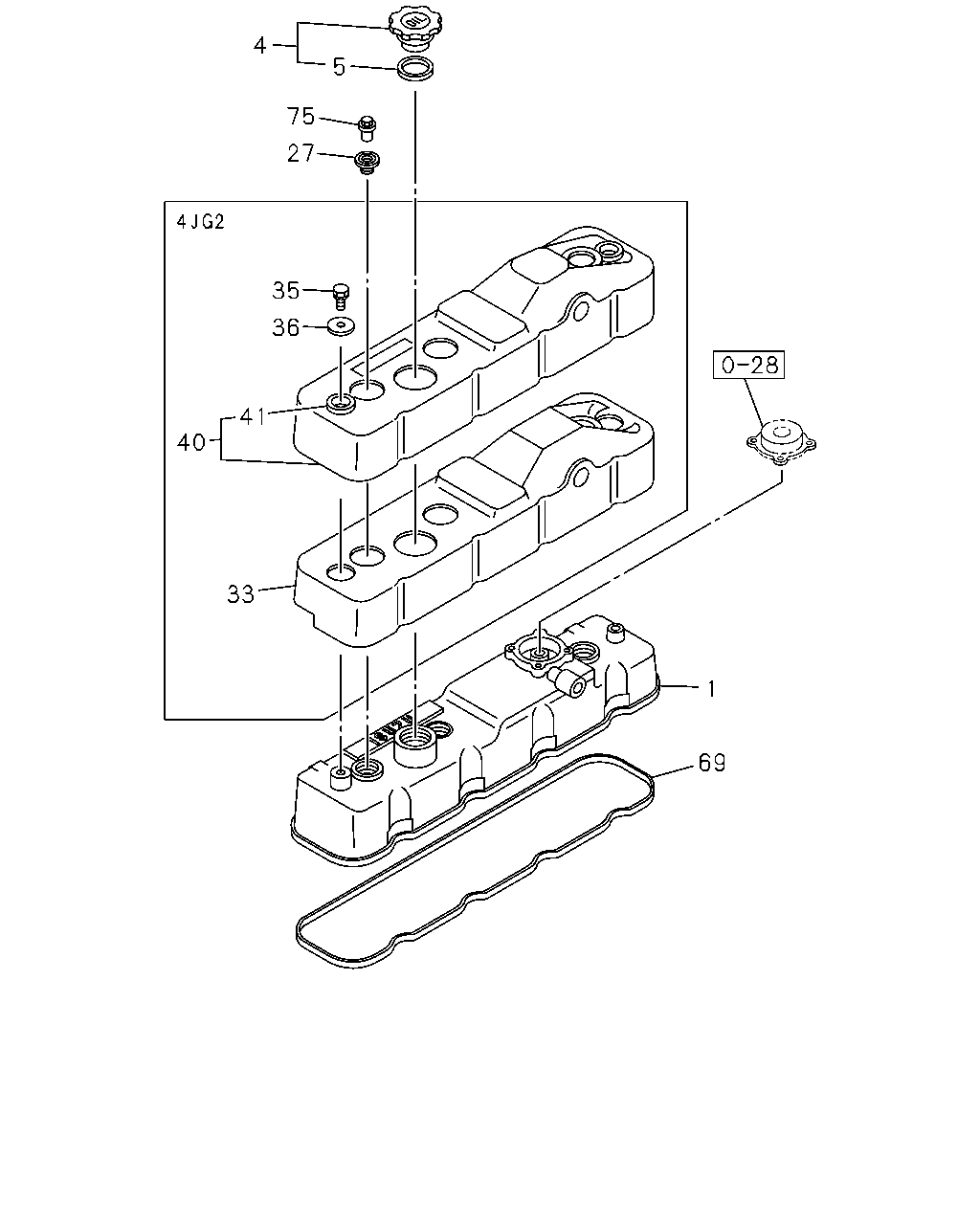

4 5 75 27 35 36 41 40 33 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	9811-	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9811-	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9811-	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-94202-456-3	03	1	9811-0103	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-0	03	1	0104-	●	●
33	00.386 RUBBER; SPACE,CYL HD COVER HONG KONG EQUIPMENT(PQ1)	8-97147-921-0	01	1	9811-0007	●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97147-921-0	01	1	0008-0105	●
33	00.386 RUBBER; SPACE,CYL HD COVER EURO2 SPECIFICATION<7AF>	8-97147-921-0	01	1	0106-	●
35	00.293 BOLT; NOISE SHIELD COVER HONG KONG EQUIPMENT(PQ1) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9811-0007	●
35	00.293 BOLT; NOISE SHIELD COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0008-0105	●
35	00.293 BOLT; NOISE SHIELD COVER EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-	●
36	00.413 WASHER; PL,NOISE SHIELD COVER HONG KONG EQUIPMENT(PQ1) 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9811-0007	●
36	00.413 WASHER; PL,NOISE SHIELD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0008-0105	●
36	00.413 WASHER; PL,NOISE SHIELD COVER EURO2 SPECIFICATION<7AF> 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0106-	●
40	00.386 COVER HONG KONG EQUIPMENT(PQ1)	8-94133-732-2	01	1	9811-0007	●
40	00.386 COVER	8-94133-732-2	01	1	0008-0105	●
40	00.386 COVER EURO2 SPECIFICATION<7AF>	8-94133-732-2	01	1	0106-	●
41	00.413 GROMMET; HD COVER,OUTER HONG KONG EQUIPMENT(PQ1)	8-94256-959-0	02	1	9811-0007	●
41	00.413 GROMMET; HD COVER,OUTER	8-94256-959-0	02	1	0008-0105	●
41	00.413 GROMMET; HD COVER,OUTER EURO2 SPECIFICATION<7AF>	8-94256-959-0	02	1	0106-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97161-131-0	01	1	9811-	●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	9811-	●	●

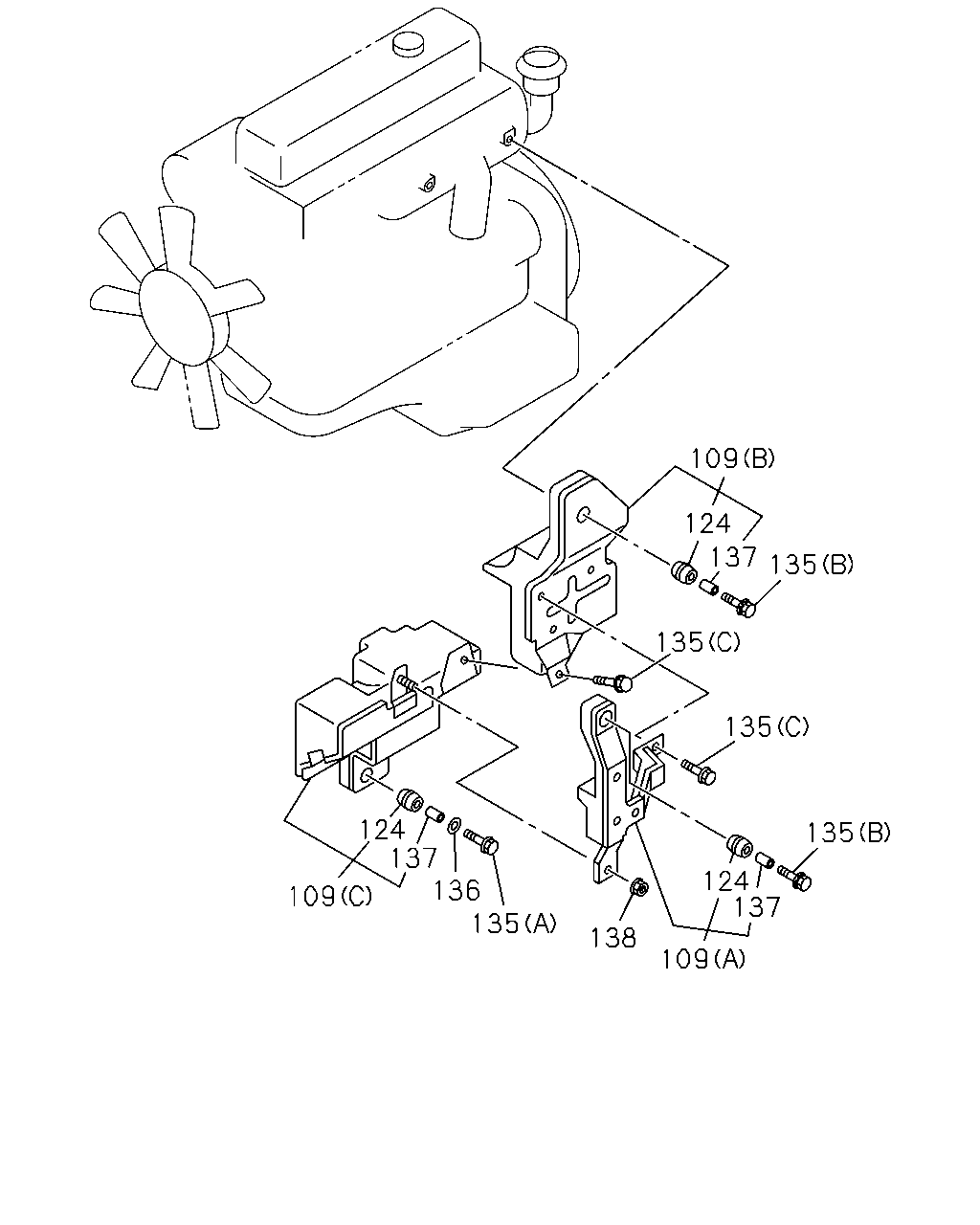

109 124 137 135 135 135 124 137 136 135 135 124 137 109 138 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
109	00.386 COVER; ENG TURBOCHARGER<K51> (A)	8-97223-628-2	01	1	0005-	●
109	00.386 COVER; ENG TURBOCHARGER<K51> (B)	8-97223-629-1	01	1	0005-	●
109	00.386 COVER; ENG TURBOCHARGER<K51> (C)	8-97223-630-1	01	1	0005-	●
124	00.413 RUBBER; MTG,COVER TURBOCHARGER<K51> 00.034 OD=22	8-94140-428-1	03	1	0005-0201	●
124	00.413 RUBBER; MTG,COVER TURBOCHARGER<K51> OD=21.8	8-97325-051-0	03	1	0202-	●
135	00.413 BOLT; COVER,ENG TURBOCHARGER<K51> 00.206 (C) M8X10 FLANGE	0-28080-810-0	02	1	0005-	●
135	00.413 BOLT; COVER,ENG TURBOCHARGER<K51> 09.008 (A) M10X20 FLANGE	0-28081-020-0	01	1	0005-	●
135	00.413 BOLT; COVER,ENG TURBOCHARGER<K51> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	0005-	●
136	00.413 WASHER; PL,ENG COVER TURBOCHARGER<K51> 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	0005-	●
137	00.413 BUSHING; MTG RUBBER,COVER TURBOCHARGER<K51> 00.034 OD=13 T=9.5	8-94140-427-1	03	1	0005-	●
138	00.413 NUT; COVER,ENG TURBOCHARGER<K51> 07.633 M8 FLANGE	0-91150-108-0	01	1	0005-	●
