◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#33092) — 36 parça

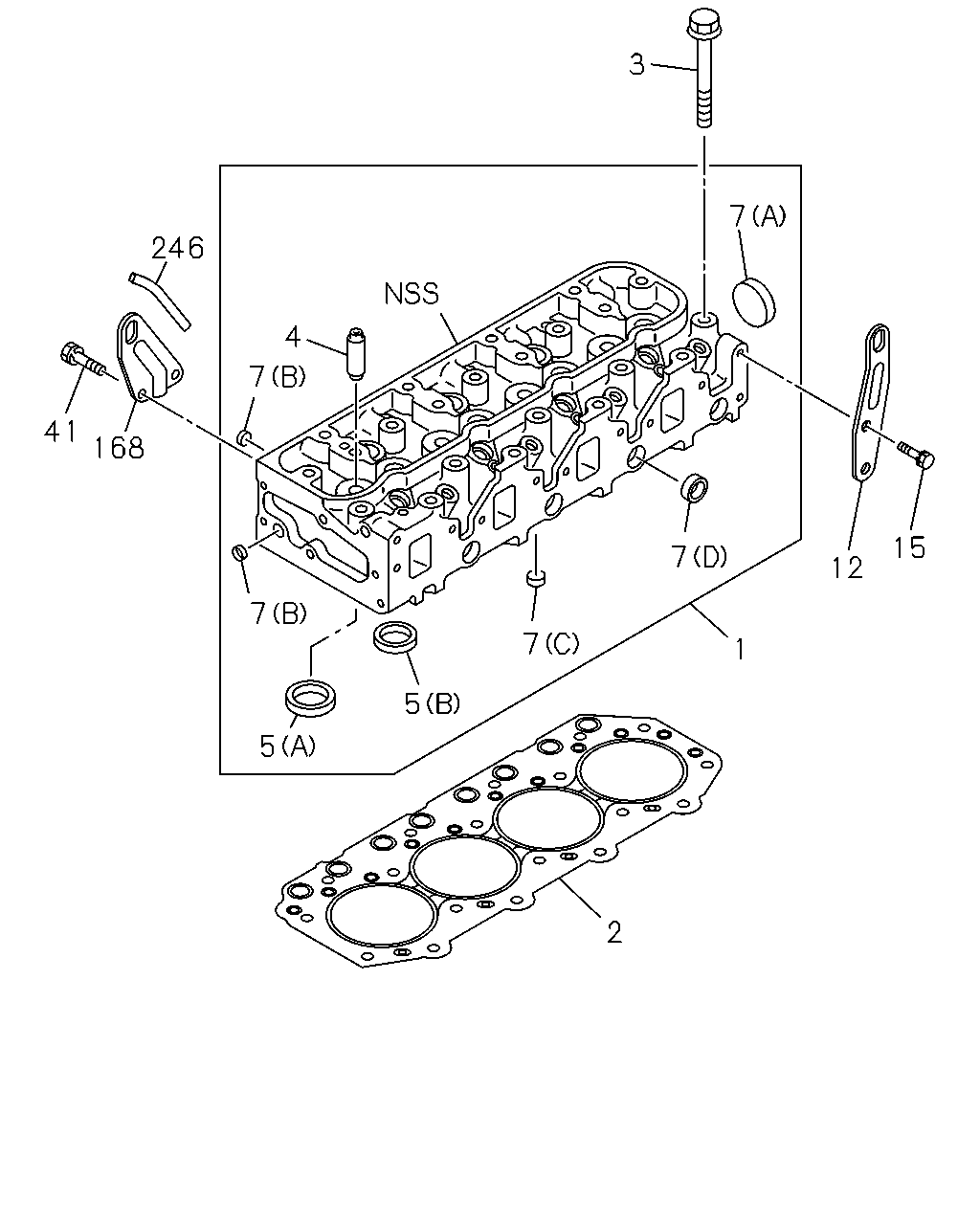

çizim 58821
3 7 246 4 7 41 168 15 7 12 7 7 1 5 5 2
BalonParca AdiParca NoAdetTipApplied Date
1 HEAD ASM; CYL
M/T MSG 5 SPEED(M75) THA 		8-97958-911-2 01 1 0610-0610
1 HEAD ASM; CYL
THA 		8-97958-911-2 01 1 0611-
2 GASKET; CYL HD
M/T MSG 5 SPEED(M75) T=1.60 1-NOTCH THA 		8-97941-994-0 01 1 0610-0610
2 GASKET; CYL HD
T=1.60 1-NOTCH THA 		8-97941-994-0 01 1 0611-
2 GASKET; CYL HD
M/T MSG 5 SPEED(M75) T=1.65 2-NOTCH THA 		8-97941-995-0 01 1 0610-0610
2 GASKET; CYL HD
T=1.65 2-NOTCH THA 		8-97941-995-0 01 1 0611-
2 GASKET; CYL HD
M/T MSG 5 SPEED(M75) T=1.70 3-NOTCH THA 		8-97941-996-0 01 1 0610-0610
2 GASKET; CYL HD
T=1.70 3-NOTCH THA 		8-97941-996-0 01 1 0611-
3 BOLT; CYL HD TO BLOCK
M/T MSG 5 SPEED(M75) M11X122 THA 		8-97941-070-0 18 1 0610-0610
3 BOLT; CYL HD TO BLOCK
M11X122 THA 		8-97941-070-0 18 1 0611-
4 GUIDE; VLV
M/T MSG 5 SPEED(M75) L=50 		5-11721-016-0 08 1 0610-0610
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0611-
5 SEAT; VLV INSERT
M/T MSG 5 SPEED(M75) (A) INLET OD=41.2 		8-97231-228-0 04 1 0610-0610
5 SEAT; VLV INSERT
(A) INLET OD=41.2 		8-97231-228-0 04 1 0611-
5 SEAT; VLV INSERT
M/T MSG 5 SPEED(M75) (B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0610-0610
5 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0611-
7 CUP; SEALING,CYL HEAD
M/T MSG 5 SPEED(M75) (A) OD=45 		1-09600-005-2 01 1 0610-0610
7 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-2 01 1 0611-
7 CUP; SEALING,CYL HEAD
M/T MSG 5 SPEED(M75) (B) OD=12.3 		5-09600-013-0 05 1 0610-0610
7 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 0611-
7 CUP; SEALING,CYL HEAD
M/T MSG 5 SPEED(M75) (C) OD=16 		5-11129-006-0 03 1 0610-0610
7 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0611-
7 CUP; SEALING,CYL HEAD
M/T MSG 5 SPEED(M75) (D) OD=22 		8-97209-609-0 07 1 0610-0610
7 CUP; SEALING,CYL HEAD
(D) OD=22 		8-97209-609-0 07 1 0611-
12 HANGER; ENG,RR
M/T MSG 5 SPEED(M75) THA 		8-97921-553-0 01 1 0610-0610
12 HANGER; ENG,RR
THA 		8-97921-553-0 01 1 0611-
15 BOLT; HANGER,FRT
M/T MSG 5 SPEED(M75) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0610
15 BOLT; HANGER,FRT
M8X16 FLANGE 		0-28050-816-0 02 1 0611-
41 BOLT; ENG HANGER
M/T MSG 5 SPEED(M75) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0610-0610
41 BOLT; ENG HANGER
M8X25 W/LK WASHER 		0-50540-825-0 01 1 0611-
41 BOLT; ENG HANGER
M/T MSG 5 SPEED(M75) M10X25 W/LK WASHER 		0-50541-025-0 01 1 0610-0610
41 BOLT; ENG HANGER
M10X25 W/LK WASHER 		0-50541-025-0 01 1 0611-
168 HANGER; ENG,FRT
M/T MSG 5 SPEED(M75) THA 		8-97910-218-0 01 1 0610-0610
168 HANGER; ENG,FRT
THA 		8-97910-218-0 01 1 0611-
246 PROTECTOR; EDGE
M/T MSG 5 SPEED(M75) L=80 		5-22439-006-0 01 1 0610-0610
246 PROTECTOR; EDGE
L=80 		5-22439-006-0 01 1 0611-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
