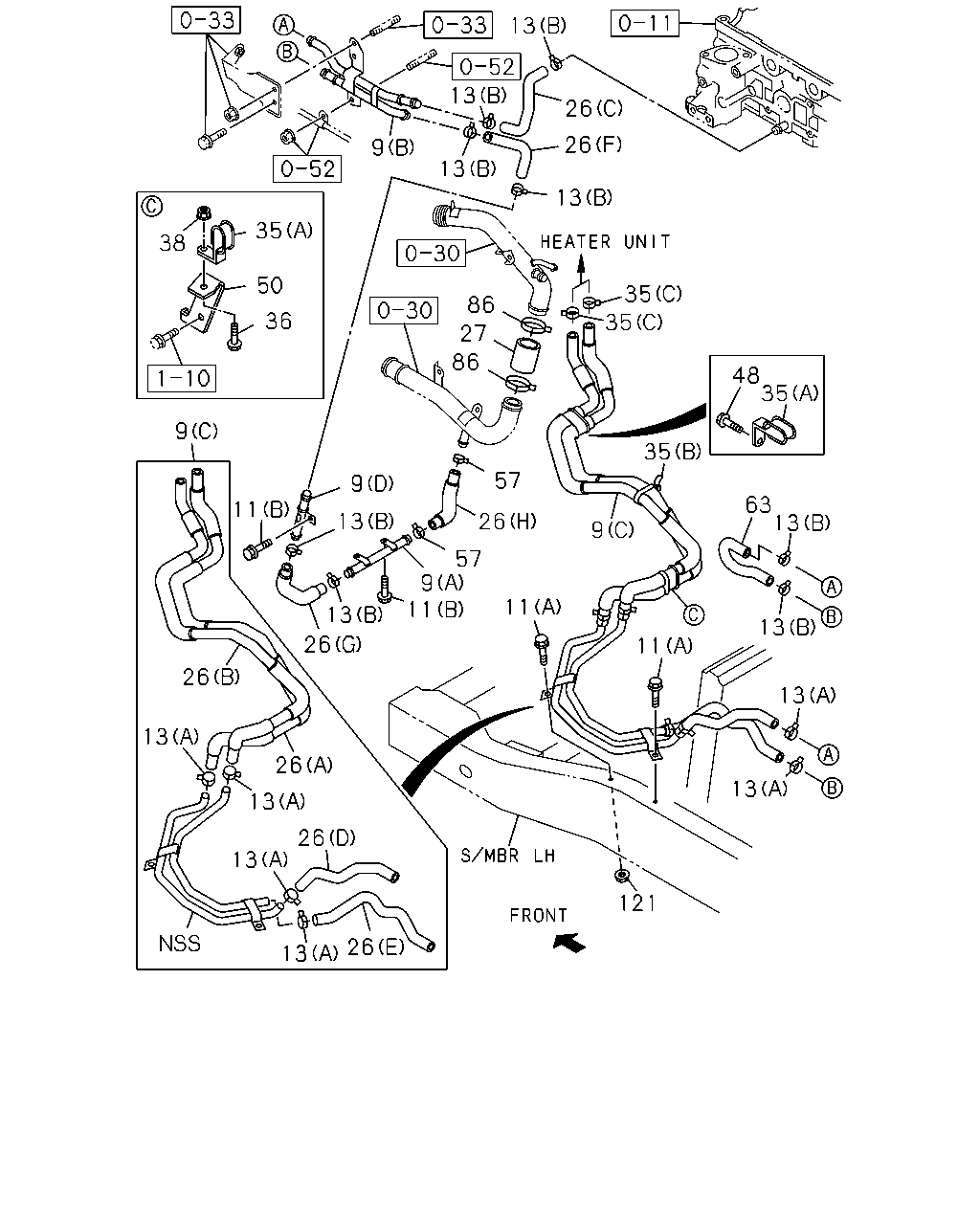

8-45 — HEATER PIPING (#33084) — 34 parça

13 13 26 26 9 13 13 35 38 50 35 86 36 35 27 86 48 35 9 35 57 9 63 13 11 13 26 9 57 9 11 11 13 13 26 11 26 13 13 26 13 13 26 13 121 26 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	08.846 PIPE; HTR (D)	8-97381-481-3	01	1	0609-	●	●
9	08.846 PIPE; HTR (A)	8-97383-035-1	01	1	0609-	●	●
9	08.846 PIPE; HTR (B)	8-98028-829-1	01	1	0609-	●	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41) (C)	8-97386-898-3	01	1	0609-	●	●
11	08.845 BOLT; HTR PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	0609-	●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0609-	●	●
13	08.846 CLIP; HTR HOSE 01.166 (B) ID=20.8	8-94125-862-1	06	1	0609-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	02	1	0609-0610	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 (A) ID=22	8-97359-141-0	02	1	0611-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	04	1	0609-	●	●
13	08.846 CLIP; HTR HOSE EXC. HEATER & DEFROSTER(C41) 01.166 (B) ID=20.8	8-94125-862-1	02	1	0609-	●	●
26	08.846 HOSE; HTR (F)	0-03516-240-0	01	1	0609-0910	●	●
26	08.846 HOSE; HTR (F)	8-98143-868-0	01	1	0911-	●	●
26	08.846 HOSE; HTR (C)	8-97383-048-1	01	1	0609-	●	●
26	08.846 HOSE; HTR (G)	8-98000-099-1	01	1	0609-	●	●
26	08.846 HOSE; HTR (H)	8-98000-101-2	01	1	0609-	●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (A)	8-97239-084-0	01	1	0609-	●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (B)	8-97239-085-0	01	1	0609-	●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (D)	8-98050-289-0	01	1	0609-	●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (E)	8-98050-290-0	01	1	0609-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI	8-98009-701-0	01	1	0609-	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	01	1	0609-	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	02	1	0609-0610	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	02	1	0611-	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) (A)	8-98032-129-0	01	1	0609-	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) (A)	8-98032-129-0	01	1	0609-	●	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0609-	●	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0609-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0609-	●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41)	8-97230-028-0	01	1	0609-	●	●
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	0609-	●	●
63	08.846 HOSE; WATER EXC. HEATER & DEFROSTER(C41)	8-98015-119-3	01	1	0609-	●	●
86	08.846 CLIP; HTR HOSE 01.166 ID=40.5	8-97313-472-0	02	1	0609-	●	●
121	08.845 NUT; PIPE HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0609-	●	●
