Isuzu WW
▶
TRUCKS
▶
NKR
▶
51127 - NKR85(LHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#33083) — 31 parça
Tümü
A - NKB6SC
B - NKC6SF
◀
[840A] NO.4 (2 parça)
[840A] NO.3 (2 parça)
[840A] NO.1 (23 parça)
[840A] NO.2 (4 parça)
▶

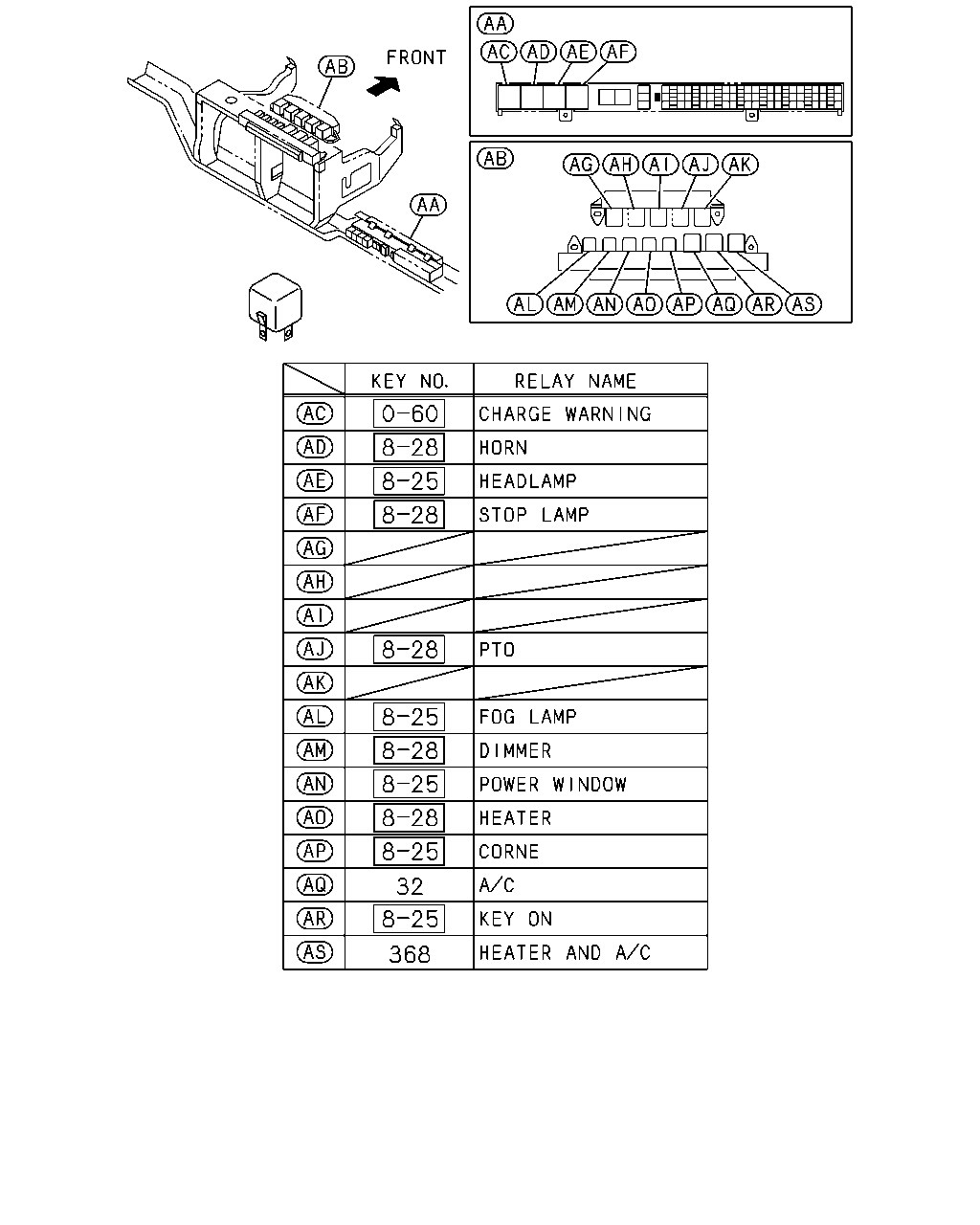

32
368
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
32
02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC
8-97262-933-0
01
1
0609-
●
●
368
09.277 RELAY; HEATER AND A/C
02.510 24V 12.5A PANASONIC
8-97262-933-0
01
1
0609-
●
●
371
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
370
08.866 PLATE; BAFFLE,BLOWER UNIT
8-97856-617-1
01
1
0609-
●
●
371
08.866 FASTENER; BAFFLE PLATE
12.934 D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
01
1
0609-
●
●

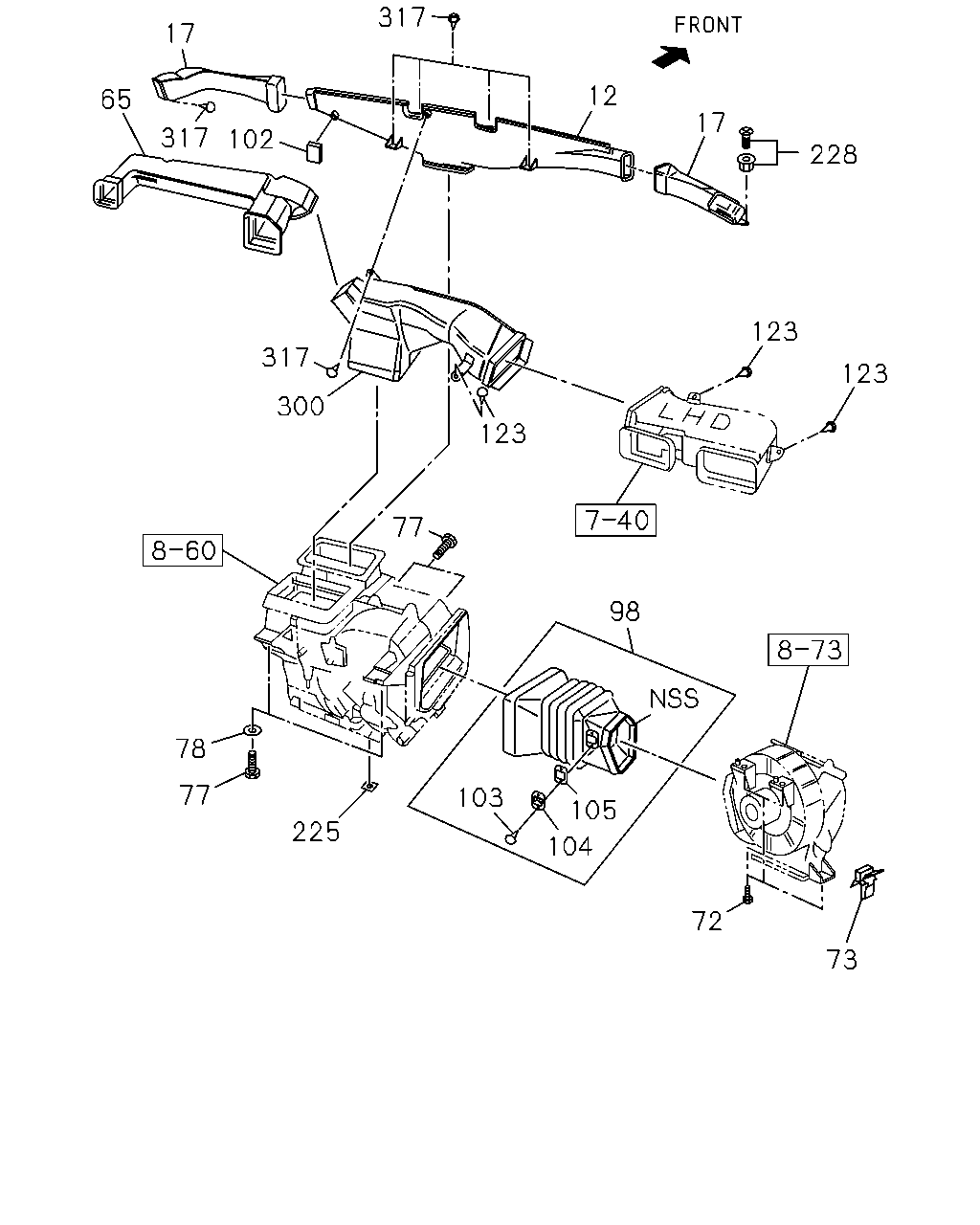

317
17
12
65
17
317
102
228
123
317
123
300
123
77
98
78
77
103
105
225
104
72
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
09.779 NOZZLE; DEFROSTER
8-97251-629-0
01
1
0609-
●
●
17
09.779 NOZZLE; DEFROSTER,SIDE
8-97262-693-0
01
1
0609-
●
●
17
09.779 NOZZLE; DEFROSTER,SIDE
8-97262-694-0
01
1
0609-
●
●
65
09.786 DUCT; VENT,DRIVER SIDE
8-97262-695-0
01
1
0609-
●
●
72
08.857 BOLT; BLOWER UNIT
03.162 M6X20 FLANGE
0-28650-620-0
02
1
0609-
●
●
72
08.857 BOLT; BLOWER UNIT
M8X35
8-97103-452-0
02
1
0609-
●
●
73
08.807 CLIP; HARNESS TO BLOWER UNIT
09.787
8-94337-654-0
01
1
0609-
●
●
77
08.845 BOLT; HTR UNIT
03.162 M6X20 FLANGE
0-28650-620-0
02
1
0609-
●
●
77
08.845 BOLT; HTR UNIT
00.685 M8X40 FLANGE
0-28650-840-0
01
1
0609-
●
●
77
08.845 BOLT; HTR UNIT
M8X25
8-97103-451-0
01
1
0609-
●
●
78
08.845 WASHER; PL,HTR UNIT
04.595 ID=8.4 OD=22
0-91610-708-0
01
1
0609-
●
●
98
09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97374-885-0
01
1
0609-
●
●
102
09.262 LINING; HTR DUCT
8-97145-038-0
01
1
0609-
●
●
103
08.855 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.789 M4X16 TAPPING
1-83579-114-0
02
1
0609-
●
●
104
08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97358-389-0
02
1
0609-
●
●
105
08.856 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97020-761-0
01
1
0609-
●
●
123
09.786 SCREW; DUCT
09.264 M5X12 W/PL WASHER
8-97147-069-0
02
1
0609-0612
●
●
123
09.786 SCREW; DUCT
04.681 M5X12 TAPPING
0-72180-512-0
02
1
0701-
●
●
225
08.845 SEAL; WATER
8-97856-616-0
04
1
0609-
●
●
228
09.780 CLIP; DEFROSTER
12.934 D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
01
1
0609-
●
●
300
09.264 DUCT; VENT,CENTER
8-97262-697-0
01
1
0609-
●
●
317
09.264 SCREW; DEFROSTER NOZZLE
M5X12 W/PL WASHER
8-97147-069-0
05
1
0609-0612
●
●
317
09.264 SCREW; DEFROSTER NOZZLE
04.681 M5X12 TAPPING
0-72180-512-0
05
1
0701-
●
●

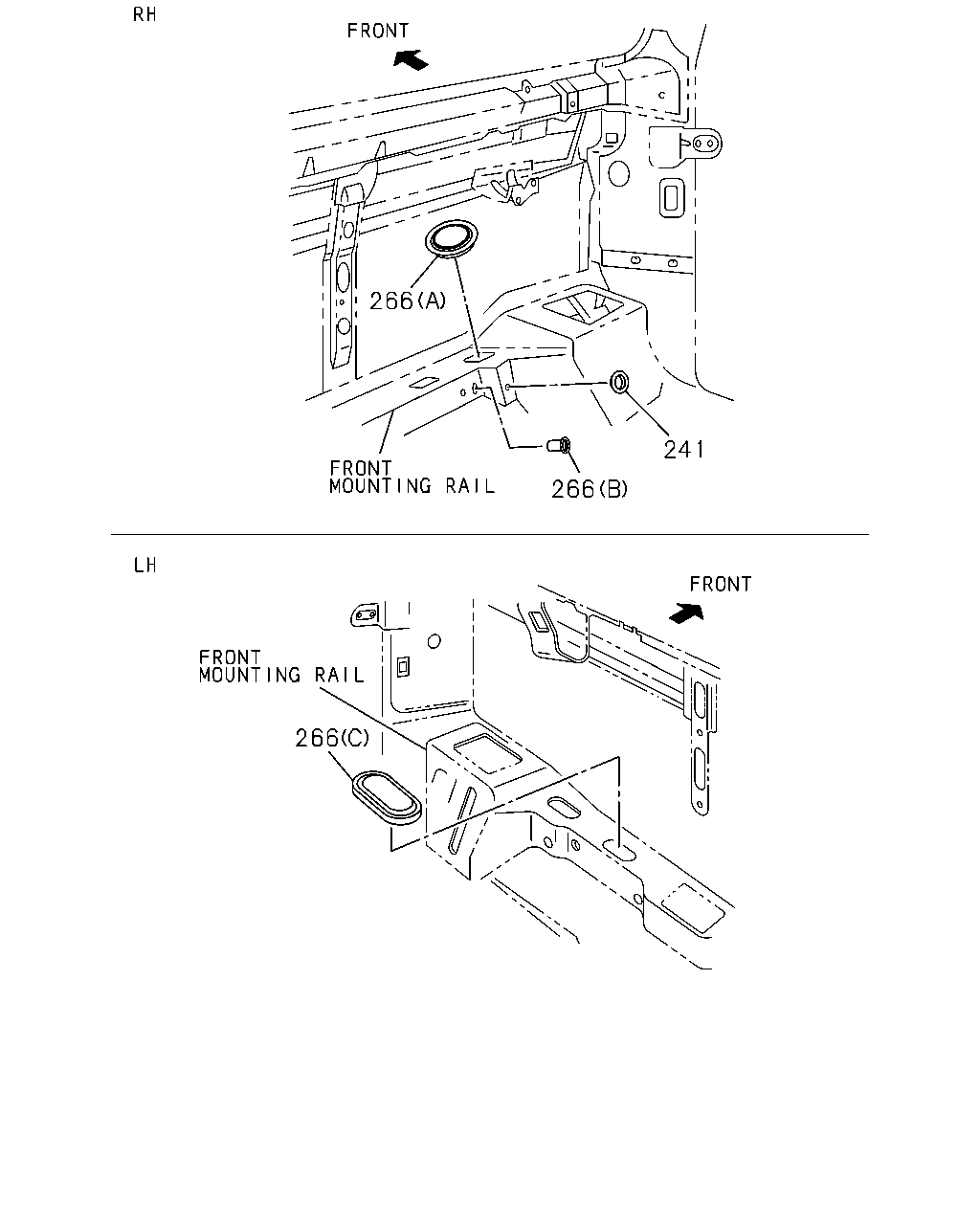

266
241
266
266
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
241
16.550 PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97037-392-0
01
1
0609-
●
●
266
08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37
8-97036-019-0
01
1
0609-
●
●
266
08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.211 (B) OD=13
9-09756-019-0
01
1
0609-
●
●
266
08.845 PLUG; HTR HOLE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5
8-97036-020-0
01
1
0609-
●
●
