◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51127 - NKR85(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#33081) — 9 parça

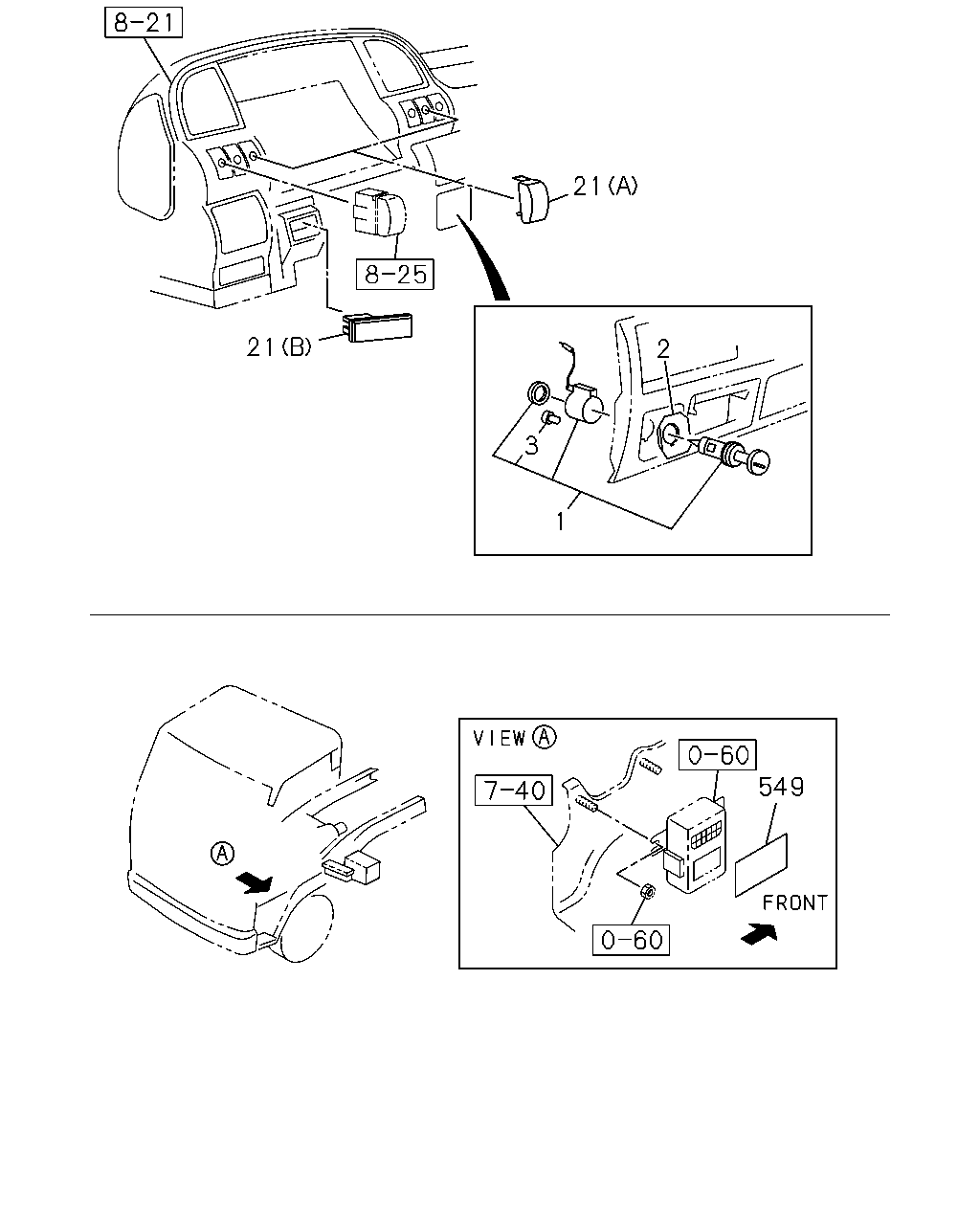

çizim 13675
21 21 2 3 1 549
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0609- ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0609-0706 ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707- ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0609- ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0609- ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0609- ● ●
21 09.744 COVER; HOLE
EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0609- ● ●
549 02.510 SHEET 8-97262-355-1 01 1 0609- ● ●

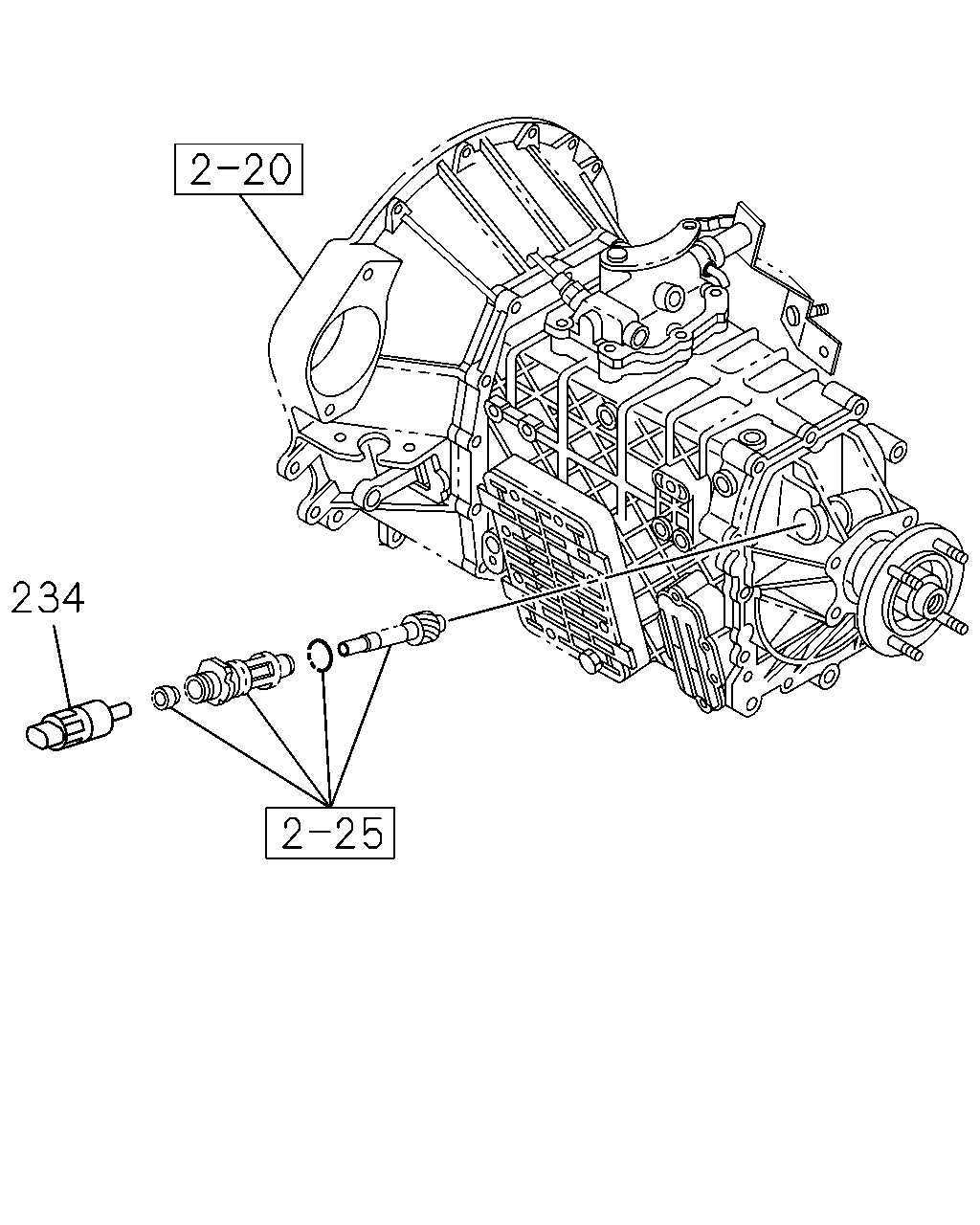

çizim 13975
234
BalonParca AdiParca NoAdetTipApplied Date A B
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0609- ● ●
