Isuzu WW
▶
TRUCKS
▶
NKR
▶
51127 - NKR85(LHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#33080) — 43 parça
Tümü
A - NKB6SC
B - NKC6SF
◀
[825A] SWITCH;DOOR (7 parça)
[825A] SWITCH;INST PANEL (13 parça)
[825A] RELAY;CAB HARNESS (5 parça)
[825A] RELAY;DOOR LK AND CONDENSER FAN (5 parça)
[825A] SWITCH;COMB,CLU AND POWER WINDOW (13 parça)
▶
257
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
29
16.263 SWITCH; DOOR
8-97855-032-3
01
1
0609-
●
●
30
16.263 SCREW; DOOR SW
M5X16
8-94279-341-0
01
1
0609-
●
●
257
16.081 COVER; HOLE,SW
16.494 (A)
8-94229-914-1
01
1
0609-
●
●
257
16.081 COVER; HOLE,SW
EXC. FOG LAMP<T96>,ROOM LAMP SWITCH<7KL> 09.744 (C)
8-97136-694-0
01
1
0609-
●
●
257
16.081 COVER; HOLE,SW
09.744 (C)
8-97136-694-0
01
1
0609-
●
●
257
16.081 COVER; HOLE,SW
09.744 (C)
8-97136-694-0
01
1
0609-
●
●
257
16.081 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B)
8-94310-890-0
01
1
0609-
●
●

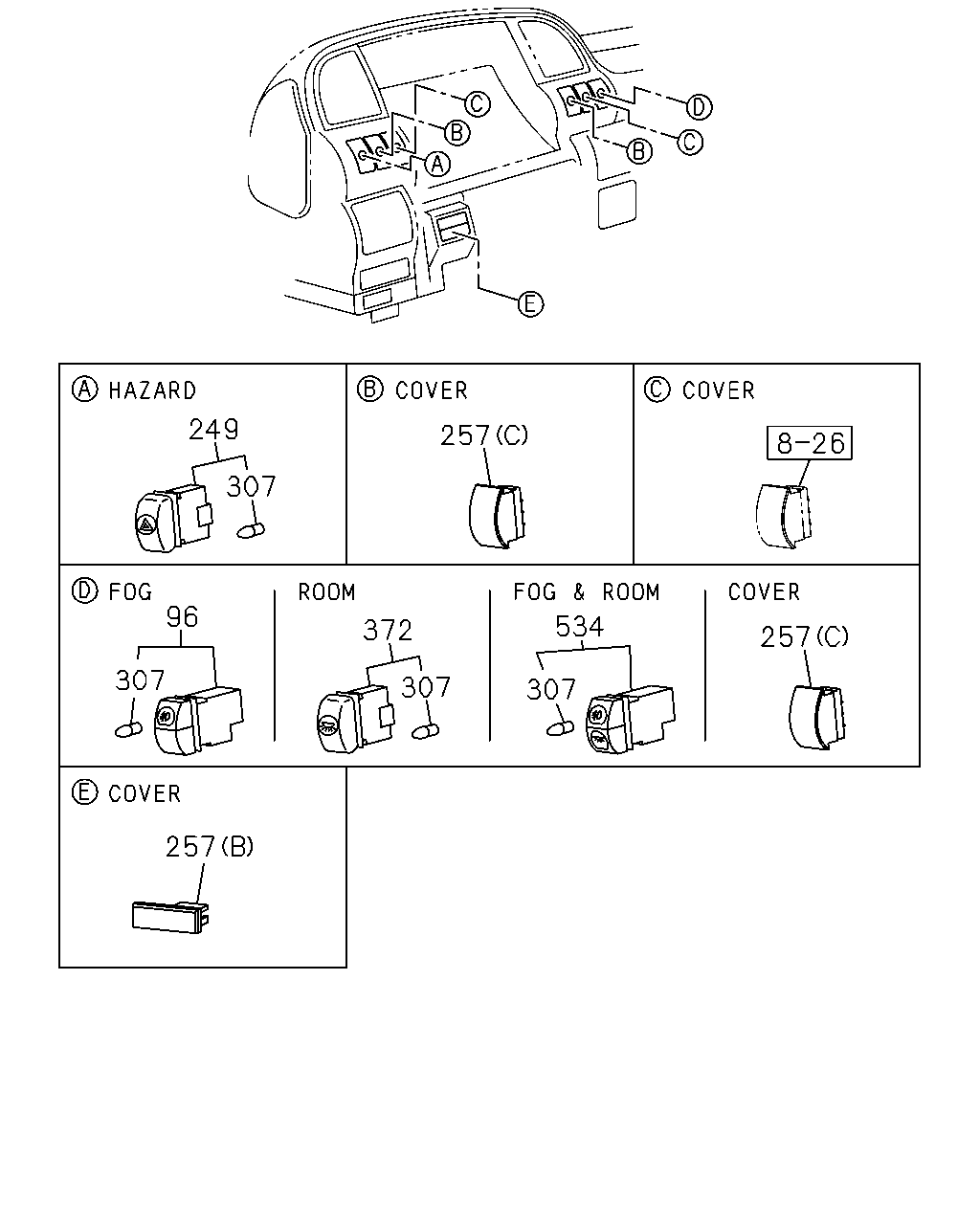

534
257
307
372
96
307
257
249
257
307
307
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
96
02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. ROOM LAMP SWITCH<7KL>
8-97364-308-1
01
1
0609-
●
●
249
02.485 SWITCH; HAZARD
8-97202-475-0
01
1
0609-
●
●
257
16.081 COVER; HOLE,SW
16.494 (A)
8-94229-914-1
01
1
0609-
●
●
257
16.081 COVER; HOLE,SW
EXC. FOG LAMP<T96>,ROOM LAMP SWITCH<7KL> 09.744 (C)
8-97136-694-0
01
1
0609-
●
●
257
16.081 COVER; HOLE,SW
09.744 (C)
8-97136-694-0
01
1
0609-
●
●
257
16.081 COVER; HOLE,SW
09.744 (C)
8-97136-694-0
01
1
0609-
●
●
257
16.081 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B)
8-94310-890-0
01
1
0609-
●
●
307
08.991 BULB ASM; SW
28V 40MA
8-97116-331-0
02
1
0609-
●
●
307
08.991 BULB ASM; SW
FOG LAMP<T96> ROOM LAMP SWITCH<7KL> 28V 40MA
8-97116-331-0
02
1
0609-
●
●
307
08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. FOG LAMP<T96> 28V 40MA
8-97116-331-0
01
1
0609-
●
●
307
08.991 BULB ASM; SW
FOG LAMP<T96> EXC. ROOM LAMP SWITCH<7KL> 28V 40MA
8-97116-331-0
01
1
0609-
●
●
372
08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. FOG LAMP<T96>
8-97363-946-1
01
1
0609-
●
●
534
02.780 SWITCH SET; FOG & ROOM
FOG LAMP<T96> ROOM LAMP SWITCH<7KL>
8-97140-585-0
01
1
0609-
●
●

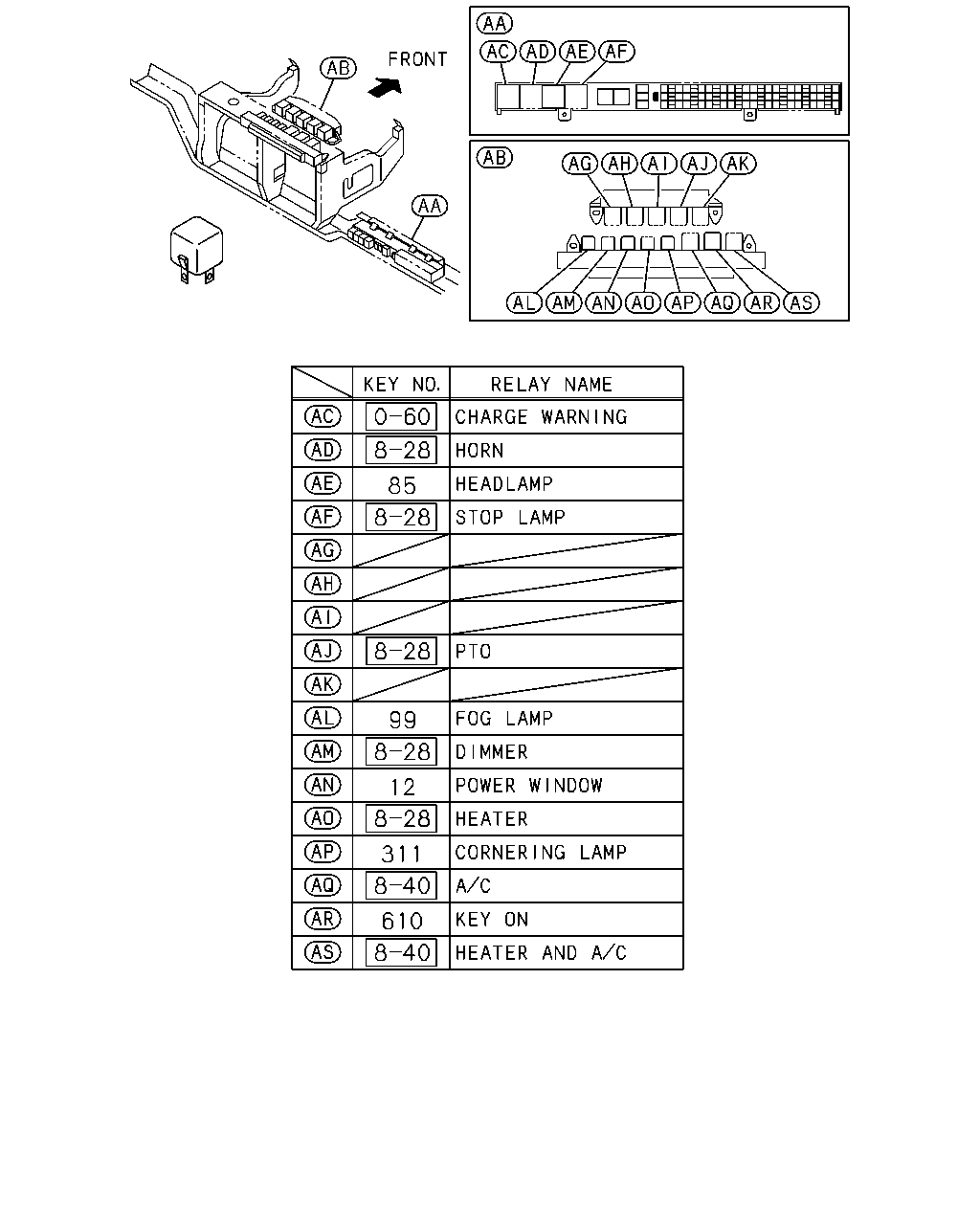

85
99
12
311
610
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC
8-97173-035-1
01
1
0609-
●
●
85
02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC
8-97173-035-1
01
1
0609-
●
●
99
02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC
8-97173-035-1
01
1
0609-
●
●
311
02.596 RELAY; CORNERING LAMP
08.852 24V 10A PANASONIC
8-97173-035-1
01
1
0609-
●
●
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
0609-
●
●

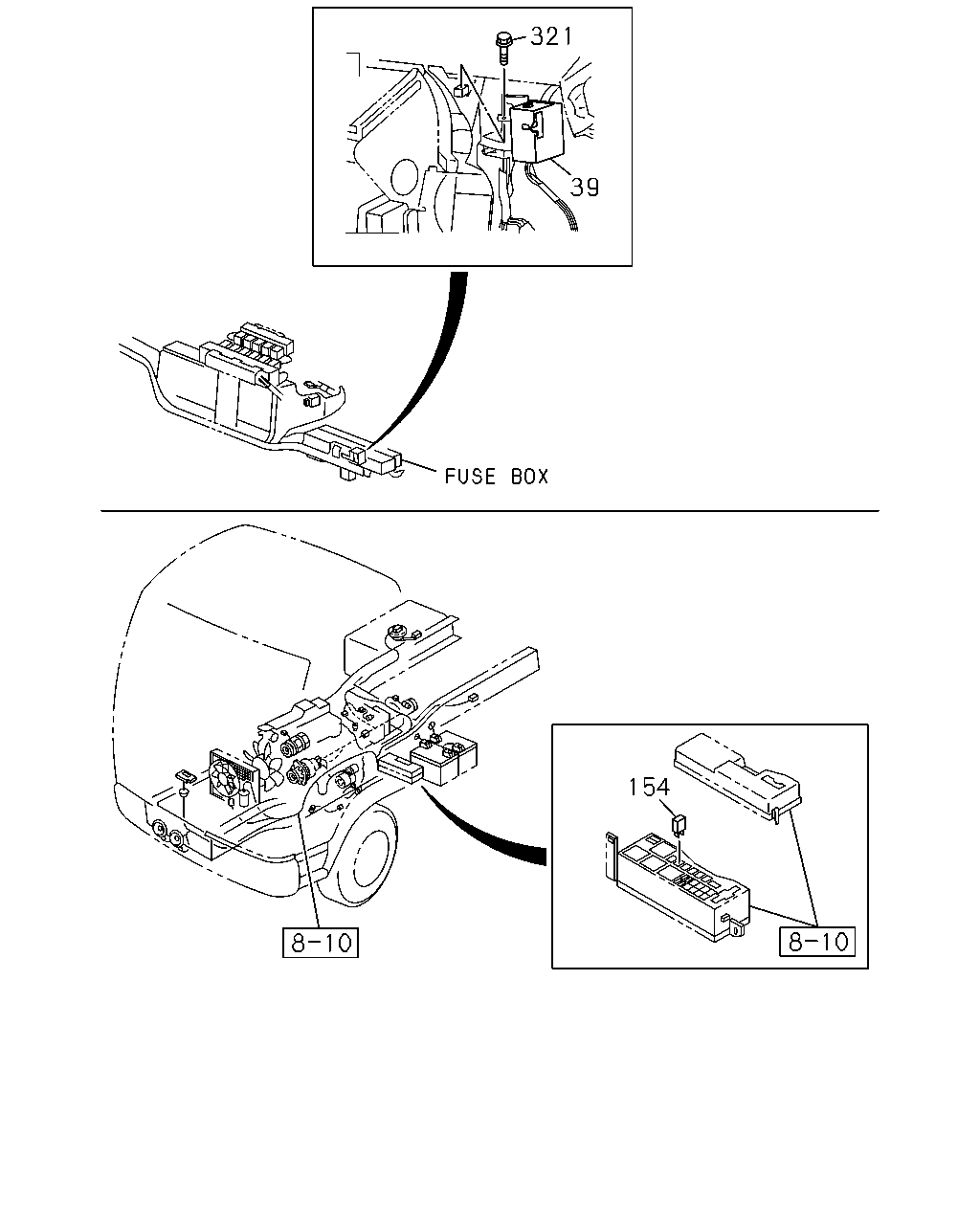

321
39
154
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
39
16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4>
8-97177-214-0
01
1
0609-
●
●
154
09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC
8-97173-035-1
01
1
0609-
●
●
321
16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20
8-94436-927-0
01
1
0609-0612
●
●
321
16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
0701-1101
●
●
321
16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
01
1
1102-
●
●
1
8
263
3
8
615
10
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
02.895 SWITCH; COMB
INTERMITTENT WIPER<C13>
8-97383-517-0
01
1
0609-
●
●
1
02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>
8-97383-513-0
01
1
0609-
●
●
3
02.897 SCREW; COMB SW
M5X20 W/LK WASHER
0-36220-520-0
04
1
0609-0612
●
●
3
02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
04
1
0701-
●
●
8
16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE
8-97214-399-0
01
1
0609-0703
●
●
8
16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE
8-98075-446-0
01
1
0704-0907
●
●
8
16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE
8-98147-236-0
01
1
0908-
●
●
8
16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-97315-178-0
01
1
0609-0907
●
●
8
16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-98147-226-0
01
1
0908-
●
●
10
03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32>
8-97219-239-0
02
1
0609-
●
●
21
02.575 SWITCH; CLU
8-97358-248-0
01
1
0609-
●
●
263
16.081 COVER; SW
POWER WINDOW FRT DOOR<A32>
8-97219-236-0
01
1
0609-
●
●
615
16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32>
8-97219-238-0
01
1
0609-
●
●
