0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#3308) — 35 parça

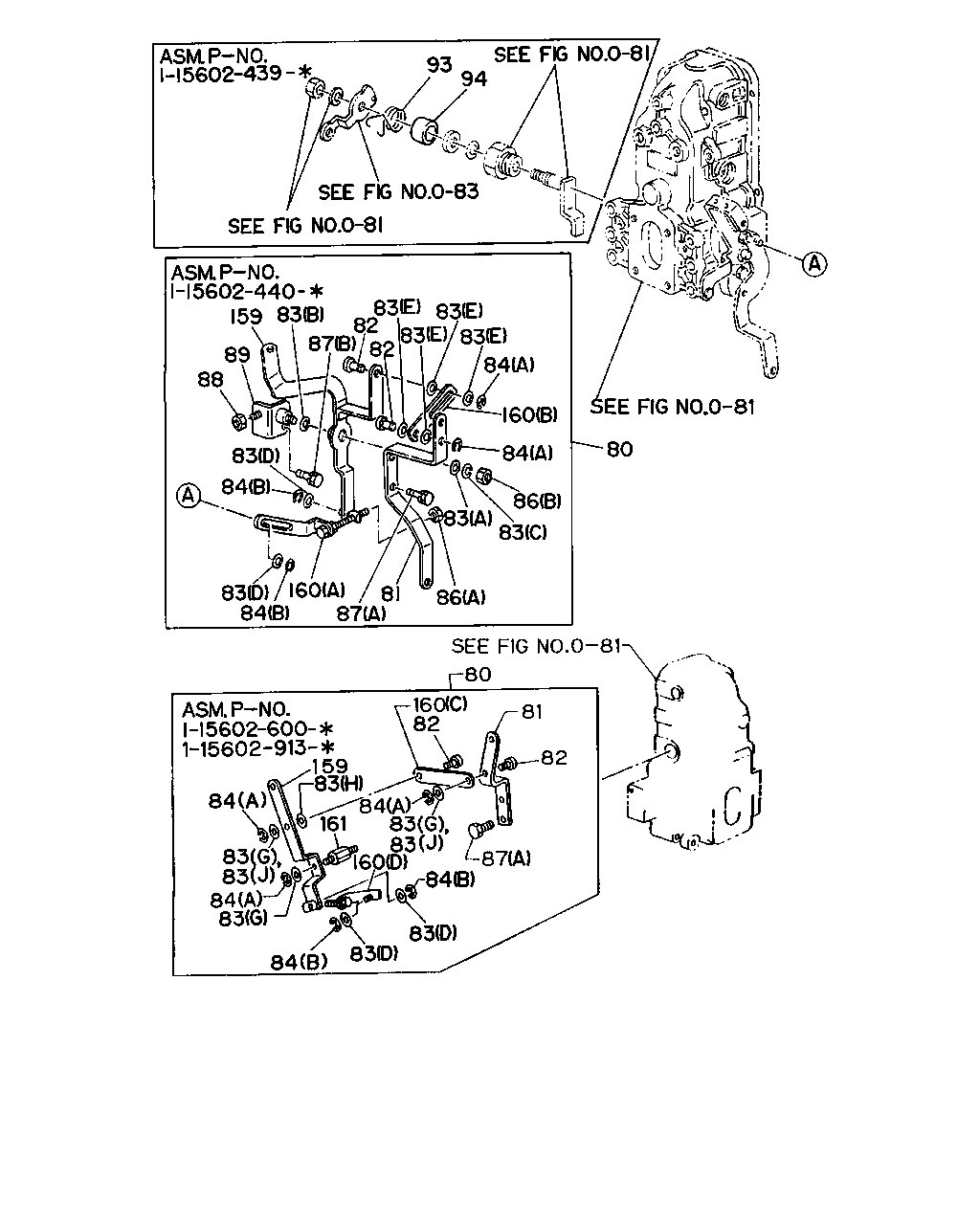

çizim 4569
84 83 83 83 84 83 83 84 161 160 84 83 83 84 83 159 87 82 81 82 160 80 84 83 160 81 87 86 83 83 86 84 160 84 83 83 83 83 82 87 82 83 159 89 88 84 83 80 94 93
BalonParca AdiParca NoAdetTipApplied Date
80 LEVER KIT
ASM PART: C = 1-15602-600-1, D = 1-15602-913-0 		1-15725-406-0 01 1 -
80 LEVER KIT
ASM PART: B = 1-15602-440-3 		1-15725-573-0 01 1 -
81 LEVER; INNER
ASM PART: C = 1-15602-600-1, D = 1-15602-913-0 		1-15725-407-0 01 1 -
81 LEVER; INNER
ASM PART: B = 1-15602-440-3 		1-15725-574-0 01 1 -
82 PIN; LEVER TO LEVER
ASM PART: B = 1-15602-440-3, C = 1-15602-600-1, D = 1-15602-913-0 		1-15729-722-0 02 1 -
83 WASHER; LEVER
(A), ID=8 ASM PART: B = 1-15602-440-3 		1-14319-034-0 01 1 -
83 WASHER; LEVER
(B) ASM PART: B = 1-15602-440-3 		1-15729-941-0 01 1 -
83 WASHER; LEVER
(C), ID=8.2 ASM PART: B = 1-15602-440-3 		9-09150-608-0 01 1 -
83 WASHER; LEVER
(G), ID=10.5 OD=18 ASM PART: C = 1-15602-600-1, D = 1-15602-913-0 		9-09160-510-0 02 1 -
83 WASHER; LEVER
(D), ID=6.4 OD=14 ASM PART: B = 1-15602-440-3, C = 1-15602-600-1, D = 1-15602-913-0 		9-09160-606-0 02 1 -
83 WASHER; LEVER
(E), ID=10.5 OD=22 ASM PART: B = 1-15602-440-3 		9-09160-610-0 04 1 -
83 WASHER; LEVER
(J), ID=10.5 ASM PART: D = 1-15602-913-0 		9-09164-510-0 03 1 -
83 WASHER; LEVER
(J), ID=10.5 ASM PART: C = 1-15602-600-1 		9-09164-510-0 03 1 9206-
83 WASHER; LEVER
(J), ID=10.5 ASM PART: C = 1-15602-600-1 		9-09164-510-0 03 1 -9205
83 WASHER; LEVER
(H), T=0.20 ASM PART: C = 1-15602-600-1, D = 1-15602-913-0 		9-88410-421-0 01 1 -
84 RING; SNAP
(A) ASM PART: C = 1-15602-600-1 		1-15729-723-0 03 1 9206-
84 RING; SNAP
(A) ASM PART: C = 1-15602-600-1 		1-15729-723-0 03 1 -9205
84 RING; SNAP
(A) ASM PART: D = 1-15602-913-0 		1-15729-723-0 03 1 -
84 RING; SNAP
(A) ASM PART: B = 1-15602-440-3 		1-15729-723-0 02 1 -
84 RING; SNAP
(B) ASM PART: B = 1-15602-440-3, C = 1-15602-600-1, D = 1-15602-913-0 		8-94244-599-0 02 1 -
86 NUT; LINK LEVER
(A) ASM PART: B = 1-15602-440-3 		1-15729-006-0 01 1 -
86 NUT; LINK LEVER
(B) ASM PART: B = 1-15602-440-3 		1-15729-236-0 01 1 -
87 BOLT; LEVER
(A), M6X16 W/LK WASHER ASM PART: B = 1-15602-440-3, C = 1-15602-600-1, D = 1-15602-913-0 		9-01900-616-0 02 1 -
87 BOLT; LEVER
(B), M8X30 W/LK WASHER ASM PART: B = 1-15602-440-3 		9-01900-830-0 01 1 -
88 NUT; CONN PIN LOCK,LOAD SENSOR
M8 ASM PART: B = 1-15602-440-3 		9-09110-408-0 01 1 -
89 BRACKET; LEVER
ASM PART: B = 1-15602-440-3 		1-15729-949-0 01 1 -
93 SPRING; LEVER
ASM PART: A = 1-15602-439-2 		1-15723-129-0 01 1 -
94 COLLAR; LEVER
ASM PART: A = 1-15602-439-2 		1-15729-364-0 01 1 -
159 LEVER; OUTER
ASM PART: C = 1-15602-600-1, D = 1-15602-913-0 		1-15725-408-0 01 1 -
159 LEVER; OUTER
ASM PART: B = 1-15602-440-3 		1-15725-563-0 01 1 -
160 LINK; LEVER
(C) ASM PART: C = 1-15602-600-1, D = 1-15602-913-0 		1-15725-409-0 01 1 -
160 LINK; LEVER
(D) ASM PART: C = 1-15602-600-1, D = 1-15602-913-0 		1-15725-410-0 01 1 -
160 LINK; LEVER
(A) ASM PART: B = 1-15602-440-3 		1-15725-541-0 01 1 -
160 LINK; LEVER
(B) ASM PART: B = 1-15602-440-3 		1-15725-575-0 01 1 -
161 PIN; LEVER
ASM PART: C = 1-15602-600-1, D = 1-15602-913-0 		1-15729-724-0 01 1 -
