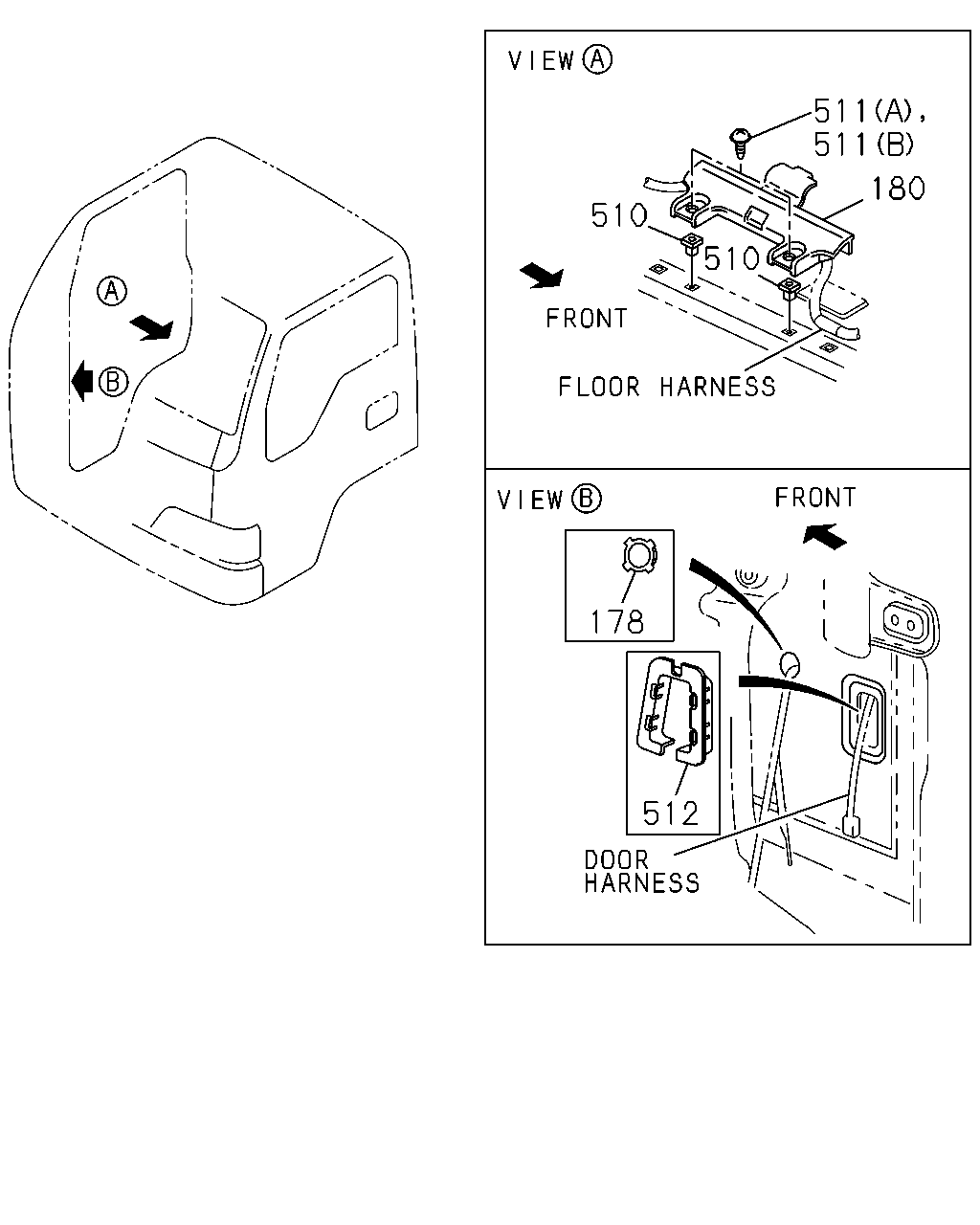

8-15 — FIXING PARTS; WIRING HARNESS (#33078) — 136 parça

511 511 180 510 510 178 512

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0609-	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0609-	●	●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0609-	●	●
511	02.559 SCREW; HARNESS COVER 16.800 M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0609-0702	●	●
511	02.559 SCREW; HARNESS COVER 04.681 M5X12 TAPPING	0-72180-512-0	04	1	0703-	●	●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0609-	●	●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0609-	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2)	8-97072-950-0	02	1	0609-	●	●

139 139 8 38 38 516 377 386 377 386 8 38 466 159 159 139 511 511 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.559 BOLT; BRKT,CONNECTOR 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0609-	●	●
8	02.559 BOLT; BRKT,CONNECTOR 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-	●	●
10	02.559 SCREW; BRKT TO BODY 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0609-0612	●	●
10	02.559 SCREW; BRKT TO BODY 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0701-1101	●	●
10	02.559 SCREW; BRKT TO BODY 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0609-	●	●
38	02.559 BOLT; CLIP,HARNESS 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0609-	●	●
38	02.559 BOLT; CLIP,HARNESS 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0609-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	0609-	●	●
139	02.559 BOLT; BRKT 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0609-	●	●
139	02.559 BOLT; BRKT (C)	8-97028-451-3	01	1	0609-	●	●
159	02.559 BOLT; GRAND ENG ELEC 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0609-1004	●	●
159	02.559 BOLT; GRAND ENG ELEC 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0609-1004	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0609-1004	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●
466	02.483 BOLT; HEAT PROTECTOR 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0609-	●	●
511	02.559 SCREW; HARNESS COVER 16.800 M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0609-0702	●	●
511	02.559 SCREW; HARNESS COVER 04.681 M5X12 TAPPING	0-72180-512-0	04	1	0703-	●	●
516	02.559 BOLT; HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0609-	●	●

16 22 488 48 162 16 205 48 142 16 48 52 48 16 16 48 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155	8-97173-307-0	04	1	1011-	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	0609-	●
16	02.559 CLIP; HARNESS (C) L=135	1-09987-143-1	01	1	0609-	●	●
16	02.559 CLIP; HARNESS 16.065 (G) 1 SET=5 PIECE	1-09987-214-0	03	1	0609-	●	●
16	02.559 CLIP; HARNESS 02.343 (H) ID=10 & 16	8-94413-325-0	02	1	0609-	●	●
16	02.559 CLIP; HARNESS 01.166 (I) ID=22 & 22	8-94464-837-0	01	1	0609-	●	●
16	02.559 CLIP; HARNESS 02.694 (J) ID=6 & 10-13	8-97069-515-0	02	1	0609-	●	●
16	02.559 CLIP; HARNESS (E) ID=15-32	8-97174-404-0	02	1	0609-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (F) L=140	5-09707-031-1	01	1	0609-	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=100	8-94327-067-1	04	1	0609-	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=100	8-94327-067-1	04	1	0609-	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	0609-1009	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155	8-97173-307-0	04	1	0609-1009	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	06	1	1011-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	10	1	0609-1009	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	11	1	1010-1010	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1011-	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1011-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	05	1	1011-	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0609-		●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0609-	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (B) ID=6 & 8.3	8-94167-742-0	01	1	0609-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (C) ID=13.2 & 14.5	8-94475-649-0	01	1	0609-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (D) ID=12 & 6.8	8-97125-842-0	01	1	0609-	●	●
48	02.559 CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	01	1	0609-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	0609-	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	02	1	0609-	●	●
48	02.559 CLIP; FRAME HARNESS (F) ID=9	8-97063-874-0	01	1	0609-	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=40 L=90	1-09701-290-0	05	1	0609-	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0609-	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=30 W/STUD	8-97078-642-2	01	1	0609-	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (D) T=4.5 & 9	5-09709-023-0	02	1	0609-	●	●
52	02.559 CLIP; HARNESS TO BRKT 01.240 ID=14 L=47	5-09700-319-0	01	1	0609-		●
142	02.559 CLIP; HARNESS,ENG L=170.3	1-09987-182-0	01	1	0609-	●	●
162	02.559 CLIP; SW HARNESS 03.162 L=140	5-09707-031-1	01	1	0609-	●	●
205	02.559 CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0609-	●	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0609-	●	●

16 16 264 48 22 22 22 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155	8-97173-307-0	04	1	1011-	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	0609-	●
16	02.559 CLIP; HARNESS (C) L=135	1-09987-143-1	01	1	0609-	●	●
16	02.559 CLIP; HARNESS 16.065 (G) 1 SET=5 PIECE	1-09987-214-0	03	1	0609-	●	●
16	02.559 CLIP; HARNESS 02.343 (H) ID=10 & 16	8-94413-325-0	02	1	0609-	●	●
16	02.559 CLIP; HARNESS 01.166 (I) ID=22 & 22	8-94464-837-0	01	1	0609-	●	●
16	02.559 CLIP; HARNESS 02.694 (J) ID=6 & 10-13	8-97069-515-0	02	1	0609-	●	●
16	02.559 CLIP; HARNESS (E) ID=15-32	8-97174-404-0	02	1	0609-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (F) L=140	5-09707-031-1	01	1	0609-	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=100	8-94327-067-1	04	1	0609-	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=100	8-94327-067-1	04	1	0609-	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	04	1	0609-1009	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155	8-97173-307-0	04	1	0609-1009	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	06	1	1011-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	10	1	0609-1009	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	11	1	1010-1010	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1011-	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155	8-97173-307-0	05	1	1011-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	05	1	1011-	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0609-		●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0609-	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (B) ID=6 & 8.3	8-94167-742-0	01	1	0609-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (C) ID=13.2 & 14.5	8-94475-649-0	01	1	0609-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (D) ID=12 & 6.8	8-97125-842-0	01	1	0609-	●	●
48	02.559 CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	01	1	0609-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	0609-	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	02	1	0609-	●	●
48	02.559 CLIP; FRAME HARNESS (F) ID=9	8-97063-874-0	01	1	0609-	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=40 L=90	1-09701-290-0	05	1	0609-	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0609-	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=30 W/STUD	8-97078-642-2	01	1	0609-	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (D) T=4.5 & 9	5-09709-023-0	02	1	0609-	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 ID=6 & 10-13	8-97069-515-0	01	1	0609-	●	●

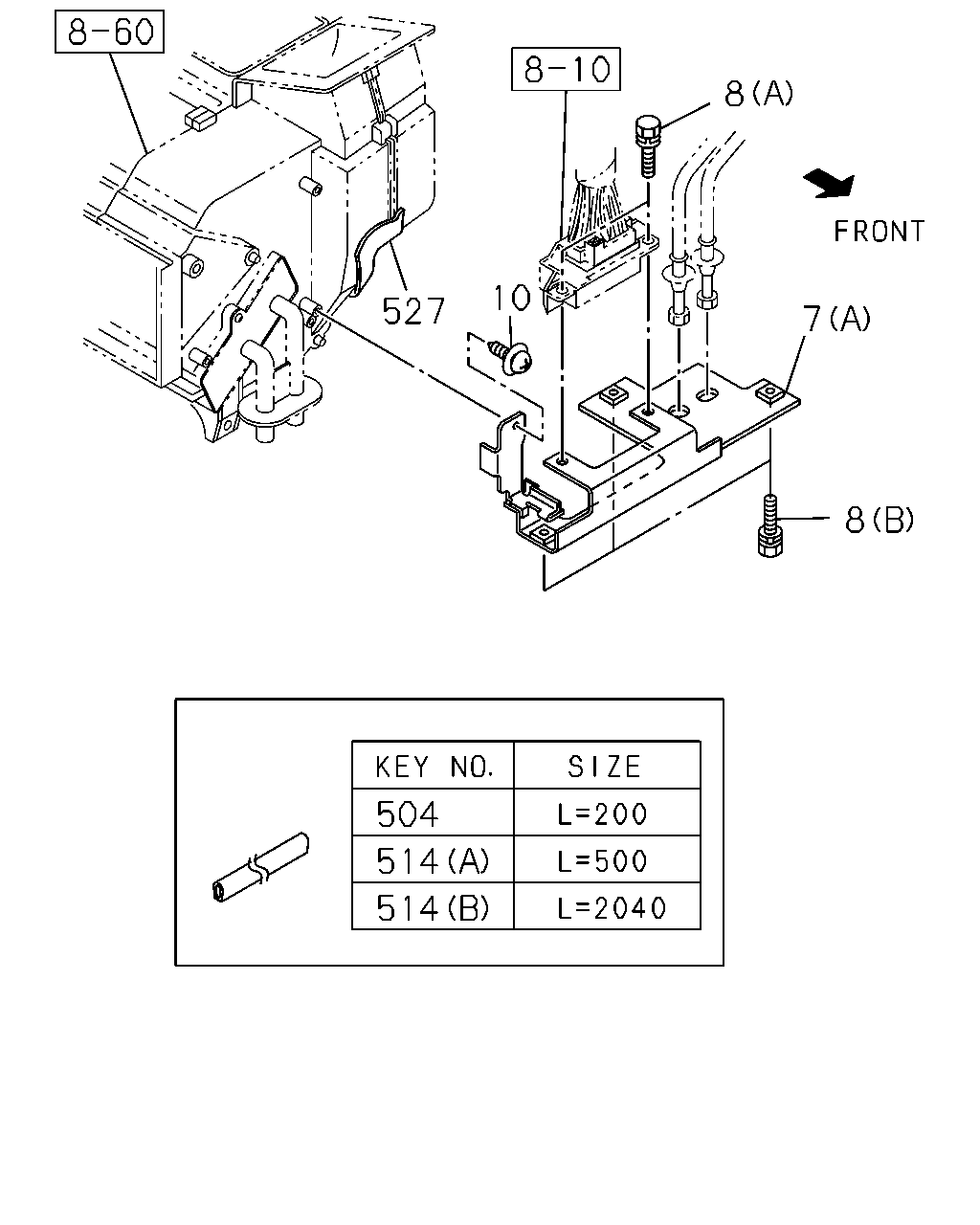

8 10 527 7 8 504 514 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR (A)	8-97102-247-2	01	1	0609-	●	●
7	02.559 BRACKET; CONNECTOR (B)	8-98019-630-0	01	1	0609-0610	●	●
8	02.559 BOLT; BRKT,CONNECTOR 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0609-	●	●
8	02.559 BOLT; BRKT,CONNECTOR 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-	●	●
10	02.559 SCREW; BRKT TO BODY 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0609-0612	●	●
10	02.559 SCREW; BRKT TO BODY 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0701-1101	●	●
10	02.559 SCREW; BRKT TO BODY 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-	●	●
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0609-	●	●
514	02.559 FINISHER; HARNESS 16.550 (B) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0609-	●	●
514	02.559 FINISHER; HARNESS 16.550 (B) L=120 SERVICED BY L=2040	1-71997-513-1	02	1	0609-	●	●
514	02.559 FINISHER; HARNESS (A) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0609-	●	●
514	02.559 FINISHER; HARNESS (A) L=290 SERVICED BY L=500	1-79937-746-0	02	1	0609-	●	●
527	02.559 TAPE; SOFT,CONNECTOR 100X100	8-94232-622-0	01	1	0609-	●	●

31 7 31 21 53 412 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR (A)	8-97102-247-2	01	1	0609-	●	●
7	02.559 BRACKET; CONNECTOR (B)	8-98019-630-0	01	1	0609-0610	●	●
21	02.483 BRACKET; ENG HARNESS	8-98019-634-0	01	1	0609-	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A)	8-97362-859-0	02	1	0609-	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-98019-633-0	01	1	0609-	●	●
53	02.483 BRACKET; HARNESS (A)	8-97357-140-0	01	1	0609-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98026-091-0	01	1	0609-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98028-248-0	01	1	0609-	●	●
412	02.559 BRACKET; HARNESS,TRANS	8-97324-451-1	01	1	0609-	●	●

219 515 219 294 469 515 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
219	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0609-	●	●
219	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0609-	●	●
219	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0609-	●	●
294	02.559 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0609-	●	●
294	02.559 NUT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0609-	●	●
469	02.559 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	01	1	0609-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0609-0610	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0609-0610	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0611-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0609-	●	●
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0609-	●	●
