8-10 — WIRING HARNESS AND FUSE
(#33077) — 83 parça
Tümü
A - NKB6SC
B - NKC6SF
◀

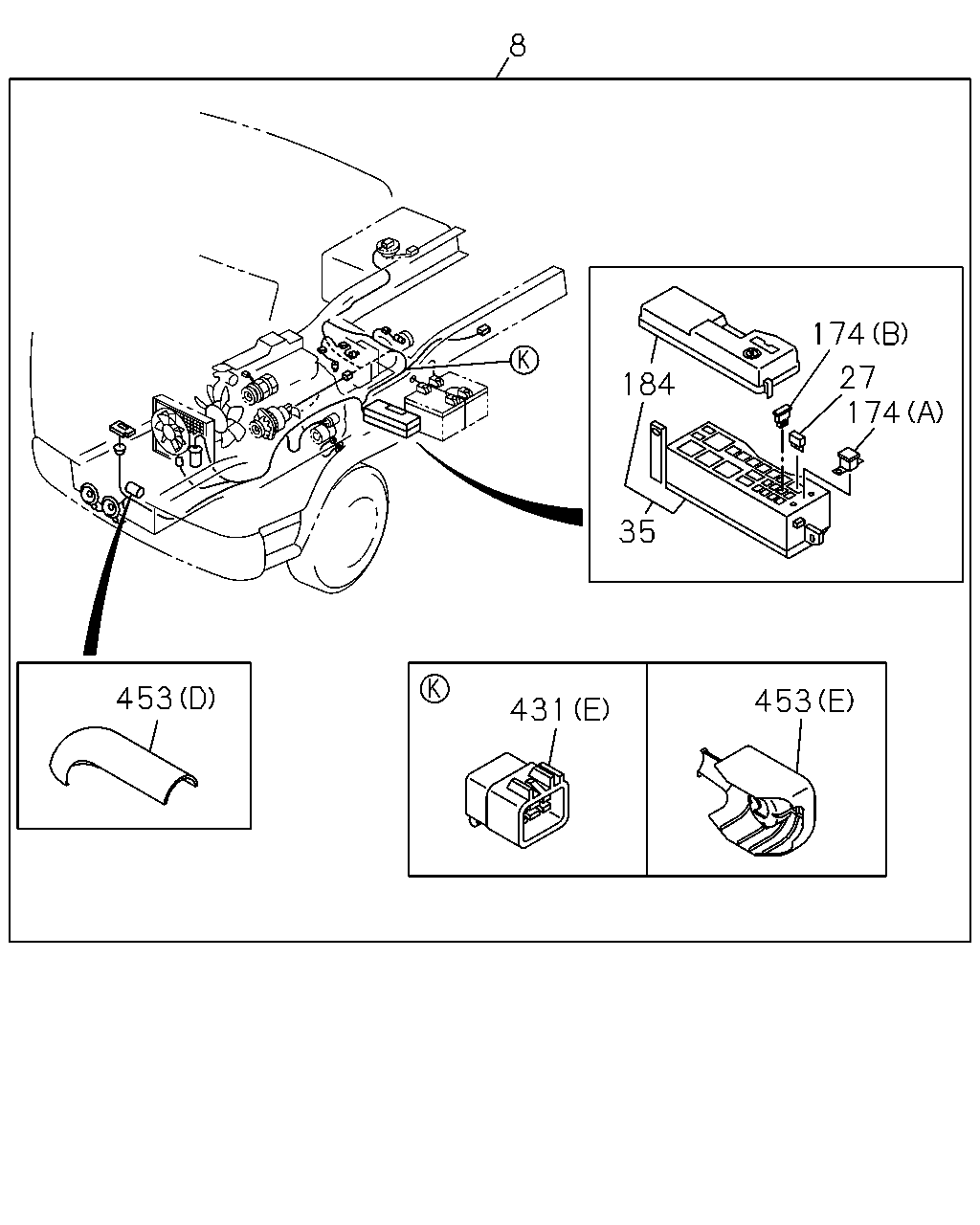

[810A] FRT FRAME HARNESS (19 parça)

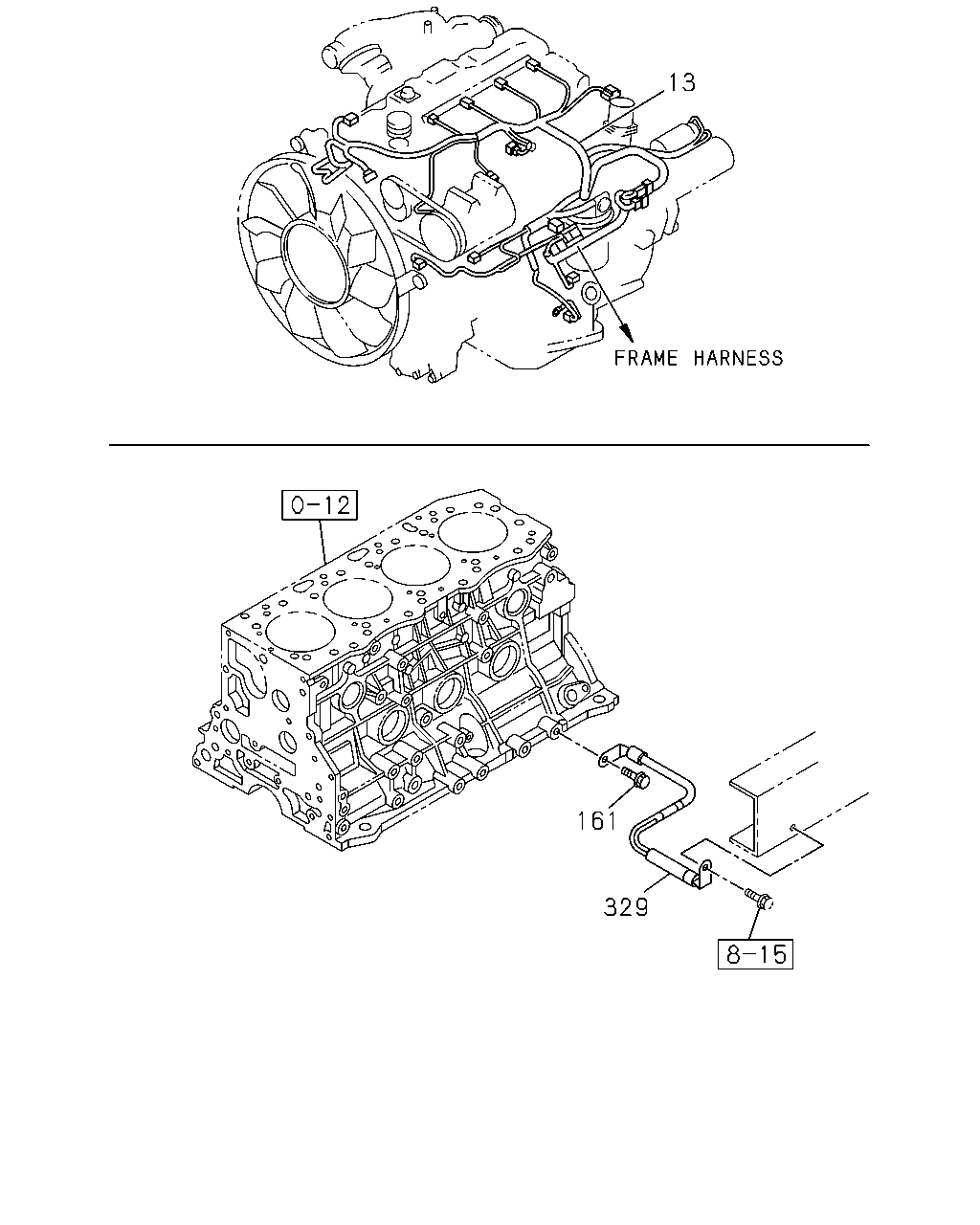

[810A] ENG HARNESS (5 parça)
[810A] REAR FRAME AND EXT RADIO HARNESS (8 parça)

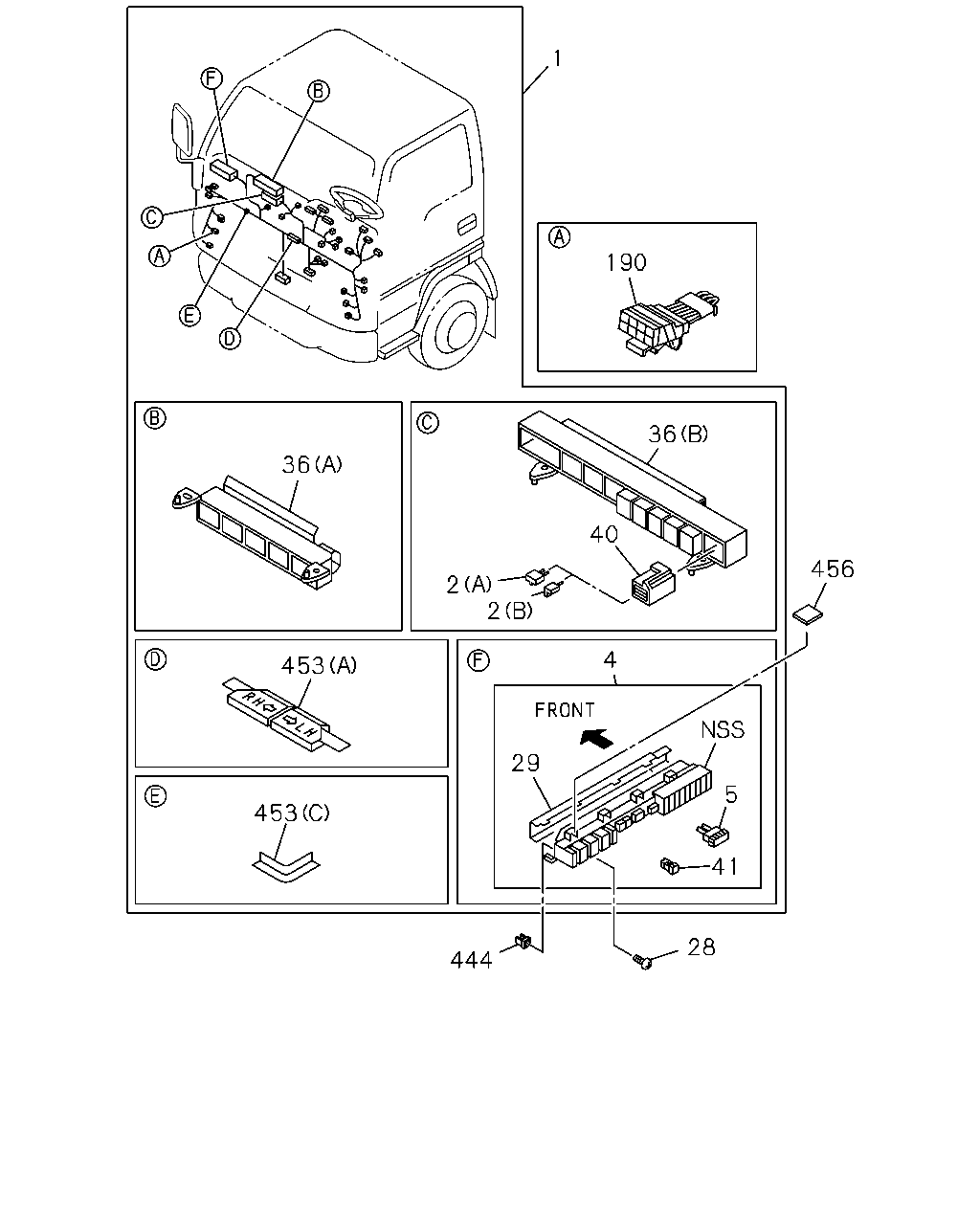

[810A] CAB HARNESS(NO.1) (27 parça)

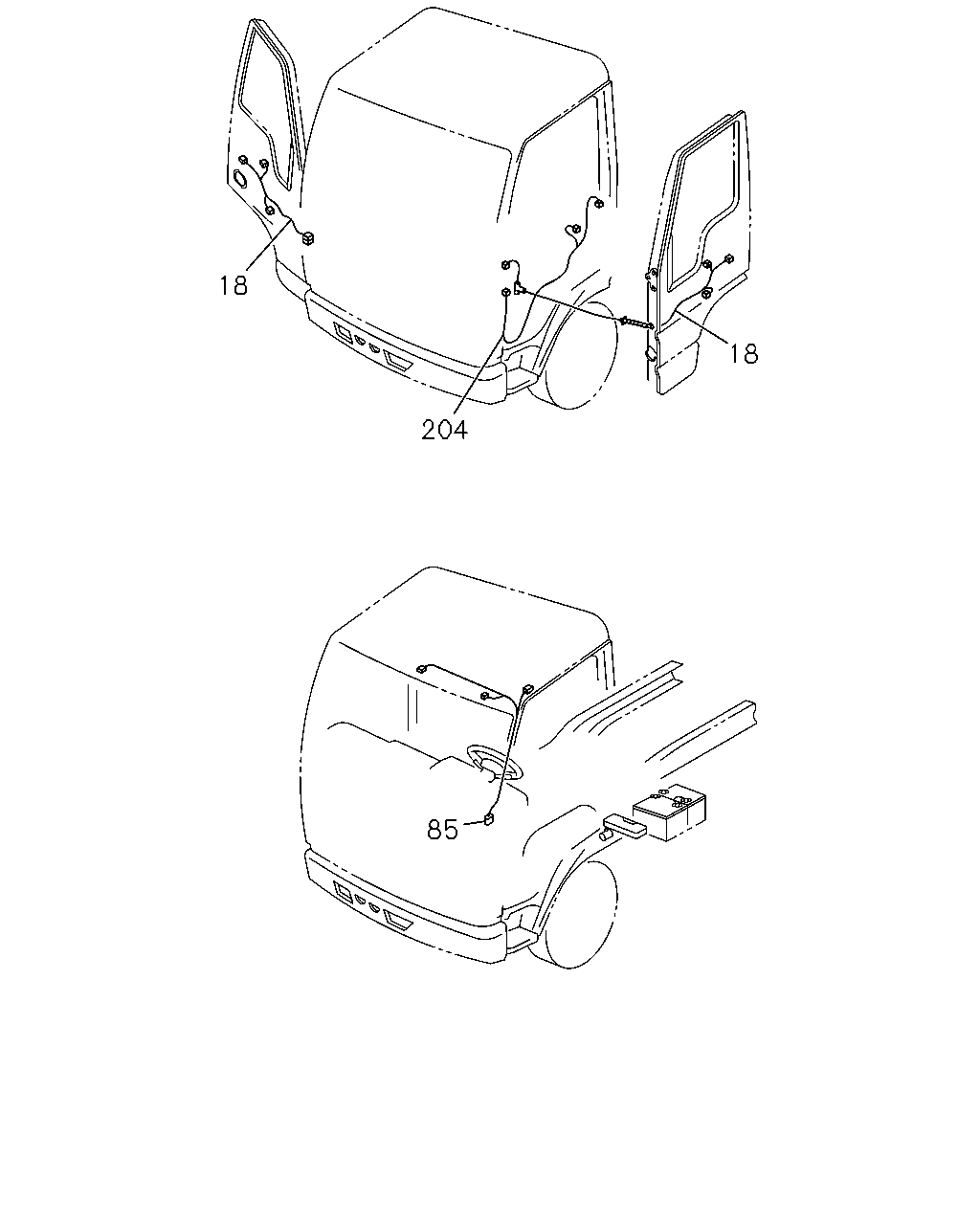

[810A] DOOR,FLOOR AND ROOM LAMP HARNESS (15 parça)

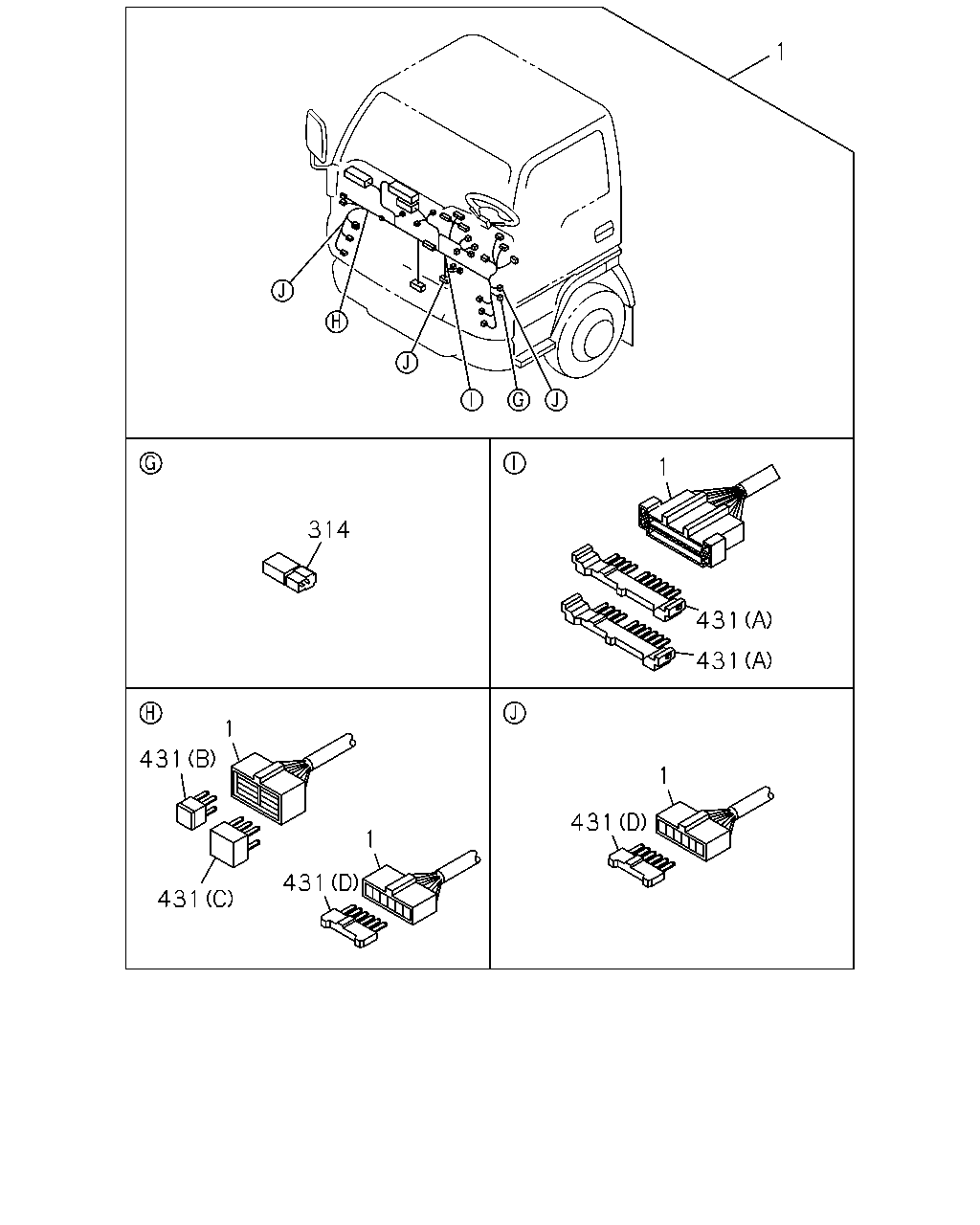

[810A] CAB HARNESS(NO.2) (9 parça)
▶
8
174
27
174
184
35
453
453
431
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
02.480 HARNESS; FRAME,FRT
8-98019-348-6
01
1
0609-
●
●
27
08.965 FUSE UNIT
10A MINI RED
8-97062-022-0
01
1
0609-
●
●
27
08.965 FUSE UNIT
15A MINI BLUE
8-97062-023-0
02
1
0609-
●
●
35
02.530 BOX; RELAY & FUSE
8-97377-739-0
01
1
0609-
●
●
174
08.965 FUSE; SLOW BLOW
(A) 100A BLUE
8-94388-306-1
01
1
0609-
●
●
174
08.965 FUSE; SLOW BLOW
(B) 30A PINK
8-97183-643-0
01
1
0609-
●
●
174
08.965 FUSE; SLOW BLOW
(B) 40A GREEN
8-97183-644-0
03
1
0609-
●
●
174
08.965 FUSE; SLOW BLOW
(B) 60A YELLOW
8-97219-407-0
03
1
0609-
●
●
184
02.559 COVER; RELAY & FUSE BOX
8-97377-741-0
01
1
0609-
●
●
431
02.530 CONNECTOR; JOINT
(D) 3P & 3P
1-82698-170-0
03
1
0609-
●
●
431
02.530 CONNECTOR; JOINT
(A) 10P GREEN
1-82699-599-0
02
1
0609-
●
●
431
02.530 CONNECTOR; JOINT
(B) 4P
8-97077-939-0
01
1
0609-
●
●
431
02.530 CONNECTOR; JOINT
(C) 6P
8-97077-941-0
01
1
0609-
●
●
431
02.530 CONNECTOR; JOINT
(E) 6P
8-97381-428-0
02
1
0609-
●
●
453
02.483 PROTECTOR; HARNESS
(B)
8-94417-716-0
01
1
0609-
●
●
453
02.483 PROTECTOR; HARNESS
(C)
8-94452-553-0
01
1
0609-
●
●
453
02.483 PROTECTOR; HARNESS
(D)
8-94482-169-0
01
1
0609-
●
●
453
02.483 PROTECTOR; HARNESS
(E)
8-97062-169-0
01
1
0609-
●
●
453
02.483 PROTECTOR; HARNESS
(A)
8-97074-957-0
01
1
0609-
●
●
13
161
329
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
02.525 HARNESS; ENG
8-98041-265-3
01
1
0609-0703
●
●
13
02.525 HARNESS; ENG
8-98082-049-4
01
1
0704-1006
●
●
13
02.525 HARNESS; ENG
8-98147-726-0
01
1
1007-
●
●
161
02.559 BOLT; GROUND,HARNESS
02.483 M10X16 FLANGE
0-28051-016-0
01
1
0609-
●
●
329
02.480 CABLE; ENG TO FRAME
8-98043-362-0
01
1
0609-
●
●
347
9
8
1
483
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
02.480 HARNESS; CAB
8-98019-329-2
01
1
0609-0610
●
●
1
02.480 HARNESS; CAB
8-98061-109-1
01
1
0611-0707
●
●
1
02.480 HARNESS; CAB
8-98095-159-0
01
1
0708-
●
●
8
02.480 HARNESS; FRAME,FRT
8-98019-348-6
01
1
0609-
●
●
9
02.480 HARNESS; FRAME,RR
8-97381-162-1
01
1
0609-
●
9
02.480 HARNESS; FRAME,RR
8-97381-164-1
01
1
0609-
●
347
02.480 HARNESS; CABLE,RR BODY
8-97364-151-0
01
1
0609-
●
●
483
02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2)
8-97373-419-0
01
1
0609-
●
●
1
190
36
36
40
456
2
2
4
453
29
5
453
41
28
444
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
02.480 HARNESS; CAB
8-98019-329-2
01
1
0609-0610
●
●
1
02.480 HARNESS; CAB
8-98061-109-1
01
1
0611-0707
●
●
1
02.480 HARNESS; CAB
8-98095-159-0
01
1
0708-
●
●
2
02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A
8-94422-639-1
04
1
0609-
●
●
2
02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A
8-94422-640-1
01
1
0609-0610
●
●
2
02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A
8-94422-640-1
02
1
0611-0707
●
●
2
02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A
8-94422-640-1
01
1
0708-
●
●
4
02.483 BOX ASM; FUSE,HARNESS
8-97187-921-1
01
1
0609-
●
●
5
02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED
8-97062-022-0
17
1
0609-
●
●
5
02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE
8-97062-023-0
06
1
0609-
●
●
5
02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW
8-97062-024-0
02
1
0609-
●
●
28
02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
0609-0612
●
●
28
02.483 SCREW; FUSE BOX
16.090 T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
0701-1101
●
●
28
02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
02
1
1102-
●
●
29
02.483 COVER; FUSE BOX
8-97074-955-0
01
1
0609-
●
●
36
02.530 BOX; RELAY
(A)
8-97087-640-2
01
1
0609-
●
●
36
02.530 BOX; RELAY
(B)
8-97187-918-1
01
1
0609-
●
●
40
02.483 BOX; DIODE
BLACK 8P
8-97078-064-1
01
1
0609-
●
●
41
08.821 PULLER; FUSE
8-97103-388-0
01
1
0609-
●
●
190
02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13>
8-98036-238-0
01
1
0609-
●
●
444
02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5
8-94279-078-0
02
1
0609-
●
●
453
02.483 PROTECTOR; HARNESS
(B)
8-94417-716-0
01
1
0609-
●
●
453
02.483 PROTECTOR; HARNESS
(C)
8-94452-553-0
01
1
0609-
●
●
453
02.483 PROTECTOR; HARNESS
(D)
8-94482-169-0
01
1
0609-
●
●
453
02.483 PROTECTOR; HARNESS
(E)
8-97062-169-0
01
1
0609-
●
●
453
02.483 PROTECTOR; HARNESS
(A)
8-97074-957-0
01
1
0609-
●
●
456
02.483 CUSHION; FUSE BOX
16.085 15X30 T=5
8-94270-366-2
01
1
0609-
●
●
18
18
204
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
18
02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4>
8-97226-669-0
01
1
1011-
●
●
18
02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2)
8-97226-671-1
01
1
1011-
●
●
18
02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>
8-97105-571-1
01
1
0609-
●
●
18
02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2)
8-97105-571-1
01
1
0609-
●
●
18
02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>
8-97226-671-1
01
1
0609-1009
●
●
18
02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2)
8-97226-671-1
01
1
0609-1009
●
●
18
02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>
8-98166-819-0
01
1
1010-1010
●
●
18
02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2)
8-98166-819-0
01
1
1010-1010
●
●
18
02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>
8-98166-819-0
01
1
1011-
●
●
18
02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32>
8-97185-142-1
01
1
0609-
●
●
18
02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32>
8-97226-669-0
01
1
0609-1009
●
●
18
02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32>
8-98166-820-0
01
1
1010-1010
●
●
18
02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>
8-98166-820-0
01
1
1011-
●
●
85
06.495 HARNESS; ROOM LAMP
8-97364-158-0
01
1
0609-
●
●
204
02.559 HARNESS; CABLE,FLOOR
8-97364-140-0
01
1
0609-
●
●
1
1
314
431
431
1
431
1
431
1
431
431
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
02.480 HARNESS; CAB
8-98019-329-2
01
1
0609-0610
●
●
1
02.480 HARNESS; CAB
8-98061-109-1
01
1
0611-0707
●
●
1
02.480 HARNESS; CAB
8-98095-159-0
01
1
0708-
●
●
314
02.510 RESISTOR; HARNESS
BLUE
1-82691-204-0
02
1
0609-
●
●
431
02.530 CONNECTOR; JOINT
(D) 3P & 3P
1-82698-170-0
03
1
0609-
●
●
431
02.530 CONNECTOR; JOINT
(A) 10P GREEN
1-82699-599-0
02
1
0609-
●
●
431
02.530 CONNECTOR; JOINT
(B) 4P
8-97077-939-0
01
1
0609-
●
●
431
02.530 CONNECTOR; JOINT
(C) 6P
8-97077-941-0
01
1
0609-
●
●
431
02.530 CONNECTOR; JOINT
(E) 6P
8-97381-428-0
02
1
0609-
●
●
