7-60 — SEAT BELT (#33074) — 23 parça

177 161 166 165 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
161	16.714 REINFORCEMENT; SEAT BELT ANCHOR	8-97850-442-2	01	1	0609-	●	●
165	16.714 HOOK; SEAT BELT ANCHOR	8-97869-416-0	01	1	0609-	●	●
166	16.714 BOLT; SEAT BELT ANCHOR 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0609-	●	●
177	16.714 NUT 07.833 M8 W/LK WASHER	8-94327-073-0	01	1	0609-0805	●	●
177	16.714 NUT 03.417 M8 W/LK WASHER	8-97581-234-0	01	1	0806-	●	●

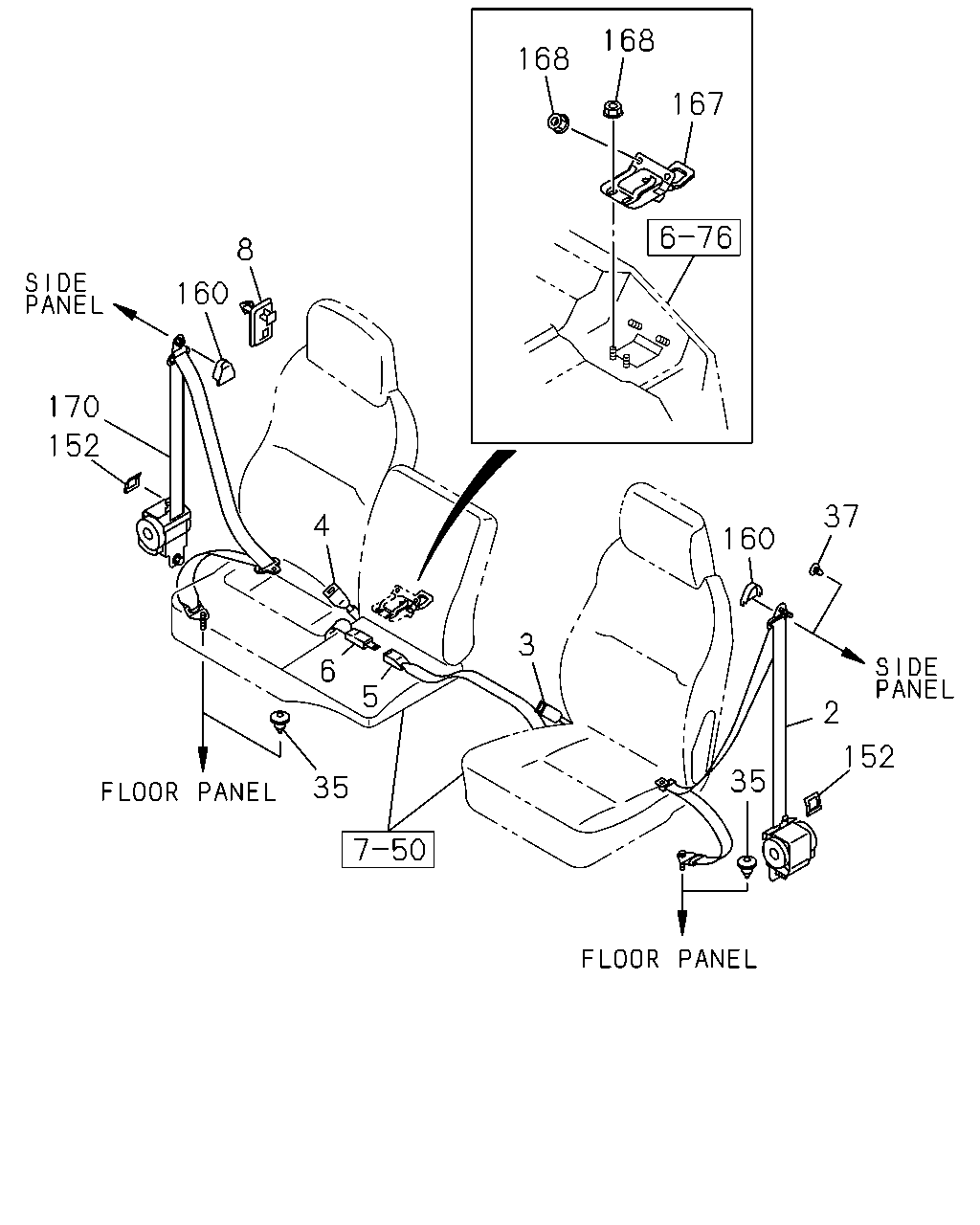

168 168 167 8 160 170 152 37 4 160 3 6 5 2 152 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.714 BELT; SEAT,TONGUE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY	8-97400-353-1	01	1	0609-	●	●
2	16.714 BELT; SEAT,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97397-380-2	01	1	0609-	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> ,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY	8-97400-351-0	01	1	0609-	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> ,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY	8-97400-348-0	01	1	0609-	●	●
4	16.714 BELT; PASSENGER SEAT,BUCKLE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> ,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY	8-97396-952-0	01	1	0609-	●	●
4	16.714 BELT; PASSENGER SEAT,BUCKLE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> ,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY	8-97400-354-0	01	1	0609-	●	●
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY	8-97404-304-0	01	1	0609-	●	●
6	16.714 BELT; CENTER SEAT,TONGUE SIDE SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY	8-97400-451-1	01	1	0609-	●	●
8	16.714 HOOK; SEAT BELT SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>	8-94276-268-1	02	1	0609-	●	●
35	16.714 GROMMET; SEAT BELT ANCHOR EXC. SEAT BELT DRIVER & PASSENGER 2 POINT <AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22	9-61168-535-0	03	1	0609-	●	●
37	16.714 PLUG; SEAT BELT ANCHOR EXC. SEAT BELT DRIVER & PASSENGER 2 POINT <AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5	8-94279-726-0	02	1	0609-	●	●
152	16.714 PROTECTOR SEAT BELT FRT 3 POINT W/RETRACTOR<A49>	8-97287-563-0	02	1	0609-	●	●
160	16.714 COVER; THROUGH ANCHOR SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97396-954-0	02	1	0609-	●	●
167	16.714 PLATE; ANCHOR	8-97869-412-2	01	1	0609-	●	●
168	16.714 NUT; ANCHOR PLATE 00.854 M8 FLANGE	5-09440-005-0	04	1	0609-0712	●	●
168	16.714 NUT; ANCHOR PLATE 01.062 M8 FLANGE	0-91180-108-0	04	1	0801-	●	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY	8-97400-353-1	01	1	0609-	●	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97397-380-2	01	1	0609-	●	●
