◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51127 - NKR85(LHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#33069) — 62 parça

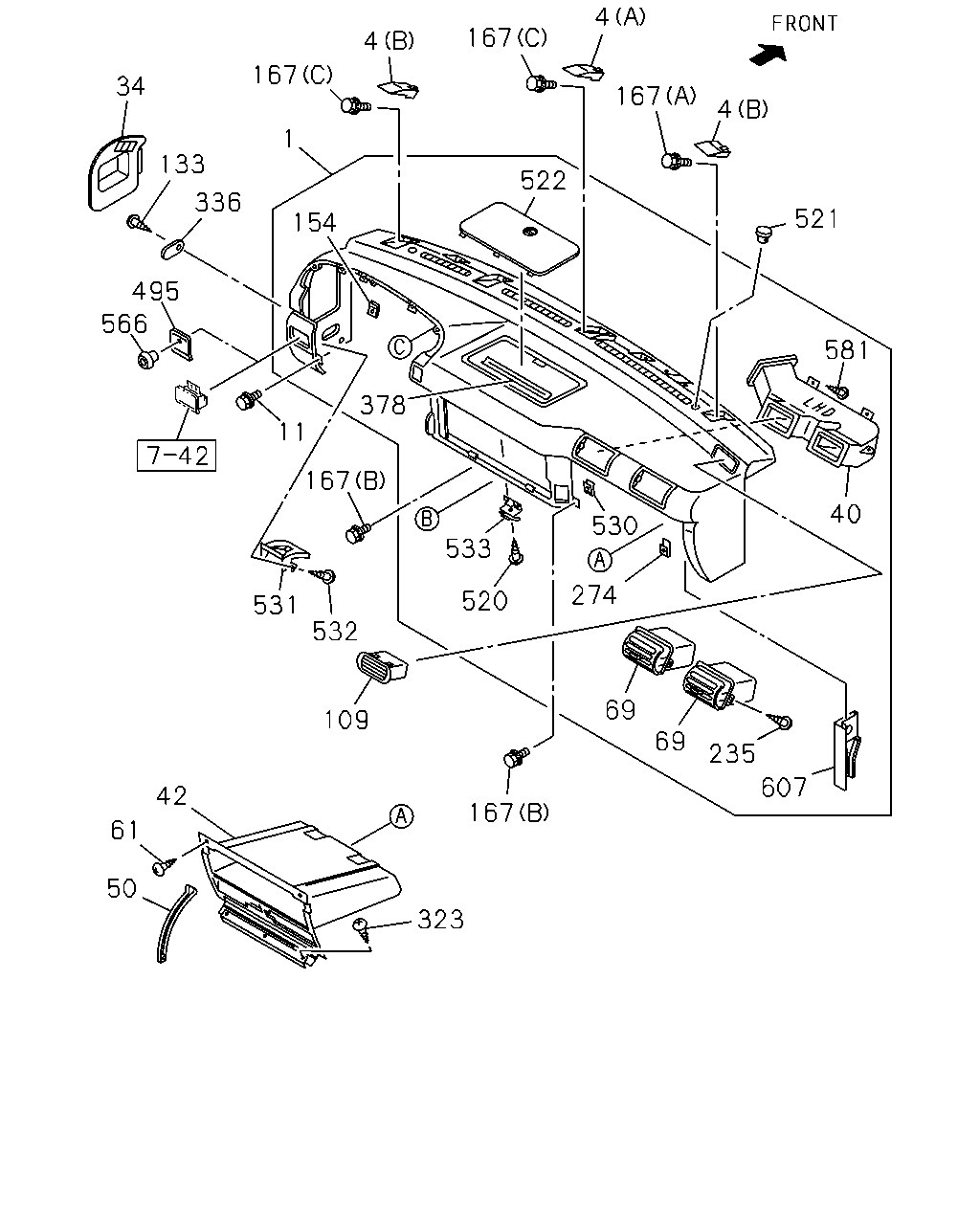

çizim 13670
4 167 4 167 34 167 4 1 133 522 336 521 154 495 566 378 581 11 167 40 530 533 274 520 531 532 69 109 69 235 607 42 167 61 50 323
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.080 PANEL; INST
DARK GRAY 		8-97587-476-2 01 1 0609- ● ●
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97582-215-3 02 1 0609- ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-217-3 01 1 0609- ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-216-3 01 1 0609- ● ●
11 16.090 BOLT; INST PNL
M8X23 FLANGE 		8-97264-766-0 04 1 0609- ● ●
34 16.085 LID; OIL TANK
DARK GRAY 		8-97585-433-5 01 1 0609- ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-698-0 01 1 0609- ● ●
42 16.100 BOX; GLOVE,INST PNL 8-97853-150-5 01 1 0609- ● ●
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 0609- ● ●
61 16.100 SCREW; GLOVE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0609-0612 ● ●
61 16.100 SCREW; GLOVE BOX
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0701-1101 ● ●
61 16.100 SCREW; GLOVE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97582-612-0 02 1 0609- ● ●
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97585-436-0 01 1 0609- ● ●
133 16.081 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74160-520-0 02 1 0609-0612 ● ●
133 16.081 SCREW; COVER,INST PNL
09.647 T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0701- ● ●
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 04 1 0609- ● ●
167 16.085 BOLT; REINF TO INST
08.225 (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0609- ● ●
167 16.085 BOLT; REINF TO INST
06.500 (C) M6X25 		8-94279-204-0 02 1 0609- ● ●
167 16.085 BOLT; REINF TO INST
(A) M6X24 FLANGE 		8-94279-231-1 02 1 0609- ● ●
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 0609- ● ●
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 0609- ● ●
323 16.110 SCREW; GLOVE BOX LK
16.067 M5X14 		8-94279-325-0 03 1 0609-0612 ● ●
323 16.110 SCREW; GLOVE BOX LK
09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 03 1 0701- ● ●
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97582-218-4 02 1 0609- ● ●
378 09.743 SEAL; INST PANEL 8-97209-399-0 01 1 0609- ● ●
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-214-4 01 1 0609- ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 03 1 0609- ● ●
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97582-334-2 01 1 0609- ● ●
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97582-494-6 01 1 0609- ● ●
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 0609- ● ●
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 		8-97853-130-0 01 1 0609- ● ●
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14 		8-94279-325-0 02 1 0609-0612 ● ●
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 0701- ● ●
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 0609- ● ●
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-247-0 01 1 0609- ● ●
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 02 1 0609- ● ●
607 16.085 FIXING ASM; CLIP INST TO M/CSTR 8-97857-893-2 01 1 0609- ● ●

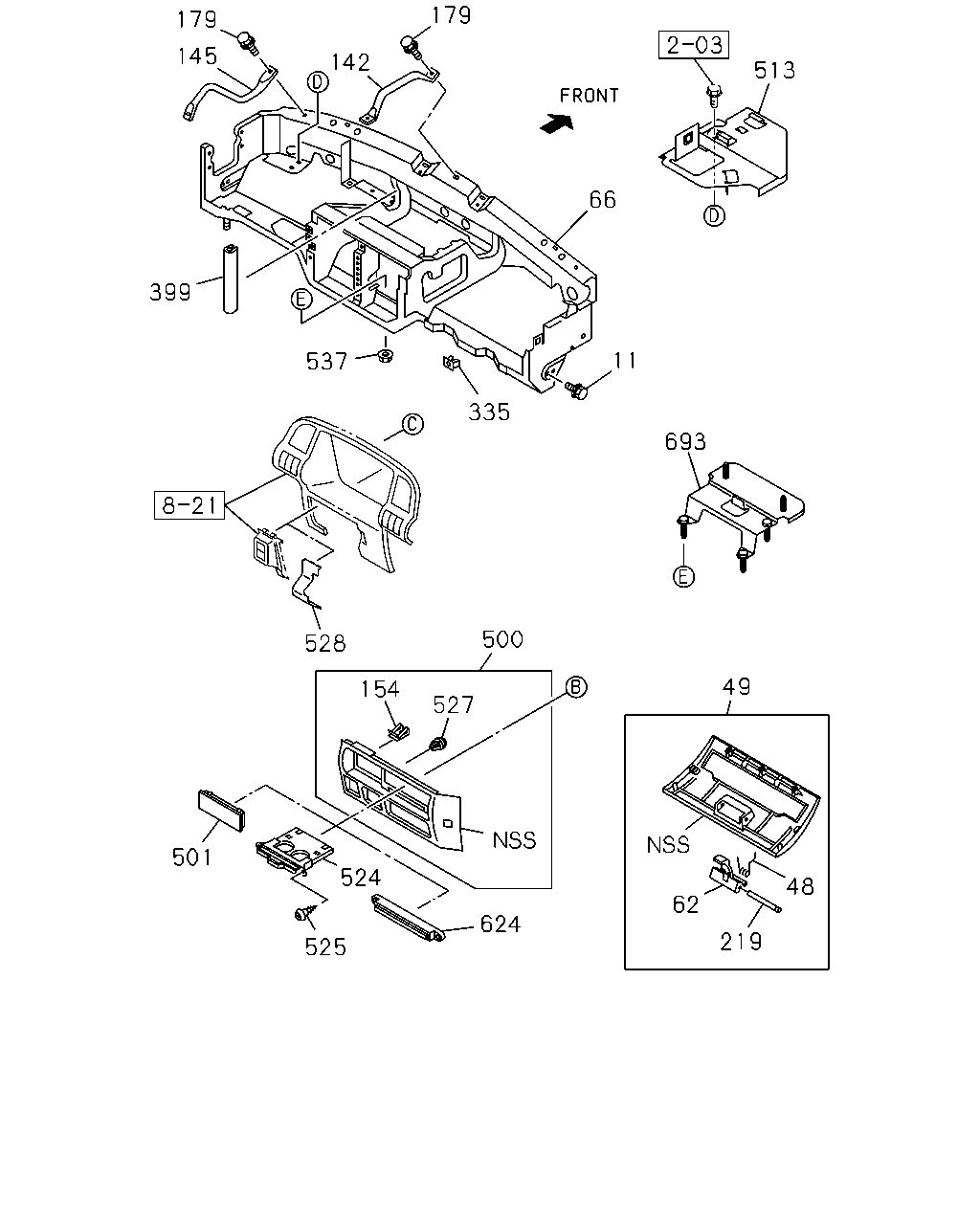

çizim 57173
179 179 145 142 513 66 399 11 537 335 693 500 528 49 154 527 501 524 48 62 624 219 525
BalonParca AdiParca NoAdetTipApplied Date A B
11 16.090 BOLT; INST PNL
M8X23 FLANGE 		8-97264-766-0 04 1 0609- ● ●
48 16.110 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 0609- ● ●
49 16.110 LID; GLOVE BOX
DARK GRAY 		8-97582-199-5 01 1 0609- ● ●
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97582-487-1 01 1 0609- ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-98016-835-2 01 1 0609- ● ●
142 16.085 STAY; INST PANEL 8-97856-196-2 01 1 0609- ● ●
145 16.085 STAY; INST PANEL SIDE 8-97856-197-2 01 1 0609- ● ●
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 04 1 0609- ● ●
179 16.085 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50640-612-0 02 1 0609- ● ●
219 09.744 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 0609- ● ●
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0609- ● ●
399 16.085 FINISHER; HARNESS
03.885 L=50 		8-94270-377-1 01 1 0609- ● ●
500 16.081 CLUSTER; INST CENTER
DARK GRAY 		8-97588-862-4 01 1 0609- ● ●
501 16.081 COVER; HOLE,INST CENTER CLUSTER
DARK GRAY 		8-97582-210-3 01 1 0609- ● ●
513 16.120 BRACKET; RELAY 8-97410-713-2 01 1 0609- ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-8 01 1 0609- ● ●
525 16.100 SCREW; CUP STAND
16.067 M5X14 		8-94279-325-0 02 1 0609-0612 ● ●
525 16.100 SCREW; CUP STAND
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ●
525 16.100 SCREW; CUP STAND
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102- ● ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 0609- ● ●
528 16.081 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) BLACK 		8-97868-659-0 01 1 0609- ● ●
537 16.085 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 03 1 0609- ● ●
624 16.085 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-1 01 1 0609- ● ●
693 16.080 BRACKET; DRM 8-98017-994-0 01 1 0609- ● ●
