1 |

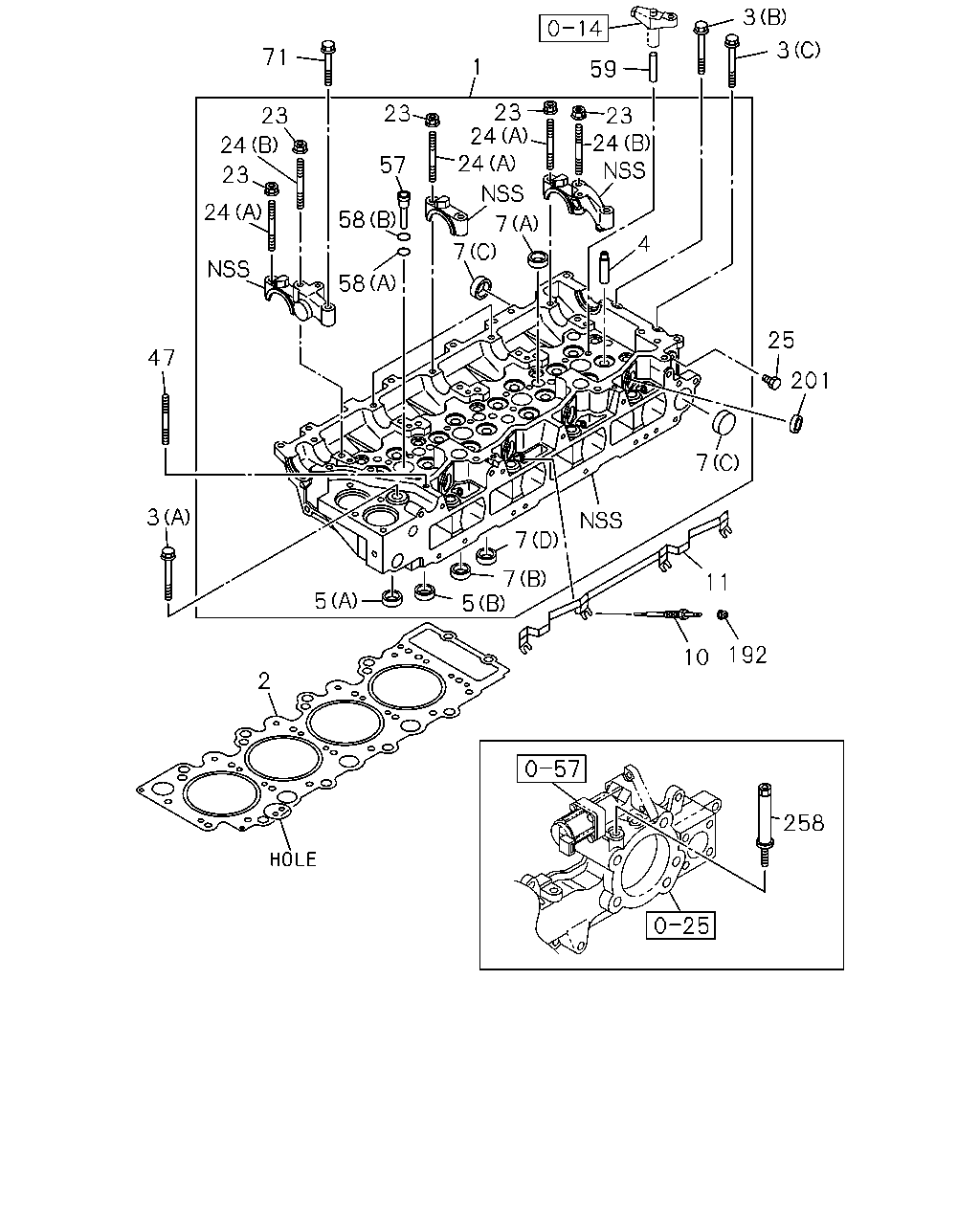

00.269 HEAD ASM; CYL
|
8-98018-454-6 |
01 |
1 |
0612- |
| |
2 |
00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
T=1.475 NON-HOLE
|
8-98055-540-0 |
01 |
1 |
0612- |
| |
2 |
00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
T=1.525 1-HOLE
|
8-98055-541-0 |
01 |
1 |
0612- |
| |
2 |
00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
T=1.575 2-HOLE
|
8-98055-542-0 |
01 |
1 |
0612- |
| |
3 |
00.293 BOLT; CYL HD TO BLOCK
(B)
M10X73
|
8-94399-554-0 |
01 |
1 |
0612- |
| |
3 |
00.293 BOLT; CYL HD TO BLOCK
(C)
M10X43
|
8-94399-555-0 |
01 |
1 |
0612- |
| |
3 |
00.293 BOLT; CYL HD TO BLOCK
(A)
M14X115 W/FLANGE
|
8-97077-638-0 |
18 |
1 |
0612- |
| |
4 |
00.283 GUIDE; VLV
L=57
|
8-94390-780-0 |
16 |
1 |
0612-0707 |
| |
4 |
00.283 GUIDE; VLV
L=57
|
8-97376-719-2 |
16 |
1 |
0708- |
| |
5 |
00.253 SEAT; VLV INSERT
(B) EXHAUST
OD=38
|
8-97216-511-0 |
08 |
1 |
0612-0703 |
| |
5 |
00.253 SEAT; VLV INSERT
(B) EXHAUST
ID=31 OD=38
|
8-98028-875-0 |
08 |
1 |
0704- |
| |
5 |
00.253 SEAT; VLV INSERT
(A) INLET
ID=32 OD=38
|
8-97606-247-0 |
08 |
1 |
0612-0703 |
| |
5 |
00.253 SEAT; VLV INSERT
(A) INLET
ID=32 OD=38
|
8-98028-874-0 |
08 |
1 |
0704- |
| |
7 |
00.253 CUP; SEALING,CYL HEAD
00.293
(A)
OD=25
|
1-09600-016-0 |
04 |
1 |
0612- |
| |
7 |
00.253 CUP; SEALING,CYL HEAD
(B)
OD=16
|
5-11129-006-0 |
05 |
1 |
0612- |
| |
7 |
00.253 CUP; SEALING,CYL HEAD
(C)
OD=32
|
8-97096-821-0 |
05 |
1 |
0612- |
| |
7 |
00.253 CUP; SEALING,CYL HEAD
(D)
OD=20
|
9-11129-128-0 |
07 |
1 |
0612- |
| |
10 |
02.270 PLUG; GLOW
NGK
|
8-94390-777-5 |
04 |
1 |
0612- |
| |
11 |
02.251 CONNECTOR; GLOW PLUG
|
8-97332-358-2 |
01 |
1 |
0612- |
| |
23 |
00.349 NUT; CAM BRKT
01.540
M8 FLANGE
|
0-91180-208-0 |
10 |
1 |
0612- |
| |
24 |
00.413 STUD; CM/SHF BRKT
(B)
M8X54 L=79
|
8-94322-512-2 |
02 |
1 |
0612- |
| |
24 |
00.413 STUD; CM/SHF BRKT
(A)
M8X41 L=66
|
8-94322-513-2 |
08 |
1 |
0612- |
| |
25 |
00.293 PLUG; CYL HD
00.309
M8X10
|
8-98003-416-0 |
01 |
1 |
0612- |
| |
47 |
00.413 STUD; CYL HD
01.073
M8X60 L=72
|
0-49140-860-0 |
02 |
1 |
0612- |
| |
57 |
00.293 SLEEVE; NOZZLE HOLDER
|
8-97606-661-0 |
04 |
1 |
0612- |
| |
58 |
00.289 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=26.4
|
8-97604-916-0 |
04 |
1 |
0612- |
| |
58 |
00.289 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
ID=26.2
|
8-98004-187-0 |
04 |
1 |
0612- |
| |
59 |
00.283 GUIDE; BRIDGE
|
8-97381-603-0 |
08 |
1 |
0612- |
| |
71 |
00.413 BOLT; CAM BRKT
03.162
M8X35 FLANGE
|
0-28050-835-0 |
02 |
1 |
0612- |
| |
192 |
00.349 NUT; GLOW PLUG
02.559
M4 FLANGE
|
8-97368-853-0 |
04 |
1 |
0612- |
| |
201 |
03.306 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-09639-034-0 |
04 |
1 |
0612- |
| |
258 |
00.269 ADAPTER; CLIP
|
8-97377-804-0 |
01 |
1 |
0612- |
