◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51104 - NP/NQR BUS(LHD)EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#33061) — 12 parça

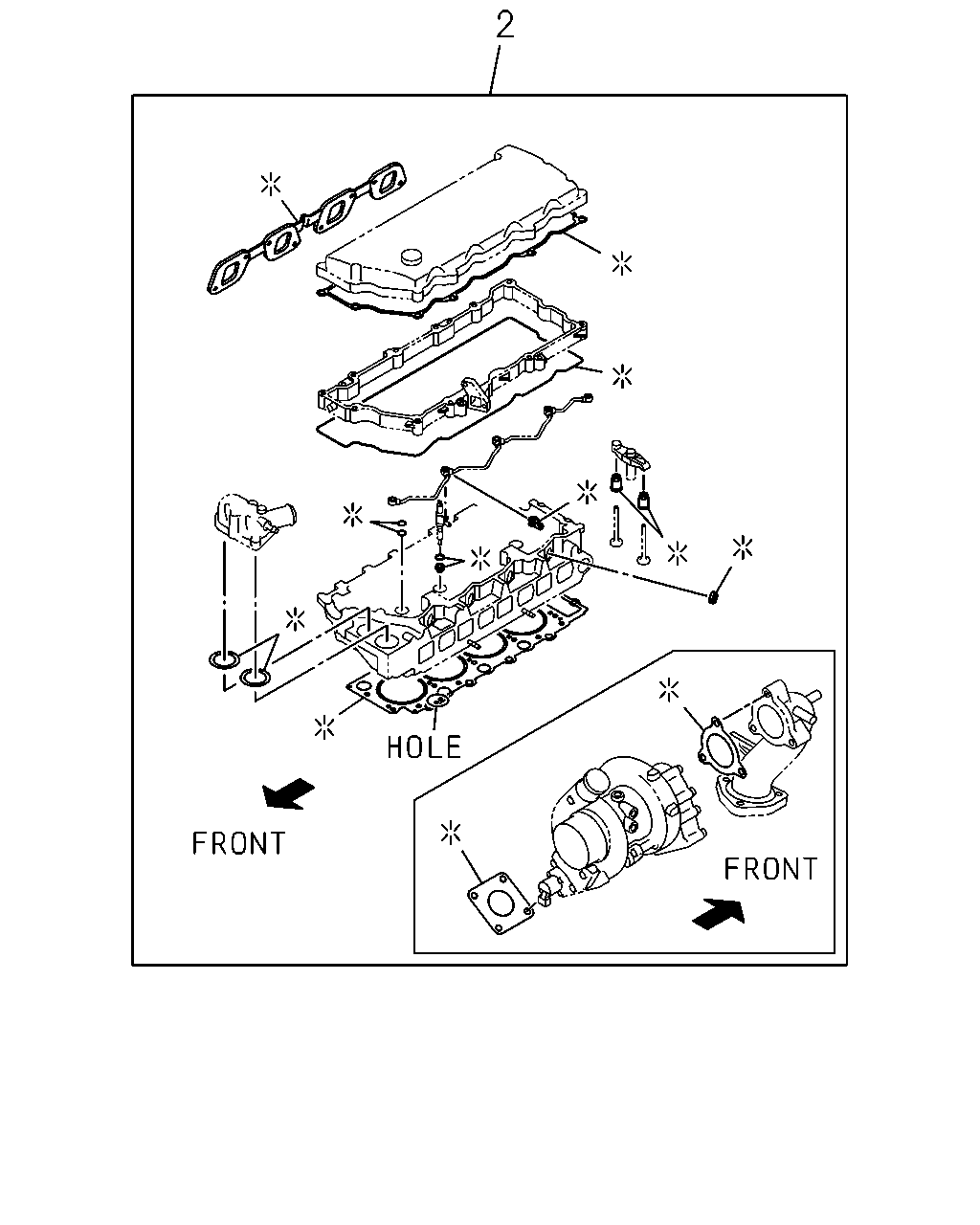

çizim 14033
2
BalonParca AdiParca NoAdetTipApplied Date
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-987-1 01 1 0612-0707
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-142-1 01 1 0708-
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-988-1 01 1 0612-0707
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-143-1 01 1 0708-
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-989-1 01 1 0612-0707
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-144-1 01 1 0708-

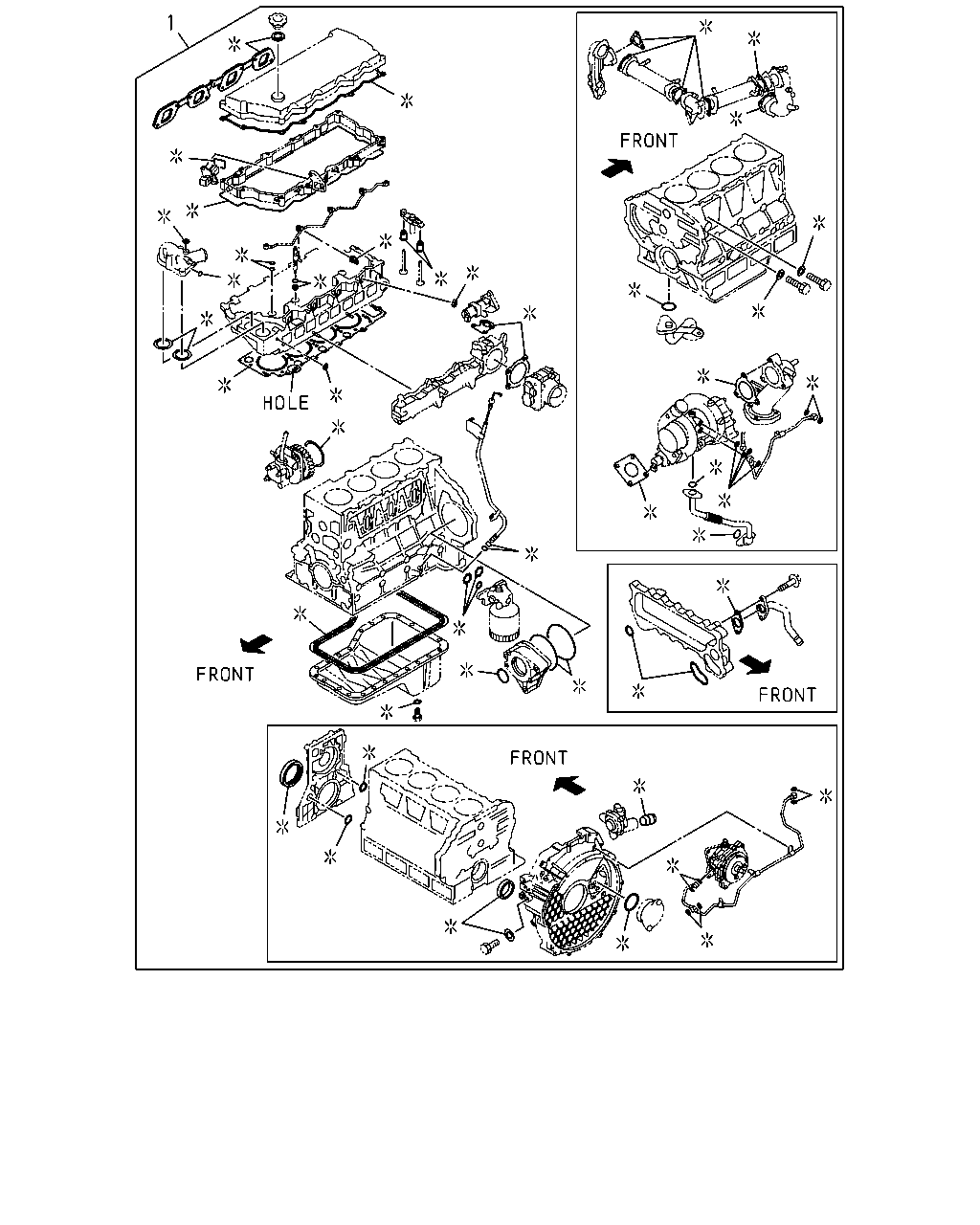

çizim 14148
1
BalonParca AdiParca NoAdetTipApplied Date
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-984-2 01 1 0612-0707
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-390-2 01 1 0708-
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-985-2 01 1 0612-0707
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-391-2 01 1 0708-
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-986-2 01 1 0612-0707
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-392-2 01 1 0708-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
