Sayfa 0-80 - Isuzu EPC

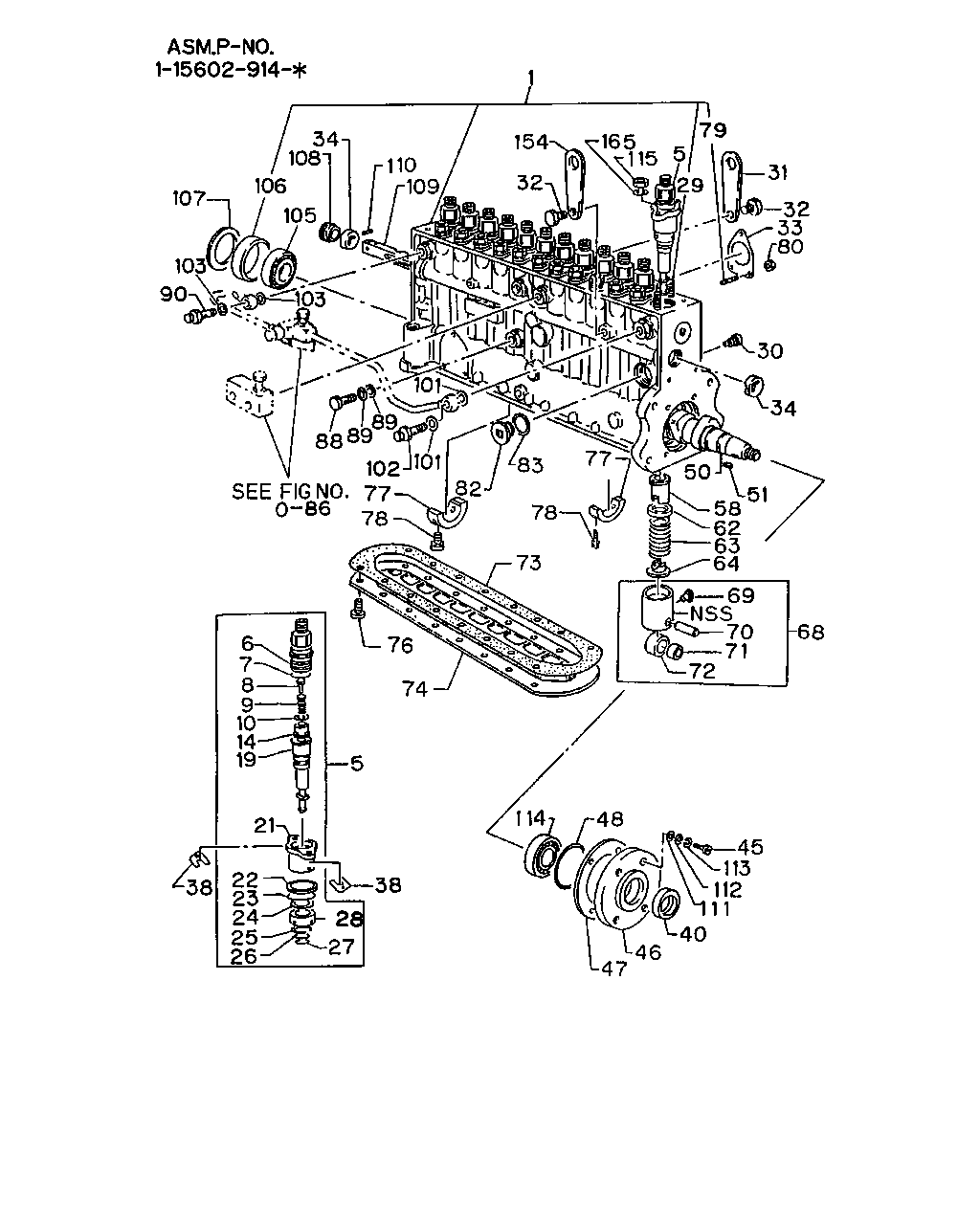

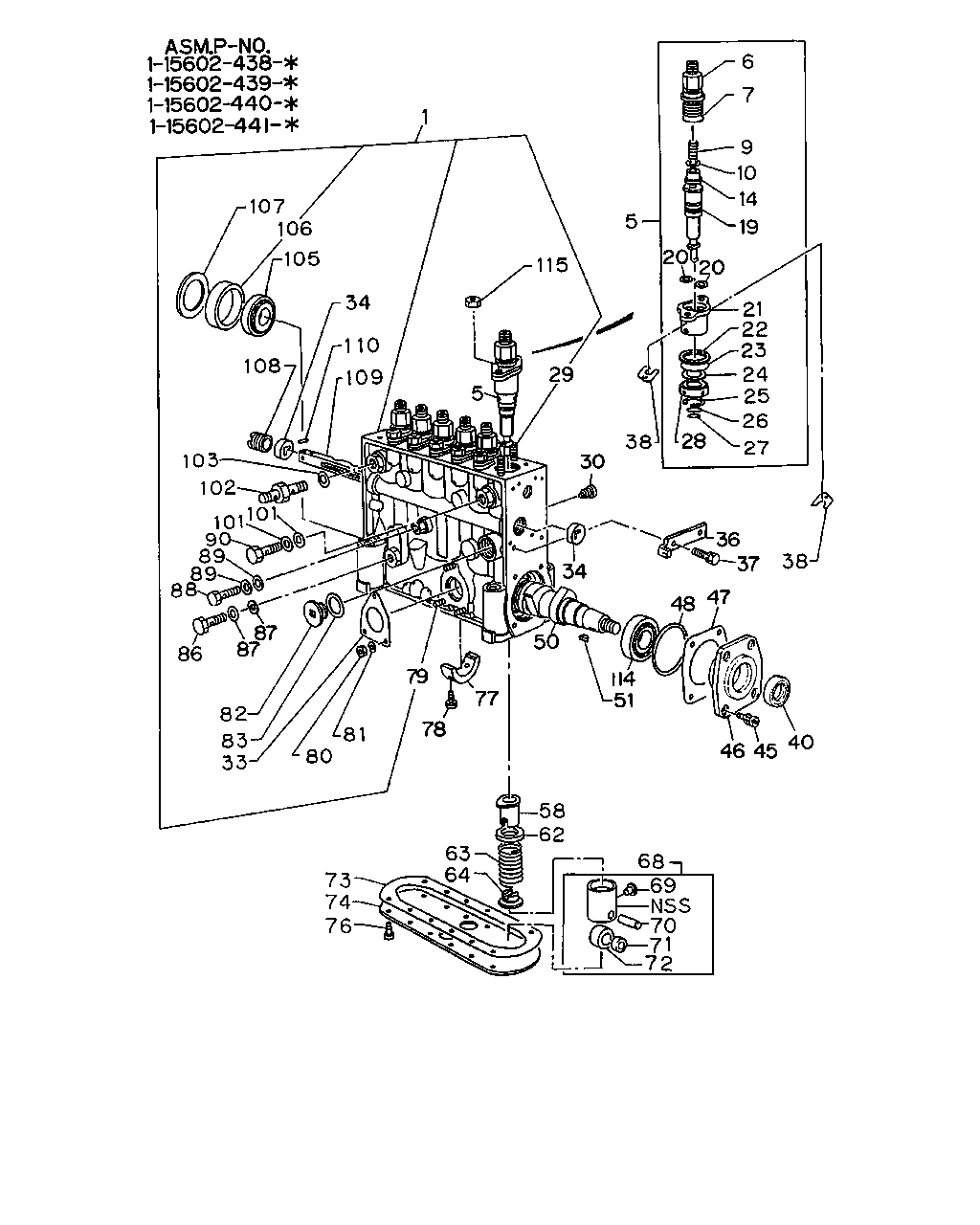

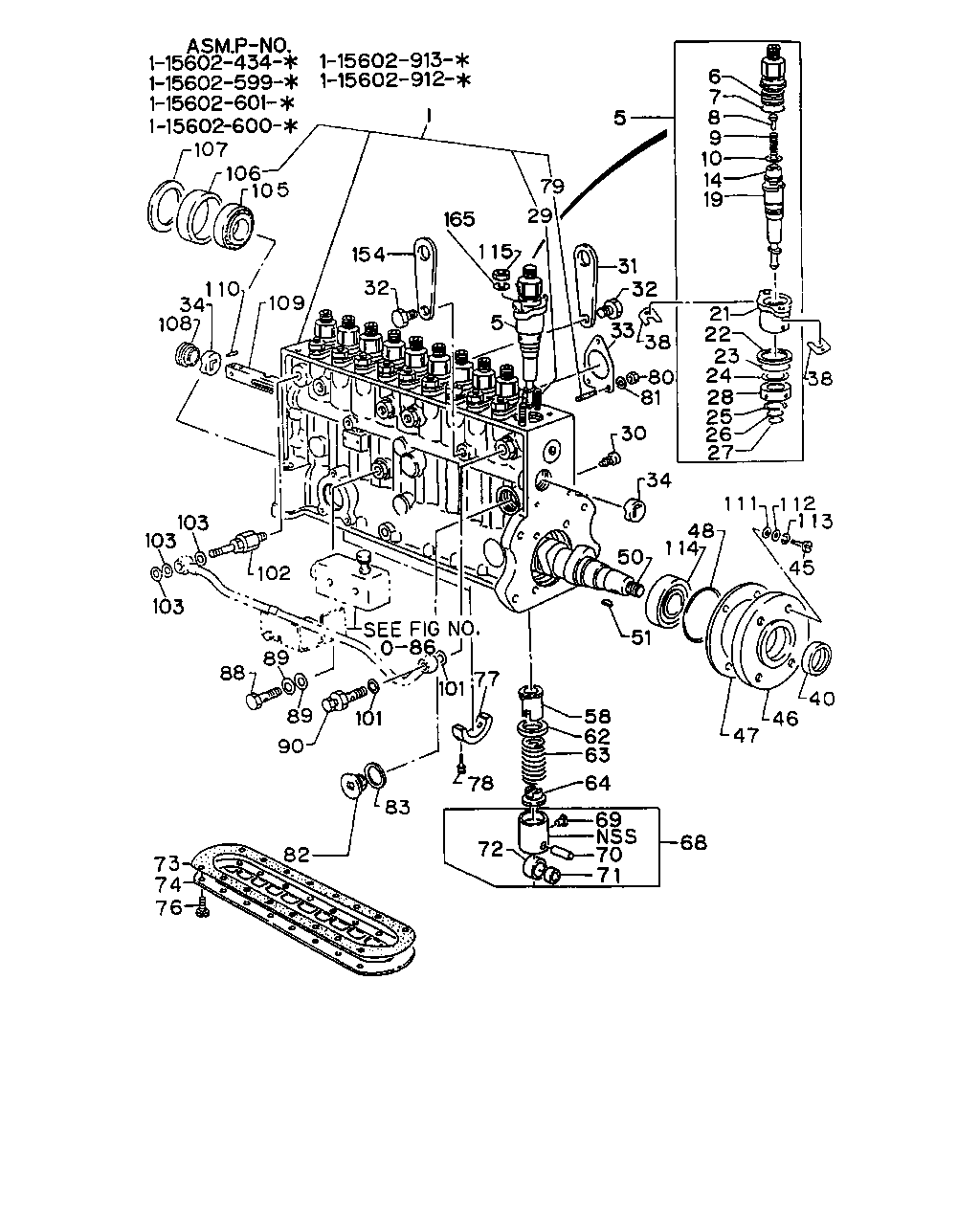

0-80 — INJECTION PUMP (#3306) — 801 parça

1 34 108 106 107 110 109 105 103 90 103 154 32 165 115 5 79 31 29 32 33 80 30 34 50 51 58 62 63 64 77 83 73 78 82 101 102 77 76 88 89 89 101 76 74 5 6 7 8 9 10 14 19 21 38 22 23 24 25 26 27 28 38 114 48 45 113 112 111 40 46 47 68 72 71 70 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15611-065-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15611-078-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15611-111-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: K = 1-15602-914-0	1-15611-112-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15631-034-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: H = 1-15602-601-2	1-15631-110-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15631-115-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15631-155-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: K = 1-15602-914-0	1-15631-155-0	12	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: K = 1-15602-914-0	1-15644-007-0	12	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15644-007-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15644-010-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15644-013-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: K = 1-15602-914-0	1-15629-088-0	12	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15629-088-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81235-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	9-81235-052-0	10	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15639-084-0	10	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: K = 1-15602-914-0	1-15649-005-0	12	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15649-005-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15643-005-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15662-001-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: K = 1-15602-914-0	1-15662-001-0	12	1	-
9	SPRING; DELIVERY VLV ASM PART: H = 1-15602-601-2	5-15643-001-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81241-306-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-174-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81215-174-0	10	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: K = 1-15602-914-0	9-81215-174-0	12	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15639-085-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15641-009-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15641-028-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: K = 1-15602-914-0	1-15641-028-0	12	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15631-039-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: K = 1-15602-914-0	1-15631-092-0	12	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15631-092-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: H = 1-15602-601-2	1-15631-111-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15631-116-0	10	1	-
21	FLANGE; PLUNGER ASM PART: K = 1-15602-914-0	1-15742-082-0	12	1	-
21	FLANGE; PLUNGER ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15742-082-0	06	1	-
21	FLANGE; PLUNGER ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15742-082-0	10	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: K = 1-15602-914-0	1-15649-008-0	12	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15649-008-0	06	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15649-008-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15629-089-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: K = 1-15602-914-0	1-15629-089-0	12	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15639-016-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15639-016-0	06	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-88410-430-0	10	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-88410-430-0	06	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: K = 1-15602-914-0	9-88410-430-0	12	1	-
25	RING; SNAP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-88410-431-0	06	1	-
25	RING; SNAP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-88410-431-0	10	1	-
25	RING; SNAP ASM PART: K = 1-15602-914-0	9-88410-431-0	12	1	-
26	GASKET; PLUNGER UPR ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15629-090-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: K = 1-15602-914-0	1-15629-090-0	12	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	9-81215-120-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-120-0	06	1	-
27	GASKET; PLUNGER LWR ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15629-090-0	10	1	-
27	GASKET; PLUNGER LWR ASM PART: K = 1-15602-914-0	1-15629-090-0	12	1	-
27	GASKET; PLUNGER LWR ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-120-0	06	1	-
27	GASKET; PLUNGER LWR ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	9-81215-120-0	10	1	-
28	DEFLECTOR; PLUNGER ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15639-086-0	10	1	-
28	DEFLECTOR; PLUNGER ASM PART: K = 1-15602-914-0	1-15639-086-0	12	1	-
28	DEFLECTOR; PLUNGER ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15639-086-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-88410-432-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: K = 1-15602-914-0	9-88410-432-0	24	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-88410-432-0	20	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-130-0	06	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: K = 1-15602-914-0	9-81215-130-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81215-130-0	10	1	-
31	HANGER; FRT,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-163-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-039-0	02	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15619-068-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-123-0	02	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15619-084-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-317-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-127-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-308-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: F = 1-15602-599-1	1-15619-308-0	04	1	9010-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15602-434-5	1-15619-308-0	04	1	9111-
45	BOLT; FRT COVER TO HSG ASM PART: F = 1-15602-599-1	1-15629-023-0	04	1	-9009
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15602-434-5	1-15629-023-0	04	1	-9110
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	5-15729-027-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15629-037-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81211-273-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15629-076-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15621-013-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15621-047-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: K = 1-15602-914-0	1-15621-049-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15621-072-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: H = 1-15602-601-2	1-15621-083-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15635-001-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: K = 1-15602-914-0	1-15635-001-0	12	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15635-001-0	10	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81215-136-0	10	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: K = 1-15602-914-0	9-81215-136-0	12	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-136-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15634-005-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15634-008-0	10	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: K = 1-15602-914-0	1-15634-008-0	12	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15643-004-0	10	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: K = 1-15602-914-0	1-15643-004-0	12	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: D = 1-15602-440-3	1-15643-004-0	06	1	9312-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: D = 1-15602-440-3	9-81215-137-0	06	1	-9311
68	TAPPET; CM/SHF,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81221-240-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81221-240-0	10	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: K = 1-15602-914-0	9-81221-240-0	12	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: K = 1-15602-914-0	1-15629-063-0	12	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15629-063-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81225-062-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81225-062-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: K = 1-15602-914-0	9-81225-062-0	12	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: K = 1-15602-914-0	9-81225-061-0	12	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81225-061-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81225-061-0	10	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81225-060-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81225-060-0	10	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: K = 1-15602-914-0	9-81225-060-0	12	1	-
73	GASKET; COVER TO HSG ASM PART: K = 1-15602-914-0	1-15619-319-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15629-031-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15629-091-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-180-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15612-012-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: K = 1-15602-914-0	1-15629-033-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15629-051-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: G = 1-15602-600-1	1-15629-051-0	01	1	9206-
74	COVER; HSG,INJ PUMP ASM PART: G = 1-15602-600-1	1-15629-057-0	01	1	-9205
76	BOLT; COVER TO HSG ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15619-066-0	12	1	-
76	BOLT; COVER TO HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15619-066-0	16	1	-
76	BOLT; COVER TO HSG ASM PART: K = 1-15602-914-0	1-15619-066-0	20	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81225-066-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81225-066-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81325-187-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81325-187-0	04	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: F = 1-15602-599-1	1-15729-006-0	03	1	-9009
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15602-434-5	1-15729-006-0	03	1	-9110
80	NUT; FUEL FEED PUMP FIX ASM PART: D = 1-15602-440-3	1-15729-006-0	03	1	-9311
80	NUT; FUEL FEED PUMP FIX ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	8-94171-110-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2, G = 1-15602-600-1, H = 1-15602-601-2	9-09110-406-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: F = 1-15602-599-1	9-09110-406-0	03	1	9010-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15602-434-5	9-09110-406-0	03	1	9612-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15602-434-5	9-09110-406-0	03	1	9111-9303
80	NUT; FUEL FEED PUMP FIX ASM PART: D = 1-15602-440-3	9-09110-406-0	03	1	9312-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: A = 1-15602-434-5	9-09110-506-0	03	1	9304-9611
82	PLUG; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-067-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: D = 1-15602-440-3	1-15619-093-0	02	1	-9601
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: D = 1-15602-440-3	1-15719-093-0	02	1	9602-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15719-093-0	02	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: K = 1-15602-914-0	1-15619-321-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15639-087-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15641-027-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: D = 1-15602-440-3	1-15759-011-0	01	1	-9311
90	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2	1-15759-011-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15602-434-5	1-09630-085-0	02	1	9111-
101	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: F = 1-15602-599-1	1-09630-085-0	02	1	9010-
101	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-09630-085-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: F = 1-15602-599-1	1-15759-012-0	02	1	-9009
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: D = 1-15602-440-3	1-15759-012-0	02	1	-9311
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2	1-15759-012-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15602-434-5	1-15759-012-0	02	1	-9110
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-13260-050-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15619-268-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: K = 1-15602-914-0	1-15619-321-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: F = 1-15602-599-1	1-09630-085-0	03	1	9010-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15602-434-5	1-09630-085-0	03	1	9111-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: K = 1-15602-914-0	1-09630-085-0	02	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-09630-085-0	03	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: F = 1-15602-599-1	1-15759-012-0	03	1	-9009
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15602-434-5	1-15759-012-0	03	1	-9110
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15759-012-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15637-008-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15637-015-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: K = 1-15602-914-0	1-15637-016-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-440-0	01	1	-
111	GASKET; FRT COVER FIX ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15629-024-0	04	1	-
112	SHIM; FRT COVER FIX ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81315-216-0	04	1	-
113	WASHER; LK,FRT COVER TO HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	8-94128-928-0	04	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: K = 1-15602-914-0	9-88410-456-0	24	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-88410-456-0	20	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-88410-456-0	12	1	-
154	HANGER; RR,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-163-0	01	1	-
165	WASHER; LK,PLUNGER FIX ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15639-020-0	20	1	-

107 106 105 37 108 110 109 103 102 101 101 90 89 89 88 86 87 87 82 83 33 80 81 78 79 77 73 74 76 63 64 58 62 68 69 70 71 72 46 45 40 51 114 50 47 48 37 38 34 30 38 28 27 26 25 24 23 22 21 29 5 115 1 5 20 20 19 14 10 9 7 6 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15611-065-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15611-078-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15611-111-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: K = 1-15602-914-0	1-15611-112-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15631-034-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: H = 1-15602-601-2	1-15631-110-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15631-115-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15631-155-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: K = 1-15602-914-0	1-15631-155-0	12	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: K = 1-15602-914-0	1-15644-007-0	12	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15644-007-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15644-010-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15644-013-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: K = 1-15602-914-0	1-15629-088-0	12	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15629-088-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81235-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	9-81235-052-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15643-005-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15662-001-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: K = 1-15602-914-0	1-15662-001-0	12	1	-
9	SPRING; DELIVERY VLV ASM PART: H = 1-15602-601-2	5-15643-001-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81241-306-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-174-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81215-174-0	10	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: K = 1-15602-914-0	9-81215-174-0	12	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15639-085-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15641-009-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15641-028-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: K = 1-15602-914-0	1-15641-028-0	12	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15631-039-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: K = 1-15602-914-0	1-15631-092-0	12	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15631-092-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: H = 1-15602-601-2	1-15631-111-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15631-116-0	10	1	-
20	WASHER; PLUNGER BARREL ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15639-020-0	12	1	-
20	WASHER; PLUNGER BARREL ASM PART: K = 1-15602-914-0	1-15639-020-0	24	1	-
21	FLANGE; PLUNGER ASM PART: K = 1-15602-914-0	1-15742-082-0	12	1	-
21	FLANGE; PLUNGER ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15742-082-0	06	1	-
21	FLANGE; PLUNGER ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15742-082-0	10	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: K = 1-15602-914-0	1-15649-008-0	12	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15649-008-0	06	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15649-008-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15629-089-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: K = 1-15602-914-0	1-15629-089-0	12	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15639-016-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15639-016-0	06	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-88410-430-0	10	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-88410-430-0	06	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: K = 1-15602-914-0	9-88410-430-0	12	1	-
25	RING; SNAP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-88410-431-0	06	1	-
25	RING; SNAP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-88410-431-0	10	1	-
25	RING; SNAP ASM PART: K = 1-15602-914-0	9-88410-431-0	12	1	-
26	GASKET; PLUNGER UPR ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15629-090-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: K = 1-15602-914-0	1-15629-090-0	12	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	9-81215-120-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-120-0	06	1	-
27	GASKET; PLUNGER LWR ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15629-090-0	10	1	-
27	GASKET; PLUNGER LWR ASM PART: K = 1-15602-914-0	1-15629-090-0	12	1	-
27	GASKET; PLUNGER LWR ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-120-0	06	1	-
27	GASKET; PLUNGER LWR ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	9-81215-120-0	10	1	-
28	DEFLECTOR; PLUNGER ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15639-086-0	10	1	-
28	DEFLECTOR; PLUNGER ASM PART: K = 1-15602-914-0	1-15639-086-0	12	1	-
28	DEFLECTOR; PLUNGER ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15639-086-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-88410-432-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: K = 1-15602-914-0	9-88410-432-0	24	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-88410-432-0	20	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-130-0	06	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: K = 1-15602-914-0	9-81215-130-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81215-130-0	10	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15619-068-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-123-0	02	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15619-156-0	01	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: D = 1-15602-440-3	1-15619-069-0	02	1	-9311
37	BOLT; POINTER FIX,INJ PUMP M6X12 W/LK WASHER ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2	9-01910-612-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP M6X12 W/LK WASHER ASM PART: D = 1-15602-440-3	9-01910-612-0	02	1	9312-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15619-084-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-317-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-127-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-308-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: F = 1-15602-599-1	1-15619-308-0	04	1	9010-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15602-434-5	1-15619-308-0	04	1	9111-
45	BOLT; FRT COVER TO HSG ASM PART: F = 1-15602-599-1	1-15629-023-0	04	1	-9009
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15602-434-5	1-15629-023-0	04	1	-9110
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	5-15729-027-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15629-037-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81211-273-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15629-076-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15621-013-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15621-047-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: K = 1-15602-914-0	1-15621-049-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15621-072-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: H = 1-15602-601-2	1-15621-083-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15635-001-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: K = 1-15602-914-0	1-15635-001-0	12	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15635-001-0	10	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81215-136-0	10	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: K = 1-15602-914-0	9-81215-136-0	12	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-136-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15634-005-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15634-008-0	10	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: K = 1-15602-914-0	1-15634-008-0	12	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15643-004-0	10	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: K = 1-15602-914-0	1-15643-004-0	12	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: D = 1-15602-440-3	1-15643-004-0	06	1	9312-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: D = 1-15602-440-3	9-81215-137-0	06	1	-9311
68	TAPPET; CM/SHF,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81221-240-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81221-240-0	10	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: K = 1-15602-914-0	9-81221-240-0	12	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: K = 1-15602-914-0	1-15629-063-0	12	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15629-063-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81225-062-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81225-062-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: K = 1-15602-914-0	9-81225-062-0	12	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: K = 1-15602-914-0	9-81225-061-0	12	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81225-061-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81225-061-0	10	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81225-060-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81225-060-0	10	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: K = 1-15602-914-0	9-81225-060-0	12	1	-
73	GASKET; COVER TO HSG ASM PART: K = 1-15602-914-0	1-15619-319-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15629-031-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15629-091-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-180-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15612-012-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: K = 1-15602-914-0	1-15629-033-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15629-051-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: G = 1-15602-600-1	1-15629-051-0	01	1	9206-
74	COVER; HSG,INJ PUMP ASM PART: G = 1-15602-600-1	1-15629-057-0	01	1	-9205
76	BOLT; COVER TO HSG ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15619-066-0	12	1	-
76	BOLT; COVER TO HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15619-066-0	16	1	-
76	BOLT; COVER TO HSG ASM PART: K = 1-15602-914-0	1-15619-066-0	20	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81225-066-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81225-066-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81325-187-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81325-187-0	04	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: F = 1-15602-599-1	1-15729-006-0	03	1	-9009
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15602-434-5	1-15729-006-0	03	1	-9110
80	NUT; FUEL FEED PUMP FIX ASM PART: D = 1-15602-440-3	1-15729-006-0	03	1	-9311
80	NUT; FUEL FEED PUMP FIX ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	8-94171-110-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2, G = 1-15602-600-1, H = 1-15602-601-2	9-09110-406-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: F = 1-15602-599-1	9-09110-406-0	03	1	9010-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15602-434-5	9-09110-406-0	03	1	9612-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15602-434-5	9-09110-406-0	03	1	9111-9303
80	NUT; FUEL FEED PUMP FIX ASM PART: D = 1-15602-440-3	9-09110-406-0	03	1	9312-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: A = 1-15602-434-5	9-09110-506-0	03	1	9304-9611
81	WASHER; LK,FUEL FEED PUMP FIX ID=6.1 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	9-09150-506-0	03	1	-
82	PLUG; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-067-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15722-012-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15759-012-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: D = 1-15602-440-3	1-15619-093-0	02	1	-9601
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: D = 1-15602-440-3	1-15719-093-0	02	1	9602-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15719-093-0	02	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: K = 1-15602-914-0	1-15619-321-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15639-087-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15641-027-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: D = 1-15602-440-3	1-15759-011-0	01	1	-9311
90	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2	1-15759-011-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15602-434-5	1-09630-085-0	02	1	9111-
101	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: F = 1-15602-599-1	1-09630-085-0	02	1	9010-
101	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-09630-085-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: F = 1-15602-599-1	1-15759-012-0	02	1	-9009
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: D = 1-15602-440-3	1-15759-012-0	02	1	-9311
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2	1-15759-012-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15602-434-5	1-15759-012-0	02	1	-9110
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-13260-050-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15619-268-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: K = 1-15602-914-0	1-15619-321-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: F = 1-15602-599-1	1-09630-085-0	03	1	9010-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15602-434-5	1-09630-085-0	03	1	9111-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: K = 1-15602-914-0	1-09630-085-0	02	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-09630-085-0	03	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: F = 1-15602-599-1	1-15759-012-0	03	1	-9009
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15602-434-5	1-15759-012-0	03	1	-9110
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15759-012-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15637-008-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15637-015-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: K = 1-15602-914-0	1-15637-016-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: K = 1-15602-914-0	9-88410-456-0	24	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-88410-456-0	20	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-88410-456-0	12	1	-

107 106 105 1 5 6 7 8 9 10 14 19 79 165 29 154 109 110 34 108 32 115 31 32 33 5 38 21 22 23 38 24 28 26 26 27 80 81 30 34 111 112 113 48 114 50 51 45 40 46 47 68 71 70 69 72 63 64 62 58 78 83 82 73 74 76 90 101 89 88 89 103 103 103 101 77 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15611-065-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15611-078-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15611-111-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: K = 1-15602-914-0	1-15611-112-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15631-034-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: H = 1-15602-601-2	1-15631-110-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15631-115-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15631-155-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: K = 1-15602-914-0	1-15631-155-0	12	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: K = 1-15602-914-0	1-15644-007-0	12	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15644-007-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15644-010-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15644-013-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: K = 1-15602-914-0	1-15629-088-0	12	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15629-088-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81235-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	9-81235-052-0	10	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15639-084-0	10	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: K = 1-15602-914-0	1-15649-005-0	12	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15649-005-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15643-005-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15662-001-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: K = 1-15602-914-0	1-15662-001-0	12	1	-
9	SPRING; DELIVERY VLV ASM PART: H = 1-15602-601-2	5-15643-001-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81241-306-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-174-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81215-174-0	10	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: K = 1-15602-914-0	9-81215-174-0	12	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15639-085-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15641-009-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15641-028-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: K = 1-15602-914-0	1-15641-028-0	12	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15631-039-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: K = 1-15602-914-0	1-15631-092-0	12	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15631-092-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: H = 1-15602-601-2	1-15631-111-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15631-116-0	10	1	-
21	FLANGE; PLUNGER ASM PART: K = 1-15602-914-0	1-15742-082-0	12	1	-
21	FLANGE; PLUNGER ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15742-082-0	06	1	-
21	FLANGE; PLUNGER ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15742-082-0	10	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: K = 1-15602-914-0	1-15649-008-0	12	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15649-008-0	06	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15649-008-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15629-089-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: K = 1-15602-914-0	1-15629-089-0	12	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15639-016-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15639-016-0	06	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-88410-430-0	10	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-88410-430-0	06	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: K = 1-15602-914-0	9-88410-430-0	12	1	-
26	GASKET; PLUNGER UPR ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15629-090-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: K = 1-15602-914-0	1-15629-090-0	12	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	9-81215-120-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-120-0	06	1	-
27	GASKET; PLUNGER LWR ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15629-090-0	10	1	-
27	GASKET; PLUNGER LWR ASM PART: K = 1-15602-914-0	1-15629-090-0	12	1	-
27	GASKET; PLUNGER LWR ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-120-0	06	1	-
27	GASKET; PLUNGER LWR ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	9-81215-120-0	10	1	-
28	DEFLECTOR; PLUNGER ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15639-086-0	10	1	-
28	DEFLECTOR; PLUNGER ASM PART: K = 1-15602-914-0	1-15639-086-0	12	1	-
28	DEFLECTOR; PLUNGER ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15639-086-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-88410-432-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: K = 1-15602-914-0	9-88410-432-0	24	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-88410-432-0	20	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-130-0	06	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: K = 1-15602-914-0	9-81215-130-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81215-130-0	10	1	-
31	HANGER; FRT,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-163-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-039-0	02	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15619-068-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-123-0	02	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15619-084-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-317-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-127-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-308-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: F = 1-15602-599-1	1-15619-308-0	04	1	9010-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15602-434-5	1-15619-308-0	04	1	9111-
45	BOLT; FRT COVER TO HSG ASM PART: F = 1-15602-599-1	1-15629-023-0	04	1	-9009
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15602-434-5	1-15629-023-0	04	1	-9110
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	5-15729-027-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15629-037-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81211-273-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15629-076-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15621-013-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15621-047-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: K = 1-15602-914-0	1-15621-049-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15621-072-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: H = 1-15602-601-2	1-15621-083-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15635-001-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: K = 1-15602-914-0	1-15635-001-0	12	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15635-001-0	10	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81215-136-0	10	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: K = 1-15602-914-0	9-81215-136-0	12	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-136-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15634-005-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15634-008-0	10	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: K = 1-15602-914-0	1-15634-008-0	12	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15643-004-0	10	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: K = 1-15602-914-0	1-15643-004-0	12	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: D = 1-15602-440-3	1-15643-004-0	06	1	9312-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: D = 1-15602-440-3	9-81215-137-0	06	1	-9311
68	TAPPET; CM/SHF,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81221-240-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81221-240-0	10	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: K = 1-15602-914-0	9-81221-240-0	12	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: K = 1-15602-914-0	1-15629-063-0	12	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15629-063-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81225-062-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81225-062-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: K = 1-15602-914-0	9-81225-062-0	12	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: K = 1-15602-914-0	9-81225-061-0	12	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81225-061-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81225-061-0	10	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81225-060-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-81225-060-0	10	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: K = 1-15602-914-0	9-81225-060-0	12	1	-
73	GASKET; COVER TO HSG ASM PART: K = 1-15602-914-0	1-15619-319-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15629-031-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15629-091-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81215-180-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15612-012-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: K = 1-15602-914-0	1-15629-033-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15629-051-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: G = 1-15602-600-1	1-15629-051-0	01	1	9206-
74	COVER; HSG,INJ PUMP ASM PART: G = 1-15602-600-1	1-15629-057-0	01	1	-9205
76	BOLT; COVER TO HSG ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15619-066-0	12	1	-
76	BOLT; COVER TO HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15619-066-0	16	1	-
76	BOLT; COVER TO HSG ASM PART: K = 1-15602-914-0	1-15619-066-0	20	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81225-066-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81225-066-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81325-187-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81325-187-0	04	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: F = 1-15602-599-1	1-15729-006-0	03	1	-9009
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15602-434-5	1-15729-006-0	03	1	-9110
80	NUT; FUEL FEED PUMP FIX ASM PART: D = 1-15602-440-3	1-15729-006-0	03	1	-9311
80	NUT; FUEL FEED PUMP FIX ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	8-94171-110-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2, G = 1-15602-600-1, H = 1-15602-601-2	9-09110-406-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: F = 1-15602-599-1	9-09110-406-0	03	1	9010-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15602-434-5	9-09110-406-0	03	1	9612-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15602-434-5	9-09110-406-0	03	1	9111-9303
80	NUT; FUEL FEED PUMP FIX ASM PART: D = 1-15602-440-3	9-09110-406-0	03	1	9312-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: A = 1-15602-434-5	9-09110-506-0	03	1	9304-9611
81	WASHER; LK,FUEL FEED PUMP FIX ID=6.1 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	9-09150-506-0	03	1	-
82	PLUG; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-067-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: D = 1-15602-440-3	1-15619-093-0	02	1	-9601
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: D = 1-15602-440-3	1-15719-093-0	02	1	9602-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15719-093-0	02	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: K = 1-15602-914-0	1-15619-321-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15639-087-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15641-027-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: D = 1-15602-440-3	1-15759-011-0	01	1	-9311
90	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2	1-15759-011-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15602-434-5	1-09630-085-0	02	1	9111-
101	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: F = 1-15602-599-1	1-09630-085-0	02	1	9010-
101	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-09630-085-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: F = 1-15602-599-1	1-15759-012-0	02	1	-9009
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: D = 1-15602-440-3	1-15759-012-0	02	1	-9311
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2	1-15759-012-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15602-434-5	1-15759-012-0	02	1	-9110
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-13260-050-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15619-268-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: K = 1-15602-914-0	1-15619-321-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: F = 1-15602-599-1	1-09630-085-0	03	1	9010-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15602-434-5	1-09630-085-0	03	1	9111-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: K = 1-15602-914-0	1-09630-085-0	02	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-09630-085-0	03	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: F = 1-15602-599-1	1-15759-012-0	03	1	-9009
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15602-434-5	1-15759-012-0	03	1	-9110
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15759-012-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15637-008-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15637-015-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: K = 1-15602-914-0	1-15637-016-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-88410-440-0	01	1	-
111	GASKET; FRT COVER FIX ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15629-024-0	04	1	-
112	SHIM; FRT COVER FIX ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81315-216-0	04	1	-
113	WASHER; LK,FRT COVER TO HSG ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	8-94128-928-0	04	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15602-434-5, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: K = 1-15602-914-0	9-88410-456-0	24	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	9-88410-456-0	20	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-88410-456-0	12	1	-
154	HANGER; RR,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15619-163-0	01	1	-
165	WASHER; LK,PLUNGER FIX ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0	1-15639-020-0	20	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
