9-01 — TOOLS (#33059) — 51 parça

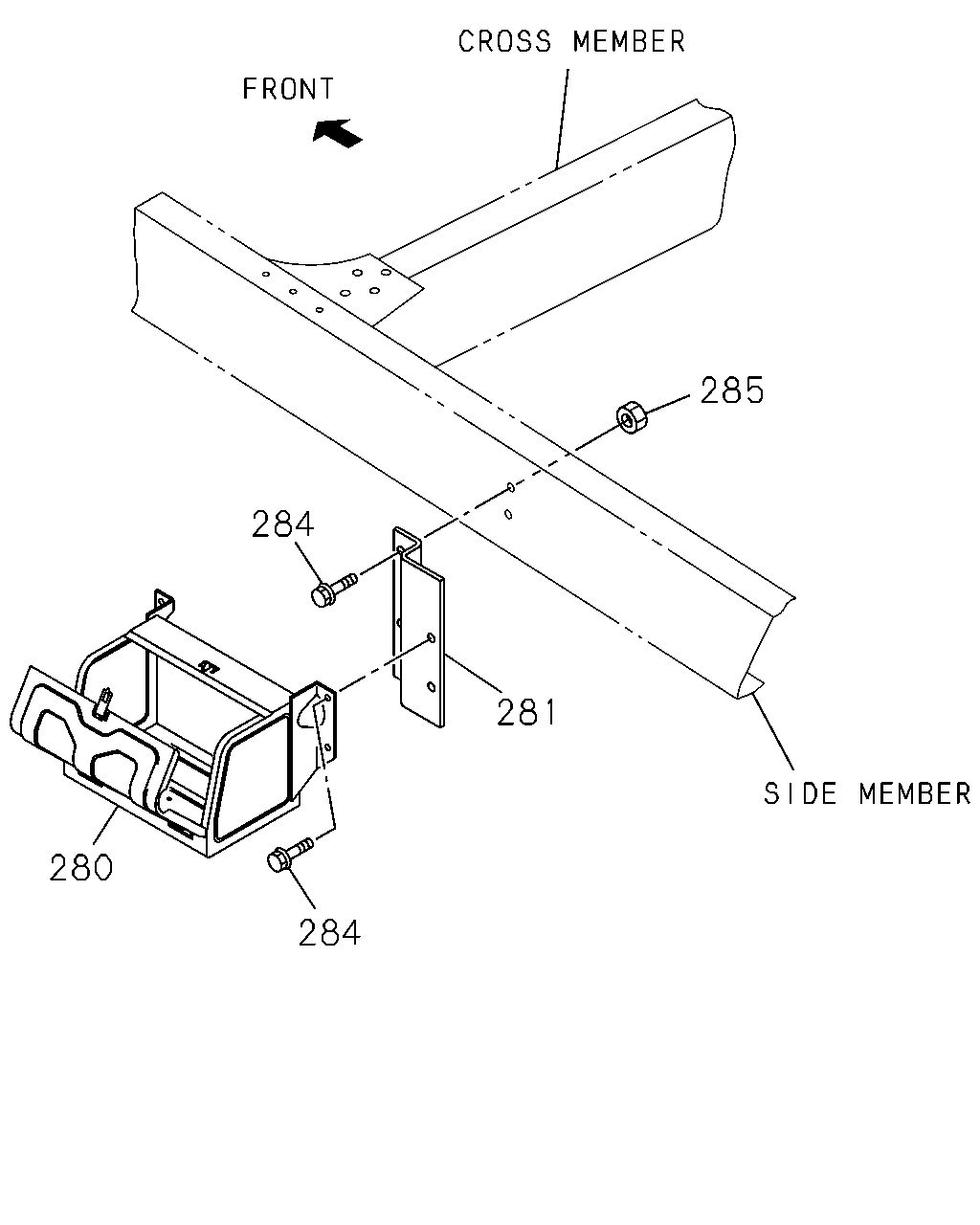

285 281 284 280 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2>	8-97222-496-0	01	1	0612-	●	●	●	●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ>	8-97254-546-0	01	1	0612-			●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2>	8-97254-546-0	01	1	0612-				●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0612-	●	●	●	●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	03	1	0612-		●

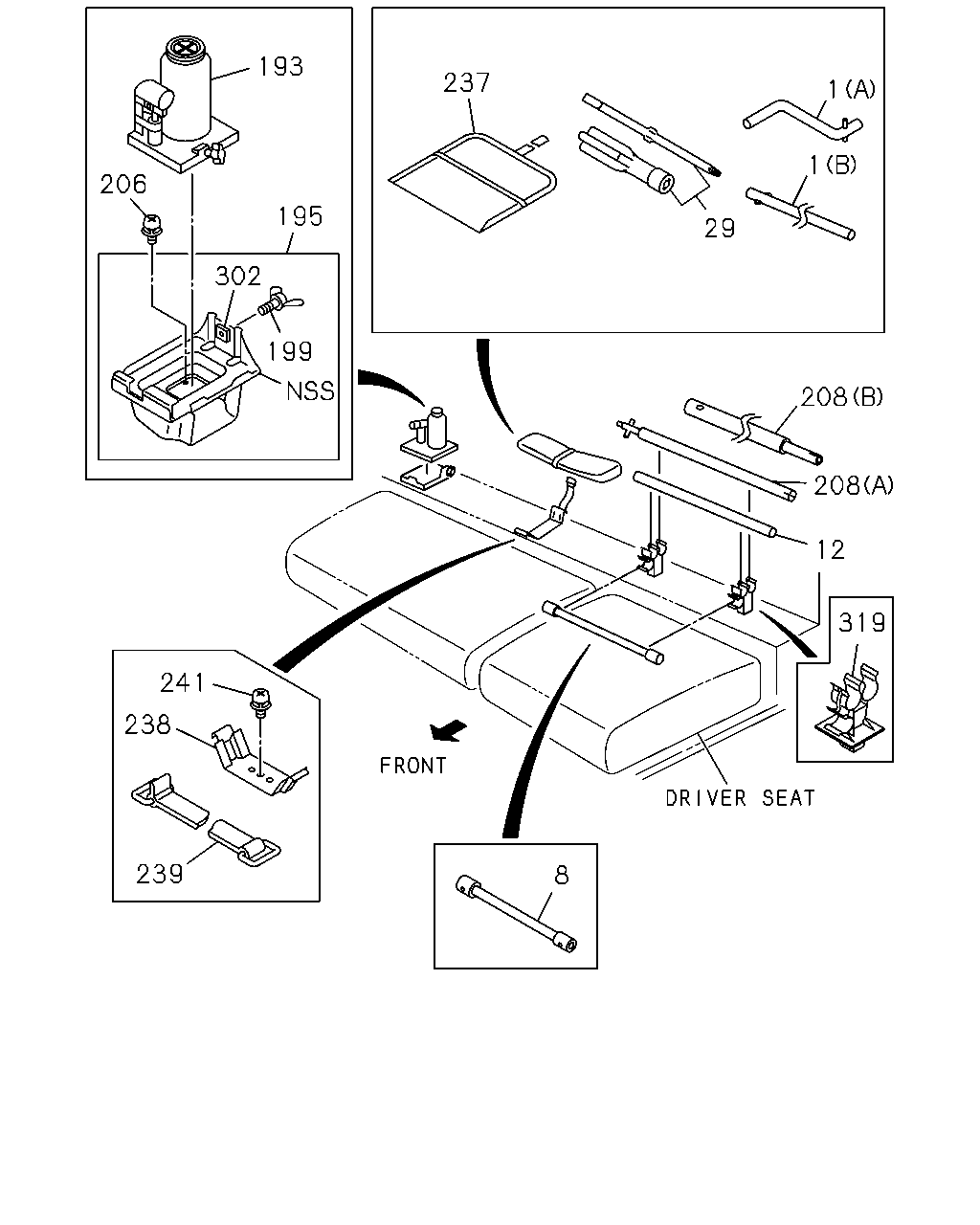

206 193 195 302 199 237 29 1 1 208 208 12 319 8 239 238 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.629 HANDLE; SPARE TIRE CARRIER 08.821 (B) L=280	1-85515-007-0	01	1	0612-	●
1	07.629 HANDLE; SPARE TIRE CARRIER FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280	1-85515-007-0	01	1	0612-		●	●
1	07.629 HANDLE; SPARE TIRE CARRIER EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	0612-		●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97218-985-0	01	1	0612-				●
8	08.821 WRENCH; WHEEL B=41X21 L=440	1-85113-015-1	01	1	0612-	●			●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX) B=41X21 L=440	1-85113-015-1	01	1	0612-		●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) B=41X21 L=440	1-85113-015-1	01	1	0612-			●
8	08.821 WRENCH; WHEEL G.V.W. 6.0-6.5TON(RPV) B=41X19 L=330	8-94386-490-1	01	1	0612-		●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590	8-97332-988-0	01	1	0612-1001		●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=590	8-97332-988-0	01	1	0612-1001				●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1002-		●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN 08.820 OD=25 L=480	1-85116-011-0	01	1	1002-				●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0612-	●		●	●
29	08.821 DRIVER; SCREW G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) <+>,<-> L=160	8-94242-798-1	01	1	0612-		●
193	08.820 JACK ASM 5TON	8-97371-124-0	01	1	0612-0805	●			●
193	08.820 JACK ASM FRT&RR 215/85R16 16X6K-128(CSC) 5TON	8-97371-124-0	01	1	0612-0805		●
193	08.820 JACK ASM FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 225/80R17.5 17.5X6.00-127 SILVER(CTD) 5TON	8-97371-124-0	01	1	0612-0805			●
193	08.820 JACK ASM 5TON	8-98114-047-0	01	1	0806-	●			●
193	08.820 JACK ASM FRT&RR 215/85R16 16X6K-128(CSC) 5TON	8-98114-047-0	01	1	0806-		●
193	08.820 JACK ASM FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 225/80R17.5 17.5X6.00-127 SILVER(CTD) 5TON	8-98114-047-0	01	1	0806-			●
193	08.820 JACK ASM FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA) 4TON	8-98012-285-0	01	1	0612-		●	●
195	08.820 BRACKET; JACK	8-97856-994-3	01	1	0806-	●			●
195	08.820 BRACKET; JACK FRT&RR 215/85R16 16X6K-128(CSC)	8-97856-994-3	01	1	0806-		●
195	08.820 BRACKET; JACK FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 225/80R17.5 17.5X6.00-127 SILVER(CTD)	8-97856-994-3	01	1	0806-			●
195	08.820 BRACKET; JACK	8-97856-997-4	01	1	0612-0805	●	●	●	●
195	08.820 BRACKET; JACK FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA)	8-97856-997-4	01	1	0806-		●	●
199	08.820 BOLT; JACK M8X30 WING	8-94279-018-1	01	1	0806-	●			●
199	08.820 BOLT; JACK FRT&RR 215/85R16 16X6K-128(CSC) M8X30 WING	8-94279-018-1	01	1	0806-		●
199	08.820 BOLT; JACK FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 225/80R17.5 17.5X6.00-127 SILVER(CTD) M8X30 WING	8-94279-018-1	01	1	0806-			●
199	08.820 BOLT; JACK M8X50 WING	8-94279-136-0	01	1	0612-0805	●	●	●	●
199	08.820 BOLT; JACK FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA) M8X50 WING	8-94279-136-0	01	1	0806-		●	●
206	08.820 SCREW; OIL JACK BRKT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	0612-0612	●	●	●	●
206	08.820 SCREW; OIL JACK BRKT 16.570 M6X16	0-38050-616-0	01	1	0701-	●	●	●	●
208	08.820 HANDLE; JACK (B) L=580	1-85515-005-1	01	1	0612-	●
208	08.820 HANDLE; JACK FRAME STRAIGHT TYPE<7KJ> (B) L=580	1-85515-005-1	01	1	0612-		●	●
208	08.820 HANDLE; JACK EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	0612-		●	●
208	08.820 HANDLE; JACK (A) L=642	8-97217-800-0	01	1	0612-				●
237	08.821 BAG; TOOL	8-97130-903-1	01	1	0612-	●		●	●
237	08.821 BAG; TOOL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)	8-97130-903-1	01	1	0612-		●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	0612-	●	●	●	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	0612-	●	●	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	0612-0612	●	●	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.570 M6X16	0-38050-616-0	01	1	0701-	●	●	●	●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	0612-0805	●	●	●	●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	0806-	●	●	●	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	0612-	●	●	●	●
