8-90 — RADIO AND TV (#33058) — 34 parça

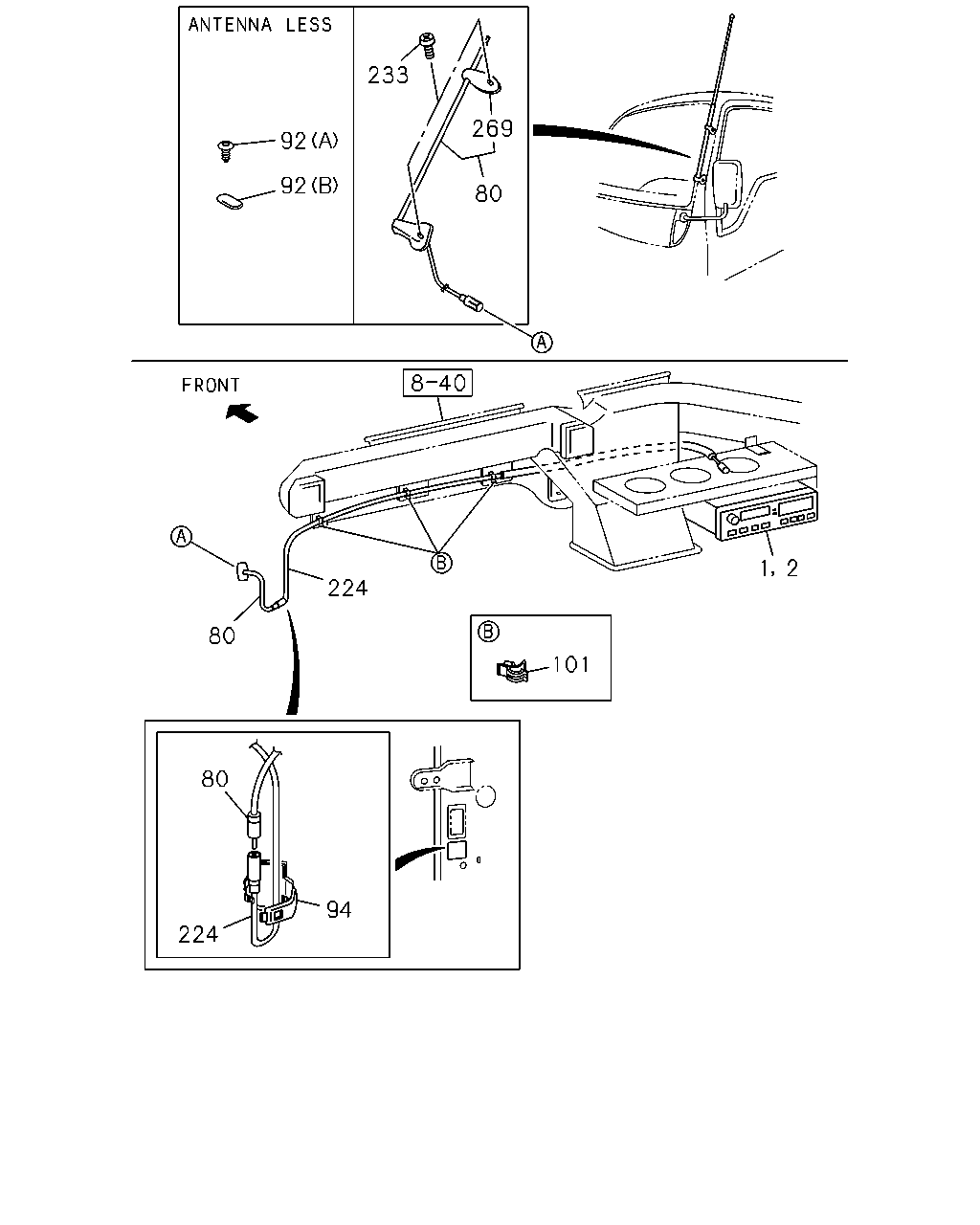

92 92 233 269 80 2 1 101 94 224 80 80 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) CLARION AM/FM	8-97376-745-0	01	1	0612-	●	●	●	●
2	09.645 RADIO & CASSETTE DECK ASM RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION	1-84122-032-3	01	1	0612-	●	●	●	●
80	09.645 ANTENNA ANTENNA<U73>	8-97211-565-0	01	1	0612-	●	●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	0612-	●	●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-3	01	1	0612-	●	●	●	●
94	09.656 CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-3	01	1	0612-	●	●	●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> 04.342 ID=7	5-09707-053-0	03	1	0612-	●	●	●	●
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73>	8-97213-766-0	01	1	0612-	●	●	●	●
233	09.647 SCREW ANTENNA<U73> M6X20	8-97120-686-0	01	1	0612-	●	●	●	●
233	09.647 SCREW ANTENNA<U73> M6X16	8-97123-696-0	01	1	0612-	●	●	●	●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97219-080-0	01	1	0612-	●	●	●	●

7 226 6 6 7 226 268 1 7 6 226 268 2 226 6 7 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) CLARION AM/FM	8-97376-745-0	01	1	0612-	●	●	●	●
2	09.645 RADIO & CASSETTE DECK ASM RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION	1-84122-032-3	01	1	0612-	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97853-615-2	01	1	0612-	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97853-614-2	01	1	0612-	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0612-0612	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	0701-	●	●	●	●
34	09.650 COVER; RADIO HOLE EXC. RADIO AM/FM STEREO 2 SPEAKERS(6GZ) ,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	0612-	●	●	●	●
226	09.647 BOLT; BRKT RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0612-	●	●	●	●
268	09.649 KNOB; VOL RADIO AM/FM STEREO 2 SPEAKERS(6GZ) CLARION	8-97375-820-0	01	1	0612-	●	●	●	●
268	09.649 KNOB; VOL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97386-201-0	01	1	0612-	●	●	●	●

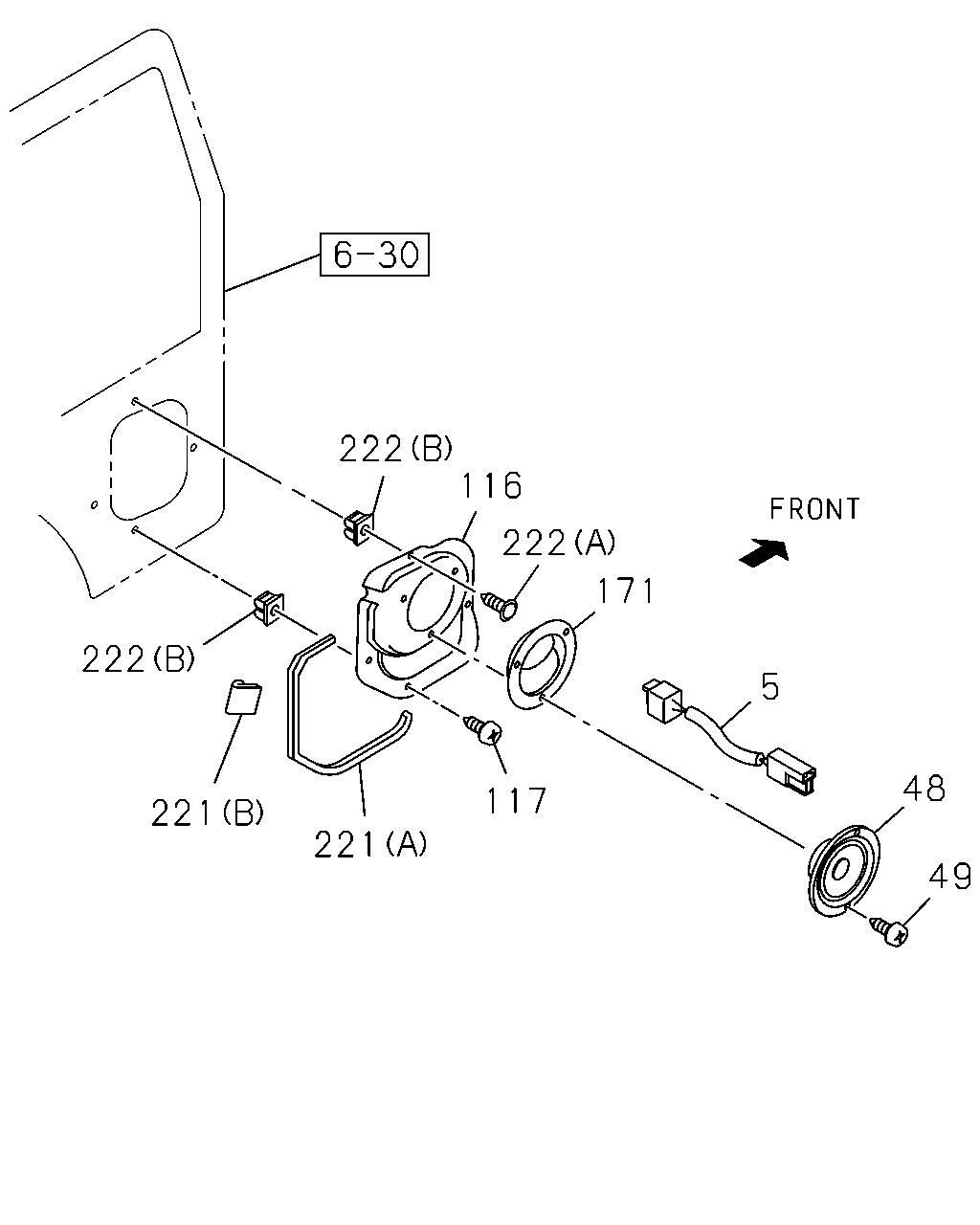

222 116 222 171 5 48 49 117 221 221 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	09.647 HARNESS; EXT ANTENNA<U73>	8-97131-327-0	02	1	0612-	●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73>	8-97317-001-1	02	1	0612-	●	●	●	●
49	09.655 SCREW; SPEAKER ANTENNA<U73> 16.067 M5X14	8-94279-325-0	06	1	0612-0612	●	●	●	●
49	09.655 SCREW; SPEAKER ANTENNA<U73> M5X14 TAPPING W/TORQUES	8-98061-856-0	06	1	0701-	●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73>	8-97852-325-3	01	1	0612-	●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73>	8-97852-324-3	01	1	0612-	●	●	●	●
117	16.165 SCREW; SPEAKER PANEL ANTENNA<U73> 16.067 M5X14	8-94279-325-0	06	1	0612-0612	●	●	●	●
117	16.165 SCREW; SPEAKER PANEL ANTENNA<U73> 16.570 T25 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	06	1	0701-	●	●	●	●
171	09.650 COVER; SPEAKER ANTENNA<U73>	8-97852-331-4	02	1	0612-	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> (A)	8-97852-327-5	02	1	0612-	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> (B)	8-97852-601-2	02	1	0612-	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> 09.264 (A)	1-09987-144-0	02	1	0612-	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> 01.269 (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0612-	●	●	●	●
