8-65 — CONTROL LEVER; HEATER AND AIR CON (#33055) — 19 parça

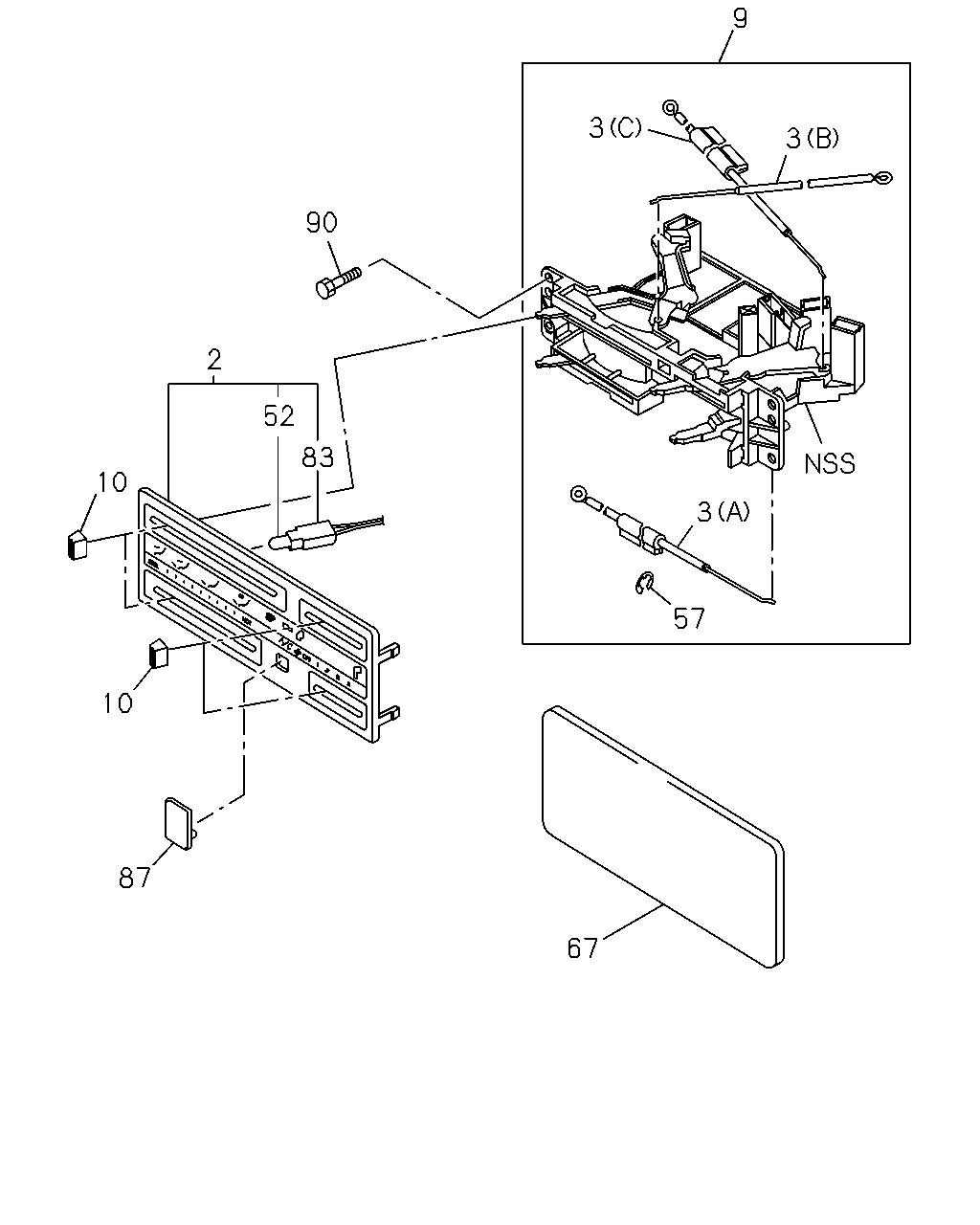

çizim 57854
9 3 3 3 57 67 87 10 10 83 52 2 90
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 08.852 PANEL ASM; CONT,ILLUMINATION 8-97048-331-2 01 1 0612- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) MODE 		8-97101-674-2 01 1 0612- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-97102-659-3 01 1 0612- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(A) MIX 		8-97101-660-2 01 1 0612- ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) MIX 		8-97101-660-2 01 1 0612- ● ●
9 08.852 LEVER ASM; HTR & A/C CONT 8-97073-344-1 01 1 0612- ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97073-344-1 01 1 0612- ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97073-345-0 01 1 0612- ● ●
10 08.852 KNOB; CONT LEVER 8-97114-430-0 04 1 0612- ● ●
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97114-430-0 04 1 0612- ● ●
10 08.852 KNOB; CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 03 1 0612- ● ●
52 08.991 BULB; PANEL ILLUMINATION
28V 65MA 		8-97182-225-0 01 1 0612- ● ● ● ●
57 09.787 RING; SNAP,HTR CONT LVR 8-97311-509-0 01 1 0612- ● ●
57 09.787 RING; SNAP,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97311-509-0 01 1 0612- ● ●
67 08.849 CAP; BEZEL,CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-228-0 01 1 0612- ● ●
83 08.849 HARNESS; CONT PANEL 8-97308-566-0 01 1 0612- ● ● ● ●
87 08.849 CAP; A/C SWITCH 8-97065-448-2 01 1 0612- ● ●
87 08.849 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97065-448-2 01 1 0612- ● ●
90 08.849 BOLT; CONT PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 0612- ● ● ● ●
