◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#33054) — 59 parça

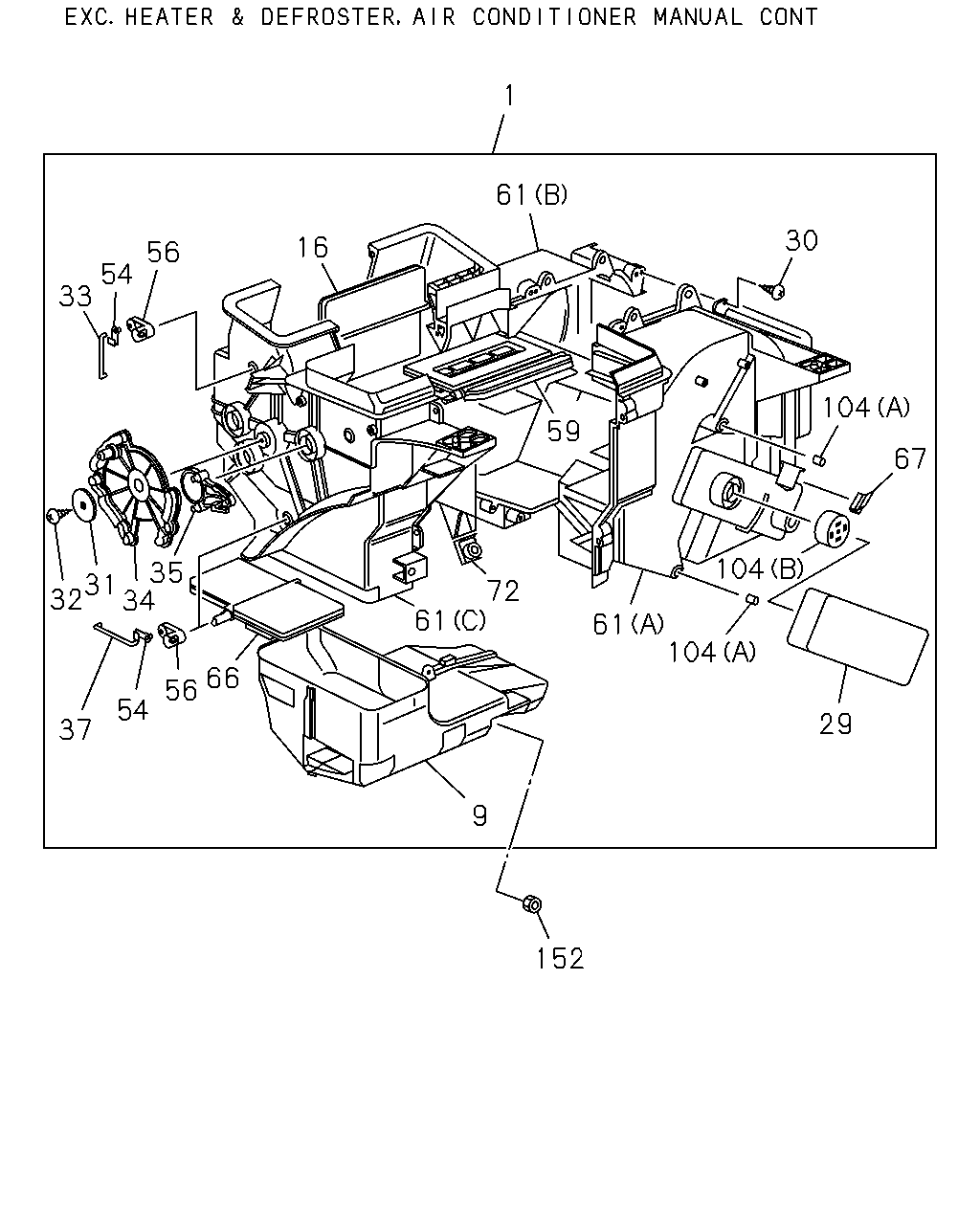

çizim 58582
1 61 30 16 56 54 33 104 59 67 104 35 31 72 61 61 104 66 56 54 29 37 9 152 32 34
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97174-733-6 01 1 0612- ● ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-697-3 01 1 0612- ● ●
9 08.854 DUCT; HTR UNIT 8-97101-638-0 01 1 0612- ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97101-642-0 01 1 0612- ● ● ● ●
29 08.857 COVER; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97102-661-0 01 1 0612- ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 0612- ● ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0612- ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 0612- ● ● ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 0612- ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.866 		8-97087-566-0 02 1 0612- ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 		8-97087-566-0 01 1 0612- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97101-669-0 01 1 0612- ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97101-673-0 03 1 0612- ● ● ● ●
37 08.852 ROD; LEVER 8-97101-677-2 02 1 0612- ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0612- ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0612- ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97101-641-0 01 1 0612- ● ● ● ●
61 08.854 CASE; HTR UNIT
(A) 		8-97101-634-3 01 1 0612- ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97101-635-3 01 1 0612- ● ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97101-636-3 01 1 0612- ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97101-643-0 01 1 0612- ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 0612- ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0612- ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 01 1 0612- ● ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 (A) 		8-94328-657-0 04 1 0612- ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94387-703-0 01 1 0612- ● ●
152 08.854 NUT; HTR UNIT
08.845 		8-97085-613-0 01 1 0612- ● ● ● ●

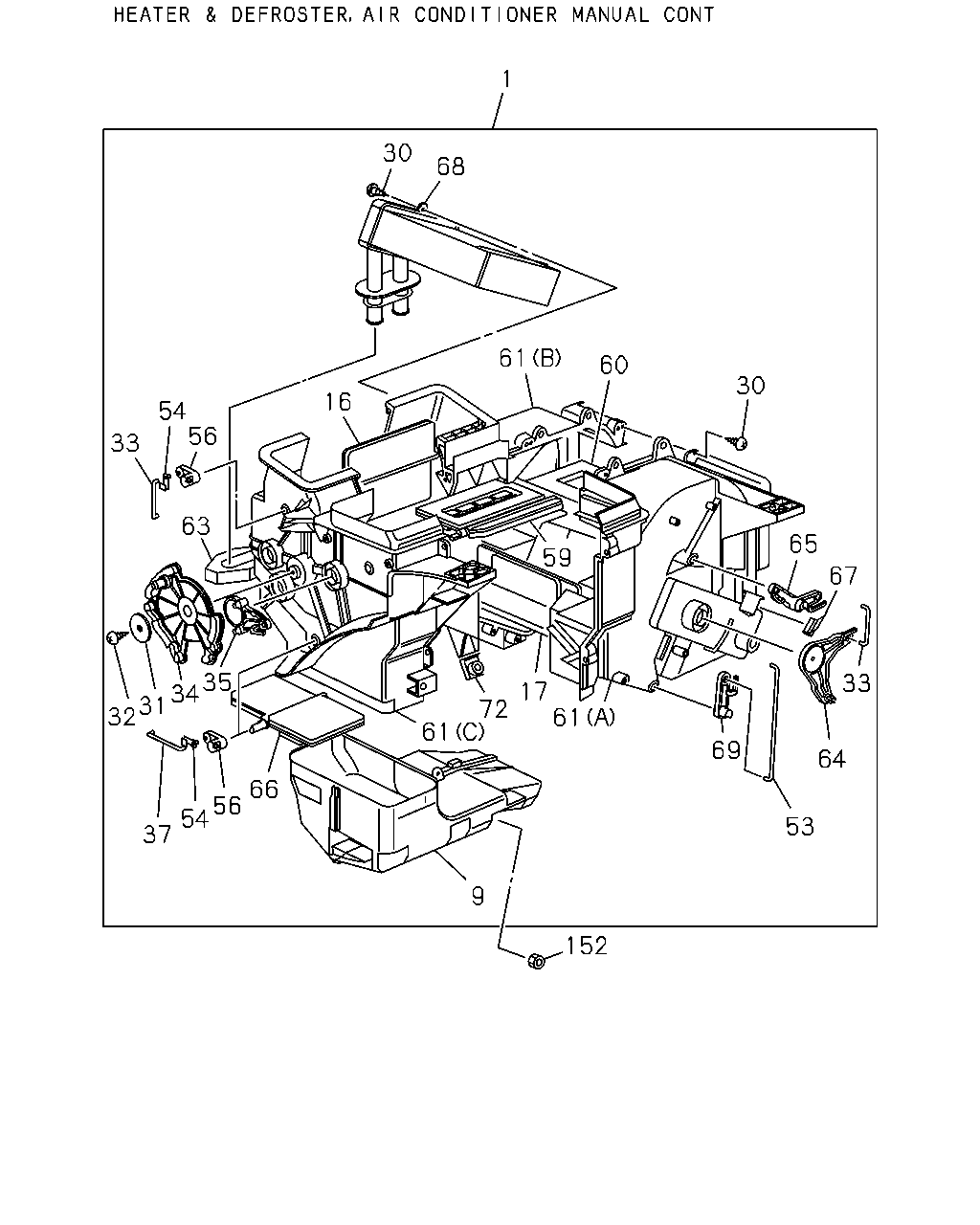

çizim 58925
1 30 68 61 60 30 16 54 56 33 63 65 59 67 35 34 31 32 33 17 61 72 61 69 64 66 56 54 37 53 9 152
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97174-733-6 01 1 0612- ● ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-697-3 01 1 0612- ● ●
9 08.854 DUCT; HTR UNIT 8-97101-638-0 01 1 0612- ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97101-642-0 01 1 0612- ● ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97101-640-0 01 1 0612- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 0612- ● ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0612- ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 0612- ● ● ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 0612- ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.866 		8-97087-566-0 02 1 0612- ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 		8-97087-566-0 01 1 0612- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97101-669-0 01 1 0612- ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97101-673-0 03 1 0612- ● ● ● ●
37 08.852 ROD; LEVER 8-97101-677-2 02 1 0612- ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97087-567-1 01 1 0612- ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0612- ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0612- ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97101-641-0 01 1 0612- ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97087-556-1 01 1 0612- ● ● ● ●
61 08.854 CASE; HTR UNIT
(A) 		8-97101-634-3 01 1 0612- ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97101-635-3 01 1 0612- ● ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97101-636-3 01 1 0612- ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97131-580-0 01 1 0612- ● ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97101-670-1 01 1 0612- ● ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97200-276-0 01 1 0612- ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97101-643-0 01 1 0612- ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 0612- ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0612- ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97240-941-0 01 1 0612- ● ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97101-671-0 01 1 0612- ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 01 1 0612- ● ● ● ●
152 08.854 NUT; HTR UNIT
08.845 		8-97085-613-0 01 1 0612- ● ● ● ●
