8-50 — AIR CONDITIONING SYSTEM; FRONT (#33053) — 30 parça

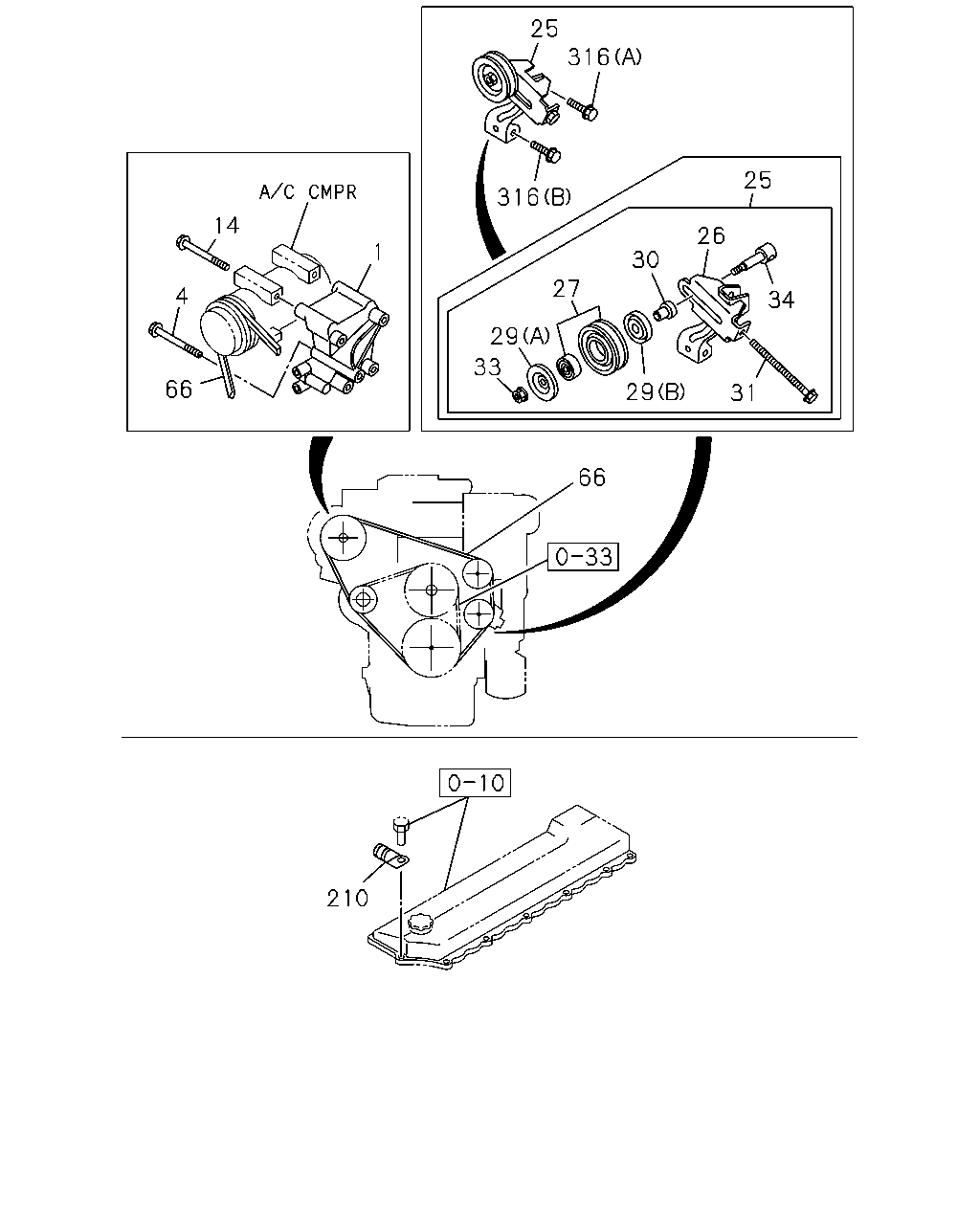

25 316 25 316 14 26 1 30 27 4 34 29 33 66 29 31 66 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.242 BRACKET; A/C 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60)	8-98006-515-3	01	1	0612-	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 01.062 M10X90 FLANGE	0-28151-090-0	02	1	0612-	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) M10X120 FLANGE	0-28156-012-0	01	1	0612-	●	●
14	09.171 BOLT; CMPR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	0612-	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	0612-	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60)	8-97161-031-1	01	1	0612-	●	●
27	09.180 PULLEY; IDLE,A/C 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60)	8-97386-869-0	01	1	0612-	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-114-0	01	1	0612-	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-115-0	01	1	0612-	●	●
30	09.181 COLLAR; IDLE PULLEY 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60)	8-97384-117-0	01	1	0612-	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	0612-	●	●
33	09.181 NUT; IDLER PULLEY 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	0612-	●	●
34	09.181 SHAFT; IDLE PULLEY 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60)	8-97384-116-0	01	1	0612-	●	●
66	01.066 BELT; A/C CMPR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) L=1674	8-98010-841-0	01	1	0612-	●	●
210	09.242 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0612-0801	●	●	●	●
210	09.242 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●	●	●	●
316	09.242 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE	0-28050-850-0	01	1	0612-	●	●
316	09.242 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	0612-	●	●

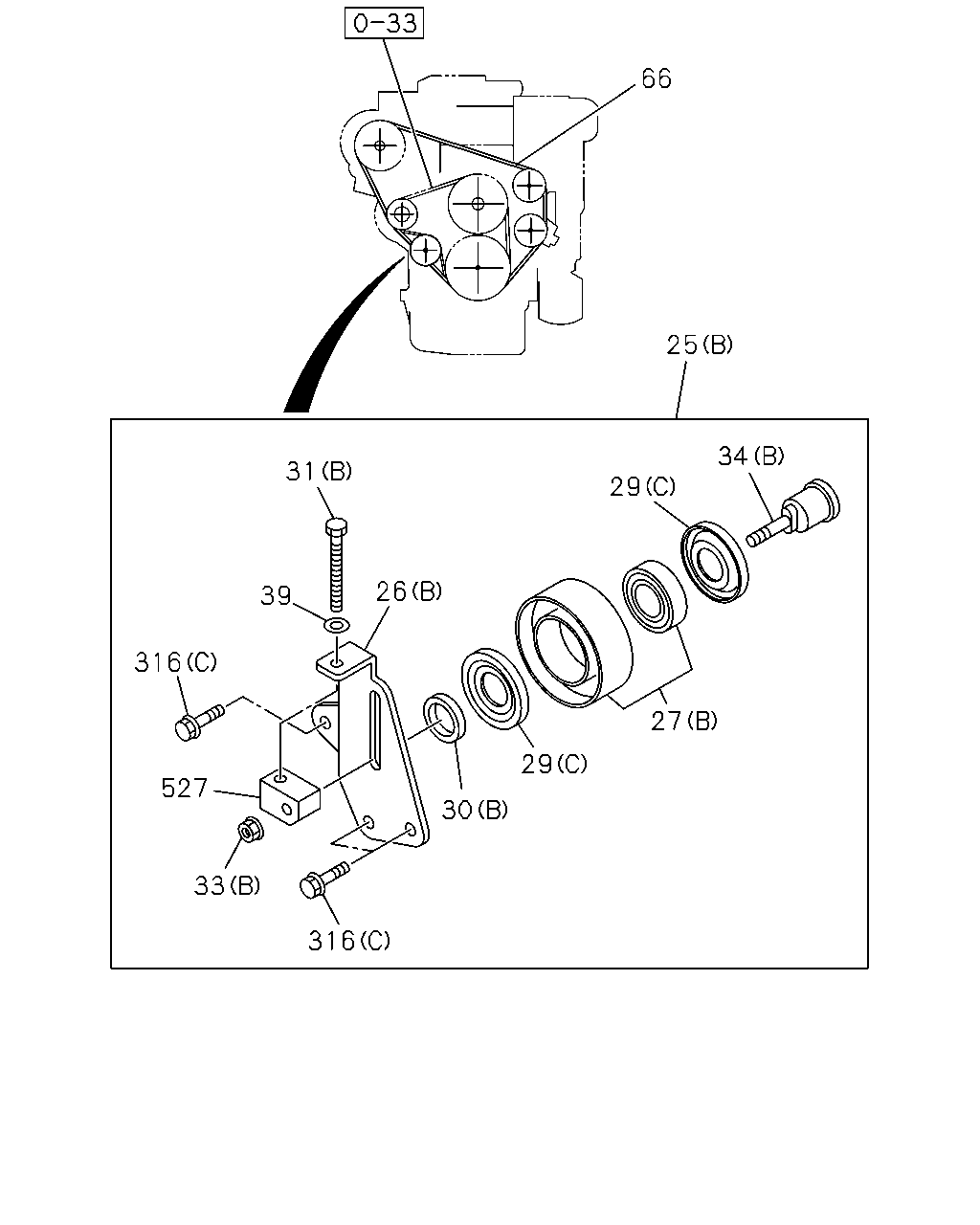

66 25 34 31 29 26 39 316 27 29 527 30 33 316

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	09.180 PULLEY ASM; IDLER,CMPR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	0612-	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60)	8-97161-031-1	01	1	0612-	●	●
27	09.180 PULLEY; IDLE,A/C 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60)	8-97386-869-0	01	1	0612-	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-114-0	01	1	0612-	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-115-0	01	1	0612-	●	●
30	09.181 COLLAR; IDLE PULLEY 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60)	8-97384-117-0	01	1	0612-	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	0612-	●	●
33	09.181 NUT; IDLER PULLEY 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	0612-	●	●
34	09.181 SHAFT; IDLE PULLEY 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60)	8-97384-116-0	01	1	0612-	●	●
66	01.066 BELT; A/C CMPR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) L=1674	8-98010-841-0	01	1	0612-	●	●
316	09.242 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE	0-28050-850-0	01	1	0612-	●	●
316	09.242 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	0612-	●	●
