8-45 — HEATER PIPING (#33052) — 105 parça

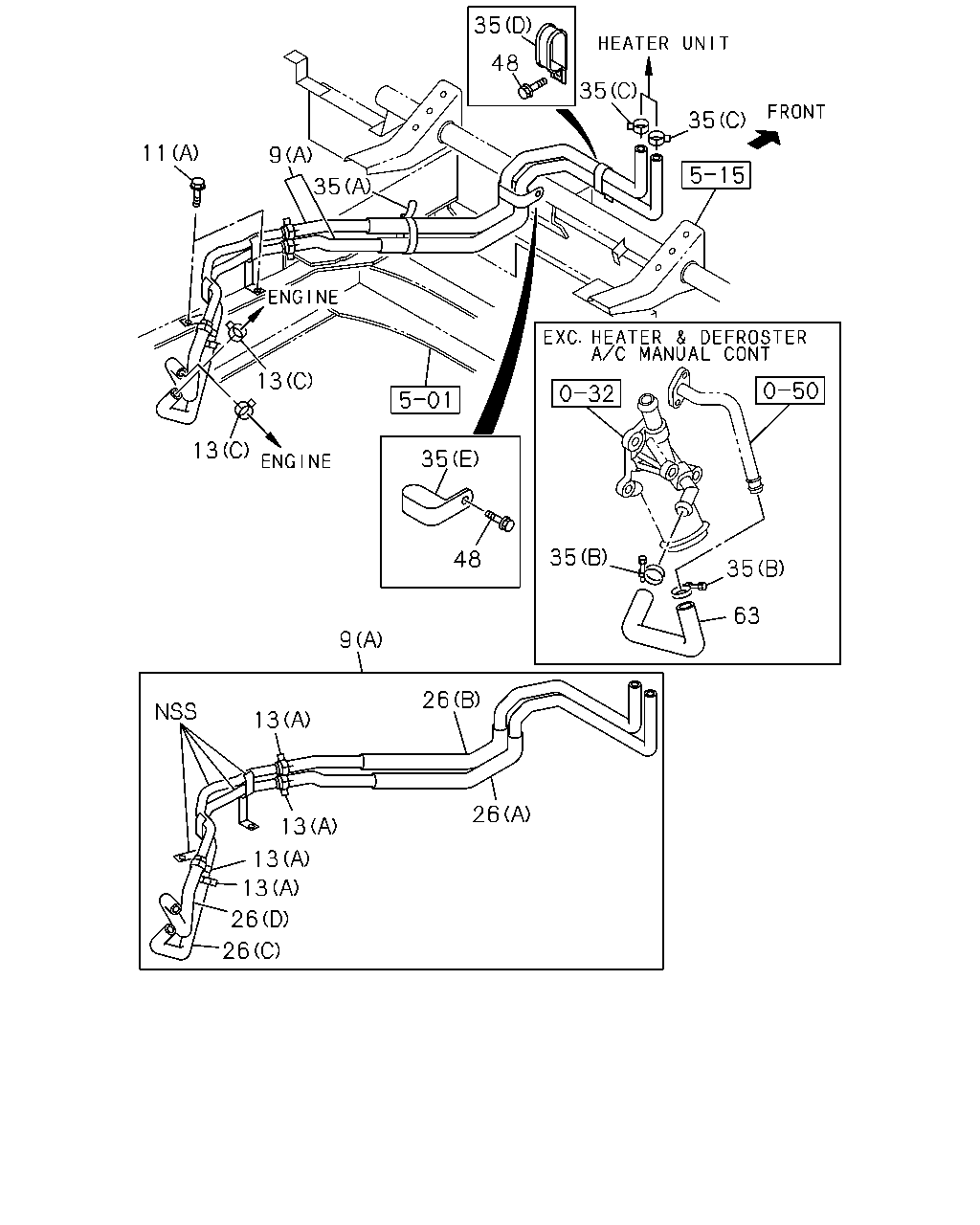

35 48 35 35 11 9 35 13 13 35 35 48 35 63 9 26 13 26 13 13 13 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (A)	8-97333-099-2	01	1	0612-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (C)	8-97381-481-3	01	1	0612-		●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (D)	8-97383-035-1	01	1	0612-		●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (E)	8-98028-829-1	01	1	0612-		●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (B)	8-97386-894-2	01	1	0612-		●	●
11	08.845 BOLT; HTR PIPE 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-	●			●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-		●	●
11	08.845 BOLT; HTR PIPE 4JJ1 ENG(LFB) 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	0612-		●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	04	1	0612-	●	●	●	●
13	08.846 CLIP; HTR HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	0612-	●			●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	02	1	0612-		●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) 01.166 (B) ID=20.8	8-94125-862-1	06	1	0612-		●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) EXC. HEATER & DEFROSTER(C41) 01.166 (B) ID=20.8	8-94125-862-1	02	1	0612-		●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (A)	8-97373-830-0	01	1	0612-	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (B)	8-97373-831-0	01	1	0612-	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (C)	8-97373-832-0	01	1	0612-	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (D)	8-97373-833-0	01	1	0612-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (K)	0-03516-240-0	01	1	0612-0910		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (K)	8-98143-868-0	01	1	0911-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (L)	8-97383-048-1	01	1	0612-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (I)	8-98000-099-1	01	1	0612-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (J)	8-98000-101-2	01	1	0612-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (G)	8-98050-277-0	01	1	0612-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (H)	8-98050-278-0	01	1	0612-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (E)	8-98050-280-0	01	1	0612-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (F)	8-98050-282-0	01	1	0612-		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-97359-144-0	01	1	0612-	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (E)	8-98029-677-0	01	1	0612-	●	●	●	●
35	08.852 CLIP; WATER HOSE 02.559 (A) L=250	5-09707-030-1	01	1	0612-	●			●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0612-		●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0612-		●	●
35	08.852 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	0612-	●			●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	02	1	0612-		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (B) ID=25	8-94233-115-0	02	1	0612-		●	●
48	09.262 BOLT; CLIP FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-	●			●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-		●	●
63	08.846 HOSE; WATER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540	8-94134-250-1	01	1	0612-		●	●
63	08.846 HOSE; WATER 4JJ1 ENG(LFB) EXC. HEATER & DEFROSTER(C41)	8-98015-119-3	01	1	0612-		●	●

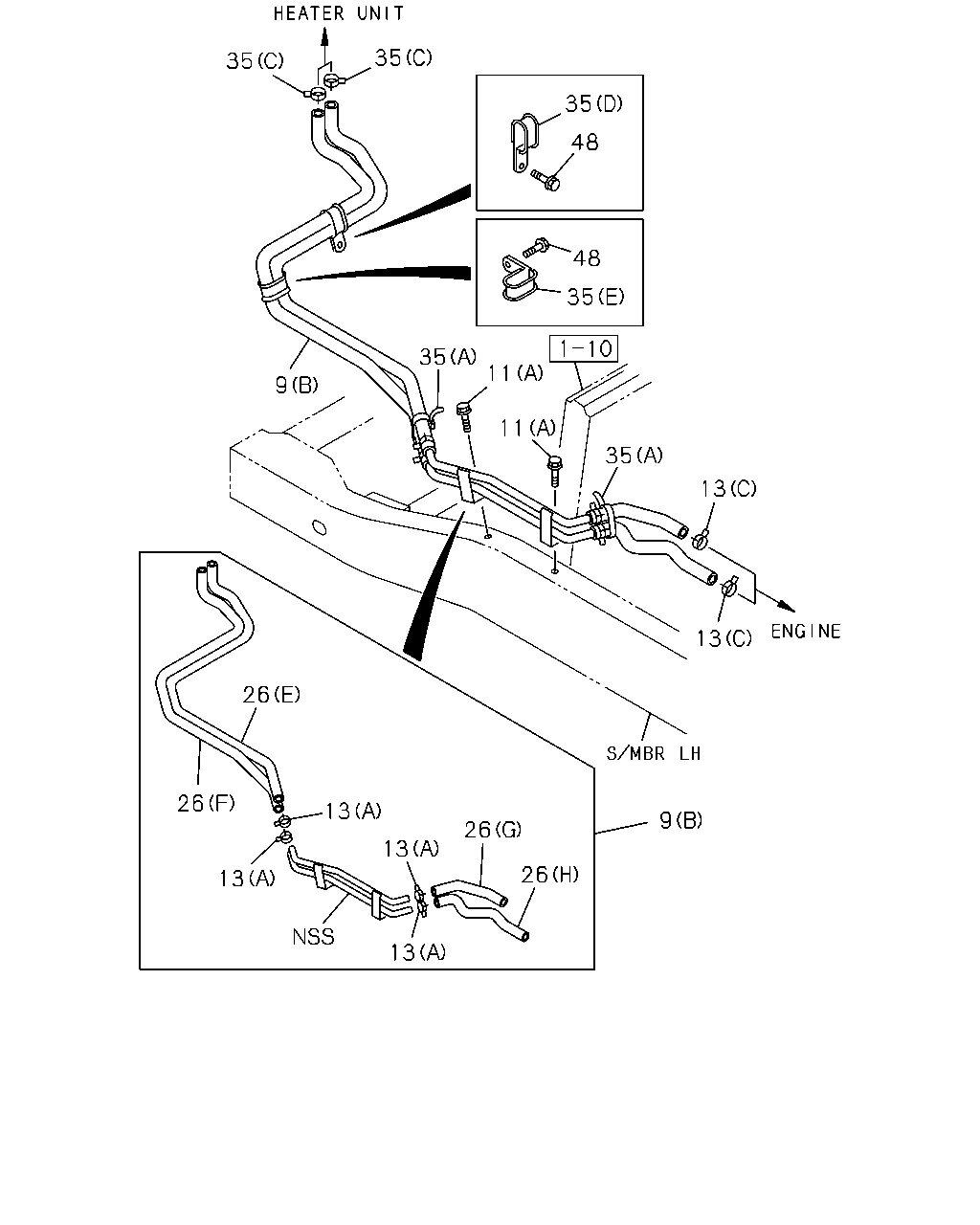

35 35 35 48 48 35 35 11 9 11 35 13 13 26 26 13 9 26 13 26 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (A)	8-97333-099-2	01	1	0612-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (C)	8-97381-481-3	01	1	0612-		●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (D)	8-97383-035-1	01	1	0612-		●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (E)	8-98028-829-1	01	1	0612-		●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (B)	8-97386-894-2	01	1	0612-		●	●
11	08.845 BOLT; HTR PIPE 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-	●			●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-		●	●
11	08.845 BOLT; HTR PIPE 4JJ1 ENG(LFB) 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	0612-		●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	04	1	0612-	●	●	●	●
13	08.846 CLIP; HTR HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	0612-	●			●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	02	1	0612-		●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) 01.166 (B) ID=20.8	8-94125-862-1	06	1	0612-		●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) EXC. HEATER & DEFROSTER(C41) 01.166 (B) ID=20.8	8-94125-862-1	02	1	0612-		●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (A)	8-97373-830-0	01	1	0612-	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (B)	8-97373-831-0	01	1	0612-	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (C)	8-97373-832-0	01	1	0612-	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (D)	8-97373-833-0	01	1	0612-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (K)	0-03516-240-0	01	1	0612-0910		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (K)	8-98143-868-0	01	1	0911-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (L)	8-97383-048-1	01	1	0612-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (I)	8-98000-099-1	01	1	0612-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (J)	8-98000-101-2	01	1	0612-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (G)	8-98050-277-0	01	1	0612-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (H)	8-98050-278-0	01	1	0612-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (E)	8-98050-280-0	01	1	0612-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (F)	8-98050-282-0	01	1	0612-		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-97359-144-0	01	1	0612-	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (E)	8-98029-677-0	01	1	0612-	●	●	●	●
35	08.852 CLIP; WATER HOSE 02.559 (A) L=250	5-09707-030-1	01	1	0612-	●			●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0612-		●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0612-		●	●
35	08.852 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	0612-	●			●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	02	1	0612-		●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (B) ID=25	8-94233-115-0	02	1	0612-		●	●
48	09.262 BOLT; CLIP FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-	●			●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-		●	●

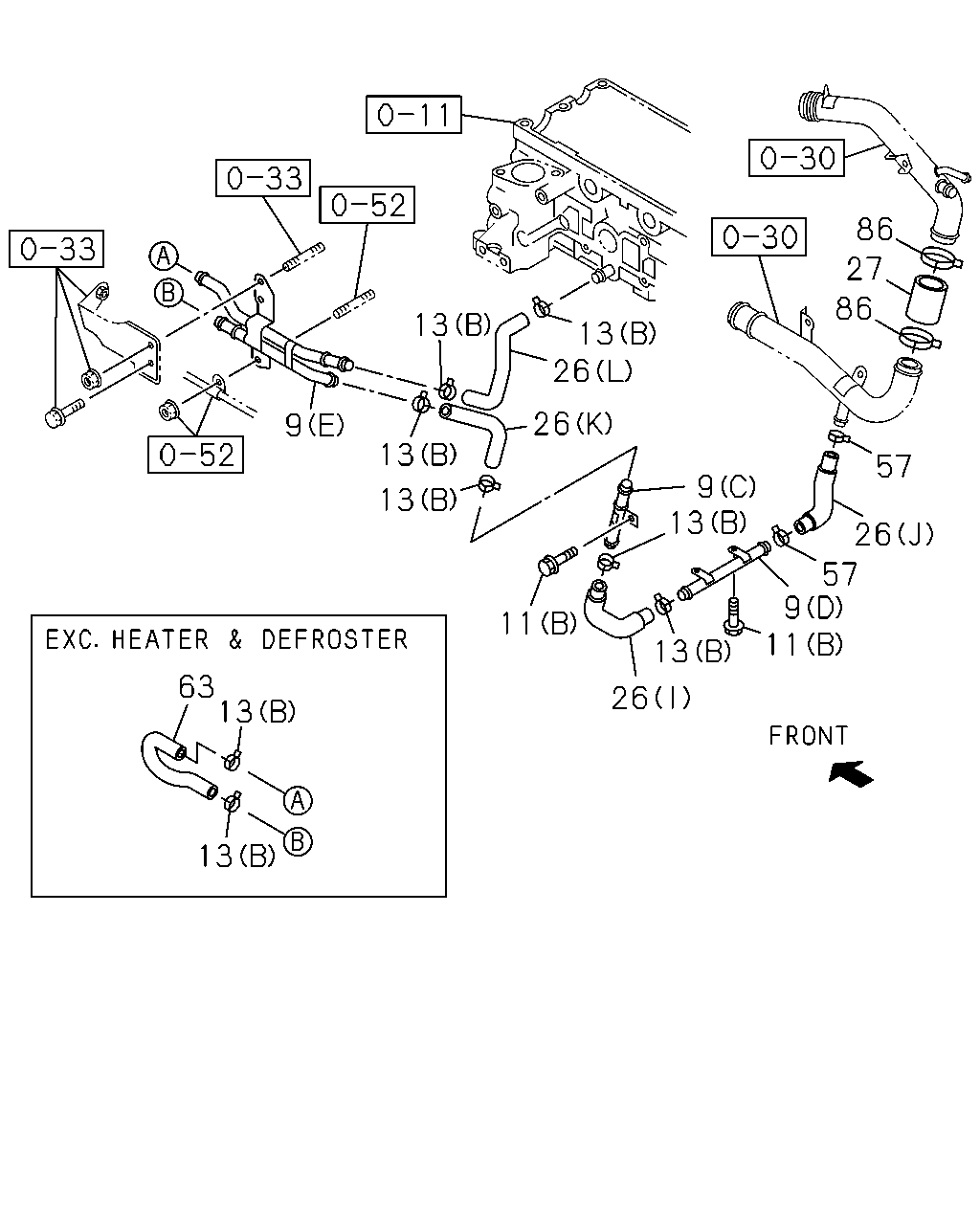

86 27 86 13 13 26 26 9 13 57 9 13 13 26 57 9 11 11 13 63 13 26 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (A)	8-97333-099-2	01	1	0612-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (C)	8-97381-481-3	01	1	0612-		●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (D)	8-97383-035-1	01	1	0612-		●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (E)	8-98028-829-1	01	1	0612-		●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (B)	8-97386-894-2	01	1	0612-		●	●
11	08.845 BOLT; HTR PIPE 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-	●			●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-		●	●
11	08.845 BOLT; HTR PIPE 4JJ1 ENG(LFB) 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	0612-		●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	04	1	0612-	●	●	●	●
13	08.846 CLIP; HTR HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	0612-	●			●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	02	1	0612-		●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) 01.166 (B) ID=20.8	8-94125-862-1	06	1	0612-		●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) EXC. HEATER & DEFROSTER(C41) 01.166 (B) ID=20.8	8-94125-862-1	02	1	0612-		●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (A)	8-97373-830-0	01	1	0612-	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (B)	8-97373-831-0	01	1	0612-	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (C)	8-97373-832-0	01	1	0612-	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) HEATER & DEFROSTER(C41) (D)	8-97373-833-0	01	1	0612-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (K)	0-03516-240-0	01	1	0612-0910		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (K)	8-98143-868-0	01	1	0911-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (L)	8-97383-048-1	01	1	0612-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (I)	8-98000-099-1	01	1	0612-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (J)	8-98000-101-2	01	1	0612-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (G)	8-98050-277-0	01	1	0612-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (H)	8-98050-278-0	01	1	0612-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (E)	8-98050-280-0	01	1	0612-		●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (F)	8-98050-282-0	01	1	0612-		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1 ENG(LFB)	8-98009-701-0	01	1	0612-		●	●
57	08.846 CLIP; HOSE 4JJ1 ENG(LFB) 01.166 ID=20.8	8-94125-862-1	02	1	0612-		●	●
63	08.846 HOSE; WATER 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540	8-94134-250-1	01	1	0612-		●	●
63	08.846 HOSE; WATER 4JJ1 ENG(LFB) EXC. HEATER & DEFROSTER(C41)	8-98015-119-3	01	1	0612-		●	●
86	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) 01.166 ID=40.5	8-97313-472-0	02	1	0612-		●	●
