◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#33049) — 26 parça

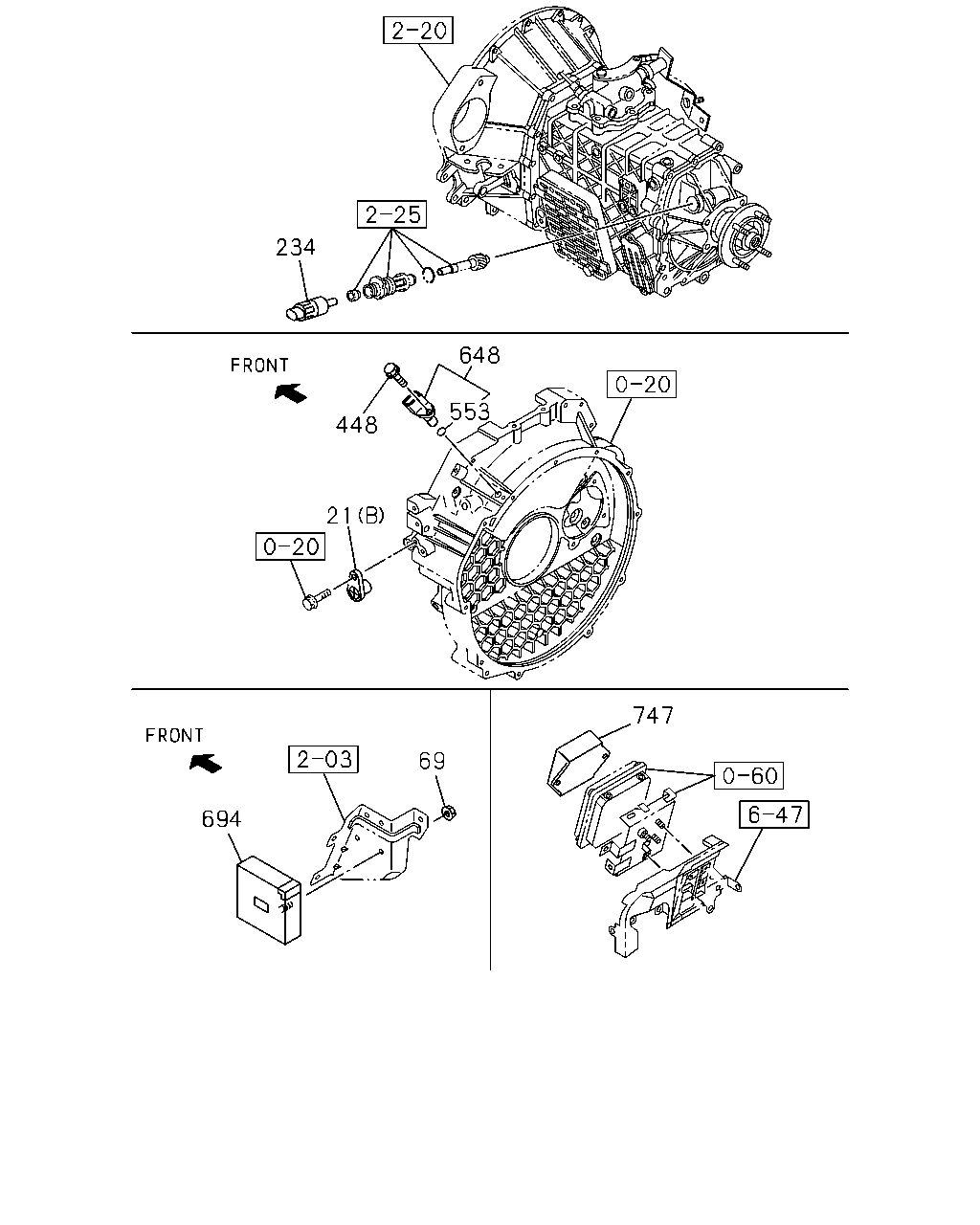

çizim 57851
234 648 553 448 21 747 69 694
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 09.744 COVER; HOLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-97136-694-0 01 1 0612- ● ● ● ●
21 09.744 COVER; HOLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97136-694-0 01 1 0612- ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0612- ● ● ● ●
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 09.748 (B) 		8-97101-974-0 01 1 0612- ● ● ● ●
69 02.458 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M6 FLANGE 		0-91180-106-0 04 1 0612- ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0612- ● ● ● ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0612- ● ● ● ●
553 02.500 GASKET
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0612- ● ● ● ●
648 03.682 SENSOR; CRANK ANGLE
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 		8-97606-943-0 01 1 0612- ● ● ● ●
694 02.510 CONTROL UNIT; SMOOTHER
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98023-586-3 01 1 0612- ● ● ● ●
694 02.510 CONTROL UNIT; SMOOTHER
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98018-856-3 01 1 0612- ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER 8-97387-785-0 01 1 0612-0703 ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 		8-97387-785-0 01 1 0612-0703 ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER 8-98077-118-2 01 1 0704-1012 ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 		8-98077-118-2 01 1 0704-1012 ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER 8-98162-807-0 01 1 1101- ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 		8-98162-807-0 01 1 1101- ● ●

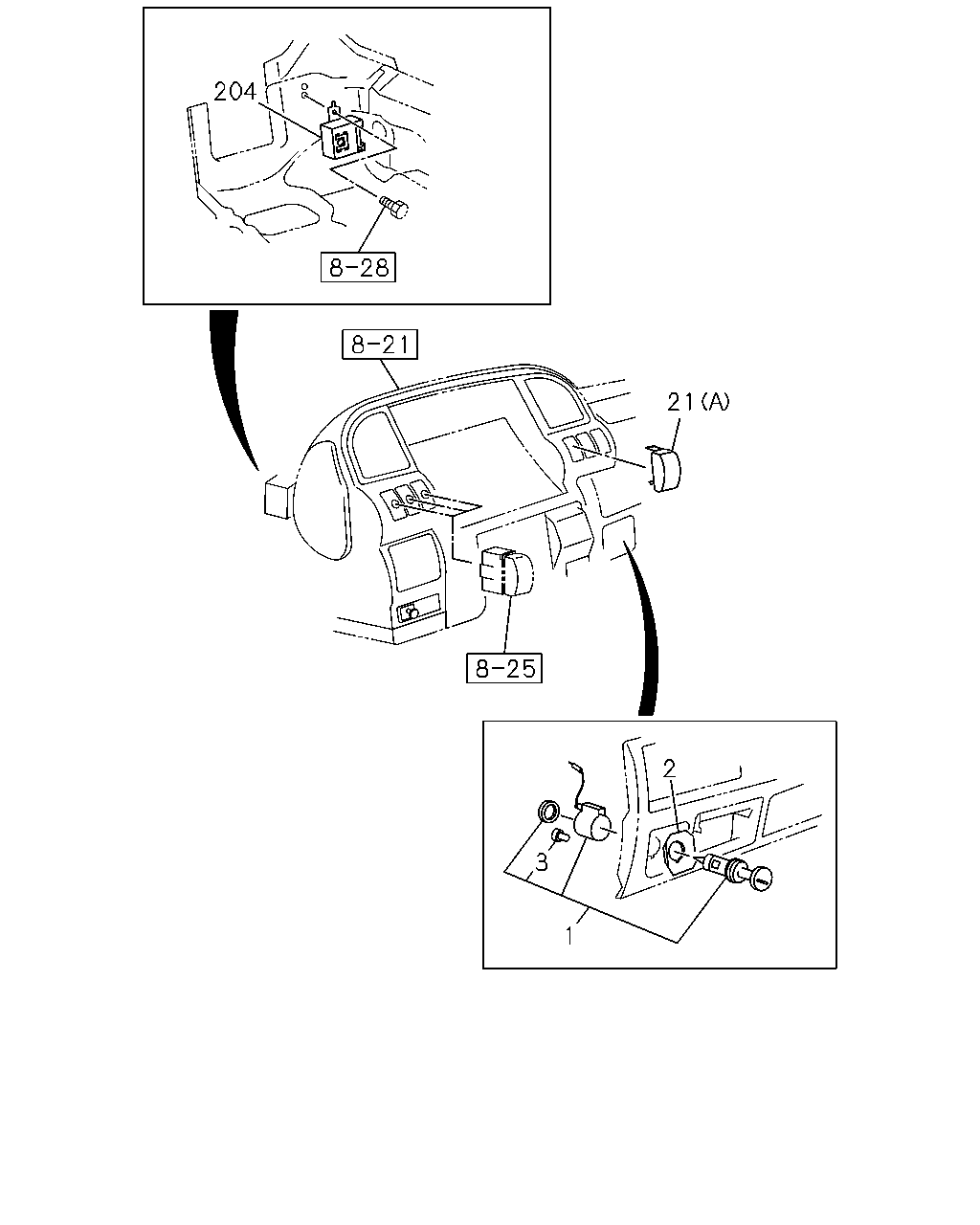

çizim 58122
204 21 2 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0612- ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0612-0706 ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707- ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0612- ● ● ● ●
21 09.744 COVER; HOLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-97136-694-0 01 1 0612- ● ● ● ●
21 09.744 COVER; HOLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97136-694-0 01 1 0612- ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0612- ● ● ● ●
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 09.748 (B) 		8-97101-974-0 01 1 0612- ● ● ● ●
204 02.195 BUZZER; KEY REMIND
TRANSMISSION CONTROL-SMOOTHER(8GF) 09.765 		8-97036-649-0 01 1 0612- ● ● ● ●
