Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#33046) — 254 parça

38 150 516 150 150 38 480 8 139 150 304 377 386 377 386 239 8 38 139 239 139 304 139 19 38 64 139 219 294 515 219 294 515 219 294 469 515 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	02.559 BOLT; BRKT,CONNECTOR 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0612-	●	●	●	●
19	02.559 BOLT; PROTECTOR 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0612-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0612-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS FRAME STRAIGHT TYPE<7KJ> 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0612-		●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0612-		●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 (D) M10X35 FLANGE	0-28651-035-0	01	1	0612-		●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1 ENG(LFB) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0612-		●	●
64	02.559 SCREW; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 16.742 M4X16 TAPPING	1-09981-477-0	01	1	0612-	●	●	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	0612-	●	●	●	●
139	02.559 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (D) M8X35 FLANGE	0-28650-835-0	02	1	0612-	●	●	●	●
139	02.559 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-451-3	01	1	0612-		●	●
139	02.559 BOLT; BRKT 4JJ1 ENG(LFB) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0612-		●	●
139	02.559 BOLT; BRKT 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (E) M10X30 FLANGE	0-28651-030-0	02	1	0612-			●
139	02.559 BOLT; BRKT 4HK1-TCC ENG(RDV) 00.029 (E) M10X30 FLANGE	0-28651-030-0	02	1	0612-				●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0612-	●	●	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B) M8X12 FLANGE	0-28050-812-0	01	1	0612-	●	●	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (D) M8X16 FLANGE	0-28050-816-0	01	1	0612-	●	●	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 00.662 (C) M8X14 FLANGE	0-28080-814-0	01	1	0612-	●	●	●	●
219	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-	●	●	●	●
219	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-	●	●	●	●
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-		●	●
219	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	0612-	●			●
219	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	0612-		●	●
219	02.559 NUT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0612-		●	●
219	02.559 NUT 4JJ1 ENG(LFB) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0612-		●	●
219	02.559 NUT EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0612-		●	●
239	02.559 BOLT; GRAND 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0612-1004	●	●	●	●
239	02.559 BOLT; GRAND 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●	●	●
294	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-	●	●	●	●
294	02.559 NUT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0612-	●	●	●	●
294	02.559 NUT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0612-	●	●	●	●
294	02.559 NUT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●	●
294	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0612-	●	●	●	●
304	02.483 BOLT; ENG HARNESS CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0612-	●	●	●	●
304	02.483 BOLT; ENG HARNESS CLIP 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0612-	●	●	●	●
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0612-1004	●	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●	●
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0612-1004	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●	●
469	02.559 NUT; PROTECTOR 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-	●			●
469	02.559 NUT; PROTECTOR FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-		●	●
480	02.483 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0612-		●	●
515	02.559 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0612-	●	●	●	●
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-	●		●
515	02.559 NUT; BRKT M/T MYY6S(RST) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-	●
515	02.559 NUT; BRKT 4JJ1 ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-		●	●
515	02.559 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-		●
515	02.559 NUT; BRKT M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-		●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. TOOL & STORAGE BOX<VK2> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-		●
515	02.559 NUT; BRKT FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TOOL & STORAGE BOX<VK2> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-			●
515	02.559 NUT; BRKT M/T MZZ6F(RSR) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-				●
515	02.559 NUT; BRKT EXC. TOOL & STORAGE BOX<VK2> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-				●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0612-	●			●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0612-		●
515	02.559 NUT; BRKT FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0612-			●
515	02.559 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE	0-91180-106-0	03	1	0612-		●	●
516	02.559 BOLT; HARNESS 4JJ1 ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-		●	●
519	02.559 NUT; EARTH CABLE 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-	●	●	●	●

16 48 48 48 48 48 48 16 16 22 48 22 22 48 48 22

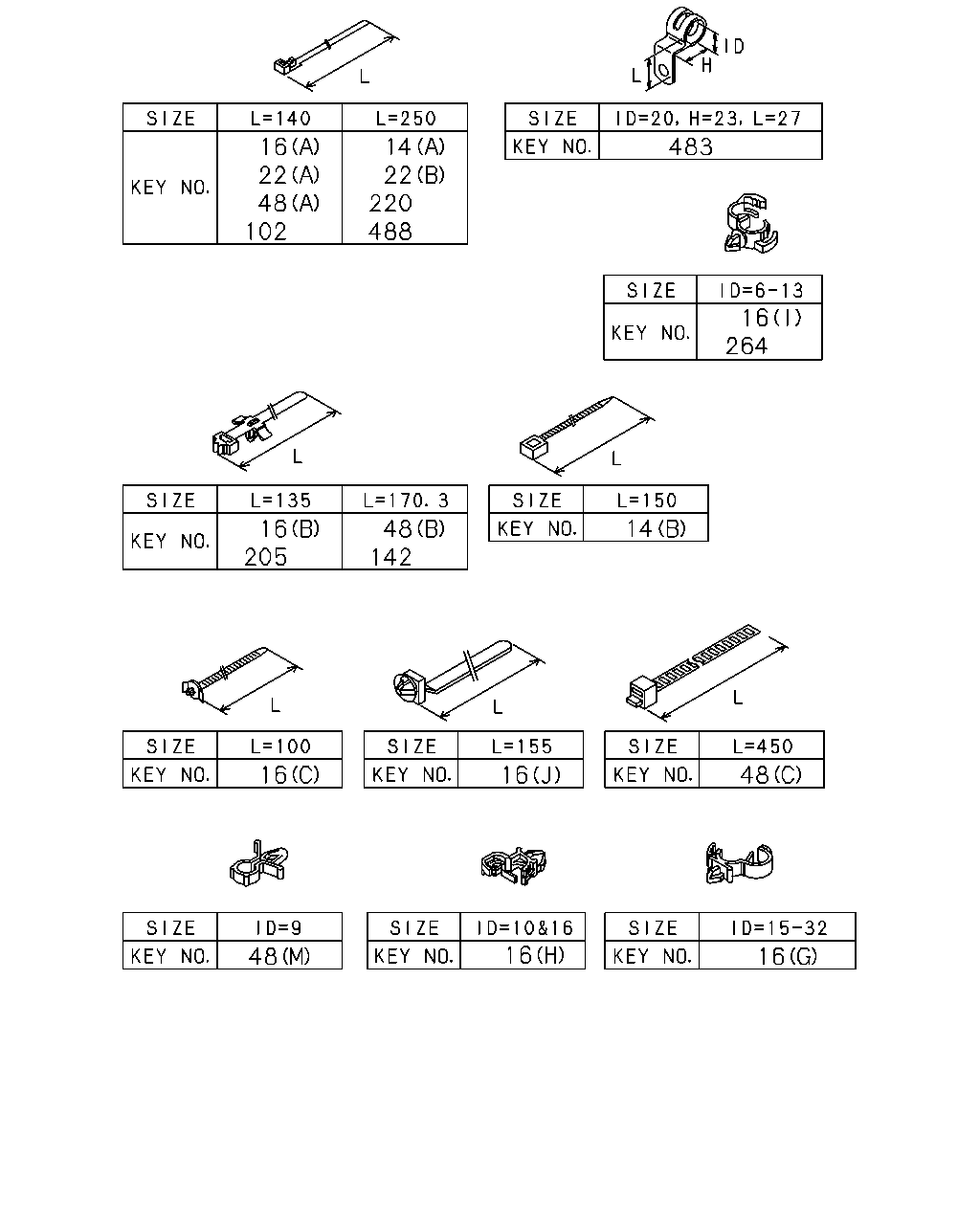

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	05	1	1011-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	05	1	1011-	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (J) L=155	8-97173-307-0	05	1	1011-	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	0612-	●
16	02.559 CLIP; HARNESS 01.166 (E) ID=22 & 22	8-94464-837-0	01	1	0612-	●	●
16	02.559 CLIP; HARNESS POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 01.166 (E) ID=22 & 22	8-94464-837-0	01	1	0612-			●
16	02.559 CLIP; HARNESS EXC. HYDRO BRAKE BOOSTER<7QQ> 01.166 (E) ID=22 & 22	8-94464-837-0	01	1	0612-			●
16	02.559 CLIP; HARNESS POWER ASSIST CLUTCH(S2T) 01.166 (E) ID=22 & 22	8-94464-837-0	01	1	0612-				●
16	02.559 CLIP; HARNESS (B) L=135	1-09987-143-1	01	1	0612-	●	●	●	●
16	02.559 CLIP; HARNESS 16.065 (F) 1 SET=5 PIECE	1-09987-214-0	03	1	0612-	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (H) ID=10 & 16	8-94413-325-0	02	1	0612-	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (I) ID=6 & 10-13	8-97069-515-0	03	1	0612-	●	●	●	●
16	02.559 CLIP; HARNESS (G) ID=15-32	8-97174-404-0	04	1	0612-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (C) L=100	8-94327-067-1	04	1	0612-	●	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (C) L=100	8-94327-067-1	04	1	0612-	●	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) L=100	8-94327-067-1	04	1	0612-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	04	1	0612-1009	●	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (J) L=155	8-97173-307-0	04	1	0612-1009	●	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	04	1	0612-1009	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	05	1	1010-1010	●	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (J) L=155	8-97173-307-0	05	1	1010-1010	●	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	05	1	1010-1010	●	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (J) L=155	8-97173-307-0	04	1	1011-	●	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	04	1	1011-	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	10	1	0612-1009	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	11	1	1010-1010	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	06	1	1011-	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0612-	●			●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	01	1	0612-		●	●
16	02.559 CLIP; HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0612-		●
16	02.559 CLIP; HARNESS G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	0612-		●
16	02.559 CLIP; HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0612-			●
16	02.559 CLIP; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	13	1	0612-			●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	12	1	0612-				●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (C) ID=12	8-97329-630-0	01	1	0612-	●	●	●	●
22	02.559 CLIP; ENG HARNESS (B) L=250	5-09707-030-1	02	1	0612-	●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B) L=250	5-09707-030-1	02	1	0612-		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1 ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0612-		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1 ENG(LFB) 03.425 (D) ID=6 & 8.3	8-94167-742-0	01	1	0612-		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1 ENG(LFB) 03.162 (E) ID=13.2 & 14.5	8-94475-649-0	01	1	0612-		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1 ENG(LFB) 04.104 (F) ID=12 & 6.8	8-97125-842-0	01	1	0612-		●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (J) ID=11 L=50	0-95235-085-0	01	1	0612-	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (J) ID=11 L=50	0-95235-085-0	01	1	0612-			●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCC ENG(RDV) (J) ID=11 L=50	0-95235-085-0	01	1	0612-				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (H) T=6.0	5-09709-024-0	04	1	0612-	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (H) T=6.0	5-09709-024-0	04	1	0612-			●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCC ENG(RDV) (H) T=6.0	5-09709-024-0	04	1	0612-				●
48	02.559 CLIP; FRAME HARNESS (B) L=170.3	1-09987-182-0	01	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=9	8-97063-874-0	01	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=20	5-09700-321-0	01	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.162 (A) L=140	5-09707-031-1	01	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (F) ID=33 L=63	1-09700-807-0	05	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.197 (L) ID=32 L=75	1-09700-702-0	01	1	0612-	●			●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 04.197 (L) ID=32 L=75	1-09700-702-0	01	1	0612-		●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=30 W/STUD	8-97078-642-2	04	1	0612-	●			●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (K) ID=30 W/STUD	8-97078-642-2	04	1	0612-		●	●
48	02.559 CLIP; FRAME HARNESS 03.483 (C) L=450	1-09707-142-1	01	1	0612-	●			●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.483 (C) L=450	1-09707-142-1	01	1	0612-		●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1 ENG(LFB) (F) ID=33 L=63	1-09700-807-0	01	1	0612-		●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1 ENG(LFB) (H) T=6.0	5-09709-024-0	01	1	0612-		●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1 ENG(LFB) (K) ID=42 W/STUD	8-97363-356-0	01	1	0612-		●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=33 L=63	1-09700-807-0	02	1	0612-		●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=40 L=90	1-09701-290-0	03	1	0612-		●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) 03.115 (I) T=9 & 10.5	8-97041-091-0	02	1	0612-		●	●

312 31 511 180 178 510 510 512

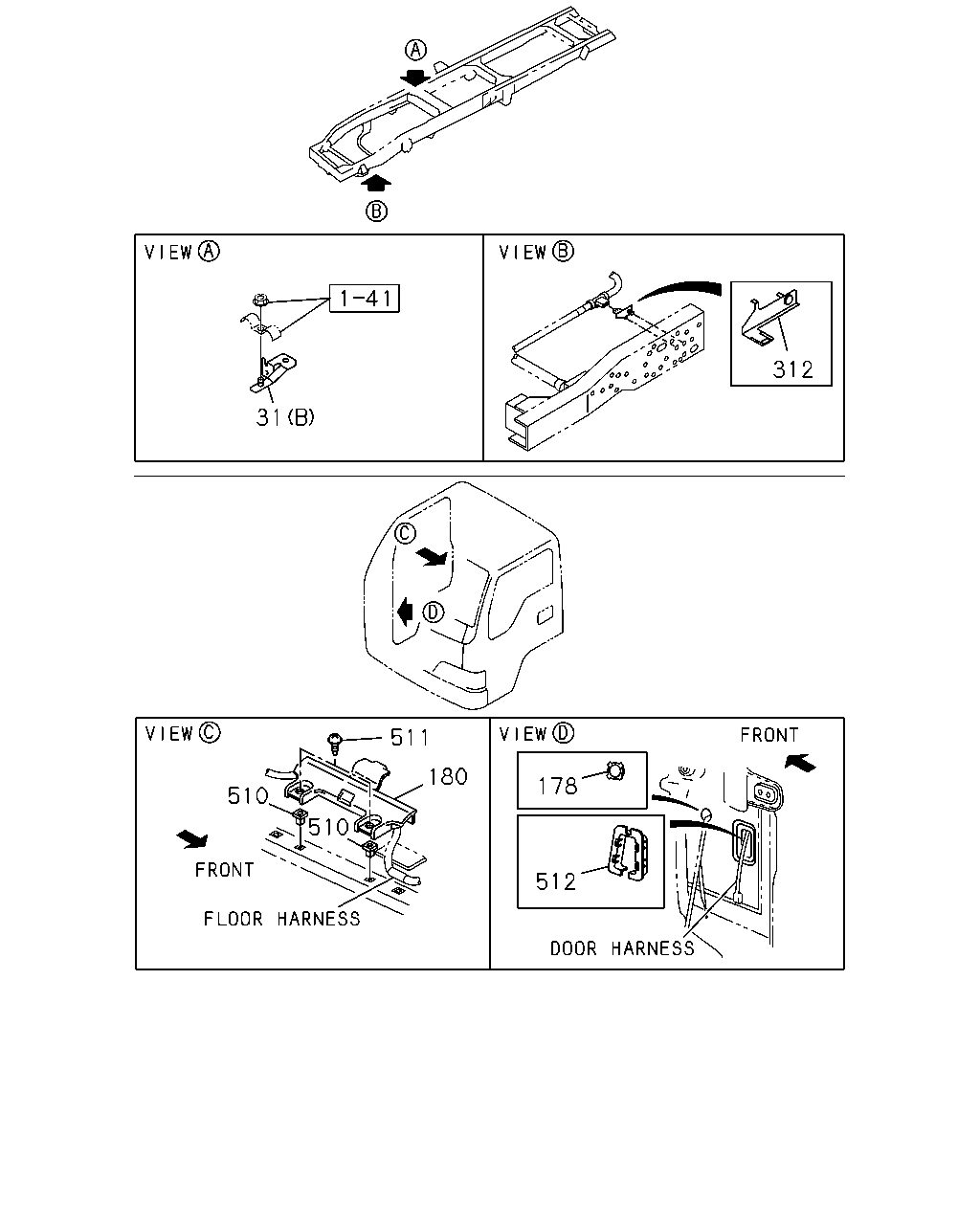

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B) L=47	8-97042-635-0	01	1	0612-	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B) L=73	8-97077-845-0	02	1	0612-	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97362-859-0	02	1	0612-		●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98019-633-0	01	1	0612-		●	●
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0612-	●	●	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0612-	●	●	●	●
312	02.559 BRACKET; CLIP HARNESS	8-97017-072-2	01	1	0612-	●			●
312	02.559 BRACKET; CLIP HARNESS FRAME STRAIGHT TYPE<7KJ>	8-97017-072-2	01	1	0612-		●	●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0612-	●	●	●	●
511	02.559 SCREW; HARNESS COVER 16.800 M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0612-0702	●	●	●	●
511	02.559 SCREW; HARNESS COVER 04.681 M5X12 TAPPING	0-72180-512-0	04	1	0703-	●	●	●	●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0612-	●	●	●	●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0612-	●	●	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97072-950-0	02	1	0612-	●	●	●	●
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0612-	●	●	●	●

7 31 7 7 31 53 53 53 53 53 53 53 53 53 53 53 412 412 412 504 514

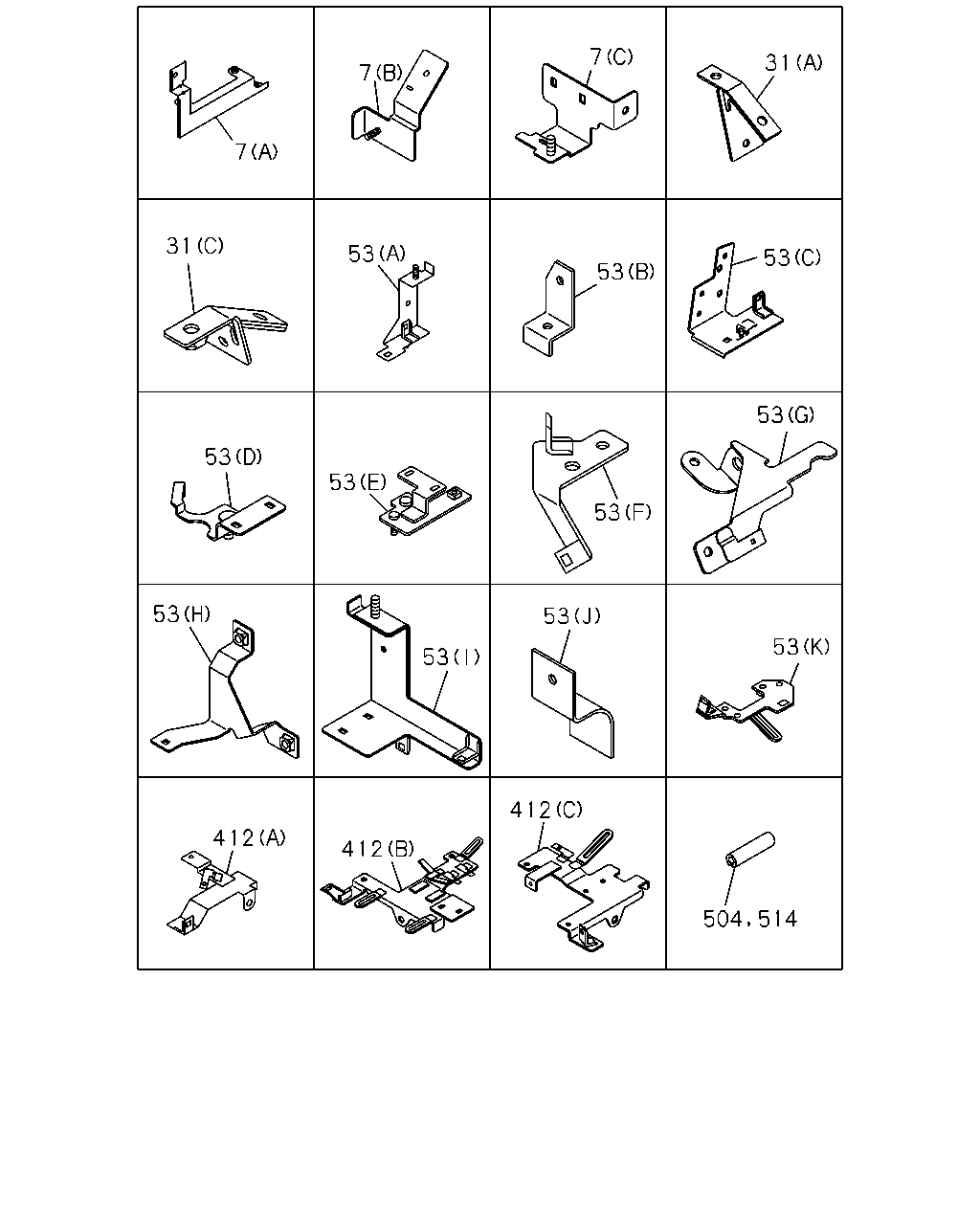

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	02.559 BRACKET; CONNECTOR (A)	8-97094-992-1	01	1	0612-	●	●	●	●
7	02.559 BRACKET; CONNECTOR (B)	8-98003-671-1	01	1	0612-	●	●	●	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98019-630-0	01	1	0612-	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B) L=47	8-97042-635-0	01	1	0612-	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (B) L=73	8-97077-845-0	02	1	0612-	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97362-859-0	02	1	0612-		●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98019-633-0	01	1	0612-		●	●
53	02.483 BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (K)	8-97373-532-2	01	1	0612-0612	●	●	●	●
53	02.483 BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (K)	8-98018-899-1	01	1	0612-	●	●	●	●
53	02.483 BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-98030-988-2	01	1	0612-	●	●	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (I)	8-98041-060-0	01	1	0612-	●	●	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97352-527-0	01	1	0612-	●	●	●	●
53	02.483 BRACKET; HARNESS (E)	8-98003-050-0	01	1	0612-	●			●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (E)	8-98003-050-0	01	1	0612-		●	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97357-140-0	01	1	0612-		●	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98003-048-0	01	1	0612-		●	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98026-091-0	01	1	0612-		●	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (J)	8-98042-587-0	01	1	0612-		●	●
53	02.483 BRACKET; HARNESS 4JJ1 ENG(LFB) (B)	8-97359-614-0	01	1	0612-		●	●
53	02.483 BRACKET; HARNESS 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) CATALYSIS CONTROL WITH DPD(8JM) (H)	8-98039-606-0	01	1	0612-			●
53	02.483 BRACKET; HARNESS 4HK1-TCC ENG(RDV) (H)	8-98039-606-0	01	1	0612-				●
412	02.559 BRACKET; HARNESS,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-451-1	01	1	0612-	●	●	●	●
412	02.559 BRACKET; HARNESS,TRANS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98041-059-1	01	1	0612-	●	●	●	●
412	02.559 BRACKET; HARNESS,TRANS 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97369-191-3	01	1	0612-		●	●
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0612-	●	●	●	●
504	02.559 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.008 L=80	5-22439-006-0	01	1	0612-	●	●	●	●
504	02.559 PROTECTOR; HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.008 L=80	5-22439-006-0	01	1	0612-	●	●	●	●
504	02.559 PROTECTOR; HARNESS 03.008 L=80	5-22439-006-0	01	1	0612-	●	●	●	●
514	02.559 FINISHER; HARNESS 16.550 L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0612-	●	●	●	●
514	02.559 FINISHER; HARNESS 16.550 L=120 SERVICED BY L=2040	1-71997-513-1	02	1	0612-	●	●	●	●
514	02.559 FINISHER; HARNESS L=290 SERVICED BY L=500	1-79937-746-0	01	1	0612-	●	●	●	●
514	02.559 FINISHER; HARNESS L=290 SERVICED BY L=500	1-79937-746-0	02	1	0612-	●	●	●	●

16 22 48 102 483 14 22 220 488 16 264 16 205 142 14 16 48 16 48 16 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A) L=250	5-09707-030-1	01	1	0612-	●	●	●	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 09.242 (B) L=150	8-97355-273-0	02	1	0612-	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	05	1	1011-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	05	1	1011-	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (J) L=155	8-97173-307-0	05	1	1011-	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	0612-	●
16	02.559 CLIP; HARNESS 01.166 (E) ID=22 & 22	8-94464-837-0	01	1	0612-	●	●
16	02.559 CLIP; HARNESS POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 01.166 (E) ID=22 & 22	8-94464-837-0	01	1	0612-			●
16	02.559 CLIP; HARNESS EXC. HYDRO BRAKE BOOSTER<7QQ> 01.166 (E) ID=22 & 22	8-94464-837-0	01	1	0612-			●
16	02.559 CLIP; HARNESS POWER ASSIST CLUTCH(S2T) 01.166 (E) ID=22 & 22	8-94464-837-0	01	1	0612-				●
16	02.559 CLIP; HARNESS (B) L=135	1-09987-143-1	01	1	0612-	●	●	●	●
16	02.559 CLIP; HARNESS 16.065 (F) 1 SET=5 PIECE	1-09987-214-0	03	1	0612-	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (H) ID=10 & 16	8-94413-325-0	02	1	0612-	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (I) ID=6 & 10-13	8-97069-515-0	03	1	0612-	●	●	●	●
16	02.559 CLIP; HARNESS (G) ID=15-32	8-97174-404-0	04	1	0612-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (C) L=100	8-94327-067-1	04	1	0612-	●	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (C) L=100	8-94327-067-1	04	1	0612-	●	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) L=100	8-94327-067-1	04	1	0612-	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	04	1	0612-1009	●	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (J) L=155	8-97173-307-0	04	1	0612-1009	●	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	04	1	0612-1009	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	05	1	1010-1010	●	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (J) L=155	8-97173-307-0	05	1	1010-1010	●	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	05	1	1010-1010	●	●	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (J) L=155	8-97173-307-0	04	1	1011-	●	●	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	04	1	1011-	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	10	1	0612-1009	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	11	1	1010-1010	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (J) L=155	8-97173-307-0	06	1	1011-	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0612-	●			●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	01	1	0612-		●	●
16	02.559 CLIP; HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0612-		●
16	02.559 CLIP; HARNESS G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	0612-		●
16	02.559 CLIP; HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0612-			●
16	02.559 CLIP; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	13	1	0612-			●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	12	1	0612-				●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (C) ID=12	8-97329-630-0	01	1	0612-	●	●	●	●
22	02.559 CLIP; ENG HARNESS (B) L=250	5-09707-030-1	02	1	0612-	●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B) L=250	5-09707-030-1	02	1	0612-		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1 ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0612-		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1 ENG(LFB) 03.425 (D) ID=6 & 8.3	8-94167-742-0	01	1	0612-		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1 ENG(LFB) 03.162 (E) ID=13.2 & 14.5	8-94475-649-0	01	1	0612-		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1 ENG(LFB) 04.104 (F) ID=12 & 6.8	8-97125-842-0	01	1	0612-		●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (J) ID=11 L=50	0-95235-085-0	01	1	0612-	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (J) ID=11 L=50	0-95235-085-0	01	1	0612-			●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCC ENG(RDV) (J) ID=11 L=50	0-95235-085-0	01	1	0612-				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (H) T=6.0	5-09709-024-0	04	1	0612-	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (H) T=6.0	5-09709-024-0	04	1	0612-			●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCC ENG(RDV) (H) T=6.0	5-09709-024-0	04	1	0612-				●
48	02.559 CLIP; FRAME HARNESS (B) L=170.3	1-09987-182-0	01	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=9	8-97063-874-0	01	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=20	5-09700-321-0	01	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.162 (A) L=140	5-09707-031-1	01	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (F) ID=33 L=63	1-09700-807-0	05	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0612-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.197 (L) ID=32 L=75	1-09700-702-0	01	1	0612-	●			●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 04.197 (L) ID=32 L=75	1-09700-702-0	01	1	0612-		●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=30 W/STUD	8-97078-642-2	04	1	0612-	●			●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (K) ID=30 W/STUD	8-97078-642-2	04	1	0612-		●	●
48	02.559 CLIP; FRAME HARNESS 03.483 (C) L=450	1-09707-142-1	01	1	0612-	●			●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.483 (C) L=450	1-09707-142-1	01	1	0612-		●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1 ENG(LFB) (F) ID=33 L=63	1-09700-807-0	01	1	0612-		●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1 ENG(LFB) (H) T=6.0	5-09709-024-0	01	1	0612-		●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1 ENG(LFB) (K) ID=42 W/STUD	8-97363-356-0	01	1	0612-		●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=33 L=63	1-09700-807-0	02	1	0612-		●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=40 L=90	1-09701-290-0	03	1	0612-		●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) 03.115 (I) T=9 & 10.5	8-97041-091-0	02	1	0612-		●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 03.162 L=140	5-09707-031-1	02	1	0612-	●	●	●	●
142	02.559 CLIP; HARNESS,ENG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=170.3	1-09987-182-0	01	1	0612-	●	●	●	●
205	02.559 CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0612-	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE L=250	5-09707-030-1	01	1	0612-	●	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 ID=6 & 10-13	8-97069-515-0	01	1	0612-	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 02.483 ID=20 H=23 L=27	1-09700-861-0	01	1	0612-	●	●	●	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0612-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
