8-10 — WIRING HARNESS AND FUSE (#33045) — 139 parça

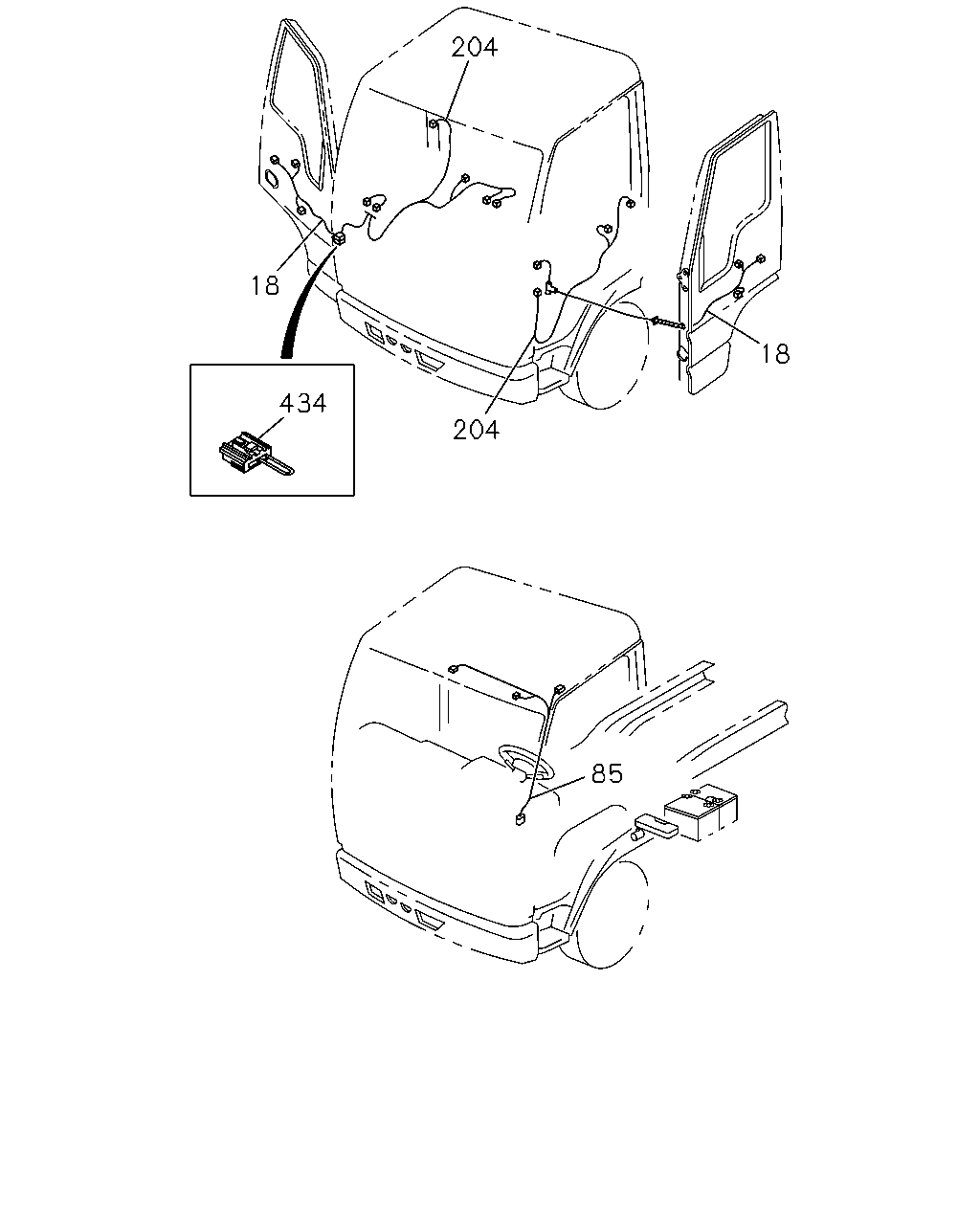

çizim 12708
204 18 18 434 204 85
BalonParca AdiParca NoAdetTipApplied Date A B C D
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> 		8-97226-669-0 01 1 1011- ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97226-671-1 01 1 1011- ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 1011- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97105-571-1 01 1 0612- ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97105-571-1 01 1 0612- ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97105-571-1 01 1 0612- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 0612-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97226-671-1 01 1 0612-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 0612-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-98166-819-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-98166-819-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98166-819-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-98166-819-0 01 1 1011- ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97185-142-1 01 1 0612- ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 0612-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98166-820-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98166-820-0 01 1 1011- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-159-0 01 1 0612- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) PASSENGER SIDE 		8-97364-145-0 01 1 0612- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) DRIVER SIDE 		8-97373-874-2 01 1 0612- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) DRIVER SIDE 		8-97364-140-0 01 1 0612- ● ● ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ) 		8-97388-448-0 01 1 0612- ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4JJ1 ENG(LFB),4HK1-TCN ENG(RDQ) 		8-97388-448-0 01 1 0612- ●
434 02.559 CONNECTOR; SHORT CIRCUIT
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97388-448-0 01 1 0612- ●
434 02.559 CONNECTOR; SHORT CIRCUIT
HYDRO BRAKE BOOSTER<7QQ> 		8-97388-449-0 01 1 0612- ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCC ENG(RDV) 		8-97388-449-0 01 1 0612- ●

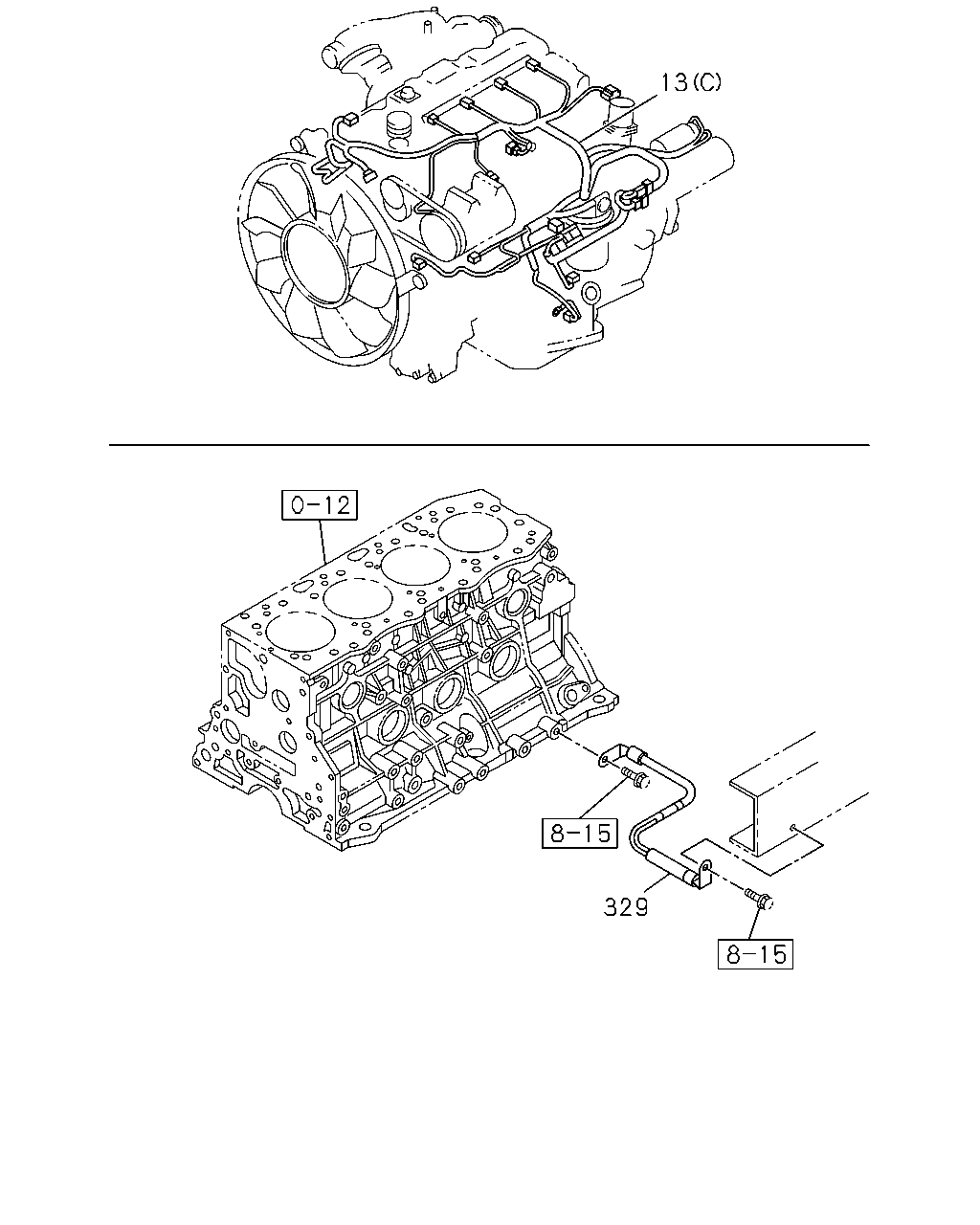

çizim 13527
13 329
BalonParca AdiParca NoAdetTipApplied Date A B C D
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B) 		8-97332-133-3 01 1 0612- ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A) 		8-97386-194-6 01 1 0612- ● ● ● ●
13 02.525 HARNESS; ENG
4JJ1 ENG(LFB) (C) 		8-97388-801-7 01 1 0612-0703 ● ●
13 02.525 HARNESS; ENG
4JJ1 ENG(LFB) (C) 		8-98083-033-3 01 1 0704-1006 ● ●
13 02.525 HARNESS; ENG
4JJ1 ENG(LFB) (C) 		8-98147-727-0 01 1 1007- ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-595-0 01 1 0612- ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98043-363-0 01 1 0612- ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1 ENG(LFB) 		8-98028-588-0 01 1 0612- ● ●

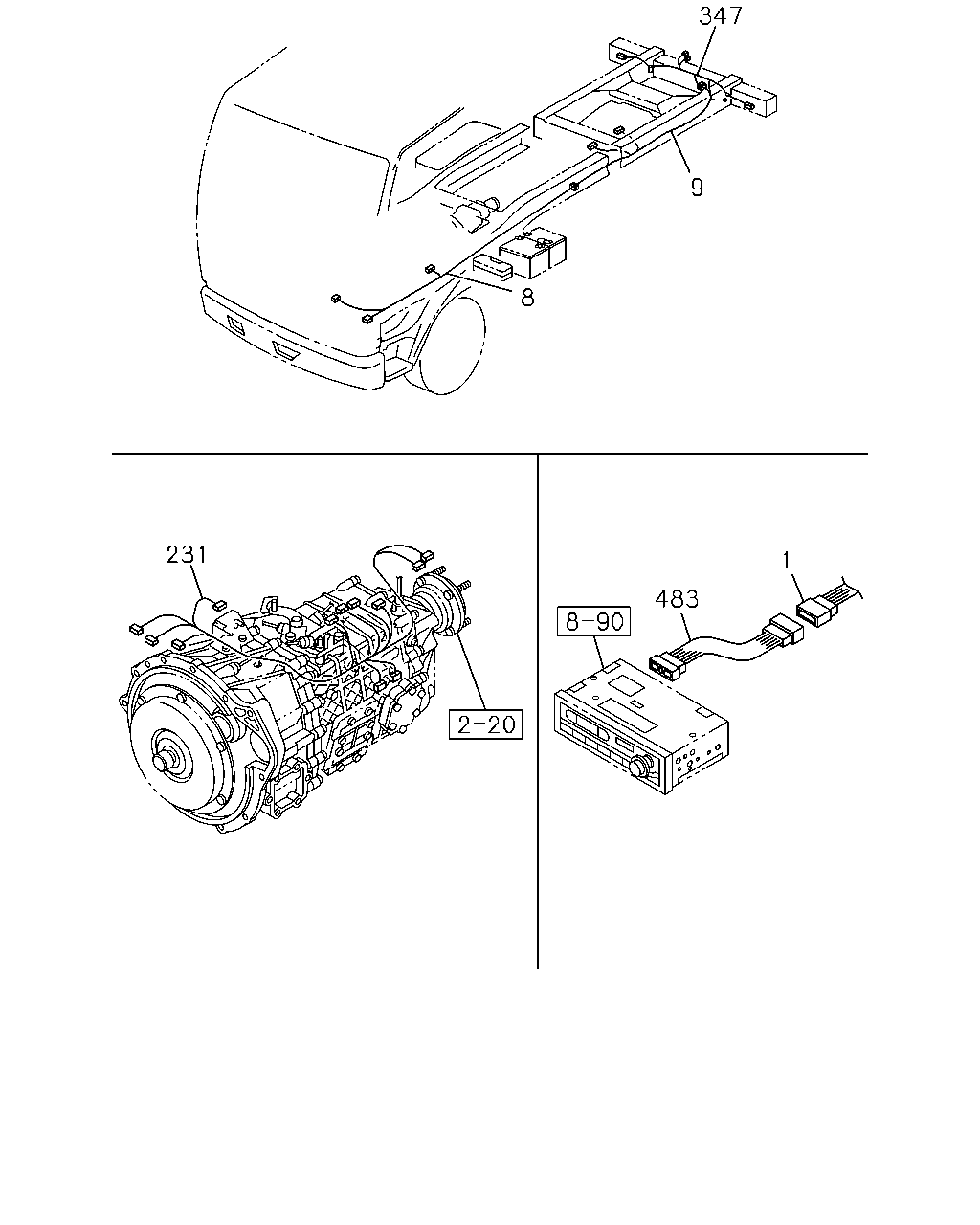

çizim 13586
347 9 8 231 1 483
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.480 HARNESS; CAB
EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-113-0 01 1 0612- ● ● ● ●
1 02.480 HARNESS; CAB
EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-112-0 01 1 0612- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-401-3 01 1 0612- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-402-3 01 1 0612- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) EXC. GENERATOR 24V80A(7YN), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98019-399-3 01 1 0612- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98019-400-3 01 1 0612- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-377-6 01 1 0612- ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98019-378-6 01 1 0612- ● ●
9 02.480 HARNESS; FRAME,RR 8-97377-065-1 01 1 0612- ●
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> 		8-97377-066-1 01 1 0612- ●
9 02.480 HARNESS; FRAME,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-061-1 01 1 0612- ●
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> 		8-97377-067-1 01 1 0612- ●
9 02.480 HARNESS; FRAME,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-062-1 01 1 0612- ●
9 02.480 HARNESS; FRAME,RR 8-97377-068-1 01 1 0612- ●
231 02.480 HARNESS; TRANS
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98043-226-1 01 1 0612- ● ● ● ●
231 02.480 HARNESS; TRANS
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-511-2 01 1 0612- ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-152-0 01 1 0612- ● ● ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 		8-97383-850-0 01 1 0612- ● ● ● ●

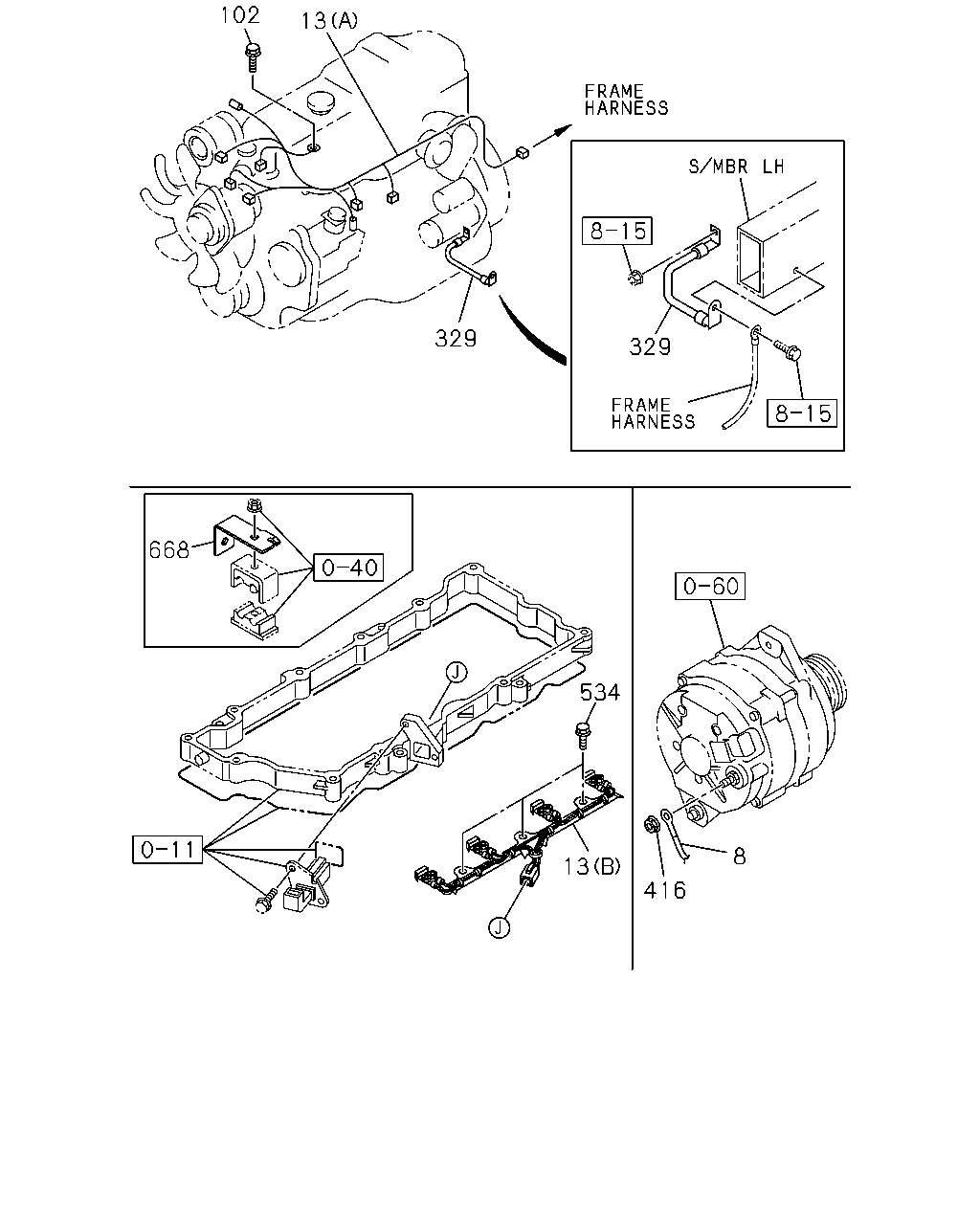

çizim 56468
102 13 329 329 668 534 8 13 416
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-401-3 01 1 0612- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-402-3 01 1 0612- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) EXC. GENERATOR 24V80A(7YN), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98019-399-3 01 1 0612- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98019-400-3 01 1 0612- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-377-6 01 1 0612- ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98019-378-6 01 1 0612- ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B) 		8-97332-133-3 01 1 0612- ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A) 		8-97386-194-6 01 1 0612- ● ● ● ●
13 02.525 HARNESS; ENG
4JJ1 ENG(LFB) (C) 		8-97388-801-7 01 1 0612-0703 ● ●
13 02.525 HARNESS; ENG
4JJ1 ENG(LFB) (C) 		8-98083-033-3 01 1 0704-1006 ● ●
13 02.525 HARNESS; ENG
4JJ1 ENG(LFB) (C) 		8-98147-727-0 01 1 1007- ● ●
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 02.042 M10X25 FLANGE 		0-28151-025-0 01 1 0612- ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-595-0 01 1 0612- ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98043-363-0 01 1 0612- ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1 ENG(LFB) 		8-98028-588-0 01 1 0612- ● ●
416 02.559 NUT; TERMINAL
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0612- ● ●
416 02.559 NUT; TERMINAL
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0612- ● ●
534 02.483 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 00.683 M10X55 FLANGE 		8-94399-863-1 03 1 0612-0805 ● ● ● ●
534 02.483 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 00.683 M10X55 FLANGE 		8-97365-449-0 03 1 0806- ● ● ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 		8-98001-095-0 01 1 0702- ● ● ● ●

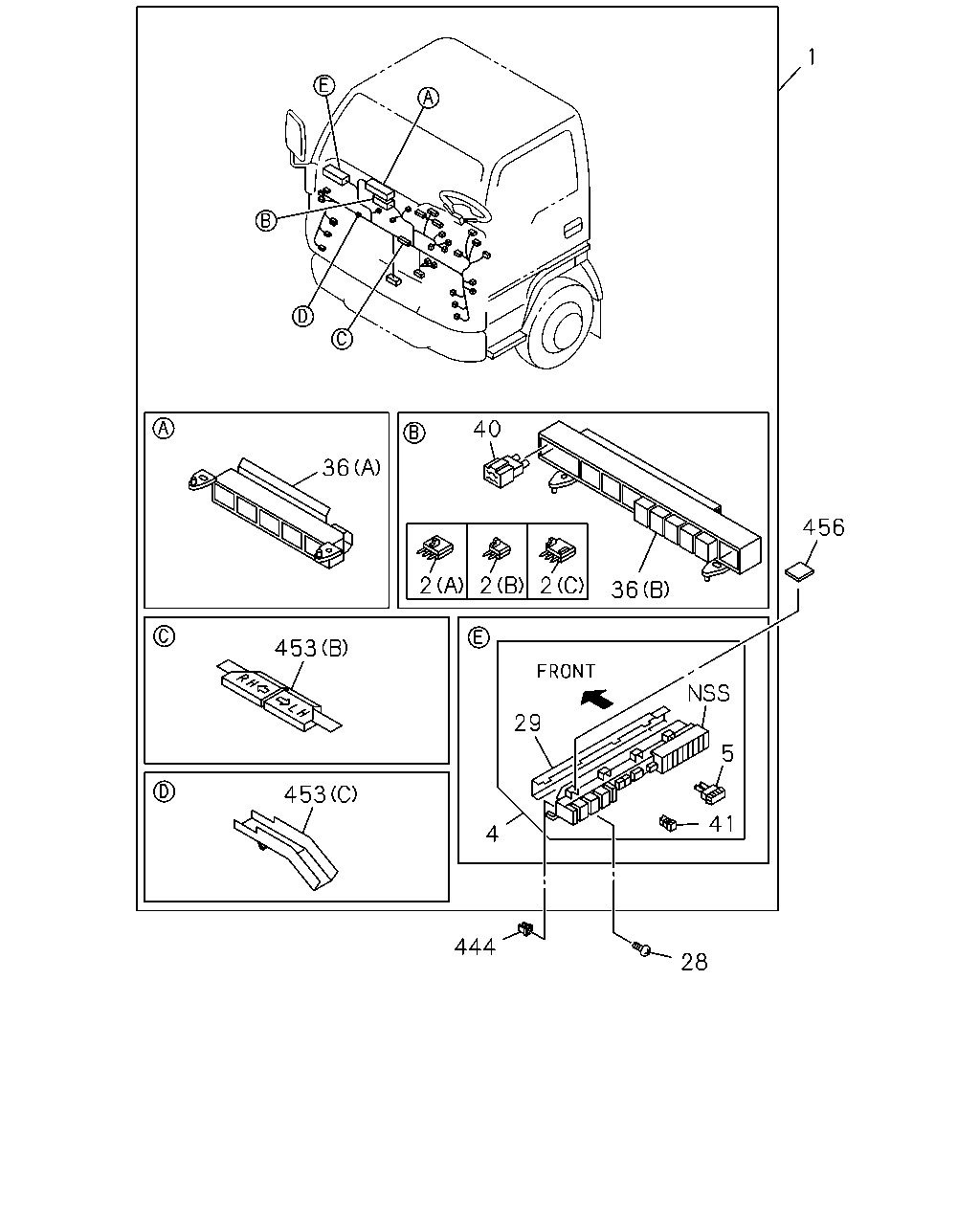

çizim 58564
1 40 36 456 2 2 2 36 453 29 5 453 41 4 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.480 HARNESS; CAB
EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-113-0 01 1 0612- ● ● ● ●
1 02.480 HARNESS; CAB
EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-112-0 01 1 0612- ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 01 1 0612- ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 03 1 0612- ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 03 1 0612- ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97187-921-1 01 1 0612- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 17 1 0612- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 07 1 0612- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 02 1 0612- ● ● ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0612-0612 ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102- ● ● ● ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 0612- ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-2 01 1 0612- ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97187-918-1 01 1 0612- ● ● ● ●
40 02.483 BOX; DIODE
BLACK 8P 		8-97078-064-1 01 1 0612- ● ● ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 0612- ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0612- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97062-169-0 01 1 0612- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0612- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97088-615-0 01 1 0612- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A) 		8-97120-591-1 01 1 0612- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-94417-716-0 01 1 0612- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-94482-169-0 01 1 0612- ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0612- ● ● ● ●

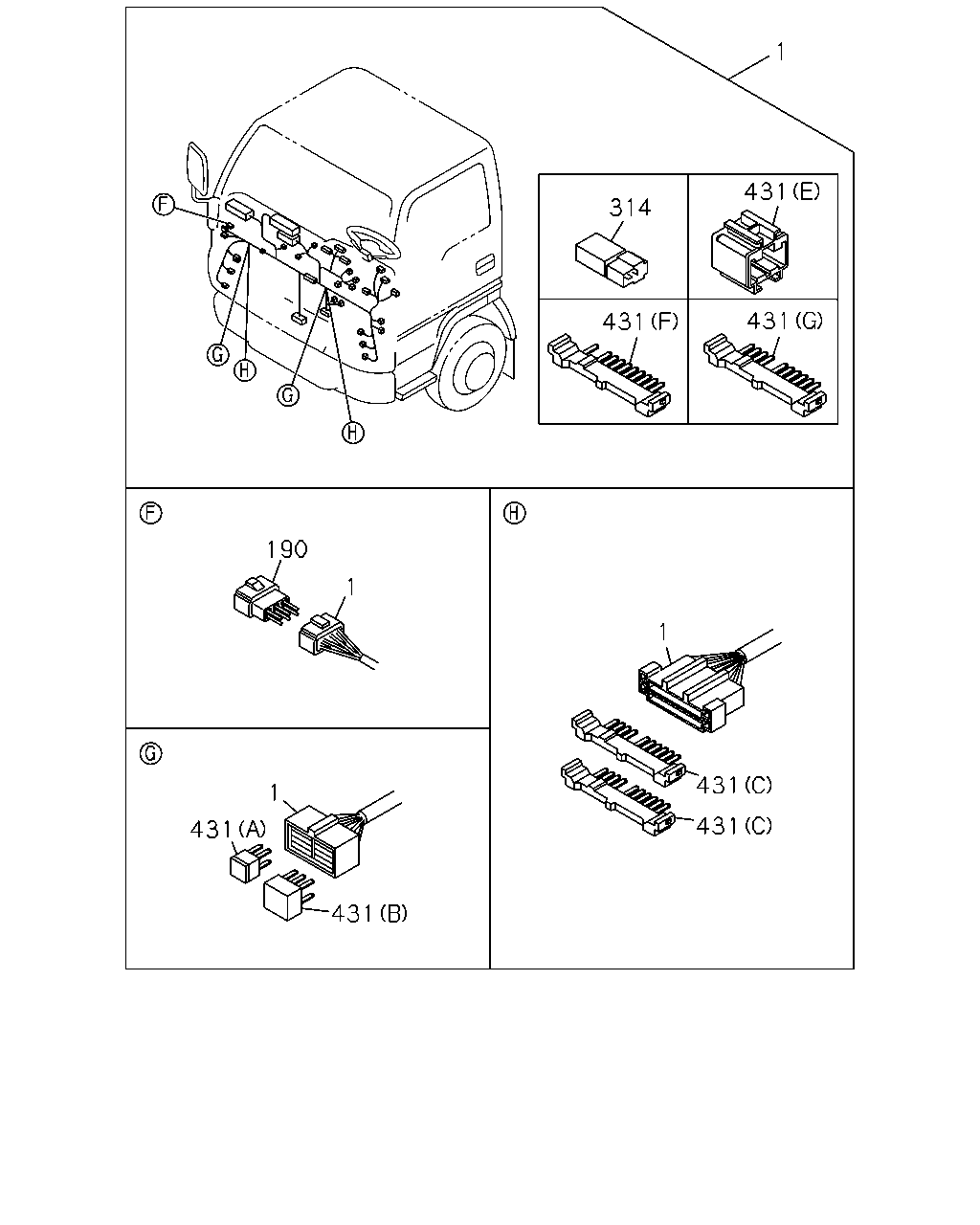

çizim 58578
1 431 314 431 431 190 1 1 431 1 431 431 431
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.480 HARNESS; CAB
EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-113-0 01 1 0612- ● ● ● ●
1 02.480 HARNESS; CAB
EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-112-0 01 1 0612- ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> 		8-98036-238-0 01 1 0612- ● ● ● ●
314 02.510 RESISTOR; HARNESS
BLUE 		1-82691-204-0 02 1 0612- ● ● ● ●
431 02.530 CONNECTOR; JOINT
(E) 3P & 3P 		1-82698-170-0 03 1 0612- ● ● ● ●
431 02.530 CONNECTOR; JOINT
(G) 10P BLUE 		1-82699-598-0 01 1 0612- ● ● ● ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 02 1 0612- ● ● ● ●
431 02.530 CONNECTOR; JOINT
(F) 10P BROWN 		1-82699-601-0 01 1 0612- ● ● ● ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0612- ● ● ● ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0612- ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (D) 6P 		8-97381-428-0 01 1 0612- ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 6P 		8-97381-428-0 02 1 0612- ● ●

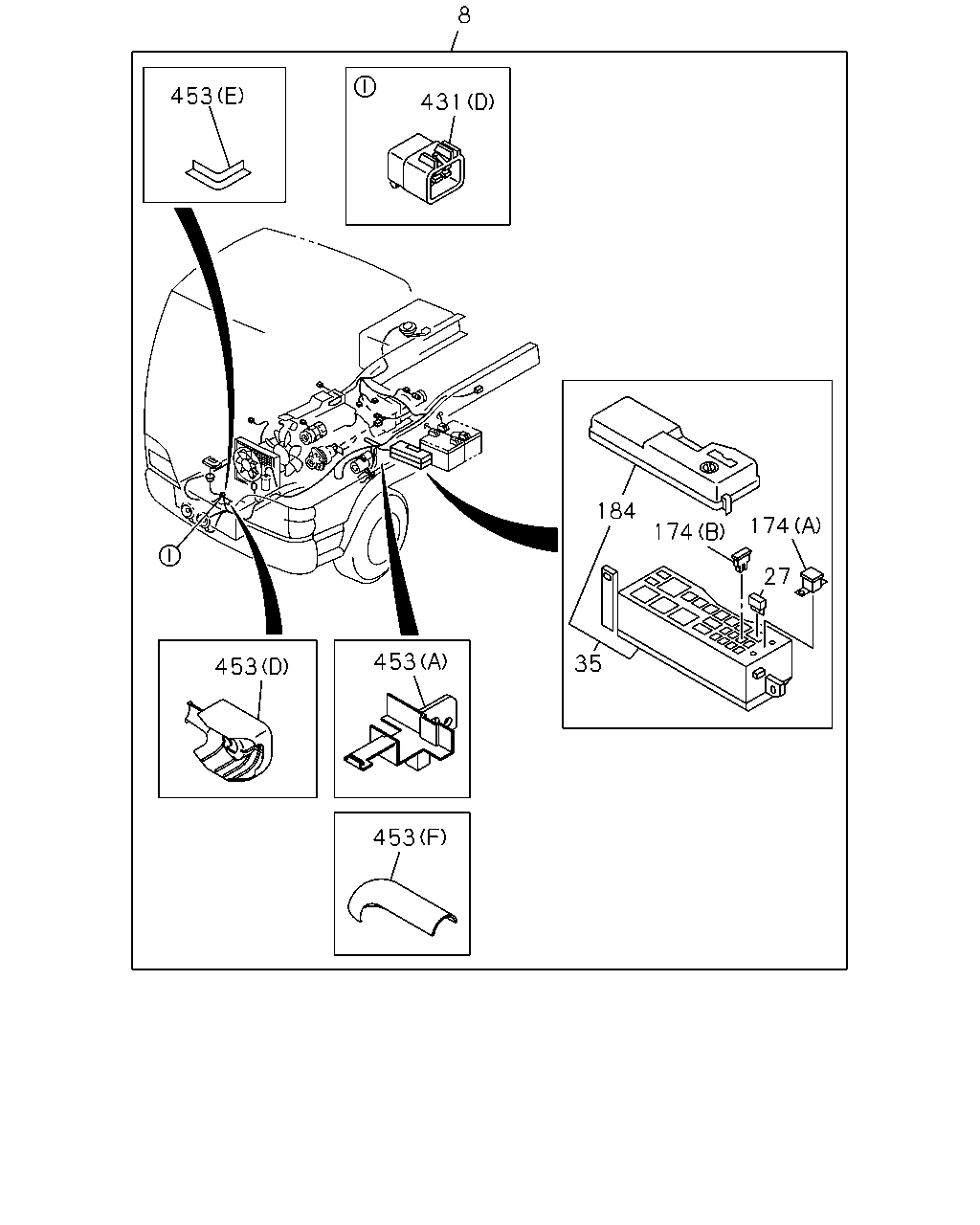

çizim 58580
8 453 431 184 174 174 27 453 35 453 453
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-401-3 01 1 0612- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-402-3 01 1 0612- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) EXC. GENERATOR 24V80A(7YN), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98019-399-3 01 1 0612- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98019-400-3 01 1 0612- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-377-6 01 1 0612- ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98019-378-6 01 1 0612- ● ●
27 08.965 FUSE UNIT
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 10A MINI RED 		8-97062-022-0 01 1 0612- ● ●
27 08.965 FUSE UNIT
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 15A MINI BLUE 		8-97062-023-0 02 1 0612- ● ●
35 02.530 BOX; RELAY & FUSE 8-97377-739-0 01 1 0612- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-1 01 1 0612- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-97183-643-0 01 1 0612- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-97183-644-0 03 1 0612- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B) 15A MINI BLUE 		8-97062-023-0 03 1 0612- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (B) 60A YELLOW 		8-97219-407-0 04 1 0612- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 60A YELLOW 		8-97219-407-0 03 1 0612- ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97377-741-0 01 1 0612- ● ● ● ●
431 02.530 CONNECTOR; JOINT
(E) 3P & 3P 		1-82698-170-0 03 1 0612- ● ● ● ●
431 02.530 CONNECTOR; JOINT
(G) 10P BLUE 		1-82699-598-0 01 1 0612- ● ● ● ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 02 1 0612- ● ● ● ●
431 02.530 CONNECTOR; JOINT
(F) 10P BROWN 		1-82699-601-0 01 1 0612- ● ● ● ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0612- ● ● ● ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0612- ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (D) 6P 		8-97381-428-0 01 1 0612- ● ● ● ●
431 02.530 CONNECTOR; JOINT
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 6P 		8-97381-428-0 02 1 0612- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97062-169-0 01 1 0612- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0612- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97088-615-0 01 1 0612- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) (A) 		8-97120-591-1 01 1 0612- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-94417-716-0 01 1 0612- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-94482-169-0 01 1 0612- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
