8-01 — LAMP; FRONT AND FRONT SIDE (#33043) — 74 parça
çizim 13669
60 93 75 75 315 67 419 76 68 68 75
BalonParca AdiParca NoAdetTipApplied Date A B C D
60 02.585 LAMP ASM; FRT COMB 8-98010-892-0 01 1 0612- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-891-0 01 1 0612- ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0612- ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(A) 24V 21/5W 		8-94125-957-0 02 1 0612- ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 24V 21W AMBER 		8-97323-806-0 02 1 0612- ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(A) M6X16 TAPPING 		8-97374-995-0 02 1 0612- ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0612- ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-97378-966-0 01 1 0612- ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-97378-965-0 01 1 0612- ● ● ● ●
93 02.892 BRACKET; SIDE COMB LAMP 8-97378-945-0 01 1 0612- ● ● ● ●
93 02.892 BRACKET; SIDE COMB LAMP 8-97378-943-0 01 1 0612- ● ● ● ●
315 02.596 HARNESS; FRT COMB LAMP 8-98010-916-0 02 1 0612- ● ● ● ●
419 02.589 LENS; INNER,FRT COMB LAMP 8-97378-947-0 01 1 0612- ● ● ● ●
419 02.589 LENS; INNER,FRT COMB LAMP 8-97378-946-0 01 1 0612- ● ● ● ●

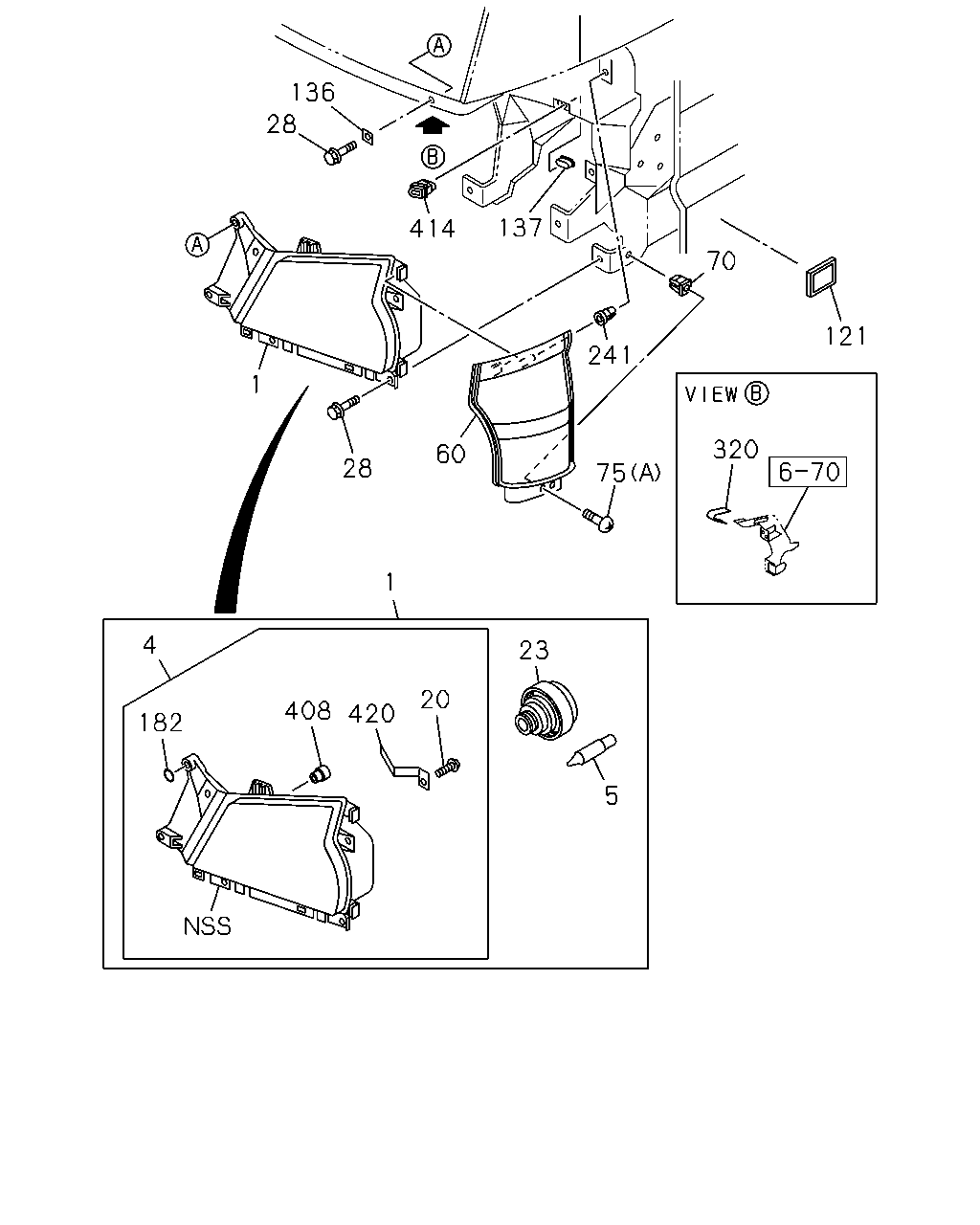

çizim 56639
136 28 137 414 70 121 241 1 320 60 28 75 1 4 23 20 408 420 182 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.725 LAMP ASM; HEAD 8-97376-898-2 01 1 0612-0701 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98053-914-0 01 1 0702- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97376-897-2 01 1 0612-0701 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98053-913-0 01 1 0702- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98009-823-0 01 1 0612- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98009-822-0 01 1 0612- ● ● ● ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0612- ● ● ● ●
20 02.736 SCREW; HEADLAMP 8-97378-871-0 02 1 0612- ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0612- ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0612- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-892-0 01 1 0612- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-891-0 01 1 0612- ● ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP
16.445 		1-09983-081-0 02 1 0612- ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(A) M6X16 TAPPING 		8-97374-995-0 02 1 0612- ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0612- ● ● ● ●
121 02.575 REFLECTOR; REFLEX 8-98013-990-1 02 1 0612- ● ● ● ●
136 02.726 SEAL; HEADLAMP
03.602 25X25 		8-94272-533-0 02 1 0612- ● ● ● ●
137 02.726 GROMMET; HEADLAMP 8-97581-666-0 02 1 0612- ● ● ● ●
182 02.722 GASKET; HEADLAMP 8-97378-869-0 02 1 0612- ● ● ● ●
241 02.726 GROMMET; FRT LAMP 8-97380-030-0 02 1 0612- ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0612- ● ● ● ●
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0612- ● ● ● ●
414 02.736 PIN; HEADLAMP,RIM 8-97581-667-0 02 1 0612- ● ● ● ●
420 02.737 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0612- ● ● ● ●

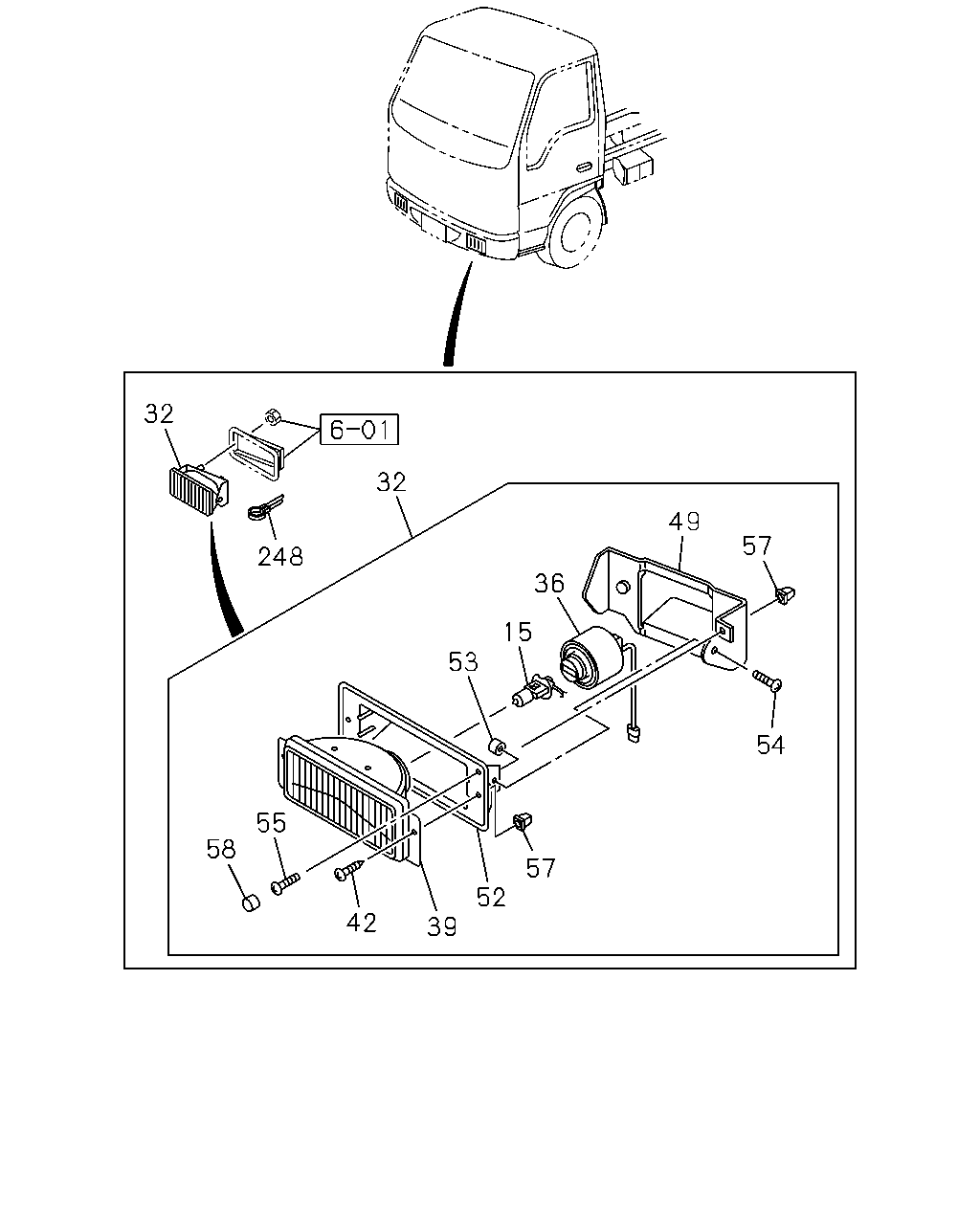

çizim 57892
32 32 49 57 248 36 15 53 54 55 58 57 52 42 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 24V 55W 		1-82194-095-0 02 1 0612- ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97264-007-0 01 1 0612-0612 ● ●
32 02.725 LAMP ASM; FOG
TAIWAN EQUIPMENT(RWV) FOG LAMP<T96> 		8-97264-007-0 01 1 0612-0612 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98054-008-0 01 1 0701- ● ●
32 02.725 LAMP ASM; FOG
TAIWAN EQUIPMENT(RWV) FOG LAMP<T96> 		8-98054-008-0 01 1 0701- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97264-006-0 01 1 0612-0612 ● ●
32 02.725 LAMP ASM; FOG
TAIWAN EQUIPMENT(RWV) FOG LAMP<T96> 		8-97264-006-0 01 1 0612-0612 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98054-007-0 01 1 0701- ● ●
32 02.725 LAMP ASM; FOG
TAIWAN EQUIPMENT(RWV) FOG LAMP<T96> 		8-98054-007-0 01 1 0701- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. TAIWAN EQUIPMENT(RWV) 		8-97248-546-0 01 1 0612-0612 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. TAIWAN EQUIPMENT(RWV) 		8-98054-005-0 01 1 0701- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. TAIWAN EQUIPMENT(RWV) 		8-97248-545-0 01 1 0612-0612 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. TAIWAN EQUIPMENT(RWV) 		8-98054-004-0 01 1 0701- ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		8-97095-518-0 02 1 0612- ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97304-298-0 01 1 0612-0612 ● ●
39 02.727 UNIT; FOG LAMP
TAIWAN EQUIPMENT(RWV) FOG LAMP<T96> 		8-97304-298-0 01 1 0612-0612 ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98063-415-0 01 1 0701- ● ●
39 02.727 UNIT; FOG LAMP
TAIWAN EQUIPMENT(RWV) FOG LAMP<T96> 		8-98063-415-0 01 1 0701- ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97304-297-0 01 1 0612-0612 ● ●
39 02.727 UNIT; FOG LAMP
TAIWAN EQUIPMENT(RWV) FOG LAMP<T96> 		8-97304-297-0 01 1 0612-0612 ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98063-414-0 01 1 0701- ● ●
39 02.727 UNIT; FOG LAMP
TAIWAN EQUIPMENT(RWV) FOG LAMP<T96> 		8-98063-414-0 01 1 0701- ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. TAIWAN EQUIPMENT(RWV) 		8-97119-301-0 01 1 0612-0612 ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. TAIWAN EQUIPMENT(RWV) 		8-98063-417-0 01 1 0701- ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. TAIWAN EQUIPMENT(RWV) 		8-97104-061-0 01 1 0612-0612 ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. TAIWAN EQUIPMENT(RWV) 		8-98063-416-0 01 1 0701- ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97104-089-0 04 1 0612- ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-095-0 01 1 0612- ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-094-0 01 1 0612- ● ● ● ●
52 02.726 RING; MTG,FOG LAMP
FOG LAMP<T96> 		8-97104-062-0 02 1 0612- ● ● ● ●
53 02.726 NUT; MTG RING,FOG LAMP
FOG LAMP<T96> 		8-94379-802-0 04 1 0612- ● ● ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP<T96> M5X12 		8-94379-803-0 04 1 0612- ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97104-087-0 02 1 0612- ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-94379-806-0 06 1 0612- ● ● ● ●
58 02.726 HOLDER; FOG LAMP
FOG LAMP<T96> 		8-97104-088-0 02 1 0612- ● ● ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> 02.559 ID=20 		5-09700-321-0 02 1 0612- ● ● ● ●
