◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#33042) — 28 parça

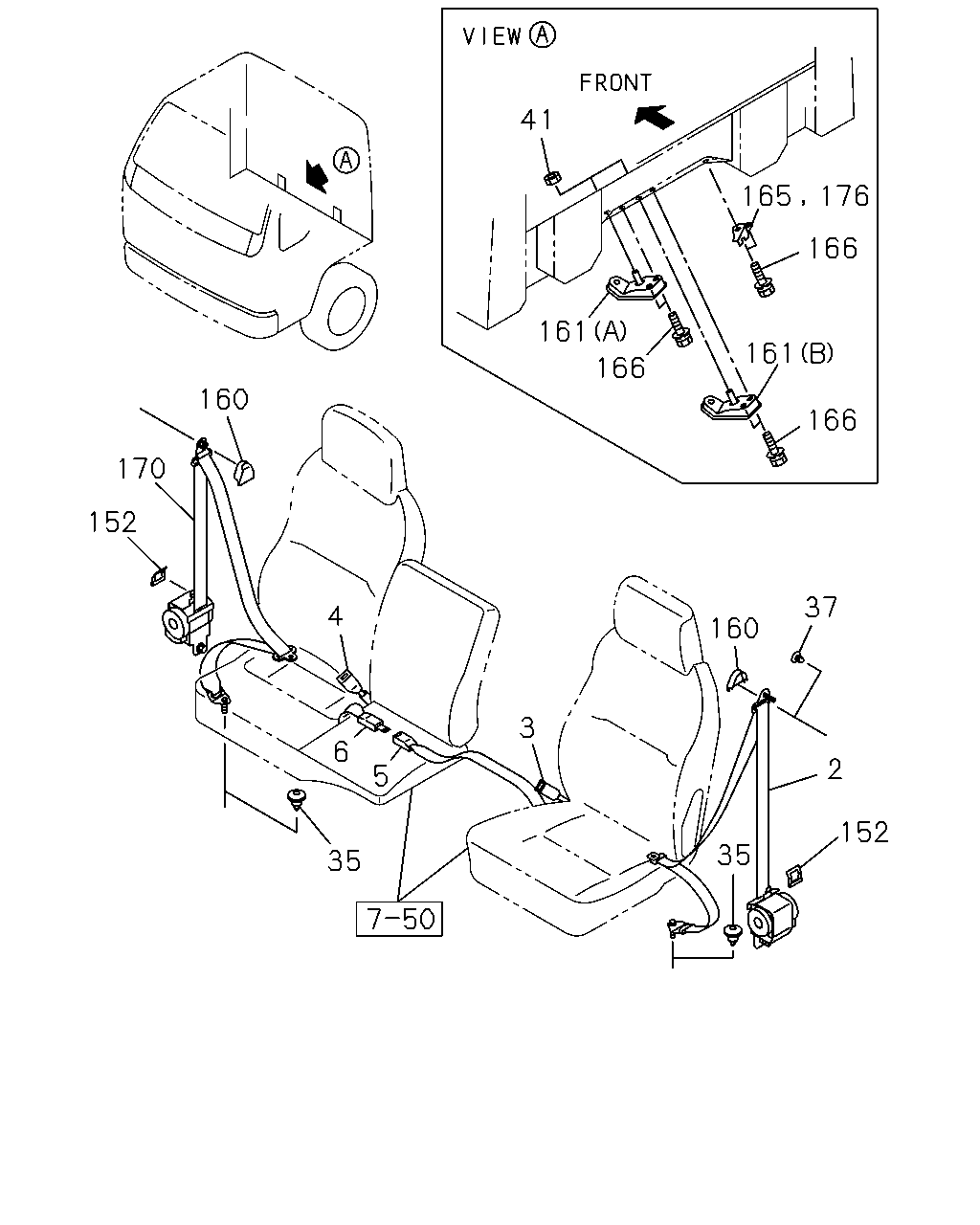

çizim 58584
41 165 176 166 161 161 166 160 166 170 152 37 4 160 3 6 2 5 152 35 35
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 16.714 BELT; SEAT,TONGUE SIDE
GRAY 		8-97400-623-2 01 1 0612- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97400-623-2 01 1 0612- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97400-348-0 01 1 0612- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97400-348-0 01 1 0612- ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97396-952-0 01 1 0612- ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-952-0 01 1 0612- ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-354-0 01 1 0612- ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97404-304-0 01 1 0612- ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97404-304-0 01 1 0612- ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97400-451-1 01 1 0612- ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-451-1 01 1 0612- ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0612- ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 0612- ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0612- ● ●
41 05.545 NUT; BRKT,ANCHOR
MANUAL TILT CAB<RWZ> 07.833 M8 W/LK WASHER 		8-94327-073-0 04 1 0612-0805 ● ● ● ●
41 05.545 NUT; BRKT,ANCHOR
MANUAL TILT CAB<RWZ> 03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 0806- ● ● ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0612- ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97287-563-0 02 1 0612- ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 02 1 0612- ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 02 1 0612- ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(B) 		8-97850-427-1 01 1 0612- ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-376-2 01 1 0612- ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> (A) 		8-97850-286-5 01 1 0612- ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR
EXC. MANUAL TILT CAB<RWZ> 		8-97869-416-0 01 1 0612- ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE 		0-28650-825-0 07 1 0612- ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97397-380-2 01 1 0612- ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97397-380-2 01 1 0612- ● ●
176 16.714 PATCH ASM; ANCHOR HOLE FIX
MANUAL TILT CAB<RWZ> 		1-79998-900-0 01 1 0612- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
