◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#33041) — 67 parça

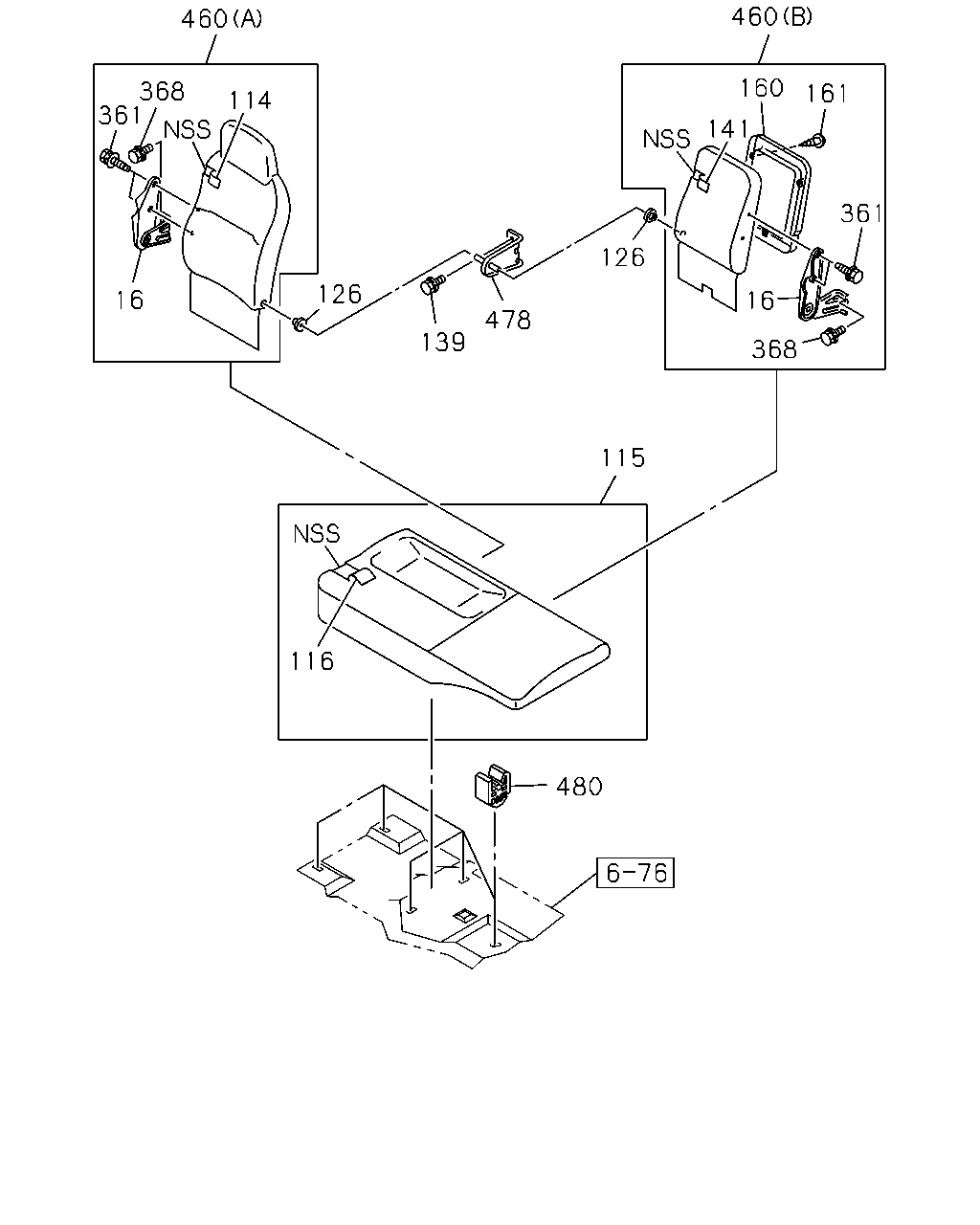

çizim 57871
460 460 160 368 361 161 114 141 361 126 126 16 16 478 139 368 115 116 480
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 16.682 ADJUSTER ASM; RECLINING
BLACK 		8-97859-273-3 01 1 0612- ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
BLACK 		8-97859-274-3 01 1 0612- ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97400-693-2 01 1 0612- ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-692-2 01 1 0612- ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97400-666-3 01 1 0612- ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-667-3 01 1 0612- ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-663-2 01 1 0612- ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-664-2 01 1 0612- ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97400-109-1 01 1 0612- ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-705-1 01 1 0612- ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-703-1 01 1 0612- ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-107-1 01 1 0612- ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 02 1 0612-0804 ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 02 1 0805- ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0612-0612 ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 04 1 0612-0612 ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0701- ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97400-105-1 01 1 0612- ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-698-2 01 1 0612- ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
GRAY 		8-97398-252-1 01 1 0612- ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0612- ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0612- ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0612- ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97400-075-2 01 1 0612- ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97400-653-3 01 1 0612- ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97400-652-3 01 1 0612- ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97400-658-3 01 1 0612- ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-185-0 01 1 0612- ● ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0612- ● ● ● ●
çizim 57874
1 99 2 18 19 17 24 12 228 13 15 69 382 71 63
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-676-3 01 1 0612- ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-476-3 01 1 0612- ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-365-3 01 1 0612- ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-377-3 01 1 0612- ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT, LONGSIZE<7UG> DARK GRAY 		8-97400-484-3 01 1 0612- ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-678-3 01 1 0612- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-677-2 01 1 0612- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-477-2 01 1 0612- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-366-2 01 1 0612- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-378-2 01 1 0612- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT, LONGSIZE<7UG> DARK GRAY 		8-97400-485-2 01 1 0612- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-679-2 01 1 0612- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-100-1 01 1 0612- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-478-1 01 1 0612- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-367-1 01 1 0612- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-375-1 01 1 0612- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT, LONGSIZE<7UG> DARK GRAY 		8-97400-482-1 01 1 0612- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-093-1 01 1 0612- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-101-1 01 1 0612- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-479-1 01 1 0612- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-368-1 01 1 0612- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-376-1 01 1 0612- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT, LONGSIZE<7UG> DARK GRAY 		8-97400-483-1 01 1 0612- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-094-1 01 1 0612- ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ> 		8-97262-070-1 01 1 0612- ● ● ● ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0612- ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97400-095-0 01 1 0612- ● ● ● ●
19 16.686 SCREW; COVER
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0612- ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97400-096-0 01 1 0612-0804 ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97415-446-0 01 1 0805- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-947-3 01 1 0612- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SEAT CLOTH<7FL> 		8-97854-670-3 01 1 0612- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> 		8-97854-670-3 01 1 0612- ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 02 1 0612- ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0612- ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0612- ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0612- ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 02 1 0612- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
