◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-41 - UNDER COVER; INSTRUMENT ▶
7-41 — UNDER COVER; INSTRUMENT (#33037) — 10 parça

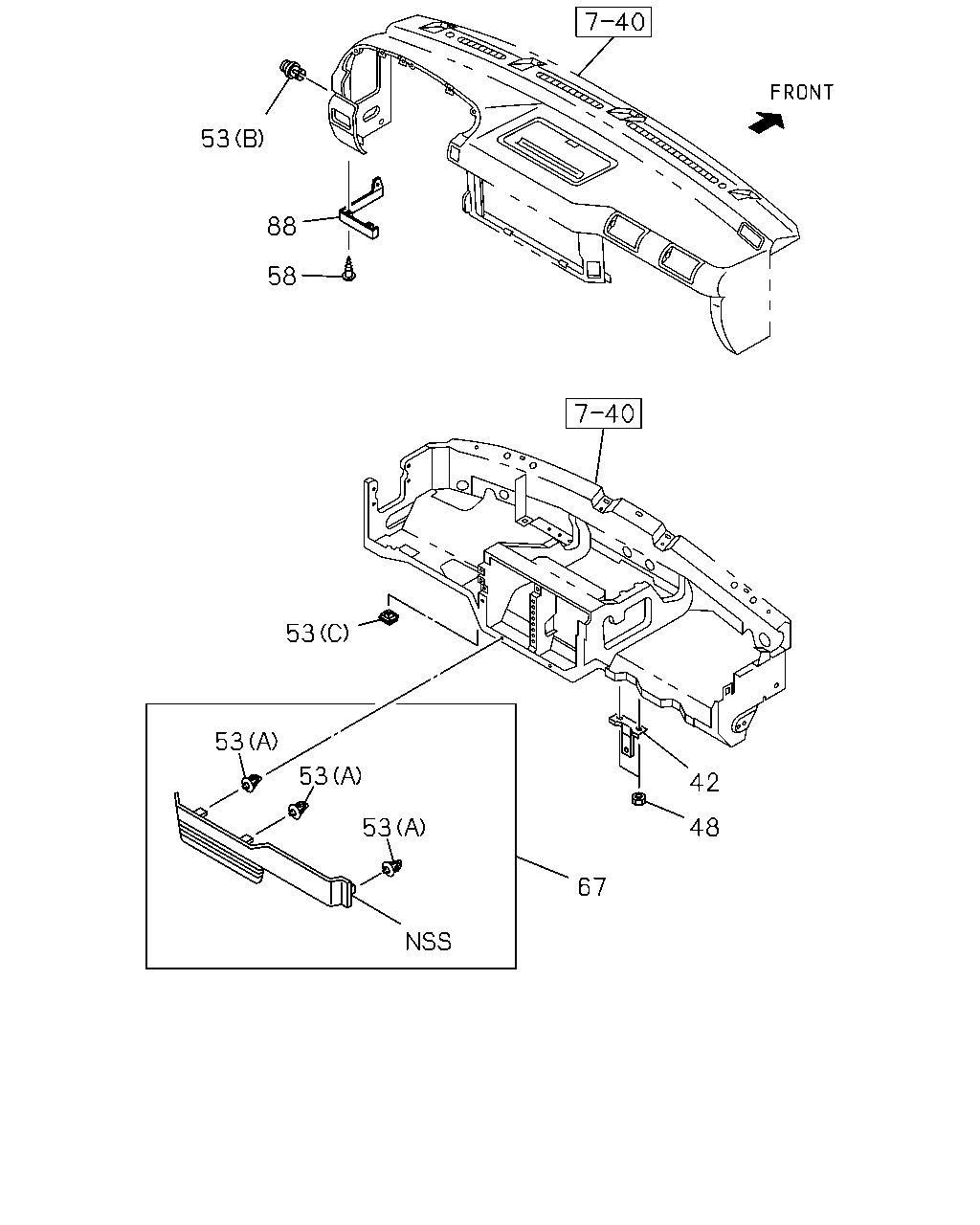

çizim 55877
53 88 58 53 53 53 42 48 53 67
BalonParca AdiParca NoAdetTipApplied Date A B C D
42 16.110 BRACKET; UNDER COVER 8-97217-299-1 01 1 0612- ● ● ● ●
48 16.081 NUT; UNDER COVER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0612- ● ● ● ●
53 16.085 CLIP; UNDER COVER
06.521 (B) DARK GRAY 		8-97582-246-0 01 1 0612- ● ● ● ●
53 16.085 CLIP; UNDER COVER
16.100 (A) 		8-97853-169-0 04 1 0612- ● ● ● ●
53 16.085 CLIP; UNDER COVER
(C) 		8-97853-249-5 03 1 0612- ● ● ● ●
58 09.264 SCREW; UNDER COVER
16.067 M5X14 		8-94279-325-0 02 1 0612-0612 ● ● ● ●
58 09.264 SCREW; UNDER COVER
09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 0701- ● ● ● ●
67 16.081 COVER; UNDER,INST PNL 8-97857-188-3 01 1 0612- ● ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97401-318-0 01 1 0612- ● ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97585-432-1 01 1 0612- ● ● ● ●
