◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#33035) — 18 parça

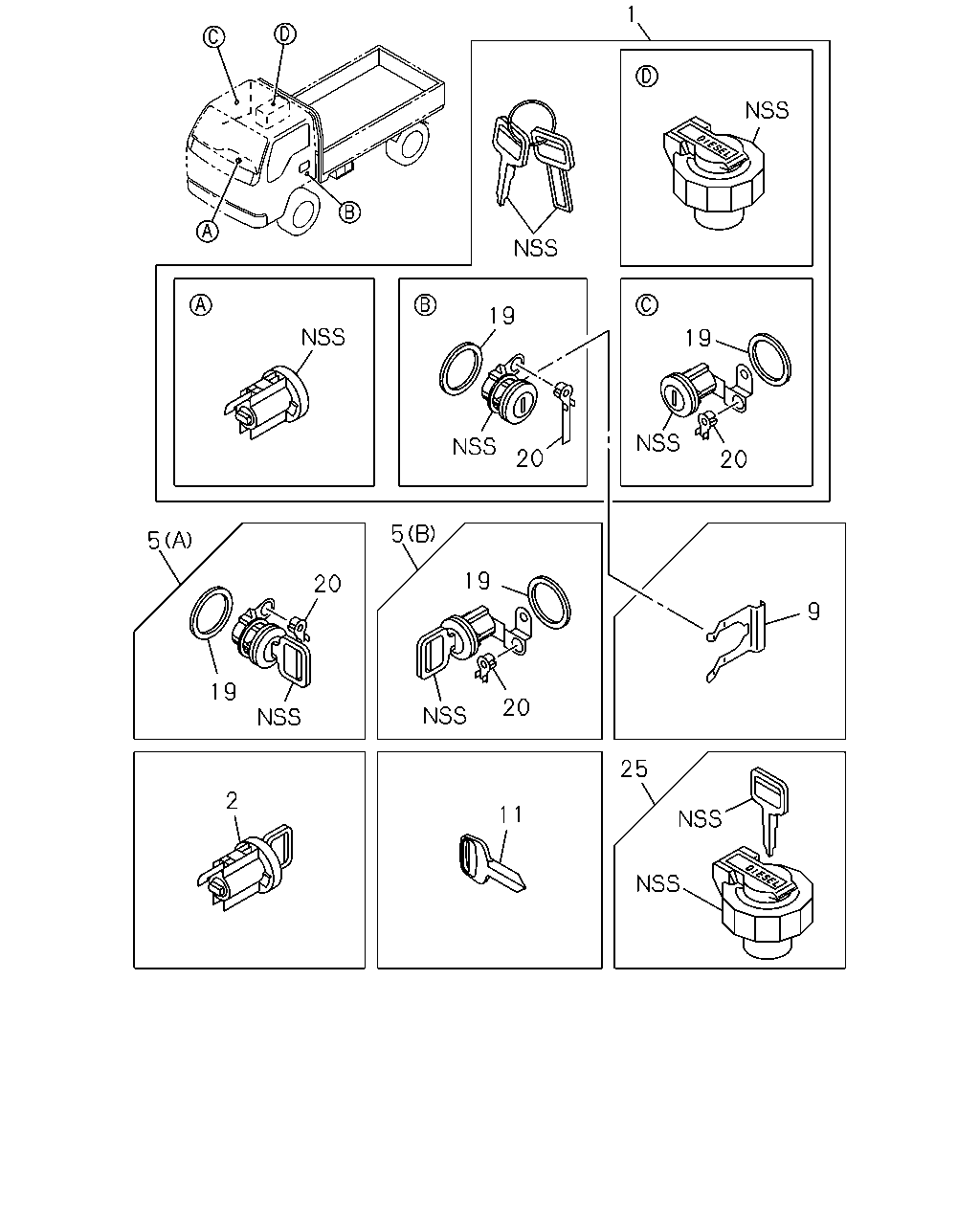

çizim 56753
1 19 19 20 20 5 5 19 20 9 19 20 25 2 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. MARK VEHICLE NAME<EK7> 		8-97035-294-1 01 1 0612- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
MARK VEHICLE NAME<EK7> FUEL TANK CAP W/LOCK<N05> 		8-97092-406-1 01 1 0612- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
MARK VEHICLE NAME<EK7> EXC. FUEL TANK CAP W/LOCK<N05> 		8-97092-405-1 01 1 0612- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. MARK VEHICLE NAME<EK7>,FUEL TANK CAP W/LOCK<N05> 		8-97035-293-1 01 1 0612- ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
MARK VEHICLE NAME<EK7> 		8-97095-869-0 01 1 0612- ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. MARK VEHICLE NAME<EK7> 		8-97095-682-2 01 1 0612- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
MARK VEHICLE NAME<EK7> (A) 		8-97095-871-0 01 1 0612- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
MARK VEHICLE NAME<EK7> (B) 		8-97095-870-0 01 1 0612- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. MARK VEHICLE NAME<EK7> (A) 		8-97095-685-2 01 1 0612- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. MARK VEHICLE NAME<EK7> (B) 		8-97095-684-2 01 1 0612- ● ● ● ●
9 16.328 CLIP; DOOR LOCK 8-97410-786-0 02 1 0612- ● ● ● ●
11 02.187 KEY; BLANK
MARK VEHICLE NAME<EK7> WO/NOTCH 		8-97108-649-0 AR 1 0612- ● ● ● ●
11 02.187 KEY; BLANK
EXC. MARK VEHICLE NAME<EK7> WO/NOTCH 		8-97076-337-0 AR 1 0612- ● ● ● ●
19 16.328 GASKET; DOOR LOCK CYL 8-94128-739-0 02 1 0612- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 BROWN 		8-97040-453-0 01 1 0612- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 YELLOW 		8-97040-452-0 01 1 0612- ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> EXC. MARK VEHICLE NAME<EK7> 		8-97095-686-2 01 1 0612- ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
MARK VEHICLE NAME<EK7> FUEL TANK CAP W/LOCK<N05> 		8-97095-872-0 01 1 0612- ● ● ● ●
