Sayfa 0-61B - Isuzu EPC

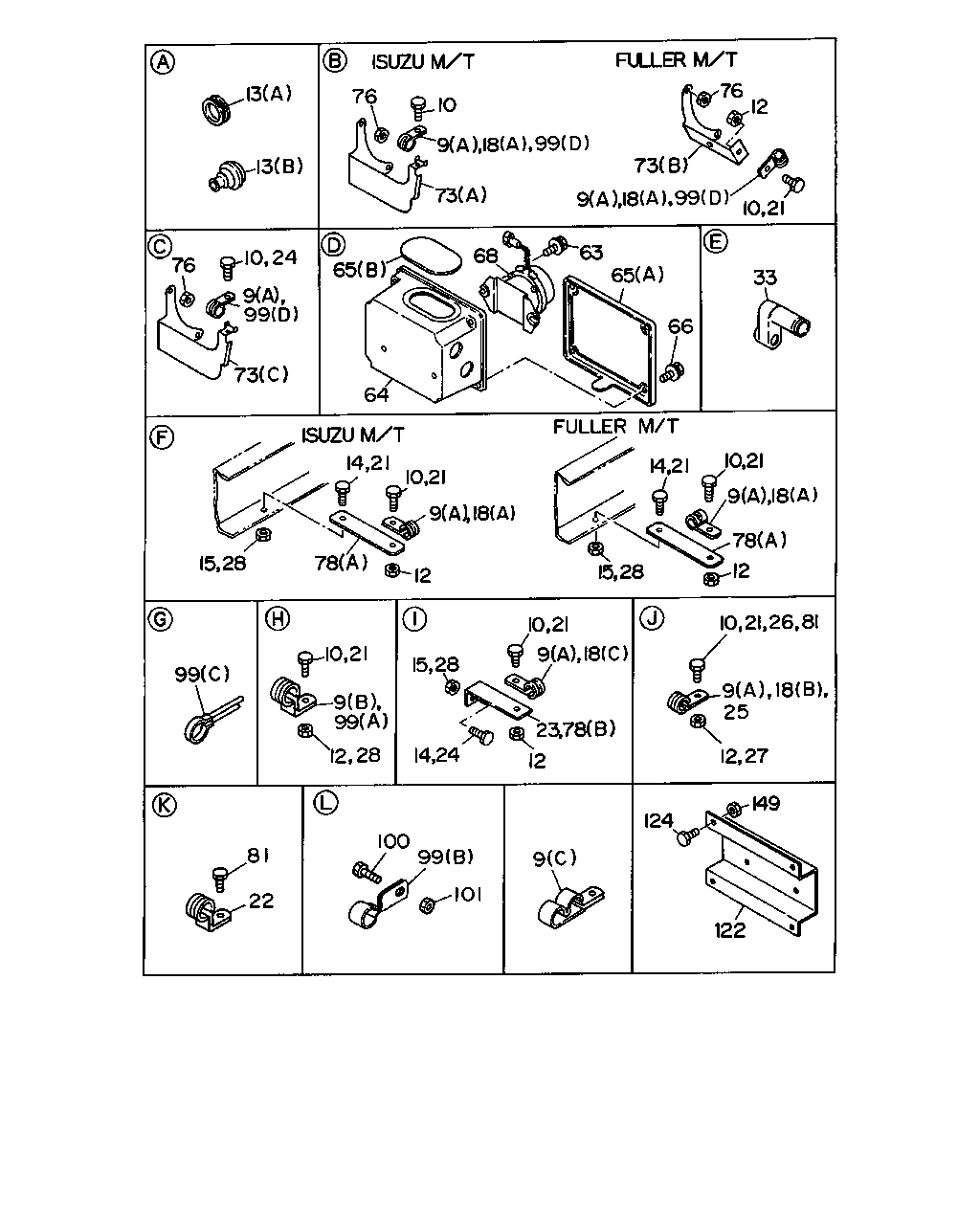

0-61B — BATTERY AND ENGINE ELECTRICAL PARTS (#3303) — 158 parça

13 13 76 10 73 9 18 99 76 12 21 10 99 18 9 73 33 65 66 63 68 65 64 73 99 9 24 10 76 15 28 78 12 9 18 21 10 21 14 15 28 12 78 9 18 21 10 21 14 81 26 21 10 9 18 25 12 27 149 122 9 101 99 100 22 81 99 12 28 99 9 10 15 28 14 24 12 23 78 9 18 10 21 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	CLIP; BATTERY CABLE (A) ID=19 L=40	9-09525-876-0	01	1	9002-9202	●
9	CLIP; BATTERY CABLE LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=19 L=24 H=21	1-09700-109-1	02	1	9002-	●
9	CLIP; BATTERY CABLE LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=19 & 19 L=53	1-09700-627-0	01	1	9002-	●
9	CLIP; BATTERY CABLE LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=19 L=28	9-09525-855-0	01	1	9002-9510	●
9	CLIP; BATTERY CABLE LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=19 L=28	9-09525-856-0	01	1	9511-	●
9	CLIP; BATTERY CABLE LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=19 L=40	9-09525-876-0	04	1	9002-	●
10	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9202	●
10	BOLT; BATTERY CABLE CLIP LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	9-01900-820-0	06	1	9002-9204	●
10	BOLT; BATTERY CABLE CLIP LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50040-820-0	06	1	9205-9302	●
10	BOLT; BATTERY CABLE CLIP LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	06	1	9303-	●
10	BOLT; BATTERY CABLE CLIP LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●
10	BOLT; BATTERY CABLE CLIP LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●
10	BOLT; BATTERY CABLE CLIP LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9303-	●
10	BOLT; BATTERY CABLE CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9002-9306	●
10	BOLT; BATTERY CABLE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X20 W/LK WASHER	0-50041-020-0	01	1	9307-	●
10	BOLT; BATTERY CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50040-820-0	01	1	9307-	●	●
12	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	02	1	9002-	●	●
12	NUT; BATTERY CABLE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9002-	●
12	NUT; BATTERY CABLE CLIP LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	10	1	9002-	●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9002-	●	●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9002-	●	●
14	BOLT; BRKT CLIP M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●	●
14	BOLT; BRKT CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●	●
14	BOLT; BRKT CLIP M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●
14	BOLT; BRKT CLIP M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●
14	BOLT; BRKT CLIP M8X30 FLANGE	0-28080-830-0	03	1	9303-9306	●	●
14	BOLT; BRKT CLIP M8X30 FLANGE	0-28080-830-0	02	1	9307-9411	●	●
14	BOLT; BRKT CLIP M8X40 FLANGE	0-28080-840-0	02	1	9412-	●	●
14	BOLT; BRKT CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9307-	●
15	NUT; BRKT CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9307-	●
15	NUT; BRKT CLIP M8	9-09110-408-0	03	1	9002-9306	●	●
15	NUT; BRKT CLIP M8	9-09110-408-0	02	1	9307-9404	●	●
15	NUT; BRKT CLIP M8	9-09110-408-0	03	1	9405-	●	●
18	CLIP; BATTERY CABLE (A) ID=18 L=50	1-09701-072-0	02	1	9002-9504	●	●
18	CLIP; BATTERY CABLE ISUZU M/T<X9A> (A) ID=18 L=50	1-09701-072-0	02	1	9505-	●	●
18	CLIP; BATTERY CABLE FULLER M/T<X9B> (A) ID=18 L=28	1-09701-067-0	02	1	9505-	●
18	CLIP; BATTERY CABLE (B) ID=24 L=32	1-09700-766-1	01	1	9002-9306	●
18	CLIP; BATTERY CABLE (B) ID=19 L=28	9-09525-856-0	01	1	9307-	●
18	CLIP; BATTERY CABLE (C) ID=18 L=40	1-09701-111-0	01	1	9002-9306	●
18	CLIP; BATTERY CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=18 L=40	1-09701-111-0	01	1	9307-	●
21	BOLT; CLIP CABLE M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
21	BOLT; CLIP CABLE M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9302	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	03	1	9303-9306	●
21	BOLT; CLIP CABLE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
21	BOLT; CLIP CABLE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	01	1	9303-9306	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	02	1	9307-	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	01	1	9307-	●	●
21	BOLT; CLIP CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	01	1	9307-	●	●
22	CLIP; BATTERY CABLE ID=18 L=23	1-09701-070-0	02	1	9002-9306	●
22	CLIP; BATTERY CABLE ID=18 L=23	1-09701-070-0	02	1	9307-	●	●
22	CLIP; BATTERY CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=18 L=23	1-09701-070-0	02	1	9307-	●
22	CLIP; BATTERY CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=18 L=23	1-09701-070-0	01	1	9307-	●
22	CLIP; BATTERY CABLE ID=18 L=23	1-09701-070-0	01	1	9307-		●
23	BRACKET; CABLE CLIP TO FRAME LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=95	1-82699-085-0	07	1	9002-	●
24	BOLT; BRKT TO FRAME LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	9-01900-825-0	07	1	9002-9204	●
24	BOLT; BRKT TO FRAME LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	0-50040-825-0	07	1	9205-9302	●
24	BOLT; BRKT TO FRAME LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	07	1	9303-	●
25	CLIP; BATTERY CABLE TO BRKT LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=19 L=60	9-09525-896-0	01	1	9002-	●
26	BOLT; BATTERY CABLE CLIP TO BRKT LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
26	BOLT; BATTERY CABLE CLIP TO BRKT LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●
26	BOLT; BATTERY CABLE CLIP TO BRKT LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	01	1	9303-	●
27	NUT; BATTERY CABLE CLIP TO BRKT LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9002-	●
28	NUT; BRKT TO FRAME LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	07	1	9002-	●
33	CAP; INSULATOR	1-82699-206-0	01	1	9002-	●	●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9002-	●	●
64	BOX; BATTERY RELAY	1-82699-352-2	01	1	9002-	●	●
65	COVER; BATTERY RELAY (A)	1-82699-353-1	01	1	9002-	●	●
65	COVER; BATTERY RELAY (B)	1-82699-354-2	01	1	9002-	●	●
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	9-01960-616-0	04	1	9002-9204	●
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9205-	●	●
68	RELAY; BATTERY	1-82550-228-2	01	1	9002-	●	●
73	BRACKET; BATTERY CABLE (A)	1-82699-371-0	01	1	9002-9106	●
73	BRACKET; BATTERY CABLE (A)	1-82699-542-0	01	1	9107-9306	●
73	BRACKET; BATTERY CABLE ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-82699-542-0	01	1	9307-9410	●
73	BRACKET; BATTERY CABLE (A)	1-82699-542-0	01	1	9307-9410		●
73	BRACKET; BATTERY CABLE ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-82699-822-0	01	1	9411-9504	●
73	BRACKET; BATTERY CABLE (A)	1-82699-822-0	01	1	9411-9504		●
73	BRACKET; BATTERY CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-82699-822-0	01	1	9505-	●
73	BRACKET; BATTERY CABLE (A)	1-82699-822-0	01	1	9505-		●
73	BRACKET; BATTERY CABLE FULLER M/T<X9B> (B)	1-82699-358-0	01	1	9307-9504	●
73	BRACKET; BATTERY CABLE ISUZU M/T<X9A> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-82699-690-0	01	1	9307-	●
76	NUT; BATTERY CABLE M10 FLANGE	5-09440-006-0	02	1	9002-	●	●
78	BRACKET; CLIP BATTERY (A)	1-22133-053-0	02	1	9002-	●	●
78	BRACKET; CLIP BATTERY (B) L=95	1-82699-085-0	01	1	9002-9306	●
78	BRACKET; CLIP BATTERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=95	1-82699-085-0	01	1	9307-	●
81	BOLT; BATTERY CABLE M8X22	9-01900-822-0	02	1	9002-9204	●
81	BOLT; BATTERY CABLE M8X22 W/LK WASHER	0-50040-822-0	02	1	9205-9302	●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28080-825-0	02	1	9303-9306	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28080-820-0	02	1	9307-9404	●	●
81	BOLT; BATTERY CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	02	1	9307-9404	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28080-820-0	02	1	9405-	●	●
81	BOLT; BATTERY CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	01	1	9307-	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28080-820-0	01	1	9307-		●
81	BOLT; BATTERY CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	04	1	9405-	●
99	CLIP; BATTERY CABLE LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=18 L=50	1-09700-302-1	01	1	9002-	●
99	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	01	1	9002-	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	02	1	9002-9306	●
99	CLIP; BATTERY CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=16 L=46	9-09917-428-0	01	1	9002-9306	●
99	CLIP; BATTERY CABLE CXM(CXM***) (C) ID=16 L=46	9-09917-428-0	01	1	9002-9306	●
99	CLIP; BATTERY CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=18 H=23 L=28	1-09701-070-0	01	1	9307-	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	01	1	9307-		●
99	CLIP; BATTERY CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 H=23 L=28	1-09701-070-0	02	1	9307-	●
99	CLIP; BATTERY CABLE (C) ID=16 L=46	9-09917-428-0	01	1	9307-	●	●
100	BOLT; BATTERY CABLE CLIP M6X20 W/LK WASHER	9-01900-620-0	02	1	9002-9009	●
100	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	9-01900-820-0	02	1	9010-9204	●
100	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9303-9306	●
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9307-	●	●
100	BOLT; BATTERY CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	01	1	9307-	●
100	BOLT; BATTERY CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●
100	BOLT; BATTERY CABLE CLIP M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●
100	BOLT; BATTERY CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●
100	BOLT; BATTERY CABLE CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●
100	BOLT; BATTERY CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	01	1	9303-9306	●
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9303-9306	●
100	BOLT; BATTERY CABLE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	02	1	9307-	●
100	BOLT; BATTERY CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	01	1	9307-	●	●
101	NUT; BATTERY CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9307-	●	●
101	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	01	1	9307-	●	●
101	NUT; BATTERY CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9307-	●
101	NUT; BATTERY CABLE CLIP SHORT CHASSIS(CX***C) M6	9-09110-406-0	02	1	9002-9009	●
101	NUT; BATTERY CABLE CLIP CXZ&LONG CHASISS(CXZ**F) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6	9-09110-406-0	02	1	9002-9009	●
101	NUT; BATTERY CABLE CLIP LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6	9-09110-406-0	01	1	9002-9009	●
101	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	02	1	9010-9306	●
101	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	01	1	9002-9009	●
101	NUT; BATTERY CABLE CLIP CXM(CXM***) M8	9-09110-408-0	01	1	9002-9009	●
101	NUT; BATTERY CABLE CLIP CXZ&LONG CHASISS(CXZ**F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9002-9009	●
101	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	01	1	9010-9306	●
101	NUT; BATTERY CABLE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9307-	●
122	BRACKET; BATTERY RELAY LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82559-015-0	01	1	9002-9303	●
124	BOLT; RELAY,BATTERY LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204	●
124	BOLT; RELAY,BATTERY LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9302	●
124	BOLT; RELAY,BATTERY LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	04	1	9303-	●
149	NUT; BRKT BATTERY RELAY LONG CHASSIS(CX***F) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	04	1	9002-	●

17 1 2 162 69 69 162 2 17 1 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY L=500	1-82650-130-0	01	1	9002-9003	●
1	CABLE; BATTERY L=500	1-82650-124-0	01	1	9004-9306	●
1	CABLE; BATTERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=500	1-82650-124-0	01	1	9307-	●	●
1	CABLE; BATTERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=500	1-82650-130-0	01	1	9307-	●	●
2	CABLE; BATTERY L=290	1-82650-151-0	01	1	9002-9306	●
2	CABLE; BATTERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=290	1-82650-151-0	01	1	9307-	●	●
2	CABLE; BATTERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=690	1-82650-147-0	01	1	9307-	●	●
16	CABLE; STARTER TO RELAY L=4100 L=4100	1-82652-524-0	01	1	9002-9306	●
16	CABLE; STARTER TO RELAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=3220	1-82652-481-3	01	1	9307-9310	●
16	CABLE; STARTER TO RELAY L=3220	1-82652-481-3	01	1	9307-9310		●
16	CABLE; STARTER TO RELAY L=3220	1-82652-481-3	01	1	9311-		●
16	CABLE; STARTER TO RELAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=3350	1-82652-527-2	01	1	9311-	●
16	CABLE; STARTER TO RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=4100 L=4100	1-82652-524-0	01	1	9307-	●
17	CABLE; BATTERY (+) TO RELAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=390	1-82652-531-0	01	1	9307-	●
17	CABLE; BATTERY (+) TO RELAY L=390	1-82652-531-0	01	1	9307-		●
17	CABLE; BATTERY (+) TO RELAY L=250	1-82652-510-0	01	1	9002-9306	●	●
17	CABLE; BATTERY (+) TO RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-82652-510-0	01	1	9307-	●
69	BOLT; CABLE BATTERY M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
69	BOLT; CABLE BATTERY M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●
69	BOLT; CABLE BATTERY M8X20 FLANGE	0-28080-820-0	02	1	9303-9401	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9402-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=22	9-09160-708-0	02	1	9002-9401	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9402-	●	●
