◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#33028) — 16 parça

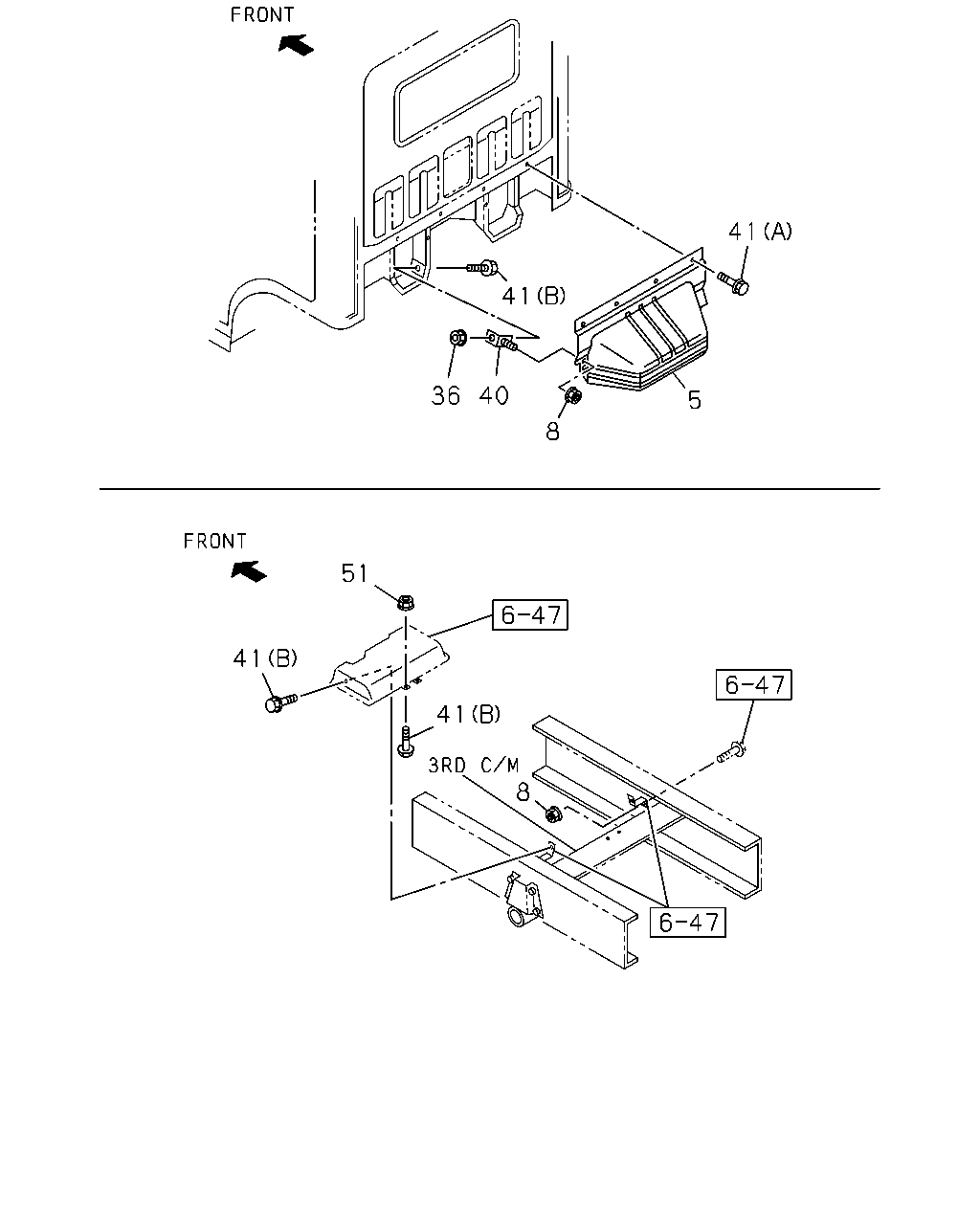

çizim 57884
41 41 5 36 40 8 51 41 41 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 16.587 PANEL; CAB BACK
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) FLOOR REMOTE SHIFT<M11> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98042-522-0 01 1 0612- ● ● ● ●
8 16.587 NUT; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0612- ● ● ● ●
36 16.587 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) TAIWAN EQUIPMENT(RWV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0612- ● ● ● ●
40 16.587 BRACKET; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) TAIWAN EQUIPMENT(RWV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97322-264-0 02 1 0612- ● ● ● ●
41 16.587 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 0612- ● ● ● ●
41 16.587 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) TAIWAN EQUIPMENT(RWV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0612- ● ● ● ●
41 16.587 BOLT
4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 04 1 0612- ● ●
51 16.587 NUT; PANEL
4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0612- ● ●

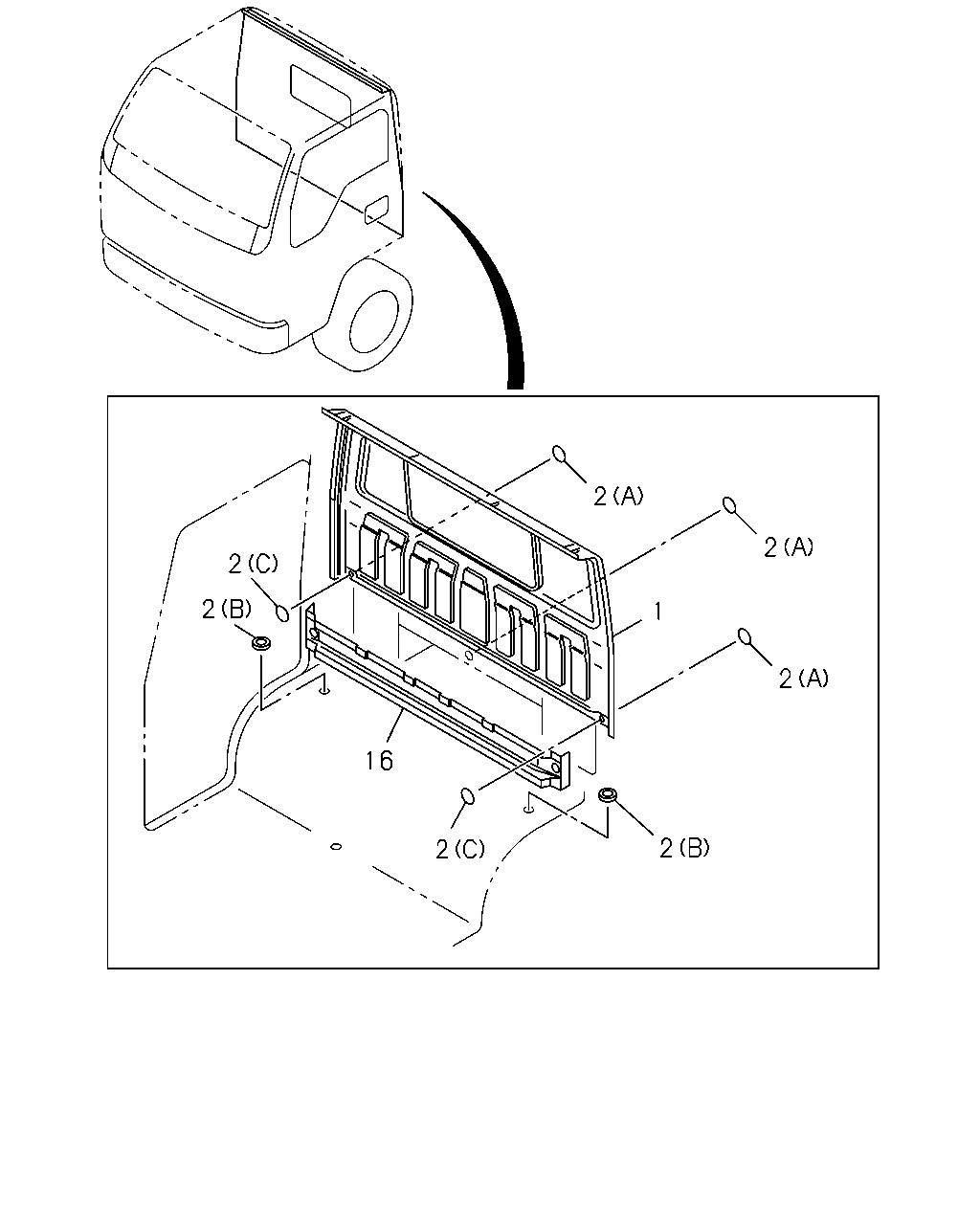

çizim 57885
2 2 2 2 1 2 16 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 0612- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0612-0710 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0711- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 0612- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK 		1-76798-019-0 05 1 0612- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL 8-97890-837-1 01 1 0612- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 		8-97890-837-1 01 1 0612- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JJ1 ENG(LFB) 		8-97851-106-9 01 1 0612- ● ●
