Isuzu WW
▶
TRUCKS
▶
NPR
▶
51103 - NPR/NQR(LHD) EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

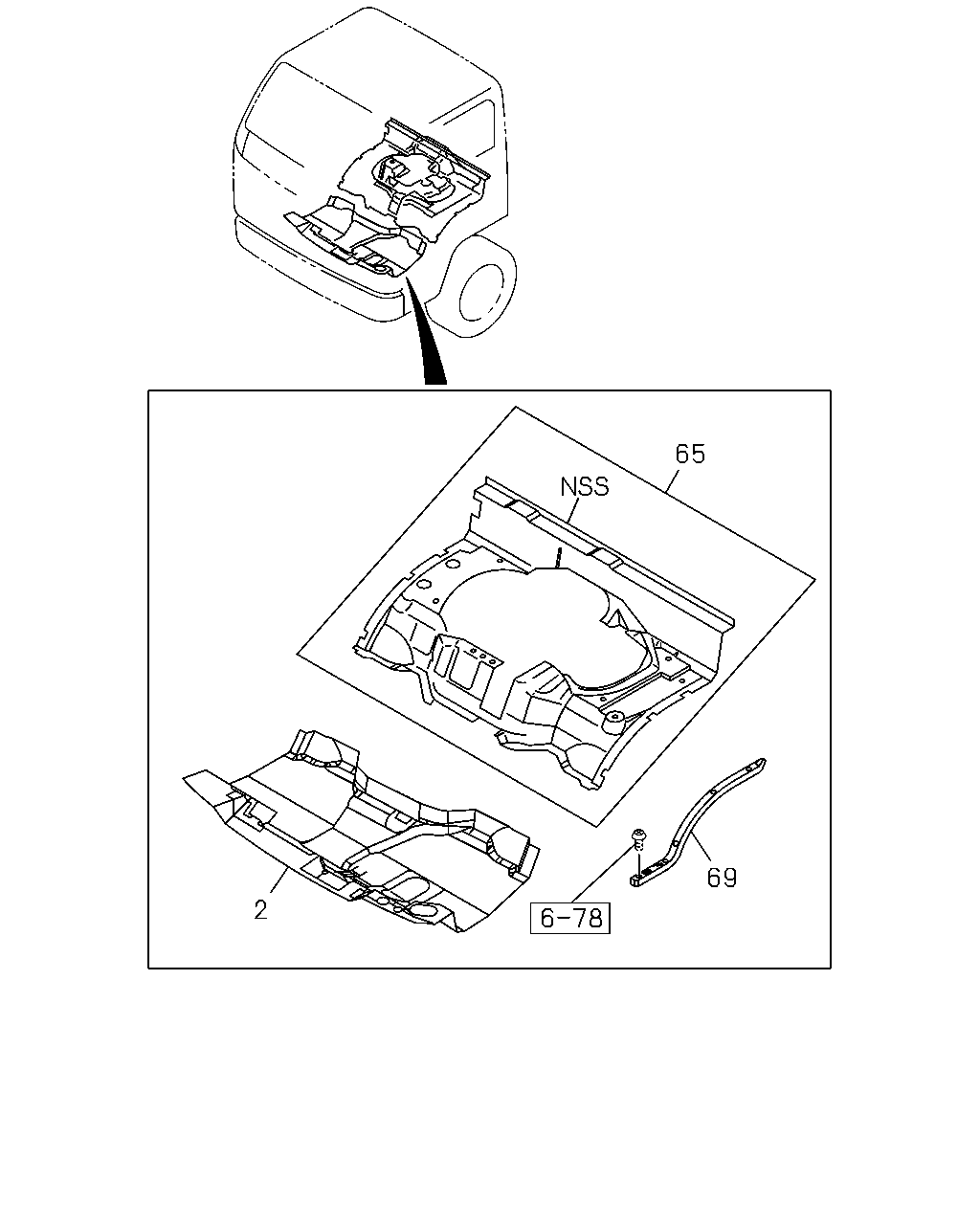

6-75 — MAT AND CARPET
(#33025) — 10 parça
Tümü
A - NPC6SC
B - NPC6SN
C - NPC6SF
D - NPC6SK
65
69
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
16.800 MAT; FLOOR
GRAY
8-97588-994-3
01
1
0612-
●
●
2
16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY
8-97588-994-3
01
1
0612-
●
●
2
16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) GRAY
8-97588-993-3
01
1
0612-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> GRAY
8-97589-113-2
01
1
0612-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> GRAY
8-97589-113-2
01
1
0612-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ>
8-97407-856-1
01
1
0612-
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97582-229-1
01
1
0612-0702
●
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97409-479-0
01
1
0703-
●
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97582-228-1
01
1
0612-0702
●
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97409-478-0
01
1
0703-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
