6-66 — HEAD LINING AND TRIM (#33022) — 13 parça

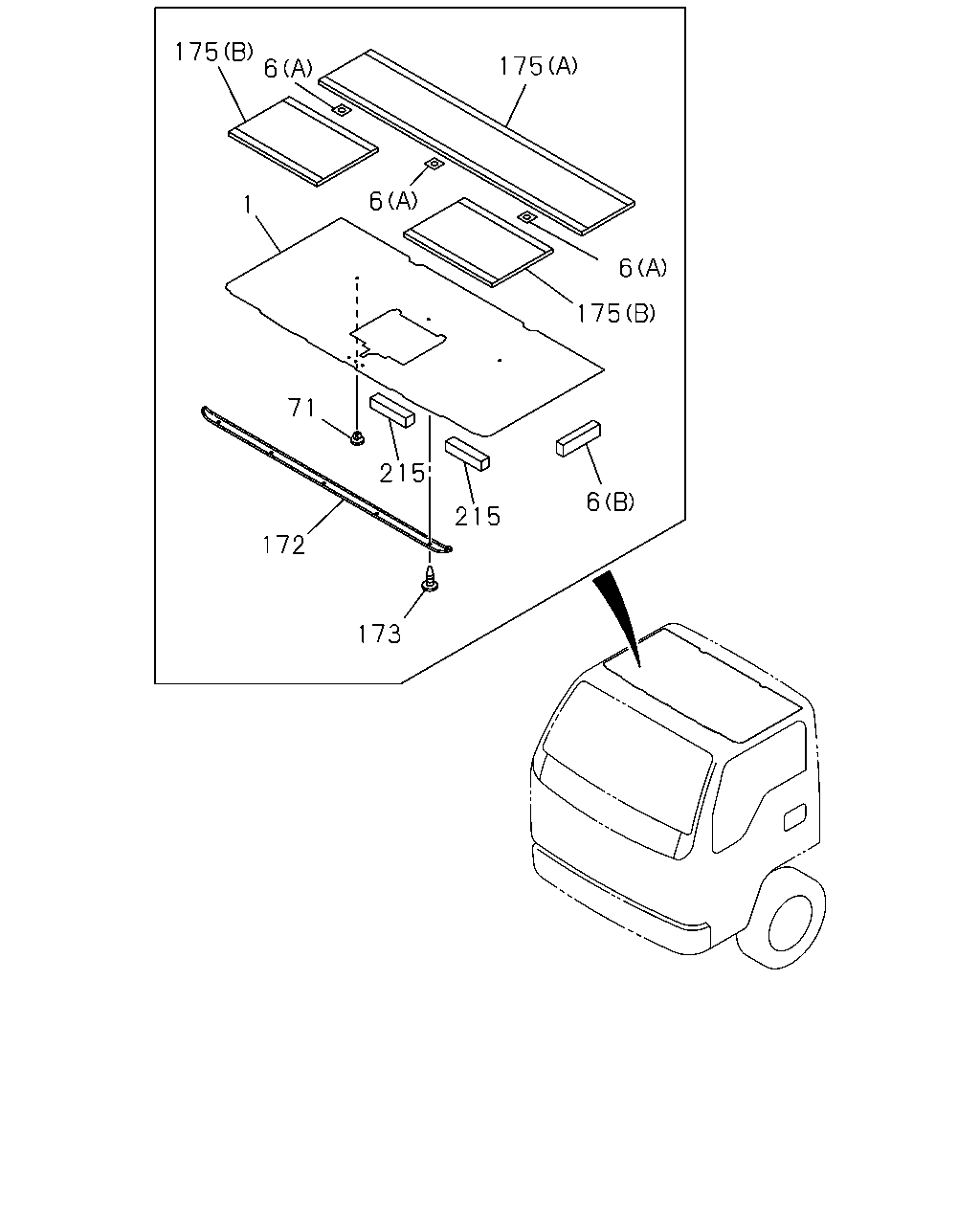

çizim 13878
175 175 6 6 1 6 175 71 215 6 215 172 173
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.742 LINING; HD
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-426-2 01 1 0612- ● ● ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-224-2 01 1 0612- ● ● ● ●
1 16.742 LINING; HD
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-427-2 01 1 0612- ● ● ● ●
1 16.742 LINING; HD
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY 		8-97867-608-3 01 1 0612- ● ● ● ●
6 16.742 SPACER; HD LINING
(A) 		8-94353-014-0 03 1 0612- ● ● ● ●
6 16.742 SPACER; HD LINING
16.588 (B) H=10 L=55 		8-97410-832-0 02 1 0612- ● ● ● ●
71 16.742 FASTENER; HD LINING
DARK GRAY 		8-97405-301-2 03 1 0612- ● ● ● ●
172 16.742 RETAINER; HEAD LINING
LIGHT GRAY 		8-97867-611-4 01 1 0612- ● ● ● ●
173 16.742 CLIP; RETAINER,HEAD LINING
LIGHT GRAY, D6.8X11 PUSH RIVET 		8-97867-240-0 05 1 0612-0708 ● ● ● ●
173 16.742 CLIP; RETAINER,HEAD LINING
DARK GRAY 		8-97406-299-0 05 1 0709- ● ● ● ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-97856-524-5 02 1 0612- ● ● ● ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-97859-105-3 01 1 0612- ● ● ● ●
215 16.592 CUSHION; TRAY BACK PANEL
ROOF VENTILATOR<C55> 16.587 L=100 		8-97866-625-0 02 1 0612- ● ● ● ●
