◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#33019) — 12 parça

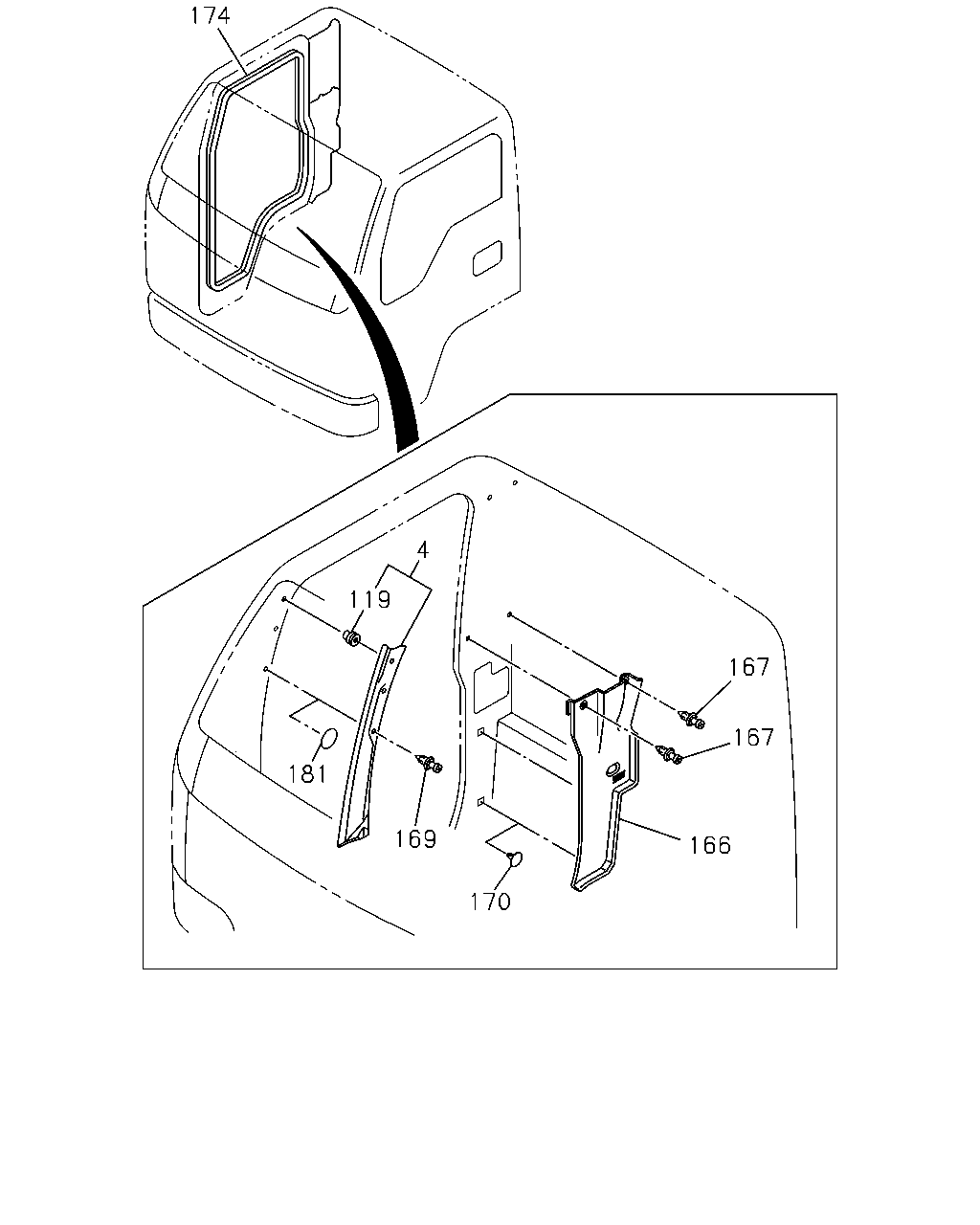

çizim 13877
174 119 167 167 181 169 166 170 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> GRAY 		8-97582-198-3 01 1 0612- ● ● ● ●
4 16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> GRAY 		8-97582-197-3 01 1 0612- ● ● ● ●
119 16.165 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 16.742 		1-73318-278-0 04 1 0612- ● ● ● ●
166 16.578 TRIM; RR PILLAR
GRAY 		8-97582-260-5 01 1 0612- ● ● ● ●
166 16.578 TRIM; RR PILLAR
GRAY 		8-97582-262-3 01 1 0612- ● ● ● ●
167 16.578 CLIP; TRIM,RR PILLAR
GRAY 		8-97406-439-0 04 1 0612- ● ● ● ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X16 PUSH RIVET 		8-97582-245-0 02 1 0612- ● ● ● ●
170 16.578 CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ> 03.602 		8-94244-922-0 02 1 0612- ● ● ● ●
174 16.507 FINISHER; BODY SIDE
L=2982 GRAY 		8-97582-256-5 01 1 0612- ● ● ● ●
174 16.507 FINISHER; BODY SIDE
L=2982 GRAY 		8-97582-255-5 01 1 0612- ● ● ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0612- ● ● ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLOW(916) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0612- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
