◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#33018) — 51 parça
çizim 13679
162 162
BalonParca AdiParca NoAdetTipApplied Date A B C D
162 16.165 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-98056-386-0 02 1 0612- ● ● ● ●
162 16.165 PROTECTOR; DOOR
PROTECTOR-BODY SIDE MOLDING<B84> (B) 		8-97856-390-2 02 1 0612- ● ● ● ●

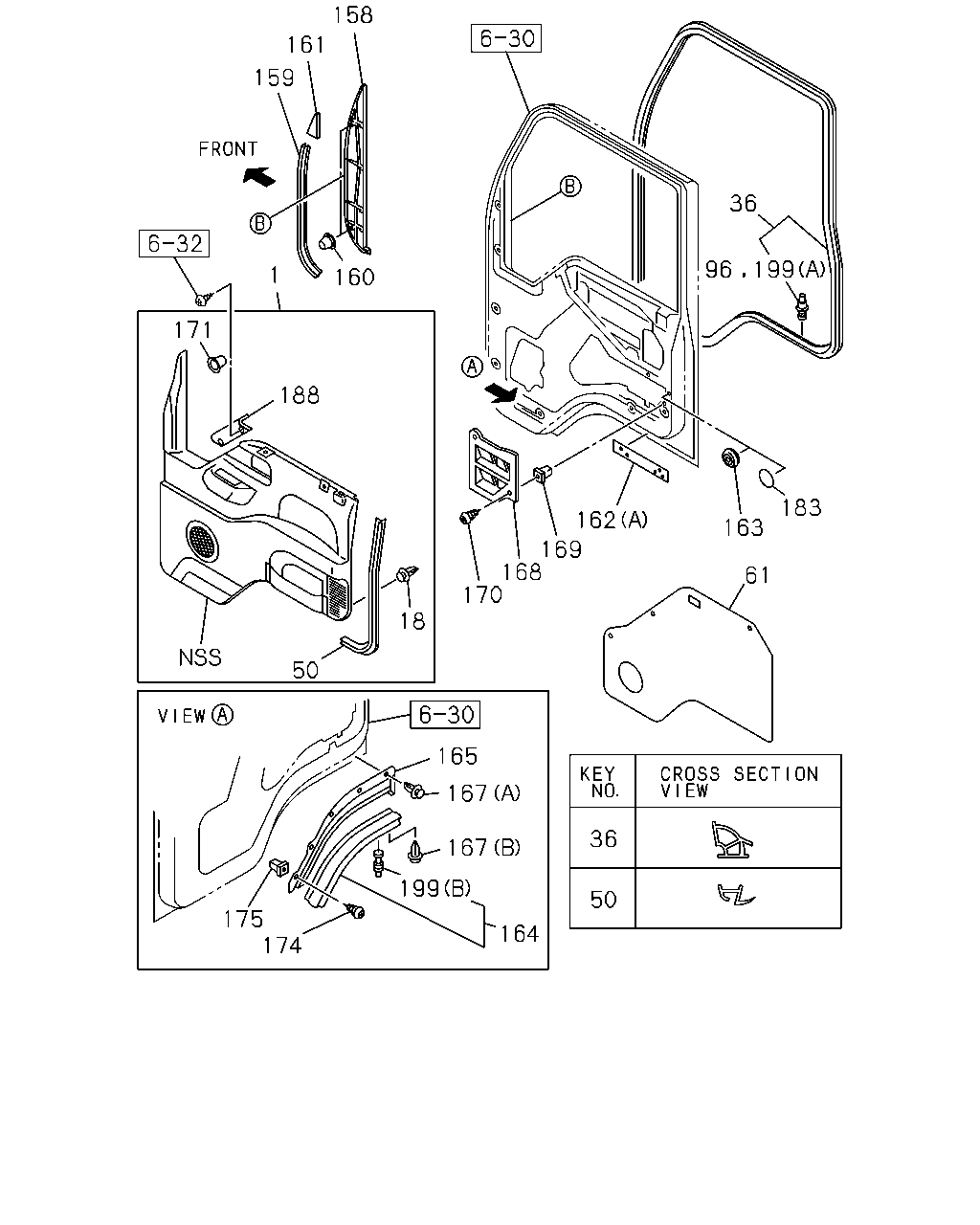

çizim 58534
158 161 159 36 96 199 1 160 171 188 183 162 163 169 168 170 61 18 50 165 167 36 167 199 50 175 174 164
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-288-7 01 1 0612- ● ● ● ●
1 16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-282-6 01 1 0612- ● ● ● ●
1 16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-286-4 01 1 0612- ● ● ● ●
1 16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-280-4 01 1 0612- ● ● ● ●
18 16.165 CLIP; DOOR PAD
OD=7.9 BLACK 		8-94279-974-1 24 1 0612- ● ● ● ●
36 16.225 SEAL; DOOR,MAIN,CAB SIDE 8-97892-903-3 01 1 0612- ● ● ● ●
36 16.225 SEAL; DOOR,MAIN,CAB SIDE 8-97892-902-3 01 1 0612- ● ● ● ●
50 16.166 FINISHER; DOOR PAD
GRAY 		8-97582-685-0 02 1 0612- ● ● ● ●
61 16.165 SEAL; WATER,DOOR PAD
ANTENNA<U73> EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-308-1 02 1 0612- ● ● ● ●
61 16.165 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> ANTENNA<U73> 		8-97852-328-3 02 1 0612- ● ● ● ●
61 16.165 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> EXC. ANTENNA<U73> 		8-97852-329-2 02 1 0612- ● ● ● ●
61 16.165 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32>, ANTENNA<U73> 		8-97852-307-1 02 1 0612- ● ● ● ●
96 16.165 CLIP; SEAL
FRONT NATURAL 		1-09987-253-1 09 1 0612-1007 ● ● ● ●
96 16.165 CLIP; SEAL
FRONT YELLOW 		1-09987-254-1 09 1 0612-1007 ● ● ● ●
96 16.165 CLIP; SEAL
LOWER & BACK PINK 		1-09987-256-0 32 1 0612-1007 ● ● ● ●
158 16.165 GARNISH; DOOR 8-97852-129-2 01 1 0612- ● ● ● ●
158 16.165 GARNISH; DOOR 8-97852-128-2 01 1 0612- ● ● ● ●
159 16.165 FINISHER; GARNISH 8-97852-257-4 02 1 0612- ● ● ● ●
160 16.165 CLIP; GARNISH 8-97852-058-0 04 1 0612- ● ● ● ●
161 16.165 FASTENER; GARNISH 8-97134-313-1 01 1 0612- ● ● ● ●
161 16.165 FASTENER; GARNISH 8-97134-312-1 01 1 0612- ● ● ● ●
162 16.165 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-98056-386-0 02 1 0612- ● ● ● ●
162 16.165 PROTECTOR; DOOR
PROTECTOR-BODY SIDE MOLDING<B84> (B) 		8-97856-390-2 02 1 0612- ● ● ● ●
163 16.165 GROMMET; LOCATION HOLE,DOOR 8-94279-738-0 02 1 0612-0803 ● ● ● ●
164 16.165 SEAL; SUB,SILL SIDE 8-97852-320-4 01 1 0612- ● ● ● ●
164 16.165 SEAL; SUB,SILL SIDE 8-97852-319-4 01 1 0612- ● ● ● ●
165 16.165 LINER; DOOR LWR
FENDER COVER<6FZ> 		8-97581-079-0 01 1 0612- ● ● ● ●
165 16.165 LINER; DOOR LWR
FENDER COVER<6FZ> 		8-97581-078-0 01 1 0612- ● ● ● ●
165 16.165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ> 		8-97581-081-0 01 1 0612- ● ● ● ●
165 16.165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ> 		8-97581-080-0 01 1 0612- ● ● ● ●
167 16.165 CLIP; LINER
08.155 (A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0612- ● ● ● ●
167 16.165 CLIP; LINER
(B) D6X20 PUSH RIVET 		8-97859-673-0 02 1 0612- ● ● ● ●
168 16.175 VALVE; DOOR OUTLET 8-97855-413-0 01 1 0612- ● ● ● ●
168 16.175 VALVE; DOOR OUTLET 8-97855-412-0 01 1 0612- ● ● ● ●
169 16.175 GROMMET; SCREW,VALVE
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0612- ● ● ● ●
170 16.175 SCREW; VALVE
16.345 M5X12 TAPPING W/PL WASHER 		0-74160-512-0 04 1 0612-0612 ● ● ● ●
170 16.175 SCREW; VALVE
16.570 T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0701- ● ● ● ●
171 16.165 RETAINER; DOOR PAD
01.303 		5-09709-049-0 02 1 0612- ● ● ● ●
174 16.175 SCREW; LINER
01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 0612-0612 ● ● ● ●
174 16.175 SCREW; LINER
04.681 M5X12 TAPPING 		0-72180-512-0 04 1 0701- ● ● ● ●
175 16.175 GROMMET; SCREW,LINER
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0612- ● ● ● ●
183 16.165 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0804- ● ● ● ●
188 16.165 CASE; DOOR
GRAY 		8-97582-693-3 01 1 0612- ● ● ● ●
188 16.165 CASE; DOOR
GRAY 		8-97582-684-3 01 1 0612- ● ● ● ●
199 16.165 CLIP; SEAL
(A) FRONT NATURAL 		1-09987-253-1 09 1 1008- ● ● ● ●
199 16.165 CLIP; SEAL
(A) FRONT YELLOW 		1-09987-254-1 09 1 1008- ● ● ● ●
199 16.165 CLIP; SEAL
(A) LOWER & BACK PINK 		1-09987-256-0 32 1 1008- ● ● ● ●
199 16.165 CLIP; SEAL
(B) PINK 		8-97852-456-0 07 1 0612- ● ● ● ●
199 16.165 CLIP; SEAL
(B) NATURAL 		8-97852-455-0 07 1 0612- ● ● ● ●
