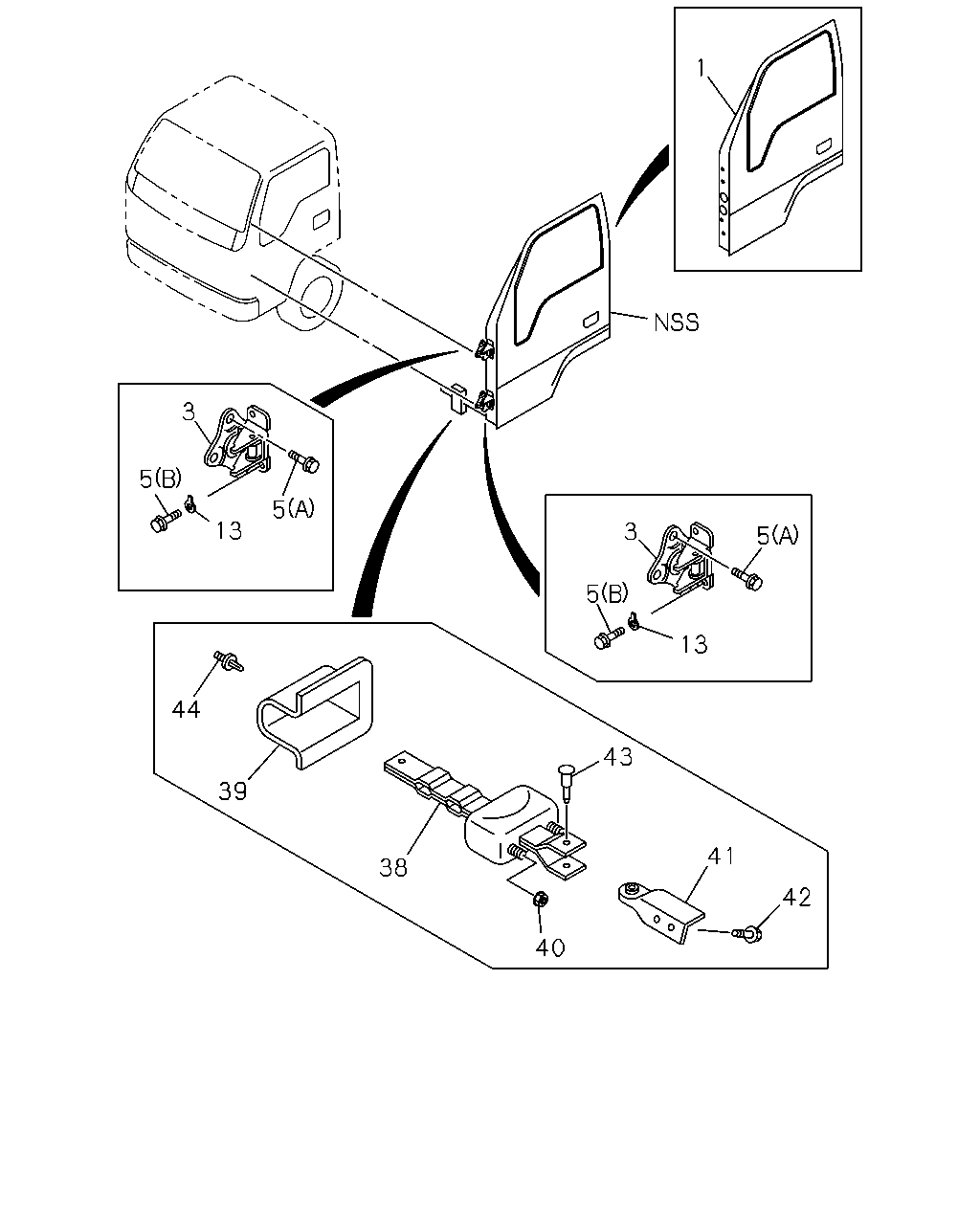

6-30 — FRONT DOOR AND HINGE
(#33015) — 15 parça
Tümü
A - NPC6SC
B - NPC6SF
C - NPC6SK
D - NPC6SN
1
3
5
5
13
3
5
5
13
44
43
39
41
38
42
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
16.150 DOOR ASM; FRT,WO/TRIM
8-97581-448-2
01
1
0612-
●
●
●
●
1
16.150 DOOR ASM; FRT,WO/TRIM
8-97581-447-1
01
1
0612-
●
●
●
●
3
16.320 HINGE; DOOR FRT
8-97852-007-5
04
1
0612-
●
●
●
●
5
16.320 BOLT; HINGE
(B) M8X22 FLANGE
8-94279-098-1
08
1
0612-
●
●
●
●
5
16.320 BOLT; HINGE
(A) M8X18 W/LK&PL WASHER
8-94279-232-0
12
1
0612-
●
●
●
●
13
16.320 WASHER; HINGE
ID=8.1 W/SEAL
8-97890-584-1
04
1
0612-
●
●
●
●
38
16.320 CHECKER ASM; DOOR
8-97581-681-2
02
1
0612-
●
●
●
●
39
16.320 COVER; CHECKER
8-97852-365-5
02
1
0612-
●
●
●
●
40
16.320 NUT; CHECKER
01.062 M8 FLANGE
0-91180-108-0
04
1
0612-
●
●
●
●
41
16.320 BRACKET; CHECKER
8-97852-403-1
01
1
0612-
●
●
●
●
41
16.320 BRACKET; CHECKER
8-97852-402-1
01
1
0612-
●
●
●
●
42
16.320 BOLT; BRKT
04.634 M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0612-0808
●
●
●
●
42
16.320 BOLT; BRKT
06.514 M8X24.5 W/LK&PL WASHER
8-98051-939-0
04
1
0809-
●
●
●
●
43
16.320 PIN
8-97852-057-1
02
1
0612-
●
●
●
●
44
16.320 FASTENER; COVER
OD=8.3
8-97997-832-0
02
1
0612-
●
●
●
●
