◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#33012) — 41 parça
çizim 55873
525 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 16.588 GROMMET; SCREW,FRT SIDE PANEL
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0612- ● ● ● ●
525 08.131 SEAL; FENDER
MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 03 1 0612- ● ● ● ●
525 08.131 SEAL; FENDER
EXC. MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 06 1 0612- ● ● ● ●

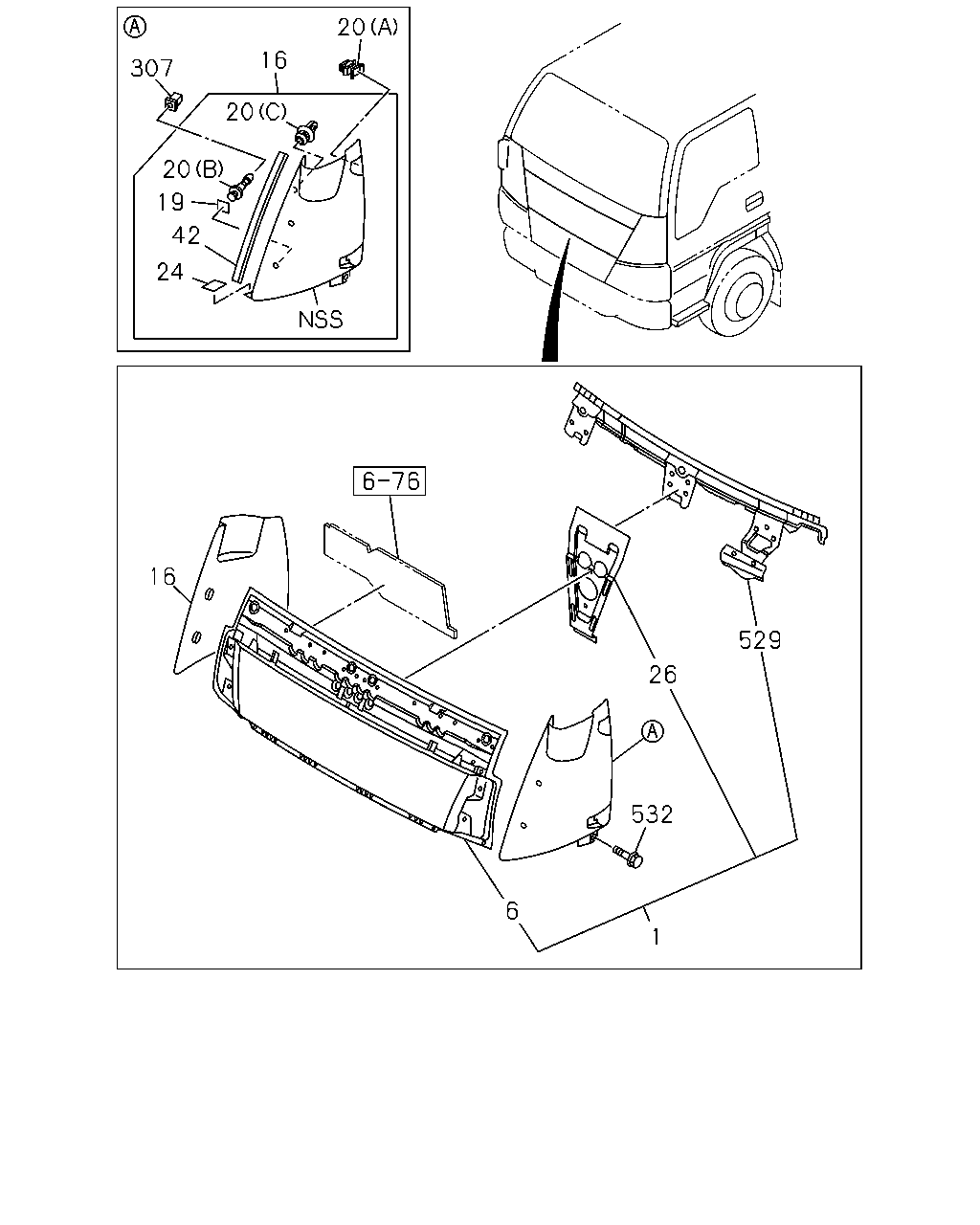

çizim 56750
20 16 307 20 20 19 42 24 16 529 26 532 6 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.550 PANEL ASM; FRT 8-97583-956-0 01 1 0612- ● ● ● ●
6 16.570 PANEL; FRONT 8-97583-957-1 01 1 0612- ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-455-5 01 1 0612- ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-471-5 01 1 0612- ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-459-5 01 1 0612- ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-475-5 01 1 0612- ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY YELLOW(916) DARK YELLOW 		8-97589-183-5 01 1 0612- ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY YELLOW(916) DARK YELLOW 		8-97589-180-5 01 1 0612- ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97582-171-5 01 1 0612- ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97582-155-5 01 1 0612- ● ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) 08.131 		8-97581-676-0 04 1 0612-0807 ● ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) IDENTIFICATION LABEL FOR KD<6UT> 08.131 		8-97581-676-0 04 1 0808-0809 ● ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.131 		8-97581-676-0 04 1 0808-0809 ● ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
08.131 		8-97581-676-0 04 1 0810-1008 ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) 16.570 (B) D4.2X13 		1-09983-161-0 04 1 0612-0807 ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) IDENTIFICATION LABEL FOR KD<6UT> 16.570 (B) D4.2X13 		1-09983-161-0 04 1 0808-0809 ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.570 (B) D4.2X13 		1-09983-161-0 04 1 0808-0809 ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
16.570 (B) D4.2X13 		1-09983-161-0 04 1 0810-1008 ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
16.570 (B) D4.2X13 		1-09983-161-0 04 1 1009- ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
(A) 		8-97581-632-1 04 1 0612- ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) (C) H=11.6 		8-98013-823-0 02 1 0612-0807 ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) IDENTIFICATION LABEL FOR KD<6UT> (C) H=11.6 		8-98013-823-0 02 1 0808-0809 ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) H=11.6 		8-98013-823-0 02 1 0808-0809 ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0810-1008 ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 1009- ● ● ● ●
24 08.131 SEAL; FRT PANEL LWR
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) 		8-97583-672-0 02 1 0612-0807 ● ● ● ●
24 08.131 SEAL; FRT PANEL LWR
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) IDENTIFICATION LABEL FOR KD<6UT> 		8-97583-672-0 02 1 0808-0809 ● ● ● ●
24 08.131 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0810- ● ● ● ●
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-275-0 01 1 0612- ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) 		8-97581-613-3 01 1 0612-0807 ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) IDENTIFICATION LABEL FOR KD<6UT> 		8-97581-613-3 01 1 0808-0809 ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97581-613-3 01 1 0810- ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) 		8-97581-614-3 01 1 0612-0807 ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) IDENTIFICATION LABEL FOR KD<6UT> 		8-97581-614-3 01 1 0808-0809 ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97581-614-3 01 1 0810- ● ● ● ●
307 16.125 GROMMET; FRT PANEL 8-97583-397-0 04 1 0612- ● ● ● ●
529 16.578 REINFORCEMENT; PANEL 8-97851-407-2 01 1 0612- ● ● ● ●
532 08.143 BOLT; FRT PANEL
02.334 M6X16 W/PL WASHER 		8-97803-781-0 02 1 0612- ● ● ● ●
