6-03 — RADIATOR GRILLE (#33010) — 21 parça

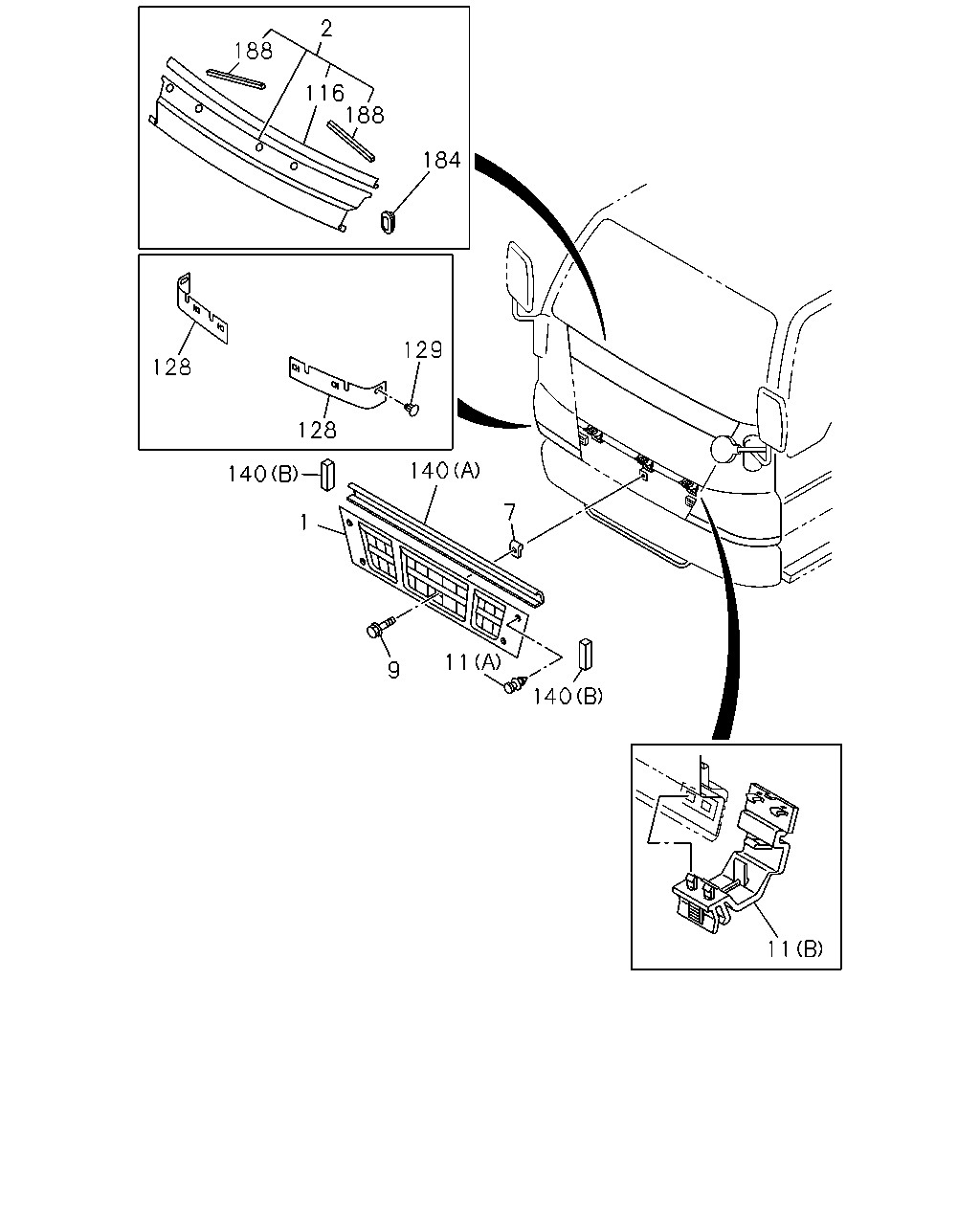

çizim 56752
2 188 116 188 184 129 128 128 140 140 7 1 11 9 140 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97583-047-4 01 1 0612- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR HIGHWAY YELLOW(916) EXC. RADIATOR GRILLE NON PAINT<7LB> DARK YELLOW 		8-97589-230-4 01 1 0612- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97583-048-4 01 1 0612- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97583-050-4 01 1 0612- ● ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97581-826-2 01 1 0612- ● ● ● ●
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97583-954-2 01 1 0612- ● ● ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97583-953-3 01 1 0612- ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0612- ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0612-0805 ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.153 M6X20 W/PL WASHER 		8-98059-504-0 01 1 0806- ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 04 1 0612- ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 04 1 0612- ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-656-1 01 1 0612- ● ● ● ●
128 01.267 COVER; HEADLAMP GRILLE 8-98015-934-0 02 1 0612- ● ●
128 01.267 COVER; HEADLAMP GRILLE
4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) 		8-98015-934-0 02 1 0612- ● ●
128 01.267 COVER; HEADLAMP GRILLE
4JJ1 ENG(LFB) 		8-97581-653-3 02 1 0612- ● ●
129 01.269 CLIP; COVER HEADLAMP GRILLE
D=6.5 		8-97855-279-0 02 1 0612- ● ● ● ●
140 01.266 SEAL; RAD GRILLE
(A) 		8-97581-665-0 01 1 0612- ● ● ● ●
140 01.266 SEAL; RAD GRILLE
(B) 		8-97583-411-1 02 1 0612- ● ● ● ●
184 01.269 GROMMET; ORNAMENT 8-97581-668-0 02 1 0612- ● ● ● ●
188 08.010 SEAL; ORNAMENT 8-97584-800-0 02 1 0612- ● ● ● ●
