0-60B — ENGINE ELECTRICAL CONTROL PARTS (#3301) — 50 parça

10 11 153 418 440 428 156 157 158 155 441 428 428 439 428 438 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER	1-81171-060-0	01	1	9002-9103	●	●
10	RELAY; STARTER NIKKO	1-81171-071-0	01	1	9104-	●	●
11	BOLT; RELAY STARTER M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
11	BOLT; RELAY STARTER M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●
153	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	9307-		●
155	HOSE; FLEX,VGS GOV CONT GOVERNOR CONTROL<W69> L=350	0-07120-350-0	01	1	9002-	●
156	NUT; FLEX HOSE GOVERNOR CONTROL<W69> M12	9-09840-280-0	01	1	9002-	●
157	WASHER; LK GOVERNOR CONTROL<W69> ID=12.2	9-09150-512-0	01	1	9002-	●
158	GASKET; FLEX HOSE GOVERNOR CONTROL<W69> ID=11 OD=18	9-09572-510-0	01	1	9002-	●
296	NUT; RELAY,STARTER M8	9-09110-408-0	02	1	9002-	●	●
418	BOLT; CLIP M8X18 FLANGE	0-28080-818-0	01	1	9307-		●
428	CLIP; HARNESS (A) ID=27 L=24 H=23	1-09700-401-0	01	1	9002-	●	●
428	CLIP; HARNESS (D) ID=27 L=32	1-09700-712-1	03	1	9002-9306	●
428	CLIP; HARNESS EXC. AUTO CAB TILT<WV2> (D) ID=27 L=32	1-09700-712-1	01	1	9307-	●	●
428	CLIP; HARNESS EXC. AUTO CAB TILT<WV2> (B) ID=28 L=45	1-09700-825-1	01	1	9307-9308	●	●
428	CLIP; HARNESS (B) ID=28 L=45	1-09700-825-1	01	1	9309-	●	●
428	CLIP; HARNESS EXC. AUTO CAB TILT<WV2> (C) L=142	8-94232-619-0	02	1	9307-9308	●	●
428	CLIP; HARNESS (C) L=142	8-94232-619-0	02	1	9309-	●	●
438	CABLE; OIL FILTER SW	1-82657-042-0	01	1	9002-9306	●
438	CABLE; OIL FILTER SW	1-82657-062-0	01	1	9307-	●
438	CABLE; OIL FILTER SW	1-82657-063-0	01	1	9307-		●
439	CLIP; BAND AXLE HARNESS RR L=250	5-09707-030-0	01	1	9002-	●	●
440	BOLT; CAB GROMMET M6X18 W/LK WASHER	9-01900-618-0	02	1	9002-9204	●
440	BOLT; CAB GROMMET M6X18 W/LK WASHER	0-50040-618-0	02	1	9205-9302	●
440	BOLT; CAB GROMMET M6X20 FLANGE	0-28080-620-0	02	1	9303-	●	●
441	BOLT; HARNESS TO FRAME M6X22 FLANGE	0-28210-622-0	03	1	9002-9204	●
441	BOLT; HARNESS TO FRAME M6X22 FLANGE	0-28280-622-0	03	1	9205-9309	●	●
441	BOLT; HARNESS TO FRAME M6X22 FLANGE	0-28280-622-0	04	1	9310-	●	●
441	BOLT; HARNESS TO FRAME M6X22 W/LK&PL WASHER	8-94122-770-0	01	1	9309-	●	●

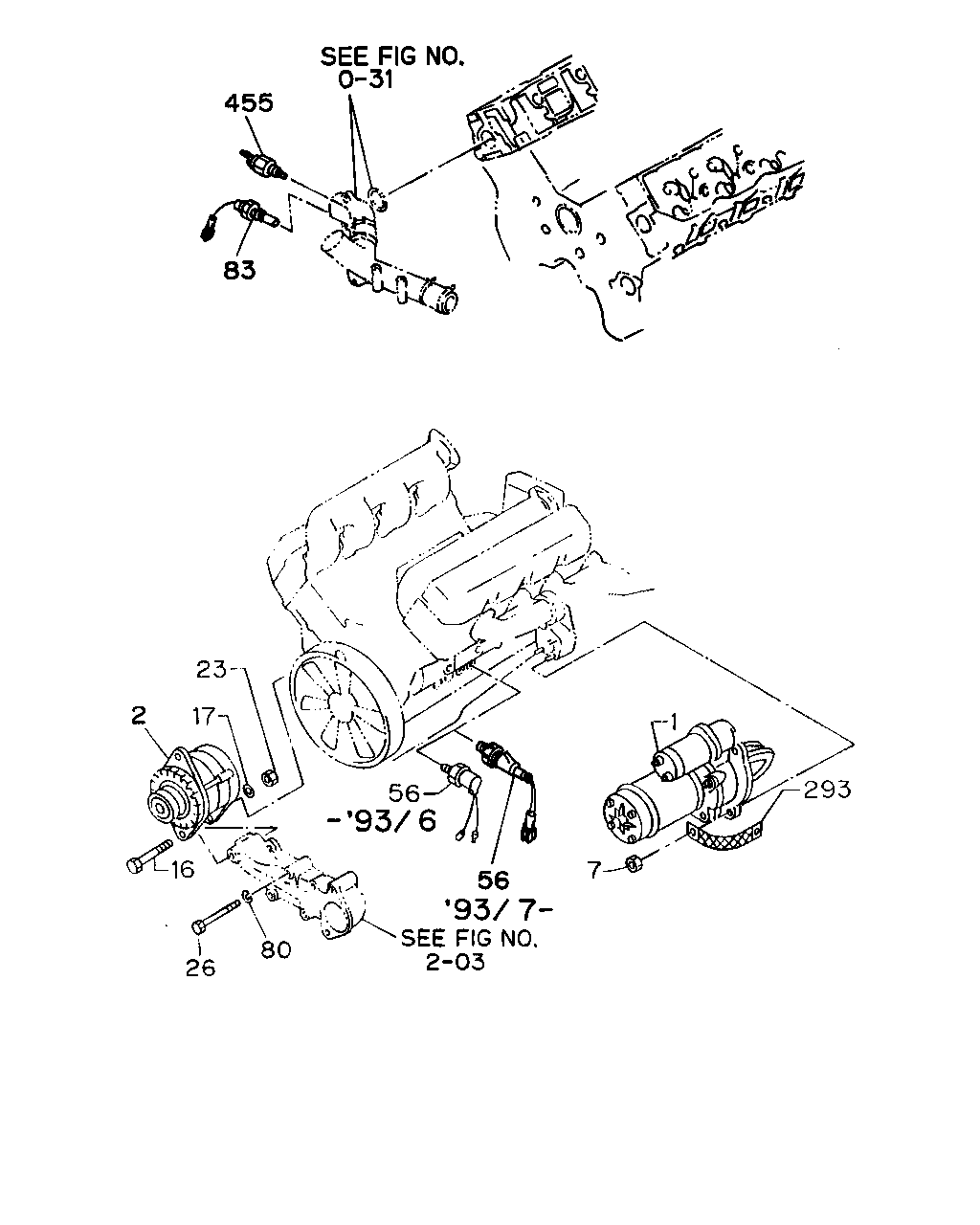

455 83 23 17 2 16 26 80 56 56 7 1 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.4KW NIKKO	1-81100-275-1	01	1	9002-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 11KW NIKKO	1-81100-276-1	01	1	9307-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-40A 1KW(SC5) 24V 40A NIKKO	1-81200-420-2	01	1	9002-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-420-2	01	1	9002-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) 24V 25A NIKKO	1-81200-425-0	01	1	9002-	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	9002-	●	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	9002-	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9002-	●	●
23	NUT; GEN M14 FLANGE	0-91150-114-0	01	1	9002-	●	●
26	BOLT; GEN BRKT M10X70	9-01666-070-0	01	1	9002-	●
26	BOLT; GEN BRKT M10X70	9-01666-070-0	03	1	9307-		●
56	SWITCH; OIL PRESSURE WARNING	1-82410-094-0	01	1	9002-9306	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-138-0	01	1	9307-9502	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-163-0	01	1	9503-	●	●
80	WASHER; LK,DUCT & BRKT ID=10.2	9-09150-610-0	03	1	9002-	●	●
83	THERMOMETER UNIT	1-83161-019-1	01	1	9002-9306	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9307-	●	●
293	CABLE; STARTER EARTH L=350	1-82650-026-0	01	1	9002-9012	●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	9101-	●	●
455	SWITCH; ENG OVER HEAT,WATER	1-82450-013-0	01	1	9002-	●	●
