◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#33009) — 42 parça

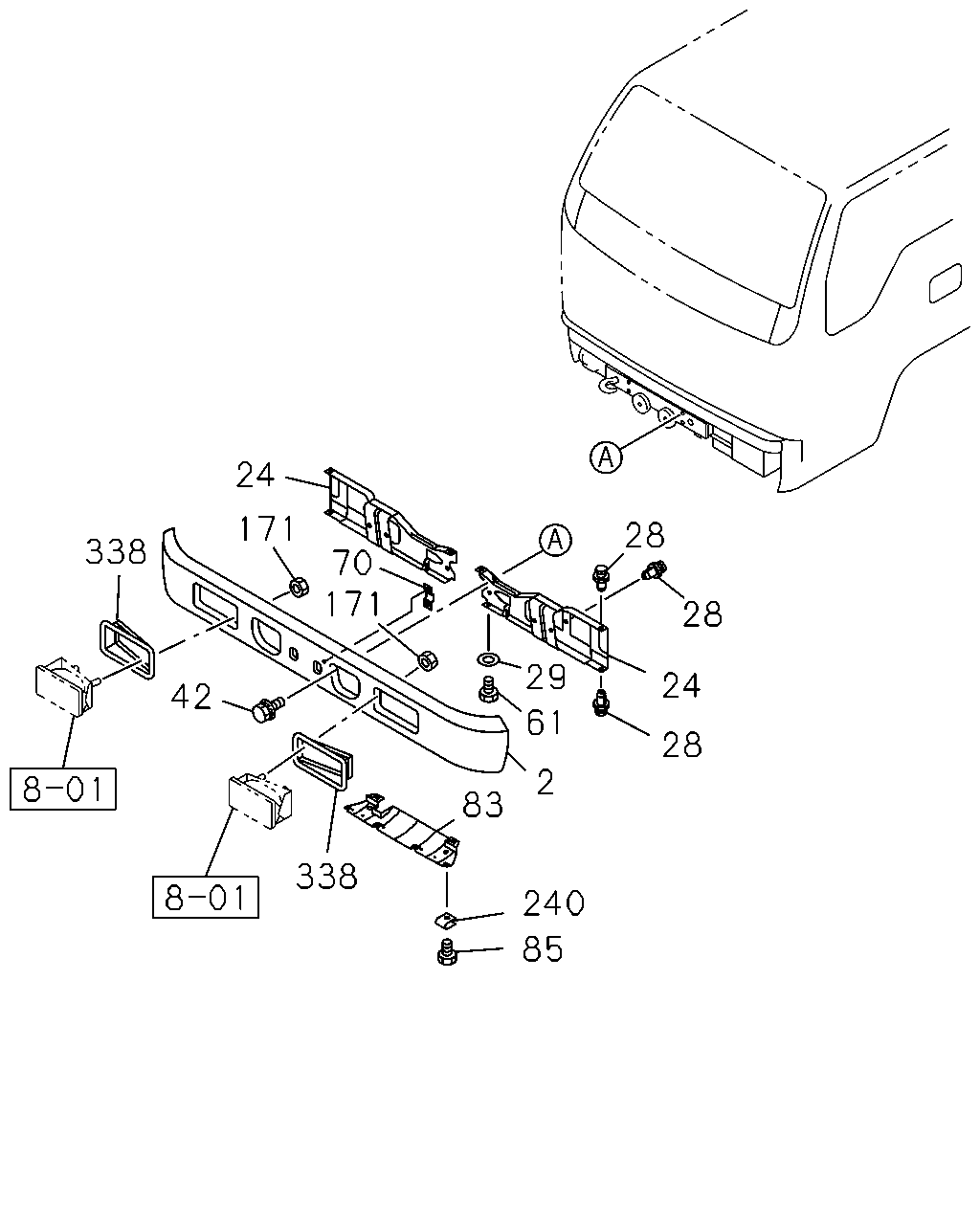

çizim 56329
24 171 28 70 171 338 28 29 24 42 61 28 2 83 338 240 85
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> WHITE 		8-97581-578-0 01 1 0612- ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> WHITE 		8-97999-014-0 01 1 0612- ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> BLUE 		8-97581-579-0 01 1 0612- ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FOG LAMP<T96> PRIMER 		8-97998-075-0 01 1 0612- ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845),BODY COLOR HIGHWAY YELLOW(916) FOG LAMP<T96> DARK GRAY 		8-97589-231-0 01 1 0612- ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845),BODY COLOR HIGHWAY YELLOW(916) EXC. FOG LAMP<T96> DARK GRAY 		8-97583-043-0 01 1 0612- ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97073-672-4 01 1 0612- ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97073-671-4 01 1 0612- ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97039-797-5 01 1 0612- ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97039-796-5 01 1 0612- ● ● ● ●
28 07.833 FASTENER; BACK BAR
12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 08 1 0612- ● ● ● ●
29 07.833 WASHER; FRT BUMPER
ID=8.5 		8-94167-476-0 02 1 0612- ● ● ● ●
42 07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 0612- ● ● ● ●
61 07.832 BOLT; BACK BAR
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 0612-0909 ● ● ● ●
61 07.832 BOLT; BACK BAR
09.171 M8X18 W/LK WASHER 		0-50540-818-0 02 1 0910- ● ● ● ●
70 07.800 BRACKET; LICENSE PLATE,FRT 8-94151-164-1 02 1 0612- ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-97076-719-2 01 1 0612- ● ● ● ●
85 07.874 BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER 		8-97012-072-0 04 1 0612- ● ● ● ●
171 07.869 NUT; BACK BAR
FOG LAMP<T96> 04.012 M8 FLANGE 		1-09464-018-1 06 1 0612- ● ● ● ●
171 07.869 NUT; BACK BAR
EXC. FOG LAMP<T96> 04.012 M8 FLANGE 		1-09464-018-1 02 1 0612- ● ● ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
16.085 M6 SPIRE NUT 		8-97210-973-1 04 1 0612- ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> WHITE 		8-97097-873-0 01 1 0612- ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> WHITE 		8-97097-869-0 01 1 0612- ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> BLUE 		8-97097-871-0 01 1 0612- ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> BLUE 		8-97097-867-0 01 1 0612- ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845),BODY COLOR HIGHWAY YELLOW(916) FOG LAMP<T96> DARK GRAY 		8-97589-233-0 01 1 0612- ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845),BODY COLOR HIGHWAY YELLOW(916) FOG LAMP<T96> DARK GRAY 		8-97589-232-0 01 1 0612- ● ● ● ●
çizim 56749
94 93 94 93 99 99 84 84 30 32 2 2 37 37
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> WHITE 		8-97581-578-0 01 1 0612- ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> WHITE 		8-97999-014-0 01 1 0612- ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> BLUE 		8-97581-579-0 01 1 0612- ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FOG LAMP<T96> PRIMER 		8-97998-075-0 01 1 0612- ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845),BODY COLOR HIGHWAY YELLOW(916) FOG LAMP<T96> DARK GRAY 		8-97589-231-0 01 1 0612- ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845),BODY COLOR HIGHWAY YELLOW(916) EXC. FOG LAMP<T96> DARK GRAY 		8-97583-043-0 01 1 0612- ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> 01.263 		8-97093-639-3 02 1 0612- ● ●
32 07.874 BOLT; BRKT,BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0612- ● ●
37 01.263 BOLT; BRKT TO BUMPER LWR
16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0612- ● ● ● ●
84 07.068 HOOK
07.112 (B) 		8-97122-535-0 01 1 0612- ● ●
84 07.068 HOOK
FRAME STRAIGHT TYPE<7KJ> 07.112 (B) 		8-97122-535-0 01 1 0612- ● ●
84 07.068 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94249-270-2 01 1 0612- ● ●
93 07.068 WASHER; LK,HOOK
06.174 ID=14.2 		0-91510-814-0 02 1 0612- ● ● ● ●
94 07.068 NUT; HOOK
07.833 M14 		0-91110-514-0 02 1 0612- ● ● ● ●
99 07.039 BOLT; HOOK
M14X50 		0-10856-450-0 02 1 0612- ● ● ● ●
