Isuzu WW
▶
TRUCKS
▶
NPR
▶
51103 - NPR/NQR(LHD) EURO4
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

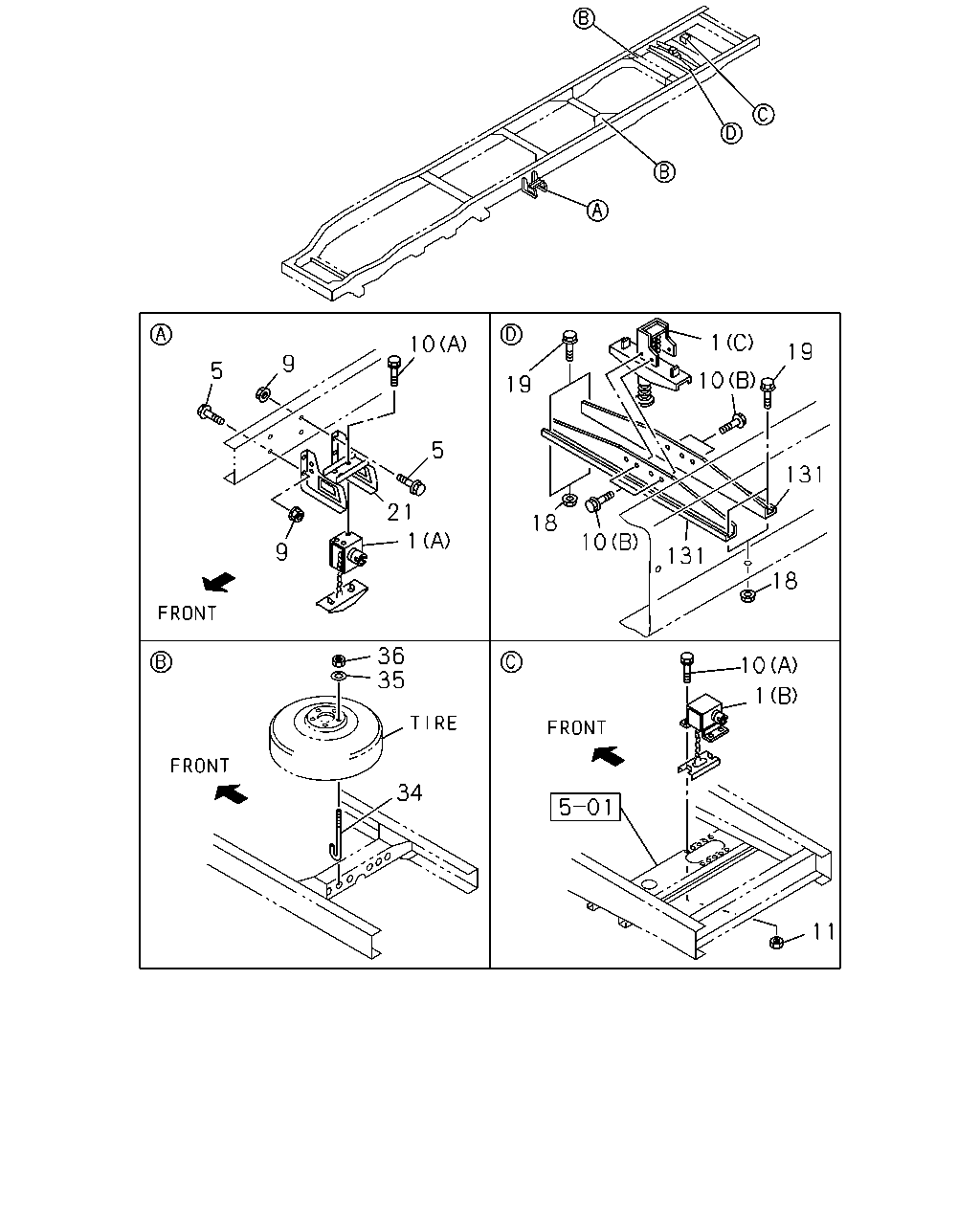

5-30 — SPARE TIRE CARRIER AND COVER
(#33008) — 25 parça
Tümü
A - NPC6SF
B - NPC6SK
C - NPC6SN
D - NPC6SC
1
10
19
9
5
10
19
5
131
21
18
1
10
9
131
18
36
35
10
1
34
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> (C)
1-53630-188-3
01
1
0612-
●
1
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (C)
1-53630-188-3
01
1
0612-
●
1
07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (C)
8-97174-769-0
01
1
0612-
●
●
1
07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV) TAIWAN EQUIPMENT(RWV) EXC. FRAME STRAIGHT TYPE<7KJ> (B)
8-97182-113-1
01
1
0612-
●
●
1
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> (B)
8-97182-115-1
01
1
0612-
●
●
1
07.629 HANGER ASM; TIRE FT
(A)
8-97010-955-1
01
1
0612-
●
5
07.632 BOLT; BRKT TO FRAME
00.029 M10X30 FLANGE
0-28651-030-0
04
1
0612-
●
9
07.633 NUT; BRKT TO FRAME
03.162 M10 FLANGE
0-91180-110-0
04
1
0612-
●
10
07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X25 FLANGE
0-28651-025-0
04
1
0612-
●
●
10
07.632 BOLT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 (A) M8X20 FLANGE
0-28650-820-0
04
1
0612-
●
●
10
07.632 BOLT; TIRE HANGER
01.531 (A) M8X20 FLANGE
0-28650-820-0
03
1
0612-
●
11
07.629 NUT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE
0-91180-108-0
04
1
0612-
●
●
18
07.633 NUT; MEMBER
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE
0-91180-110-0
04
1
0612-
●
●
19
07.632 BOLT; C/MBR
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE
0-28651-030-0
04
1
0612-
●
●
21
07.629 BRACKET; SPARE TIRE HANGER
8-97188-263-1
01
1
0612-
●
34
07.629 BOLT; SPARE TIRE
M12X305
8-94441-189-0
01
1
0612-
●
34
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X305
8-94441-189-0
02
1
0612-
●
●
34
07.629 BOLT; SPARE TIRE
M12X305
8-94441-189-0
02
1
0612-
●
35
07.629 WASHER; PL,SPARE TIRE
07.243 ID=12.5 OD=54
8-94466-483-0
01
1
0612-
●
35
07.629 WASHER; PL,SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54
8-94466-483-0
02
1
0612-
●
●
35
07.629 WASHER; PL,SPARE TIRE
07.243 ID=12.5 OD=54
8-94466-483-0
02
1
0612-
●
36
07.629 NUT; SPARE TIRE
05.002 M12
0-91110-512-0
01
1
0612-
●
36
07.629 NUT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 05.002 M12
0-91110-512-0
02
1
0612-
●
●
36
07.629 NUT; SPARE TIRE
05.002 M12
0-91110-512-0
02
1
0612-
●
131
07.629 CROSSMEMBER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
8-97167-802-0
02
1
0612-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
