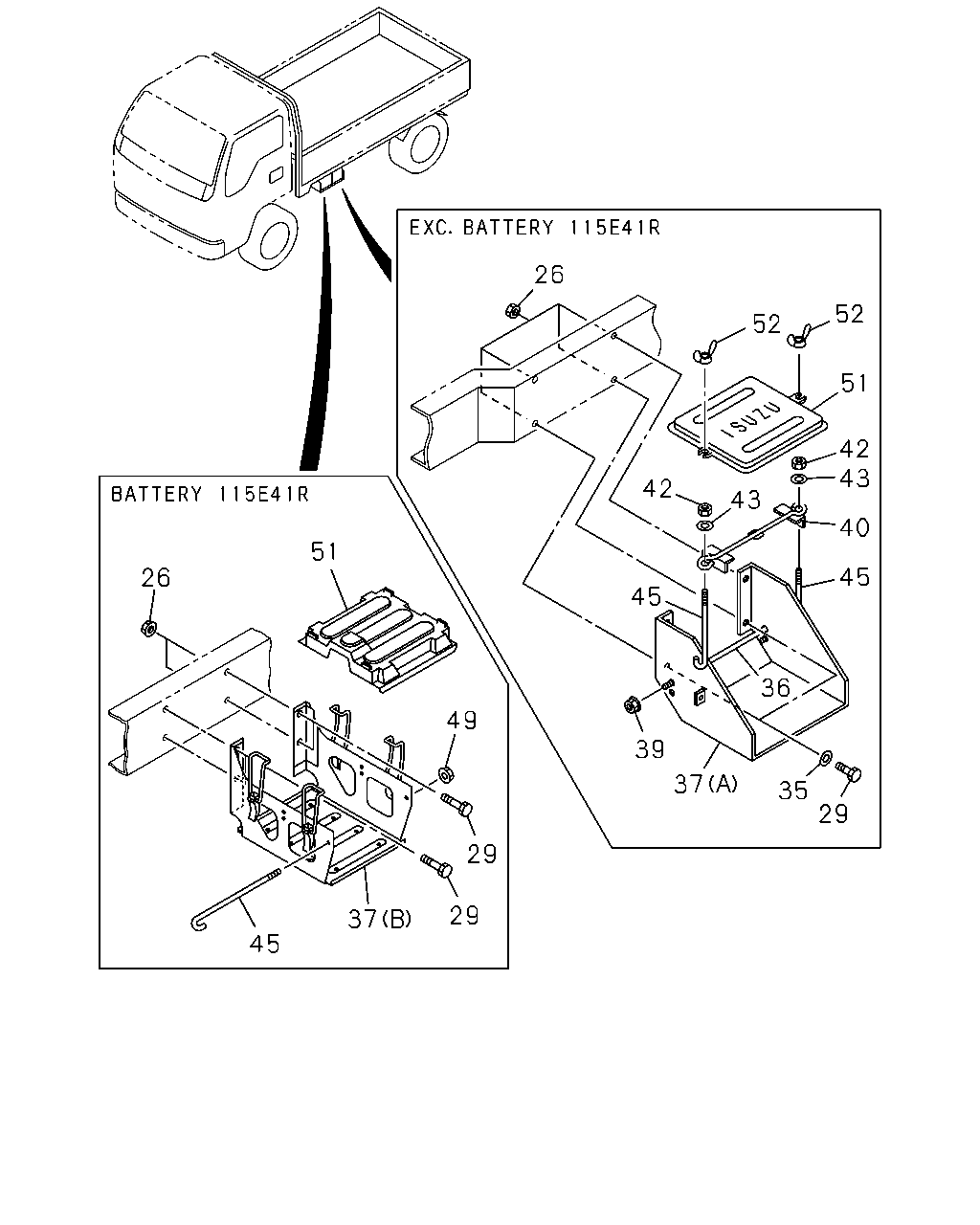

5-20 — BATTERY CARRIER (#33007) — 42 parça

26 52 52 51 42 43 42 43 40 51 45 26 45 36 49 39 37 35 29 29 29 37 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	02	1	0612-	●	●
26	02.334 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0612-			●	●
26	02.334 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	0612-			●	●
26	02.334 NUT; BRKT 4HK1-TCC ENG(RDV) 04.085 M10 FLANGE	0-91180-210-0	04	1	0612-		●
29	02.334 BOLT; BRKT TO FRAME 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0612-	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ> ,BATTERY 75D23R<7PC> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0612-			●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 80D26R<6KC> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0612-		●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0612-		●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0612-	●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ> ,BATTERY 75D23R<7PC> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0612-			●	●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26R<6KC> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0612-		●
36	02.334 STOPPER; BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-94145-894-0	01	1	0612-			●	●
37	02.333 BRACKET; BATTERY (A)	8-97384-068-2	01	1	0612-0612	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ> ,BATTERY 75D23R<7PC> (A)	8-97384-068-2	01	1	0612-0612			●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC> (A)	8-97384-068-2	01	1	0612-0612		●
37	02.333 BRACKET; BATTERY (A)	8-97384-067-2	01	1	0701-	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ> ,BATTERY 75D23R<7PC> (A)	8-97384-067-2	01	1	0701-			●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC> (A)	8-97384-067-2	01	1	0701-		●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0612-0706		●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-98091-497-0	01	1	0707-		●	●	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 01.062 M6 FLANGE	0-91180-106-0	01	1	0612-			●	●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	0612-	●
40	02.335 CLAMP; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ> ,BATTERY 75D23R<7PC>	5-53615-004-1	01	1	0612-			●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26R<6KC>	5-53615-004-1	01	1	0612-		●
42	02.334 NUT; CLAMP M8	0-91110-508-0	02	1	0612-	●
42	02.334 NUT; CLAMP BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ> ,BATTERY 75D23R<7PC> M8	0-91110-508-0	02	1	0612-			●	●
42	02.334 NUT; CLAMP BATTERY 80D26R<6KC> M8	0-91110-508-0	02	1	0612-		●
43	02.334 WASHER; PL,CLAMP 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0612-	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ> ,BATTERY 75D23R<7PC> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0612-			●	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26R<6KC> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0612-		●
45	02.334 ROD; TENSION,BATTERY	9-53616-615-0	02	1	0612-	●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ> ,BATTERY 75D23R<7PC>	9-53616-615-0	02	1	0612-			●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26R<6KC>	9-53616-615-0	02	1	0612-		●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD>	8-97134-740-0	02	1	0612-		●	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 115E41R<6XD> 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-		●	●	●
51	02.335 COVER; BATTERY	8-97120-747-0	01	1	0612-	●
51	02.335 COVER; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ> ,BATTERY 75D23R<7PC>	8-97120-747-0	01	1	0612-			●	●
51	02.335 COVER; BATTERY BATTERY 80D26R<6KC>	8-97120-747-0	01	1	0612-		●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-1	01	1	0612-		●	●	●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	0-91118-408-0	02	1	0612-	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ> ,BATTERY 75D23R<7PC> M8 WING NUT	0-91118-408-0	02	1	0612-			●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26R<6KC> M8 WING NUT	0-91118-408-0	02	1	0612-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
