Sayfa 5-15 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51103 - NPR/NQR(LHD) EURO4 ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶

5-15 — CAB MOUNTING; CAB SIDE (#33006) — 110 parça

145 144 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

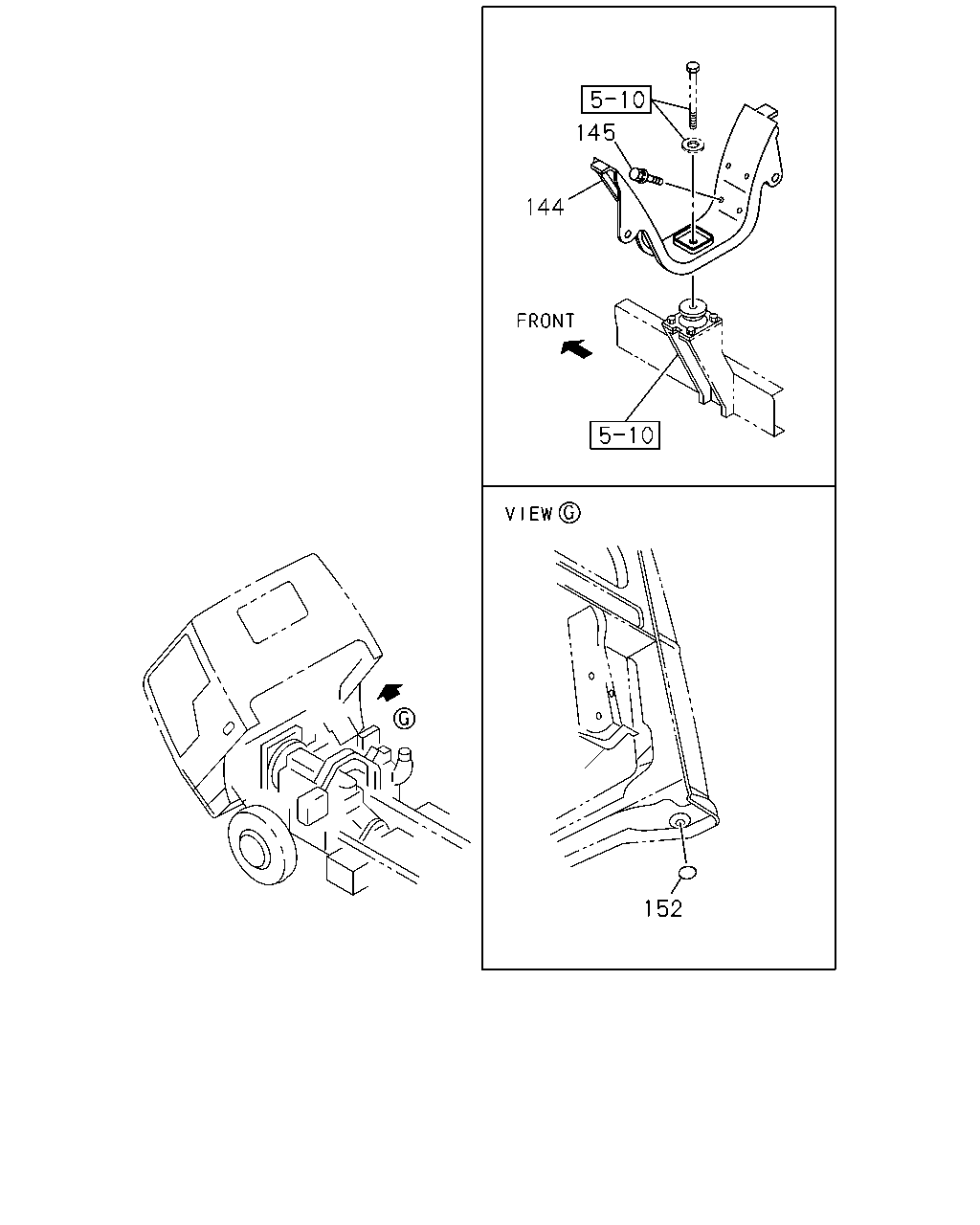

144	09.009 BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	0612-	●	●	●	●
145	09.008 BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0612-0808	●	●	●	●
145	09.008 BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	0809-	●	●	●	●
152	09.003 GROMMET; DUMMY HOLE,CAB TILT LOC 16.165 OD=25 BLACK	1-76798-019-0	02	1	0612-	●	●	●	●

12 15 1 15 3 15 12 38 324 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.003 LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97379-623-0	01	1	0612-	●	●
1	09.003 LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>,HYDRO BRAKE BOOSTER<7QQ>	8-97379-623-0	01	1	0612-			●
1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-97328-486-1	01	1	0612-	●	●	●	●
1	09.003 LEVER; TORSION BAR HYDRO BRAKE BOOSTER<7QQ> EXC. MANUAL TILT CAB<RWZ>	8-97379-624-0	01	1	0612-			●
1	09.003 LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97379-624-0	01	1	0612-				●
3	09.003 BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97326-378-0	04	1	0612-0612	●	●	●	●
3	09.003 BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	0612-	●	●	●	●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97326-378-0	06	1	0612-0612	●	●	●	●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	0612-	●	●	●	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-97261-872-0	01	1	0612-	●	●	●	●
15	09.003 RING; SNAP,TORSION BAR 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-97359-034-0	01	1	0612-	●	●
15	09.003 RING; SNAP,TORSION BAR 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97359-034-0	01	1	0612-			●
15	09.003 RING; SNAP,TORSION BAR 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97359-034-0	01	1	0612-				●
15	09.003 RING; SNAP,TORSION BAR 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ>	8-97359-034-0	02	1	0612-		●	●
38	09.005 NUT; LK 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> 07.833 M14	0-91110-514-0	01	1	0612-0612	●	●
38	09.005 NUT; LK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> 07.833 M14	0-91110-514-0	01	1	0612-0612			●
38	09.005 NUT; LK 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> 07.833 M14	0-91110-514-0	01	1	0612-0612				●
38	09.005 NUT; LK 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> M14	8-98039-988-0	01	1	0612-	●	●
38	09.005 NUT; LK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> M14	8-98039-988-0	01	1	0612-			●
38	09.005 NUT; LK 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> M14	8-98039-988-0	01	1	0612-				●
324	09.003 BOLT; ADJUST 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> M14X55	8-98004-319-1	01	1	0612-	●	●
324	09.003 BOLT; ADJUST 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> M14X55	8-98004-319-1	01	1	0612-			●
324	09.003 BOLT; ADJUST 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> M14X55	8-98004-319-1	01	1	0612-				●

146 104 103 98 99 81 96 83 85 97 95 120 97 93 97 99 101 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

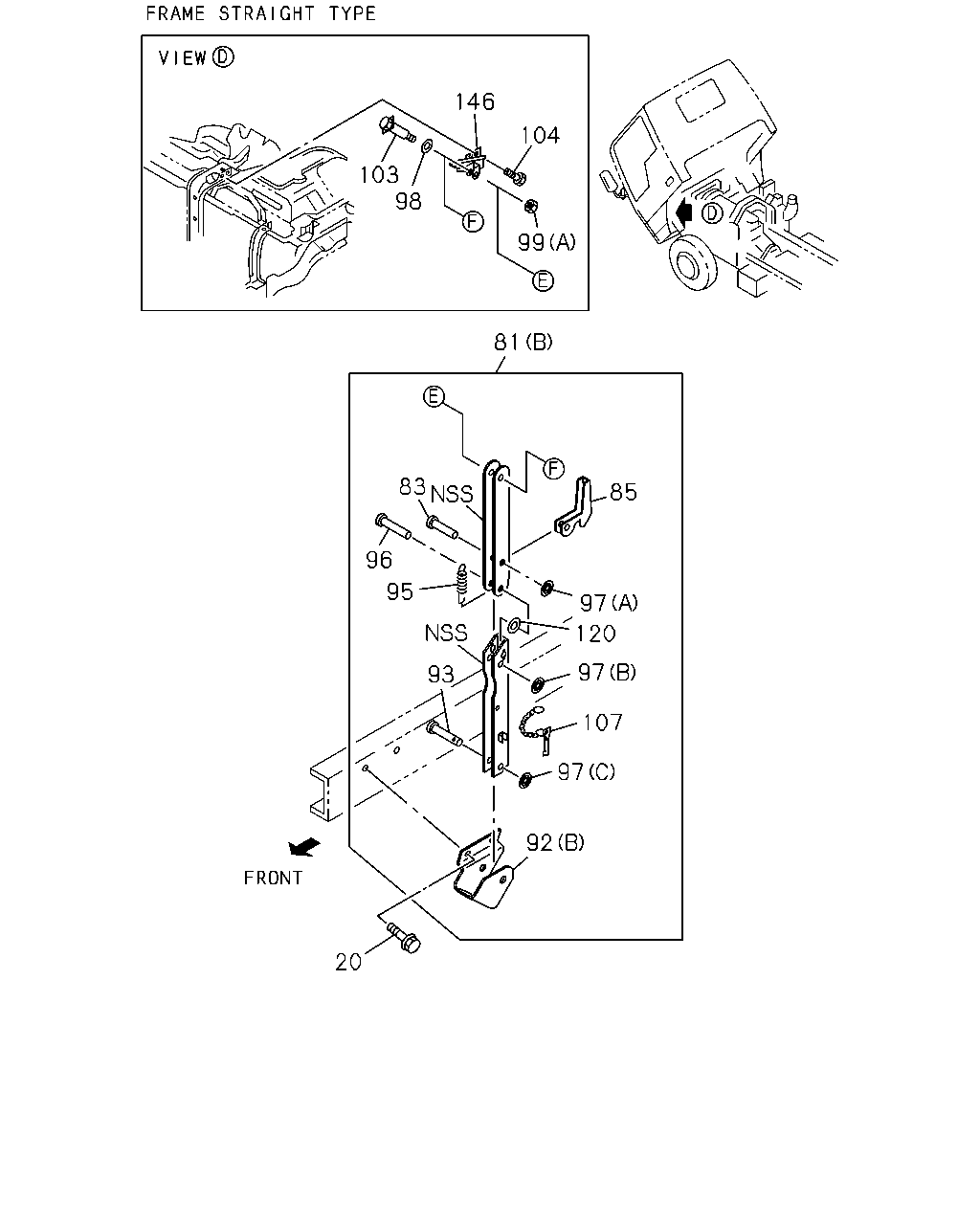

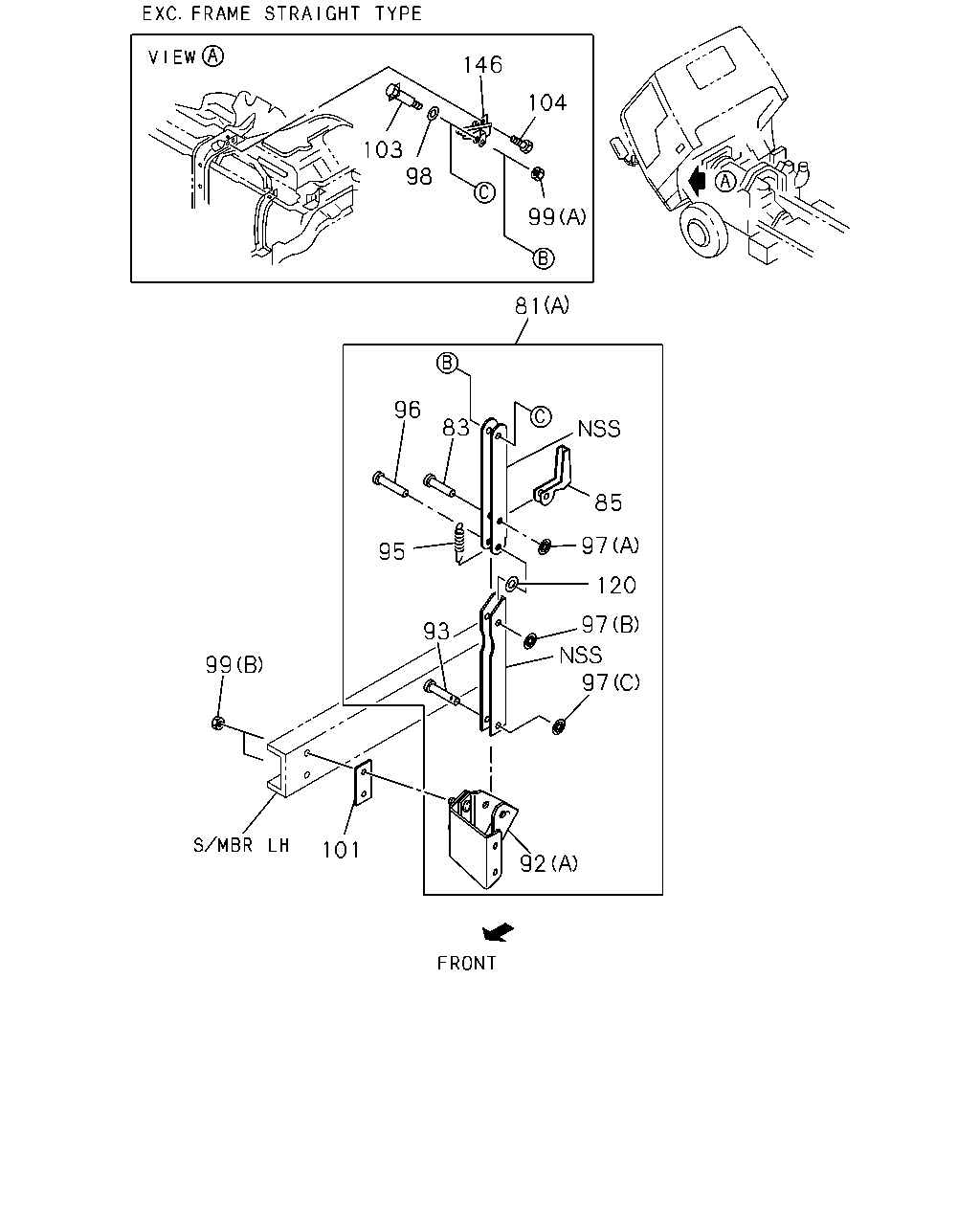

81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (B)	8-97073-880-1	01	1	0612-	●			●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-97073-880-1	01	1	0612-		●	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-943-0	01	1	0612-		●	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=8 L=32	8-97039-548-0	01	1	0612-	●	●	●	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	0612-	●	●	●	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> (B)	8-97108-760-1	01	1	0612-	●			●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-97108-760-1	01	1	0612-		●	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-653-0	01	1	0612-		●	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> OD=12 L=53	8-97218-926-0	01	1	0612-	●	●	●	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	0612-	●	●	●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> OD=10 L=36	8-97096-661-0	01	1	0612-	●	●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	0612-	●	●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (B) ID=9.9 PUSH NUT	8-97022-566-0	01	1	0612-	●	●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (C) ID=11.9 PUSH NUT	8-97022-567-0	01	1	0612-	●	●	●	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> ID=10.5 OD=28.0	8-97184-701-0	01	1	0612-	●	●	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> (A) M10	8-97185-205-1	01	1	0612-	●	●	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0612-		●	●
101	09.003 SPACER MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94121-864-1	01	1	0612-		●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> M10X40	8-97184-683-0	01	1	0612-0805	●	●	●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> M10X40	8-97359-151-0	01	1	0806-	●	●	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	0612-	●	●	●	●
120	09.003 WASHER; NYLON MANUAL TILT CAB<RWZ> ID=10 OD=20	8-97103-223-0	01	1	0612-	●	●	●	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97076-588-2	01	1	0612-	●	●	●	●

1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.003 LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97379-623-0	01	1	0612-	●	●
1	09.003 LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>,HYDRO BRAKE BOOSTER<7QQ>	8-97379-623-0	01	1	0612-			●
1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-97328-486-1	01	1	0612-	●	●	●	●
1	09.003 LEVER; TORSION BAR HYDRO BRAKE BOOSTER<7QQ> EXC. MANUAL TILT CAB<RWZ>	8-97379-624-0	01	1	0612-			●
1	09.003 LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97379-624-0	01	1	0612-				●
3	09.003 BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97326-378-0	04	1	0612-0612	●	●	●	●
3	09.003 BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	0612-	●	●	●	●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97326-378-0	06	1	0612-0612	●	●	●	●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	0612-	●	●	●	●

146 104 103 98 99 81 83 85 96 95 97 120 97 93 107 97 92 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
20	09.003 BOLT MANUAL TILT CAB<RWZ> M10X40 W/WASHER	8-94411-010-0	02	1	0612-	●			●
20	09.003 BOLT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> M10X40 W/WASHER	8-94411-010-0	02	1	0612-		●	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (B)	8-97073-880-1	01	1	0612-	●			●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-97073-880-1	01	1	0612-		●	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-943-0	01	1	0612-		●	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=8 L=32	8-97039-548-0	01	1	0612-	●	●	●	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	0612-	●	●	●	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> (B)	8-97108-760-1	01	1	0612-	●			●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-97108-760-1	01	1	0612-		●	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-653-0	01	1	0612-		●	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> OD=12 L=53	8-97218-926-0	01	1	0612-	●	●	●	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	0612-	●	●	●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> OD=10 L=36	8-97096-661-0	01	1	0612-	●	●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	0612-	●	●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (B) ID=9.9 PUSH NUT	8-97022-566-0	01	1	0612-	●	●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (C) ID=11.9 PUSH NUT	8-97022-567-0	01	1	0612-	●	●	●	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> ID=10.5 OD=28.0	8-97184-701-0	01	1	0612-	●	●	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> (A) M10	8-97185-205-1	01	1	0612-	●	●	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0612-		●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> M10X40	8-97184-683-0	01	1	0612-0805	●	●	●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> M10X40	8-97359-151-0	01	1	0806-	●	●	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	0612-	●	●	●	●
107	09.005 PIN; LK LEVER MANUAL TILT CAB<RWZ>	8-94331-482-0	01	1	0612-	●			●
107	09.005 PIN; LK LEVER MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ>	8-94331-482-0	01	1	0612-		●	●
120	09.003 WASHER; NYLON MANUAL TILT CAB<RWZ> ID=10 OD=20	8-97103-223-0	01	1	0612-	●	●	●	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97076-588-2	01	1	0612-	●	●	●	●

212 133 140 122 141 212 142 143 148 138 122 139 140 122 141 133 143 141 122 140 150 149 122 138 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
122	09.005 WASHER; PL,CAB LOCK ROD MANUAL TILT CAB<RWZ> 09.003 ID=12.5 OD=22	8-94279-627-0	05	1	0612-0707	●	●	●	●
122	09.005 WASHER; PL,CAB LOCK ROD MANUAL TILT CAB<RWZ> 04.439 ID=12.5 OD=22	0-91610-512-0	05	1	0708-	●	●	●	●

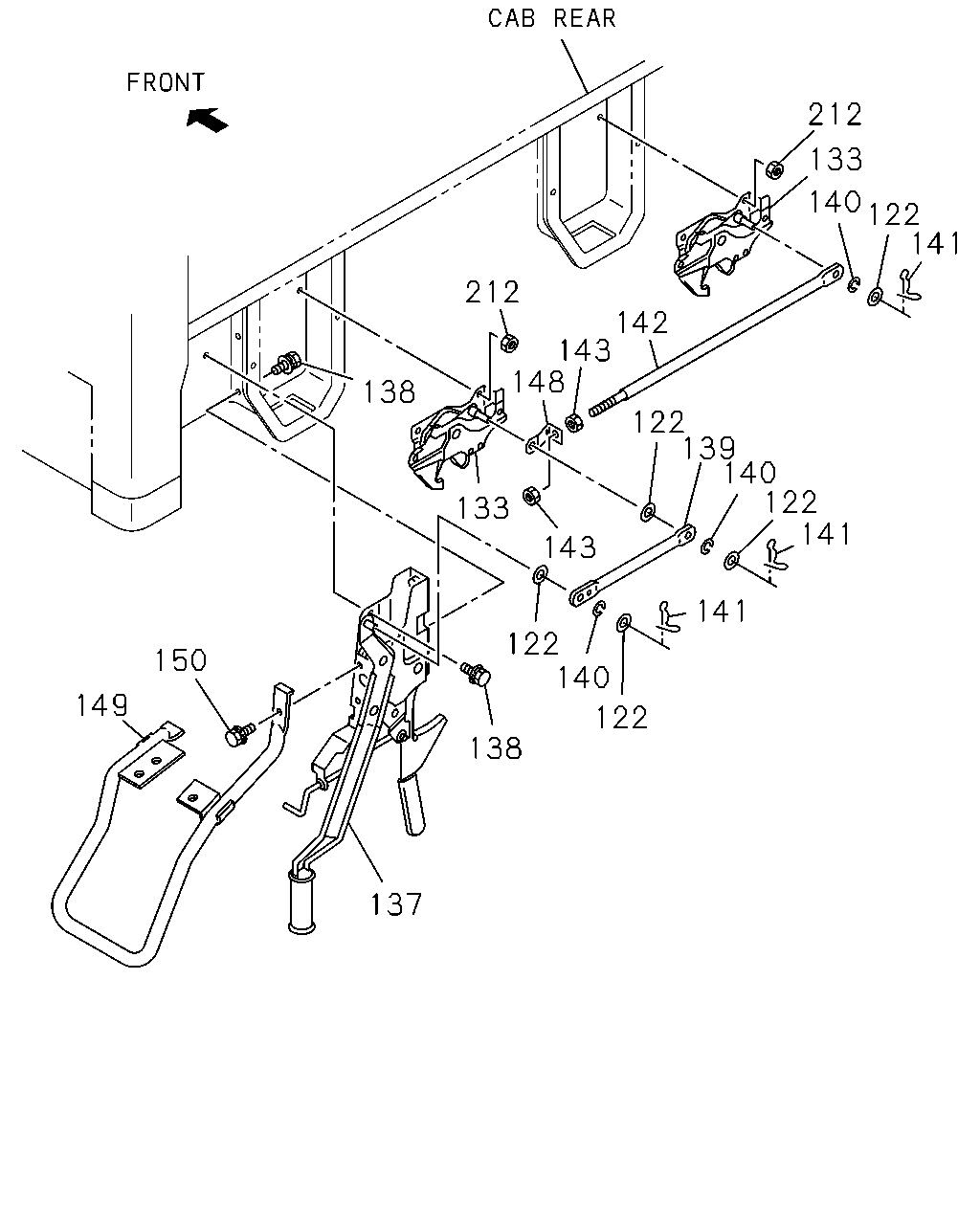

133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ>	8-97853-056-8	01	1	0612-	●	●	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ>	8-97853-055-9	01	1	0612-	●	●	●	●
137	09.005 CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-98053-744-1	01	1	0612-	●	●	●	●
138	09.005 BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0612-	●	●	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ>	8-97997-597-0	01	1	0612-	●	●	●	●
140	09.005 WASHER; LK,CAB LOCK ROD MANUAL TILT CAB<RWZ> ID=13 OD=22	8-98060-839-0	03	1	0612-	●	●	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> 09.003	1-09987-158-1	03	1	0612-	●	●	●	●
142	09.005 ROD; HOOK TO HOOK 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-97856-103-1	01	1	0612-	●	●
142	09.005 ROD; HOOK TO HOOK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97856-103-1	01	1	0612-			●
142	09.005 ROD; HOOK TO HOOK 4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97856-103-1	01	1	0612-				●
142	09.005 ROD; HOOK TO HOOK 4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ>	1-79718-581-0	01	1	0612-		●	●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> 09.008 M10	1-09984-142-0	02	1	0612-0909	●			●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> 09.008 M10	1-09984-142-0	02	1	0612-0909		●	●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> 00.833 M10	0-91110-510-0	02	1	0910-	●			●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> 00.833 M10	0-91110-510-0	02	1	0910-		●	●
148	09.005 JOINT; JAW,HOOK TO HOOK 4HK1-TCN ENG(RDQ),4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ>	8-97856-106-0	01	1	0612-	●			●
148	09.005 JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97856-106-0	01	1	0612-		●	●
149	16.450 HANDLE; TILT MANUAL TILT CAB<RWZ>	8-97853-054-4	01	1	0612-	●	●	●	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0612-1103	●	●	●	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1104-	●	●	●	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> M8 CUTTING NUT W/FLANGE	1-09985-340-0	08	1	0612-0711	●	●	●	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	08	1	0712-0712	●	●	●	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> M8 CUTTING NUT W/FLANGE	1-09985-340-0	08	1	0801-	●	●	●	●
