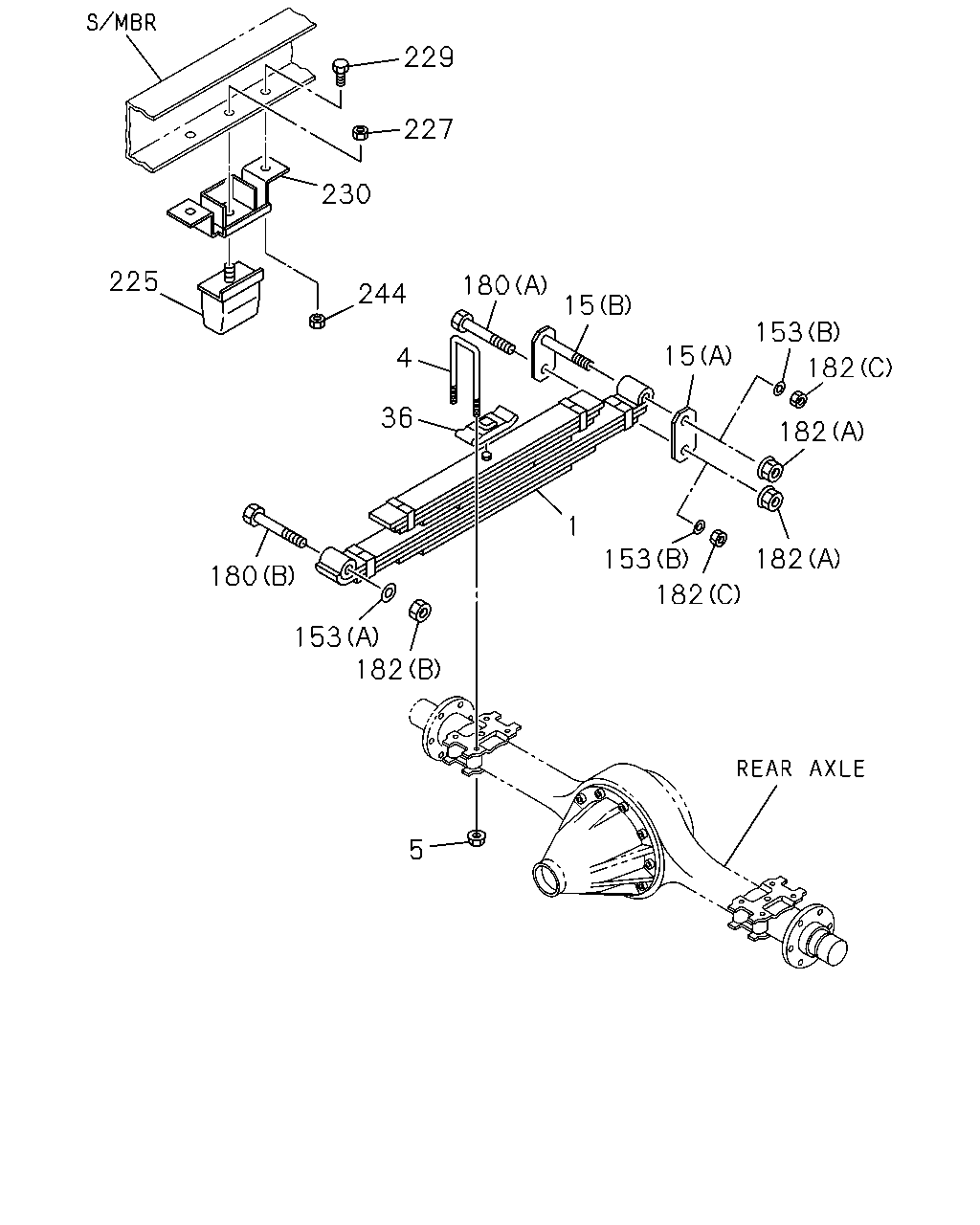

4-60 — REAR SUSPENSION (#33004) — 40 parça

229 227 230 225 180 244 15 153 15 4 182 36 182 1 182 153 180 182 153 182 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF	8-98089-683-1	02	1	0804-1004	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF	8-98089-683-1	02	1	1005-	●	●
4	U-BOLT; RR SPR L=420	1-51371-196-2	04	1	0804-1004	●
4	U-BOLT; RR SPR L=420	1-51371-196-2	04	1	1005-	●	●
5	NUT; U-BOLT,RR SPR M18 FLANGE	1-09440-039-1	08	1	0804-1004	●
5	NUT; U-BOLT,RR SPR M18 FLANGE	1-09440-039-1	08	1	1005-	●	●
15	SHACKLE; RR SPR (A)	8-94118-511-3	02	1	0804-1004	●
15	SHACKLE; RR SPR (A)	8-94118-511-3	02	1	1005-	●	●
15	SHACKLE; RR SPR (B)	8-97360-011-0	02	1	0804-1004	●
15	SHACKLE; RR SPR (B)	8-97360-011-0	02	1	1005-	●	●
36	SEAT; HELPER RUBBER,RR SPR	1-51372-059-0	02	1	0804-1004	●
36	SEAT; HELPER RUBBER,RR SPR	1-51372-059-0	02	1	1005-	●	●
153	WASHER; PL,SPRING PIN (A) ID=19	8-97360-119-0	02	1	0804-1004	●
153	WASHER; PL,SPRING PIN (A) ID=19	8-97360-119-0	02	1	1005-	●	●
153	WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> (B) ID=16.5	8-98011-489-0	04	1	0804-1004	●
153	WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> (B) ID=16.5	8-98011-489-0	04	1	1005-	●	●
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (A) M16X122	8-98011-487-0	02	1	0804-1004	●
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (A) M16X122	8-98011-487-0	02	1	1005-	●	●
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-98011-488-0	02	1	0804-1004	●
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-98011-488-0	02	1	1005-	●	●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97360-110-0	02	1	0804-1004	●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97360-110-0	02	1	1005-	●	●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	0804-1004	●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	1005-	●	●
182	NUT; PIN,RR SPR (B) M18	0-91110-518-0	02	1	0804-1004	●
182	NUT; PIN,RR SPR (B) M18	0-91110-518-0	02	1	1005-	●	●
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (C) M16 SOU	0-91110-516-0	04	1	0804-1004	●
182	NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> (C) M16 SOU	0-91110-516-0	04	1	1005-	●	●
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97360-125-0	04	1	0804-1004	●
182	NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97360-125-0	04	1	1005-	●	●
225	RUBBER; CUSHION,RR SPR	8-98025-096-1	02	1	0804-1004	●
225	RUBBER; CUSHION,RR SPR	8-98025-096-1	02	1	1005-	●	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-112-0	02	1	0804-1004	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-112-0	02	1	1005-	●	●
229	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	04	1	0804-1004	●
229	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	04	1	1005-	●	●
230	SPACER; CUSHION RUBBER	8-98049-968-0	02	1	0804-1004	●
230	SPACER; CUSHION RUBBER	8-98049-968-0	02	1	1005-	●	●
244	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	04	1	0804-1004	●
244	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	04	1	1005-	●	●
