◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51173 - NPS(SOUTH AFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#33002) — 57 parça

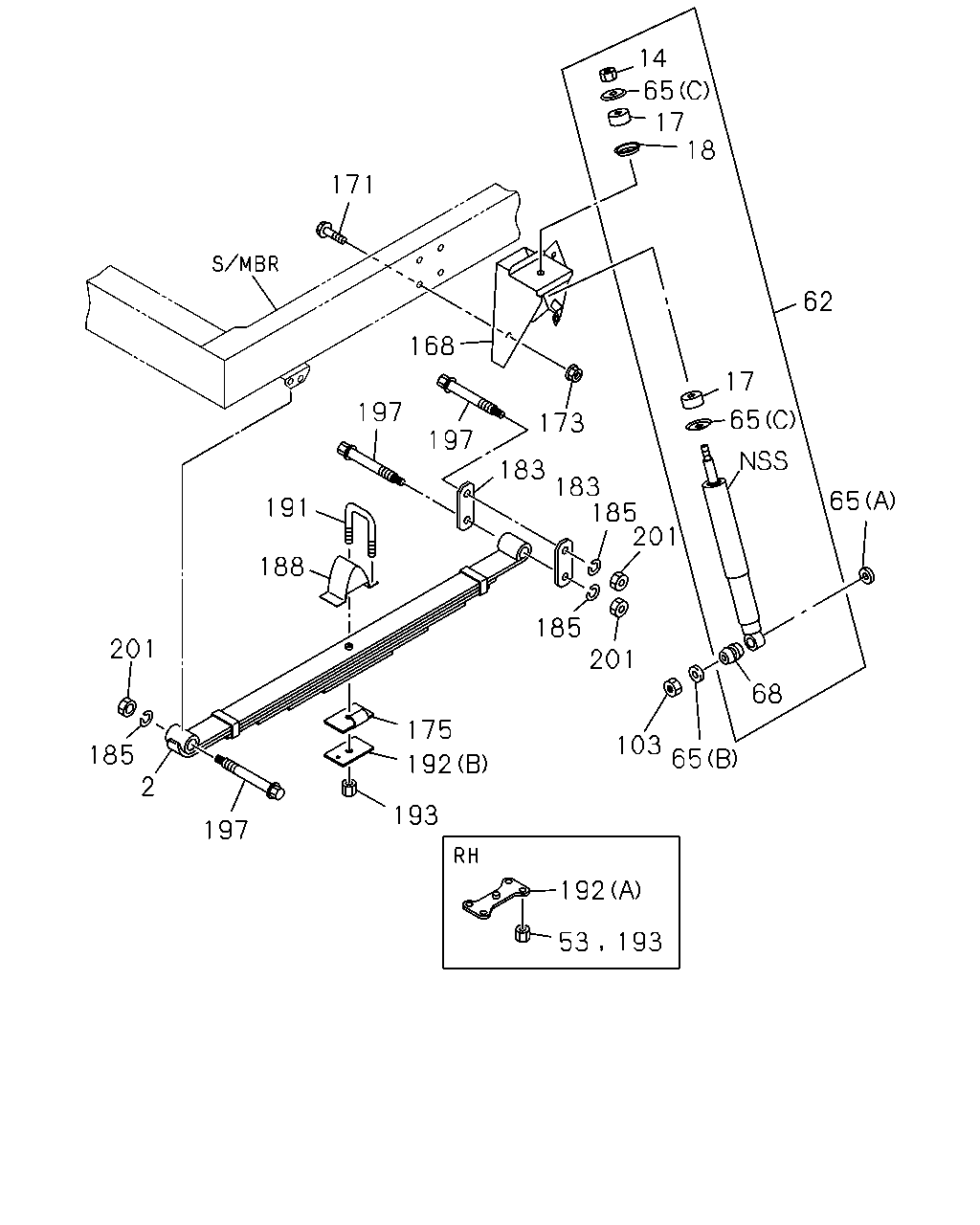

çizim 121925
14 65 17 18 171 62 168 17 197 65 173 197 183 183 185 201 65 191 188 185 201 201 68 175 103 65 185 2 192 193 197 192 193 53
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98090-401-0 01 1 0804-1004 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98090-401-0 01 1 1005- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98090-402-0 01 1 0804-1004 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98090-402-0 01 1 1005- ● ●
14 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 0804-1004 ●
14 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 1005- ● ●
17 BUSHING; RUBBER,S/ABS
TOKICO SOU 		9-51631-603-0 04 1 0804-1004 ●
17 BUSHING; RUBBER,S/ABS
TOKICO SOU 		9-51631-603-0 04 1 1005- ● ●
18 WASHER; CENTERING,S/ABS
TOKICO SOU 		8-94412-791-0 02 1 0804-1004 ●
18 WASHER; CENTERING,S/ABS
TOKICO SOU 		8-94412-791-0 02 1 1005- ● ●
53 NUT; LWR LINK
M14 FLANGE 		8-97360-124-0 02 1 0804-1004 ●
53 NUT; LWR LINK
M14 FLANGE 		8-97360-124-0 02 1 1005- ● ●
62 ABSORBER ASM; SHOCK,FRT 8-97367-351-1 02 1 0804-1004 ●
62 ABSORBER ASM; SHOCK,FRT 8-97367-351-1 02 1 1005- ● ●
65 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 0804-1004 ●
65 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 1005- ● ●
65 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 0804-1004 ●
65 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1005- ● ●
65 WASHER; S/ABS
(C) OD=40 		9-51631-614-0 04 1 0804-1004 ●
65 WASHER; S/ABS
(C) OD=40 		9-51631-614-0 04 1 1005- ● ●
68 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 0804-1004 ●
68 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 1005- ● ●
103 NUT; S/ABS TO LWR LINK
M14 SOU 		0-91110-514-0 02 1 0804-1004 ●
103 NUT; S/ABS TO LWR LINK
M14 SOU 		0-91110-514-0 02 1 1005- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-98049-995-4 01 1 0804-1004 ●
168 BRACKET; S/ABS,FRT SUSP 8-98049-995-4 01 1 1005- ● ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE SOU 		0-28651-235-0 08 1 0804-0804 ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE SOU 		0-28651-235-0 04 1 0805-1004 ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE SOU 		0-28651-235-0 04 1 1005- ● ●
173 NUT; S/ABS
M12 		8-97360-126-0 03 1 0804-1004 ●
173 NUT; S/ABS
M12 		8-97360-126-0 03 1 1005- ● ●
175 SPACER; BRKT,S/ABS 8-94311-841-2 02 1 0804-1004 ●
175 SPACER; BRKT,S/ABS 8-94311-841-2 02 1 1005- ● ●
183 SHACKLE; FRT SUSP 8-94110-399-3 04 1 0804-1004 ●
183 SHACKLE; FRT SUSP 8-94110-399-3 04 1 1005- ● ●
185 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-98011-489-0 06 1 0804-1004 ●
185 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-98011-489-0 06 1 1005- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98090-443-0 02 1 0804-1004 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98090-443-0 02 1 1005- ● ●
191 U-BOLT; FRT SPR
L=185 		8-94461-227-4 02 1 0804-1004 ●
191 U-BOLT; FRT SPR
L=185 		8-94461-227-4 02 1 1005- ● ●
191 U-BOLT; FRT SPR
L=275 		8-94461-228-2 02 1 0804-1004 ●
191 U-BOLT; FRT SPR
L=275 		8-94461-228-2 02 1 1005- ● ●
192 PIECE; DIST
(B) 		8-98049-991-0 02 1 0804-1004 ●
192 PIECE; DIST
(B) 		8-98049-991-0 02 1 1005- ● ●
192 PIECE; DIST
(A) 		8-94462-218-2 01 1 0804-1004 ●
192 PIECE; DIST
(A) 		8-94462-218-2 01 1 1005- ● ●
193 NUT; U BOLT
M14 FLANGE 		8-97360-124-0 08 1 0804-1004 ●
193 NUT; U BOLT
M14 FLANGE 		8-97360-124-0 08 1 1005- ● ●
197 PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF> M16X122 		8-98011-487-0 06 1 0804-1004 ●
197 PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF> M16X122 		8-98011-487-0 06 1 1005- ● ●
197 PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97360-110-0 06 1 0804-1004 ●
197 PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97360-110-0 06 1 1005- ● ●
201 NUT; PIN LK
KD PREPARATORY PACK<6HF> M16 SOU 		0-91110-516-0 06 1 0804-1004 ●
201 NUT; PIN LK
KD PREPARATORY PACK<6HF> M16 SOU 		0-91110-516-0 06 1 1005- ● ●
201 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 06 1 0804-1004 ●
201 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 06 1 1005- ● ●
